TK Pro Electric Trike
Certified UL 2849Size & Fit
| ★ | Folded Size |
39.9(L) x 29.9(W) x 30.7(H) in 101.5(L) x 76(W) x 78(H) cm |
| ★ | Recommended Height | 5'~6'3" |
| A | Top Tube Horizontal | 20.9 in / 53 cm |
| B | Wheelbase | 44.1 in / 112 cm |
| C | Stand Over Height | 12.2 in / 31 cm |
| D | Handle Bar Length | 27.2 in / 69 cm |
| E | Total Length | 65 in / 165 cm |
| F | Total Width | 28.4 in / 72 cm |
| G | Seat Height Min / Max |
30.3~42.1 in 77~107 cm |
| H | Handle Bar Height Min / Max |
44.1~46.1 in 112~117 cm |
| I | Front Basket |
12.6 x 11.8 x 5.5 in 32 x 30 x 14 cm |
| J | Rear Basket |
18.9 x 14.2 x 6.3 in 48 x 36 x 16 cm |
| K | Wheel Size | 20" x 3.0 |
| L | Seat Size |
12.6 x 11.8 in 32 x 30 cm |
Components
| Weight |
G.W. 112.4 lbs, N.W. 90.4 lbs
|
| Frame | 6061 Aluminum, Hydroformed Tubes |
| Fork | Shock Absorber Front Fork |
| Handle Bar | W: 660 * H: 120 * φ22.2 * 2.6T, φ31.8 |
| Stem | Adjustable 0-80d, L: 10.354 in |
| Grip | Soft PVC Rubber |
| Saddle | Seat with Backrest, Comfortable Large Vacuum-Foamed Seat |
| Seat Post | 6061-T6 Aluminum, φ1.25in x 21.65in Length |
| Seat Post Clamp | D40*25, Quick Release |
| Shifter | 6-Speed |
| Derailleur | Shimano |
| Chainwheel | 6.5in Alloy Crank, 38T Steel Chainring |
| Chain | KMC Z7 |
| Freewheel |
6S, 14-16-18-21-24-28T, Special Purpose for E-bike
|
| Pedal | Alloy Body, 9/16-inch |
|
Display
|
Intelligent Digital LCD Display Appears More Clearly in Sunlight, Color
|
| Brake | STARUNION Hydraulic Disc Brake, Alloy, 180mm Rotor |
| Brake Level | STARUNION Alloy 3-Finger Hydraulic Disc Brake with Electrical Cut-Off Function |
| Rim | 20-inch Alloy Rim, 3.0" Width, 13G Spokes, 36 Holes, AV |
| Tire | 20" x 3.0 Tire, CST, 60TPI |
| Spokes | 304 Stainless Steel, 13G |
| Parking Brake | With |
| Fenders | With |
| Rear Rack | With |
| Front Basket | With |
| Rear Basket | With |
| Assembly | 95% |
| Colors | 6 Colors |
| Carton Size |
39.8 x 29.9 x 30.3 inches 1010 x 760 x 770mm |
| Load Capacity |
450LBS
|
Specification
| Motor | 48V*750W |
| Battery | 48V*20Ah |
| Range | 45-75 Miles |
| Charger | 110-240V 54.6V 3A |
| Charging Time | 7 Hours |
| Max Safe Speed | 16 Mph |
| Controller | Sine Wave FOC 48V 24amp Peak |
| Sensor | Upgraded Torque Sensor |
| Throttle | Half Twist Throttle |
| Wire Harness | All Water-Resistant |
| Front Light | Starunion LED, Horn Function, CPSP Reflector |
| Rear Light | Starunion LED, Brake Highlight Function, Turn Signals Function |
Safety
Our approach to accessibility goes beyond physical design
Comfort
And inclusivity, making sure every rider feels confident and empowered
Accessibility
It encompasses affordability, ensuring our E-Trikes are within reach
Rear Drive Motor
Equipped with a 750W rear-drive motor, delivering up to 1500W of peak power and 85Nm of peak torque, it offers powerful and reliable performance to easily handle various terrains and travel needs.
Battery Power
Equipped with a removable 48V*20Ah lithium battery. Provides a range of 45 to 75 miles on a single charge. Explore with confidence and no worries about battery life.
Torque Sensor
The torque sensor detects the rider's pedaling force, offering responsive and efficient assistance for a natural riding experience, making it a better choice than cadence sensors.
Shimano 6 Speed
The Shimano 6-speed gear system allows riders to select the appropriate gear based on speed and terrain, enhancing functionality and making rides more enjoyable and efficient.
More Comfort, Less Worry
Low-Step Frame
The 12.2-inch low step-over height makes getting on and off the bike easier, reduces the risk of tripping, and ensures a safe, smooth ride for riders of all abilities.
Cruise Control
The newly added cruise control ensures a smoother ride by maintaining a set speed, eliminating the need for constant throttle or pedal adjustments. Press and hold the minus button to activate. To exit, simply twist the throttle or pull the brake lever.
Speed Differential Mechanism
Adjusting the wheel speed difference enhances vehicle handling and stability, allowing for smoother turns and greatly improving riding safety.
Turn Signals & Horn Function
Equipped with turn signals and a horn, it enhances visibility and safety, enabling riders to navigate urban environments with greater confidence.
Comfort and Care in Every Ride
Assembly Video
Our assembly videos will walk you through assembly
This product is rated 4.9 of 5.0 stars.
It has received 30 reviews.
Customer Reviews
Like everything about this trike except annoying squeaky. Googled problem and tried many tips but problem persisted.
WD40ed the rear end and have now gone about 40 miles squeak free.
Great Tricycle. Has plenty of power for climbing hills., and runs very smooth. Absorbes the bumps and turns easy. Minimal time adjusting to three wheels. I LOVE IT!
We bought the TK Pro for my wife after a less than ideal experience with a top competitor. The deciding factors were the torque sensor and multiple gears - which I have on my e-bike. Torque sensors are worth every penny that you pay for them as the feel is more natural. The trike itself gets 5 stars, but I could only give it 4 because we had to take it to a repair shop 1.5 hours away to get one of the rear wheels trued (nobody local would work on an e-trike...). We also had to get creative with the fenders to keep them from rattling. Overall, though, the TK Pro is a wonderful machine and my wife has built enough confidence in her riding that she will now ride solo in our neighborhood - with distances over 11 miles each ride.
Only have 12 hours on the trike but I think it’s a product. Need to use it more to say how well it’s holding up but right now I think it’s great.
I have mobility concerns, why I got the trike and not bicycle. I can’t walk like I used to and miss being out on our rural, out in the middle of nowhere roads. This bike does a great job of allowing me to take so many different routes, different dirt roads for hours without a problem. I get some interesting stares, but that’s okay, I just wave and smile.
This bike has also allowed me to do something that I couldn’t do before……. Ride bike with my grandkids! I can go up and down the hills on these roads now and spend precious time with them.
Also I’m really pleased with the battery life!
So far no complaints!

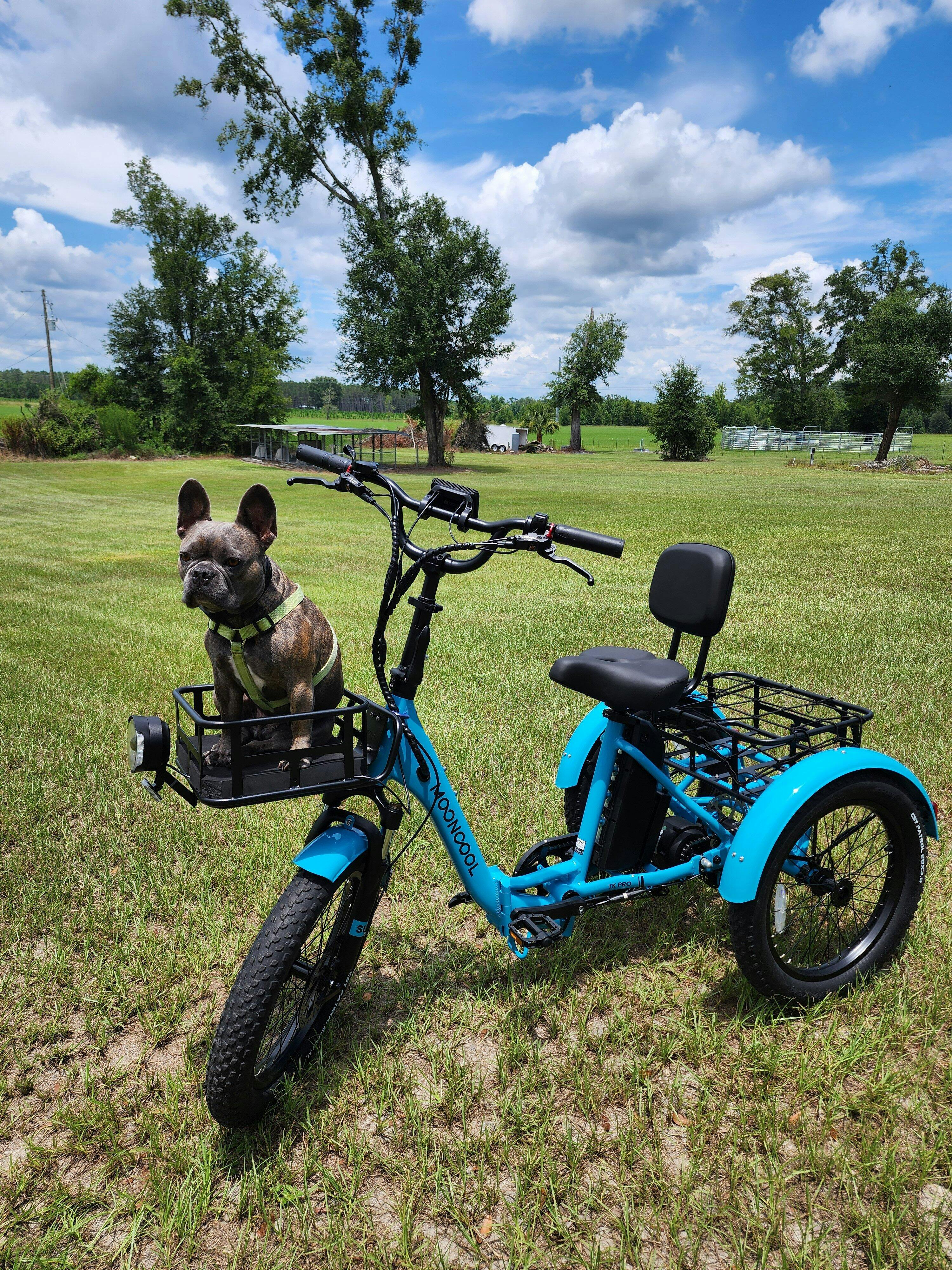

Arrived in 4 days, two of us assembled it in 1.4 hrs, no scratches or dents and the ride is awesome. First time on a trike, 72 year old female, love the mooncool trike. Lake blue in color.
FAQs
What are the dimensions of the TK Pro when it's folded?
When folded, the TK Pro Electric Trike measures 101.5 x 76 x 78 cm (39.9 x 29.9 x 30.7 inches), making it compact for storage and convenient to transport.
How assembled is the TK Pro electric trike when it arrives, and what will I need to do to finish the assembly?
Arrives 95% assembled with simple final steps. Tools and clear instructions included for a quick, hassle-free setup.
Does the electric trike come with a battery and both front and rear baskets included?
Yes, indeed! Your trike arrives with a battery and both baskets included, ready for immediate use.
