A Better eTrike!! Mooncool TK1 Fat 20" | Cheaper Than Lectric XP Trike
E-Bike Reviews
Pre-assembled
65%
Range
30~45 MI
Top Speed
16MPH
Load Capacity
400 LBS
Motor
Peak 1000W
Battery
48V*14.5Ah
TK1 Fat Tire Electric Trike
Compatible Accessories
MC Trike Set Package (NOT FOR SALE / NON-DELIVERY)
Free
$34.99
MC Storage Bag for Trikes
$59.99
MC Trike Accessories Package
$119.99
MC Adjustable Wide Trike Seat
$59.99
S3 Bluetooth Cycling Glasses
$79.99
Show more
add 0
&
Save 0%
Pre-order now to get FREE accessories!

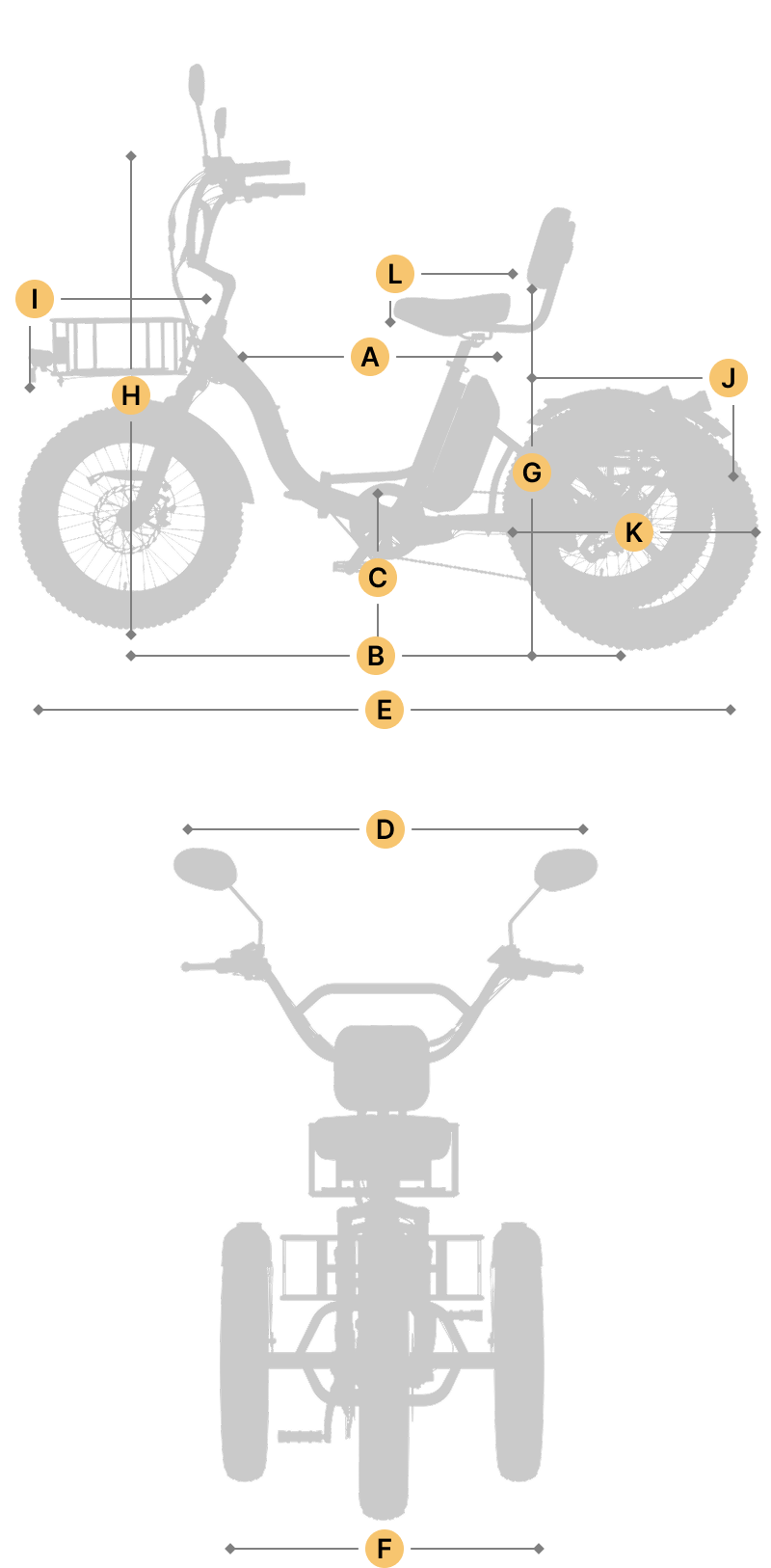

Size & Fit
Size & Fit
Recommended Height: 5'-6'3"
| A | Top Tube Horizontal | 22.44 in |
| B | Wheelbase | 47.2 in |
| C | Stand Over Height | 16.7 in |
| D | Handlebar Length | 26.6 in |
| E | Total Length | 67.7 in |
| F | Total Width | 31.5 in |
| G | Seat Height Min/Max | 31~39 in |
| H | Handlebar Height Min/Max | 46~49 in |
| I | Front Basket | 13.78*11.02*5.12 in |
| J | Rear Basket | 19.29*20.08*11.42 in |
| K | Wheel Size | 20 in |
| L |
Seat Size
|
16.5*12.6 in |
| ★ | Recommended Height | 5'~6'3" |
Components
Components
| Weight | G.W. 116.4lbs, N.W.89.9lbs |
| Frame | 6061 Aluminum+Hiten Steel |
| Fork | Suspension, Coil Spring Structure |
| Handle Bar | Alloy ,Bmx Style, Barboe 31.8mm, Length 660mm, Rise 120mm |
| Stem | Alloy,Barboe 28.6*31.8mm, Folding, Extention Tube 180mm |
| Grip | Soft PVC Rubber |
| Saddle | Comfortable Big Vacuum Foaming Seat With Backrest |
| Seat Post | Alloy ∮30.9*2.2t*300mm Length |
| Seat Post Clamp | Id34.9mm, Quick Release |
|

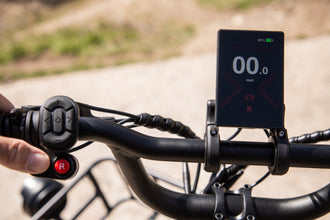

Display
|
Multifuction YL81, LCD Color Screen, Appears More Clearly in Sunlight, 3 Levels, Speed Limit 16MPH
|
| Shifter | Shimnano 7 Speed |
| Derailleur | Shimnano |
| Chainwheel | 1/2*3/32*44t*170mm Alloy Crank 170mm, Steel Chainring 44t |
| Chain | 1/2*3/32*132l |
| Freewheel | 1/2*3/32*14-28t |
| Pedal | Alloy Body 9/16" |
| Brake | Mechanical Disc Brake, Alloy, Rotor 160mm |
| Brake Level | Alloy, Disc Brake With Electrical Cut-Off Fuction |
| Rim | Alloy 20inch * 4.0" * 13g * 36h, AV |
| Tire | 20" *4.0 |
| Spokes | Stainless, 13g |
| Fenders | With |
| Rear Rack | With |
| Front Basket | With |
| Rear Basket | With |
| Assembly | 65% |
| Colors | 6 Colors |
| Carton Size | 149*35*94cm |
| Load Capacity | 400LBS |
| Recommended Height | 5'-6'3" |
Specification
Specification
| Motor | 48V*500W Front Motor, Peak Power 1000W, 85Nm Peak Torque |
| Battery Capacity | Lithium 48V*14.5Ah |
| Battery Range | 30~45 Miles |
| Charger | 100-120V 54.6V 2.0A |
| Battery Charging Time | 6-8 Hours |
| Top Speed | 16 MPH |
| Controller | Sine Wave Foc 48V20AMP Peak |
|
Pedal Sensor |
Cadence Sensor |
|
Wire Harness |
All Water Resistant |
| Throttle | Thumb Throttle |
| Front Light | LED Ebike Version with Horn Function |
TK1 Fat Tire Electric Trike
Sale Price$1,499.99
Regular Price$1,699.99 (/)
Back to Product
MC Trike Set Package (NOT FOR SALE / NON-DELIVERY)
NOT FOR SALE / NON-DELIVERY
- Cargo Net x 1
- Water Bottle Cage x 1
- Tool Kit x 1
$34.99
$34.99
Add Accessory
Back to Product
MC Storage Bag for Trikes
- Rear Storage Bag: 5.75 in x 15.75 in x 9.84 in / 40 cm * 40 cm * 25 cm
- Waterproof Polyester Fabric: 600D
- Compatible Trike Models: TK1 Fat Tire, MC 350, MC City, MC Folding, MC Mountain
$59.99
Add Accessory
Back to Product
MC Trike Accessories Package
- Phone Holder x 1
- Water Bottle x 1
- Handlebar Bag x 1
- Mirrors (Pair) x 1
$119.99
Add Accessory
Back to Product
MC Adjustable Wide Trike Seat
- Wide and Comfortable
- Lumbar support
- Easy-to-clean Leather Material
- Fits all the Mooncool Trikes
- The saddle seat with a backrest is a good choice as a replacement seat, providing lumbar support for your lower back and this will reduce your fatigue effectively.
- Black
- Black Gray
$59.99
Add Accessory
Back to Product
S3 Bluetooth Cycling Glasses
- Black
- White
$79.99
Add Accessory
Back to Product
AP10 All-in-One Electric Inflator
- Full Black
- Vibrant Orange
$79.99
$99.99
Add Accessory
Back to Product
MC Protective Outdoor Trike Cover
- Large Size: 75"×30"×44"(L×W×H), fits most adult trikes.
- Various Colors: Choose from three different colors according to your preferences.
- Easy to Storage: Easy to take with you anywhere with a matching carrying bag.
- Lock-Hole Design: Lock hole design at the front wheels area allows using a bike lock with the cover on.
- Waterproof Material: Made of waterproof polyester with PU and UV coating protects bicycles from weather, dust, dirt, and sun damage.
- Black Silver
- Black Orange
- Full Black
$29.99
Add Accessory
Back to Product
MC Outdoor Large Storage Trike Tent
- Ample space accommodates most adult trikes.
- Dual-ended zipper system with waterproof flap
- Convenient matching carrying bag
-
Dimensions: 78.7''(L) x 63''(W) x 63''(H)
- Green
- Black
$79.99
Add Accessory
Back to Product
MC Bike Water Bottle
$15.99
Add Accessory
Back to Product
MC Mirrors (Pair)
Bike mirrors can greatly enhance safety while riding on busy roads, providing an additional line of sight, effectively monitoring approaching vehicles, pedestrians, or other cyclists from behind, helping us make informed decisions on when to change lanes, make turns, or take any necessary defensive actions.
$39.99
Add Accessory
Back to Product
MC Phone Holder
A bike phone holder can grip each corner of your phone tightly, ensuring its safety even on bumpy roads, which allows you to access navigation apps, track your ride, or stay connected while riding.
$24.99
Add Accessory
Back to Product
MC Handlebar Bag
A bike handlebar bag is a convenient and versatile accessory designed to securely hold your essentials while riding. With a handlebar bag, you can keep your belongings within reach and organized, making it easy to access them whenever needed.
$39.99
Add Accessory
Back to Product
MC Bike Chain Lock
$39.99
Add Accessory
Back to Product
MC Bike Protective Helmet /LED Light
Providing you with professional and excellent protection,
whether on or off the road.
- Cool Gray
- White
- M
- L
$49.99
Add Accessory
MoonCool TK1 Fat Tire Trike Let's Check It Out
SpiderWayne
Mooncool TK1 FAT 20 Tricycle Ebike Assembly: Step-by-Step Guide
Mike Rochester
Mooncool TK1 3 Wheel trike Electric Bike. 48V 15ah 500W (750 peak) Ebike E-Bike FULL TEST
MotoCheez
Mooncool TK1 Fat Tire E-Trike Best
Jerry T on E-bikes
Safety
Our approach to accessibility goes beyond physical design
Comfort
And inclusivity, making sure every rider feels confident and empowered
Accessibility
It encompasses affordability, ensuring our E-Trikes are within reach
Front Drive Motor
Rated at 500W, the motor can surge up to a peak power of 1000W, ensuring quick and smooth rides. Its high torque of 85Nm guarantees easy hill-climbing.
Battery Power
With a 48V*14.5Ah lithium battery, it allows for extended rides with a range of 30-45 miles. Requiring a charging time of 6-8 hours, the battery ensures reliable, sustained power.
20" x 4.0 Fat Tires
Sporting 20" x 4.0 fat tires, the etrike promises safety, stability, and versatility across almost all terrains.
Suitable for almost all terrains
Vacuum Foam Seat
It includes a large, vacuum-foamed seat with a backrest, ensuring ride comfort and support, enhancing the overall ride quality.
Shimano 7 Speed
Equipped with a Shimano 7-speed gear system, the etrike ensures flexible and smooth speed control.
Large Front & Rear Baskets
With spacious front & rear baskets, it provides ample room for personal items or larger cargo, adding a level of convenience and practicality to your rides.
Your reliable travel buddy
TK1 Fat Tire vs MC 350
TK1 Fat Tire Electric Trike
Sale Price$1,499.99
Regular Price$1,699.99
MC 350 Electric Trike
Sale PriceFrom $999.99
Regular Price$1,199.99
TK1 Fat Tire Electric Trike
Sale Price$1,499.99
Regular Price$1,699.99
MC 350 Electric Trike
Sale PriceFrom $999.99
Regular Price$1,199.99
Motor
500W Front Drive Motor
350W Front Drive Motor
Battery
48V*14.5Ah
36V*10.4Ah / 36V*14.5Ah
Range
30~45 Miles
15~30 Miles / 15~40 Miles
Top Speed
16 mph
16 mph
Frame
6061 Aluminum+Hiten Steel
Hi-ten Steel Frame
Saddle
Big Vacuum Foaming Seat With Backrest
Comfortable saddle
Shifter
Shimnano 7 Speed
Shimnano 7 Speed
Tire
20" * 4.0 Fat Tires
24" * 1.95 / 26" * 2.125
Fork
Suspension Fork
25.6*25.4*30 206mm Steer
Baskets
Front & Rear Basket
Rear Basket
Load Capacity
400 LBS
350 LBS
Horn
Yes
No
Assembly
65%
50%
Assembly Video
Our assembly videos will walk you through assembly
This product is rated 4.6 of 5.0 stars.
It has received 35 reviews.
Customer Reviews
Based on 35 reviews
66%
(23)
29%
(10)
6%
(2)
0%
(0)
0%
(0)
L
The woman I got this Trike for, is now able to skoot around the little town she lives in, like she owns the place. bidding "Good Day" to all she encounters on her journey. The rear basket is a little flimsy but it is holding her groceries just fine for now. I was looking at several makers and I am how very glad I went with Mooncool. Yes! You can say: Another Happy Customer
G
All aspects of order through delivery was fantastic. I had a small chip on the left fender which was replaced immediately. Look forward to enjoying many many days of riding Into town.
L
I really like my red mooncool trike. It looks great and rides easy. I wish it had come with a rear view mirror or that you offered one in accessories. I bought one but it might not be as cool as the mooncool.
B
The assembly process was super frustrating! The manual was very hard to follow. It assumes several steps. Having it in glossy print made it even harder to see the manual. I also used 3 tutorials on line to help. After 2 frustrating days of assembly, I finally brought it to a bike repair shop. They even fixed flaws in the design. Setting that all aside, the performance of the bike is wonderful. Even topped my expectations. Nice and safe ride.
K
I love my new bike bought 2 my son in law assembled mine and I have been riding it a few miles per day. Not really comfortable on the seat with pedaling need to find the right spot…hopefully my son in law will be back shortly to assemble my wife’s trike
S
This trike is definitely the Big Boys and girls Trike. Look at the size different between the two. And with the lights I added they look like afterburners. The F20 will be taking off.
FAQ
How assembled is the trike when it's delivered, and is it easy to finish the assembly myself?
The trike arrives 65% pre-assembled for your convenience. The remaining assembly is straightforward and can be completed with just a bit of DIY — no need to be a professional. You'll be ready to ride in no time!
Is the trike suitable for seniors or individuals with disabilities?
Yes, indeed. Our trike is designed with ease of use and stability in mind, making it a great choice for older adults and persons with disabilities who are looking for a safe and comfortable riding experience.
Does the electric trike come with a battery and both front and rear baskets included?
Yes, it does. The trike comes equipped with a battery, and we include both a front and a rear basket as standard features, so you have everything you need to get started right away.
What's the recommended height for someone riding the TK1 Fat20
The TK1 Fat20 is designed for riders who are between 5'-6'3" tall for optimal comfort and performance.
