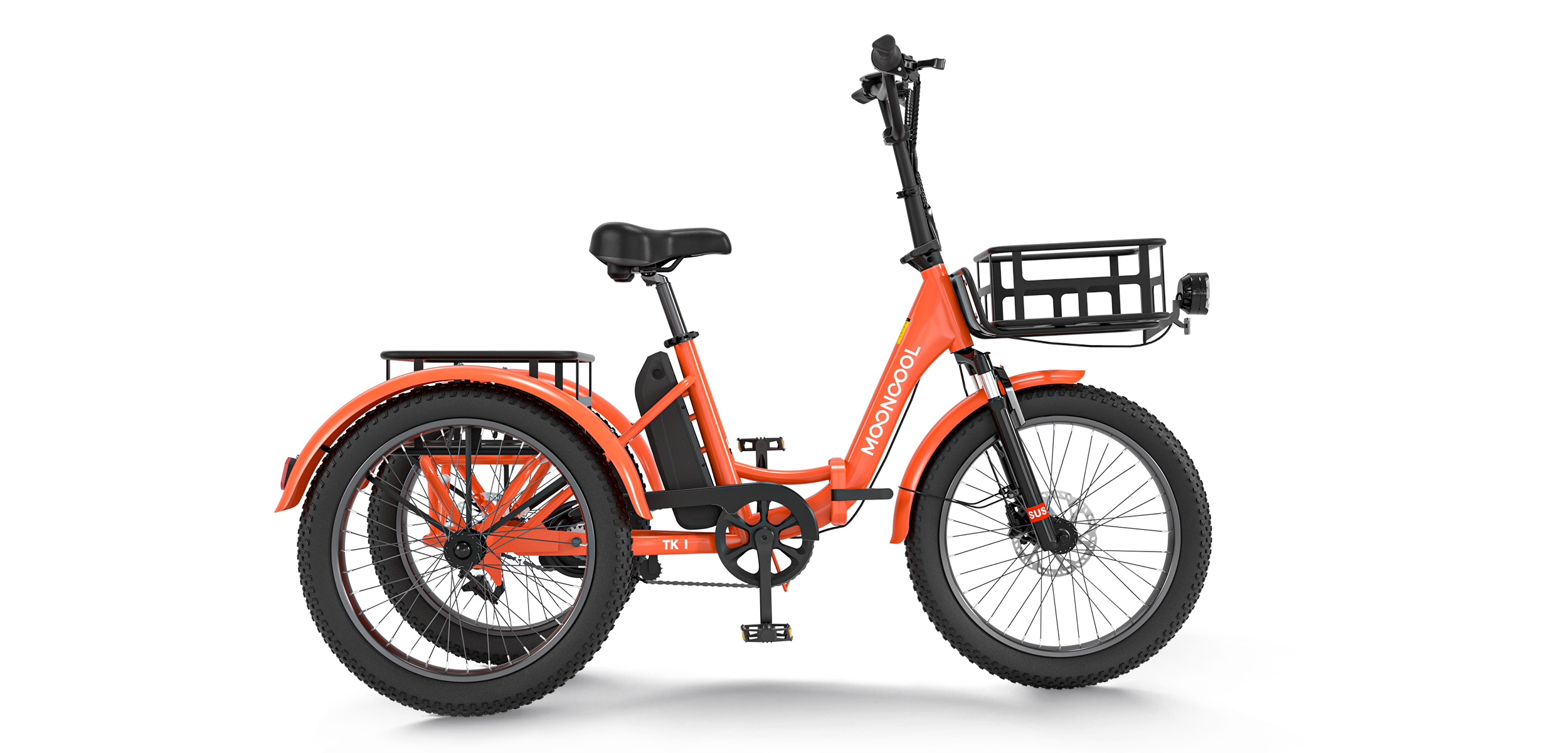

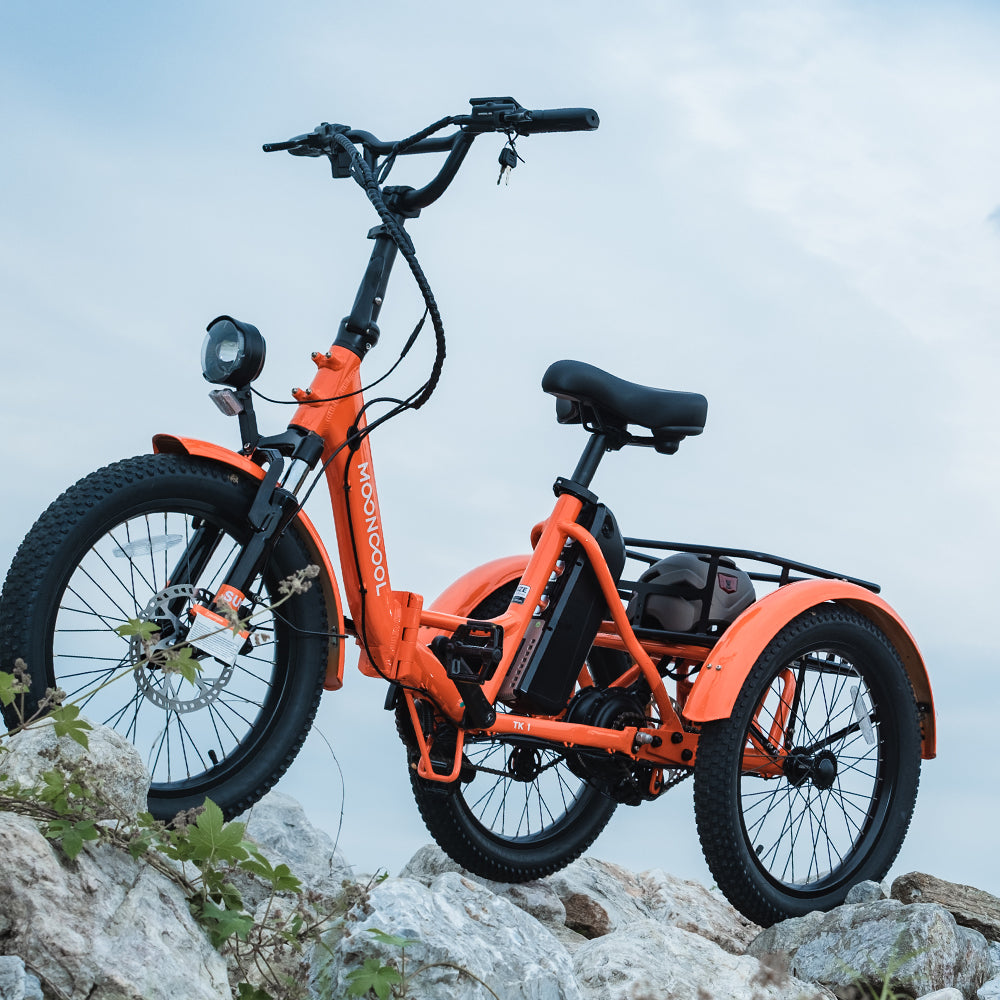

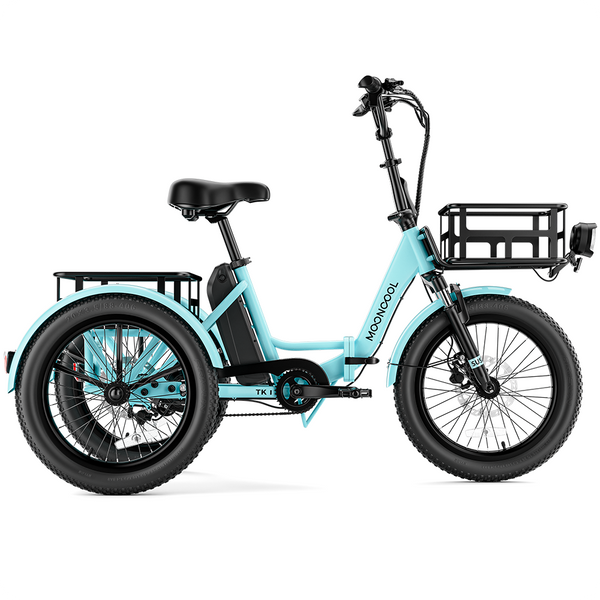

TK1 Folding Electric Trike
Resolve your short-distance commute troubles within 30 miles.
Features and Details
- 500W Motor
- 48V*15Ah Battery
- Differential Mechanism
- Suspension Front Fork
- 95% Pre-assembled
- With Free Front & Rear Baskets

More convenient & stable


48V*500W Helical Motor
Hailong Plus Lithium 48V*14.5Ah

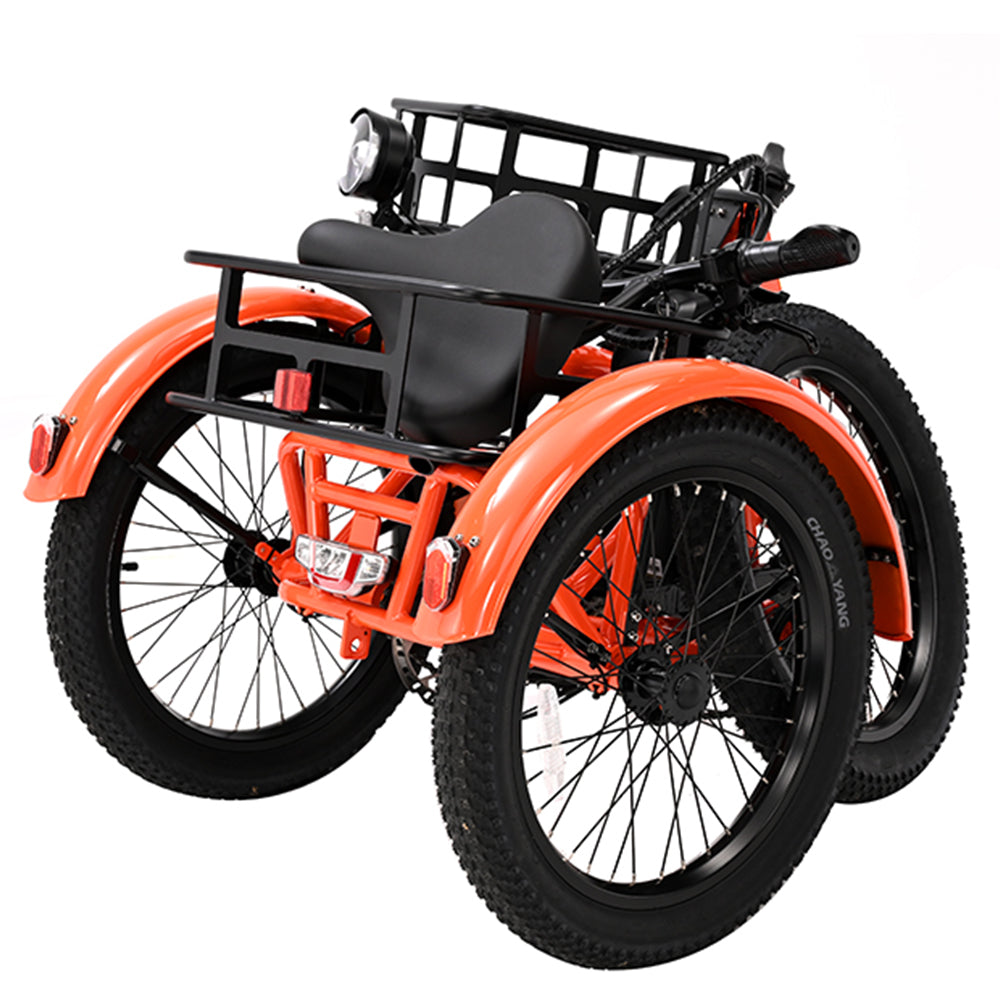

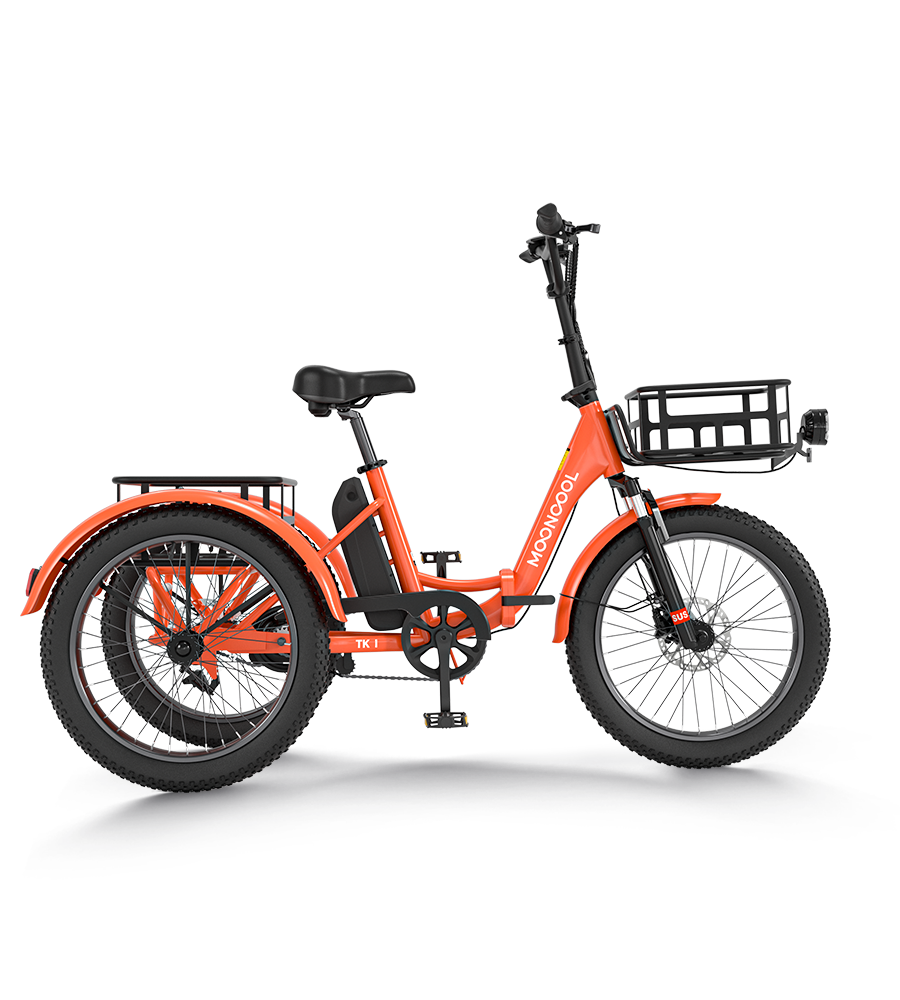

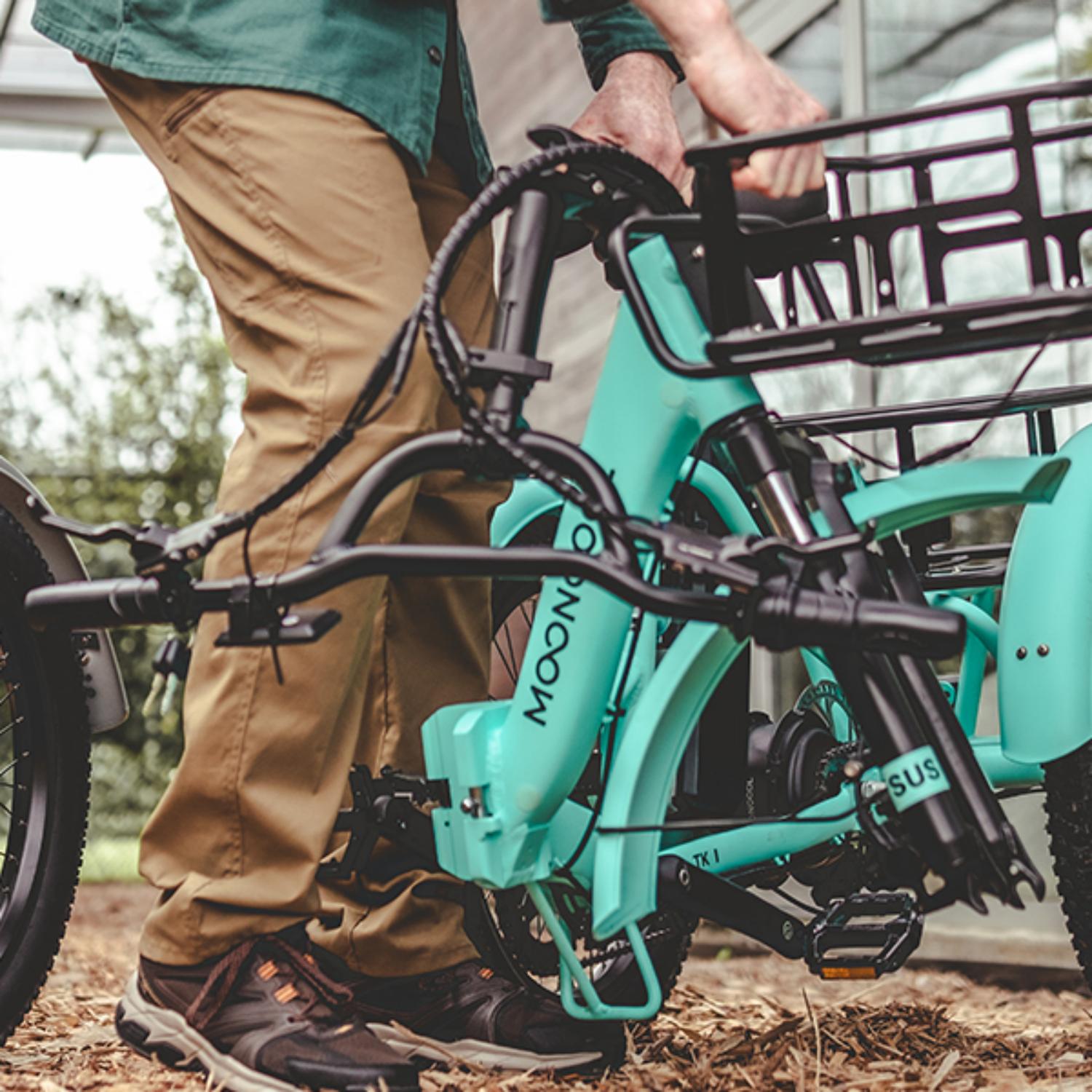

Folding Structure
500W
48V*500W Motor
Helical Motor, Peak Power 750W, 43nm Peak Torque
48V
Lithium 48V*15Ah
Covering a Range of 45 Miles per Full Charge
95%
95% Pre-assembled
Swift assembly with free front & rear baskets

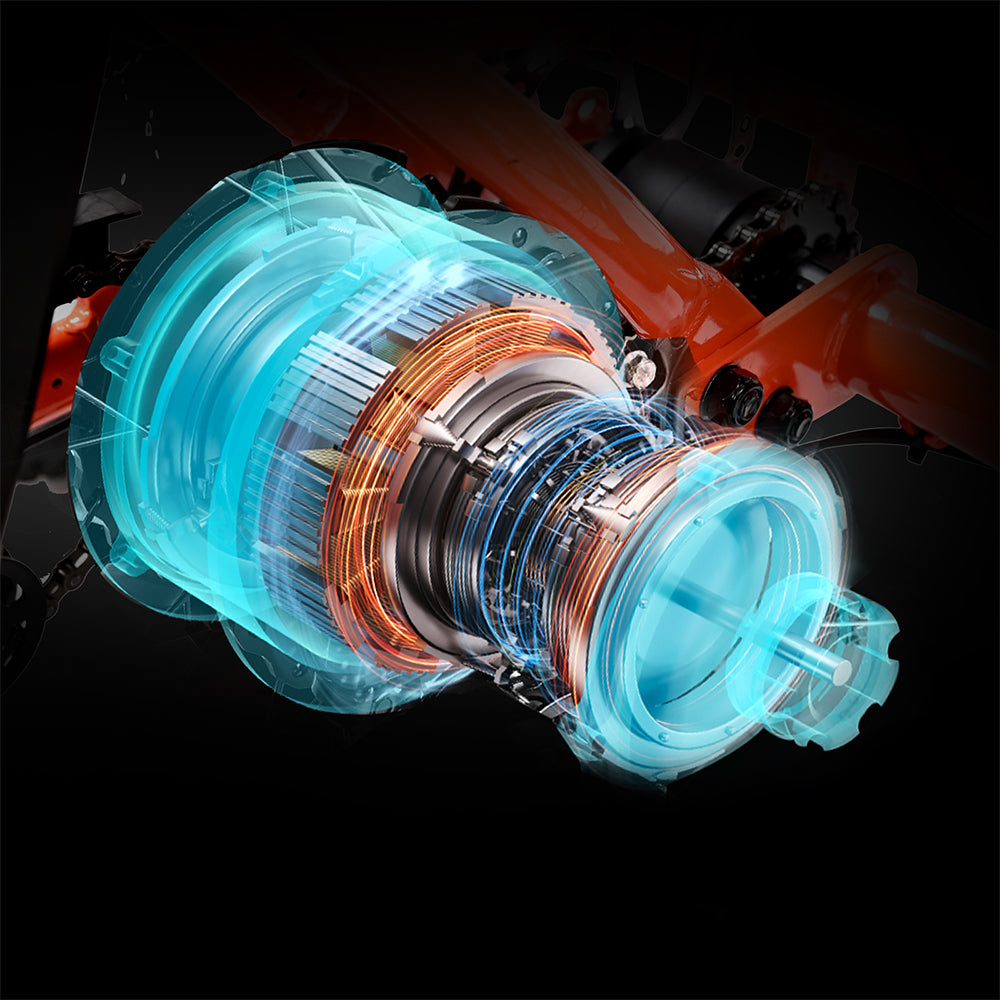

500W Motor
Equipped with a 500W motor can reach a powerful peak of 750w and 45NM torque providing strong drive power which makes your journey effortless.

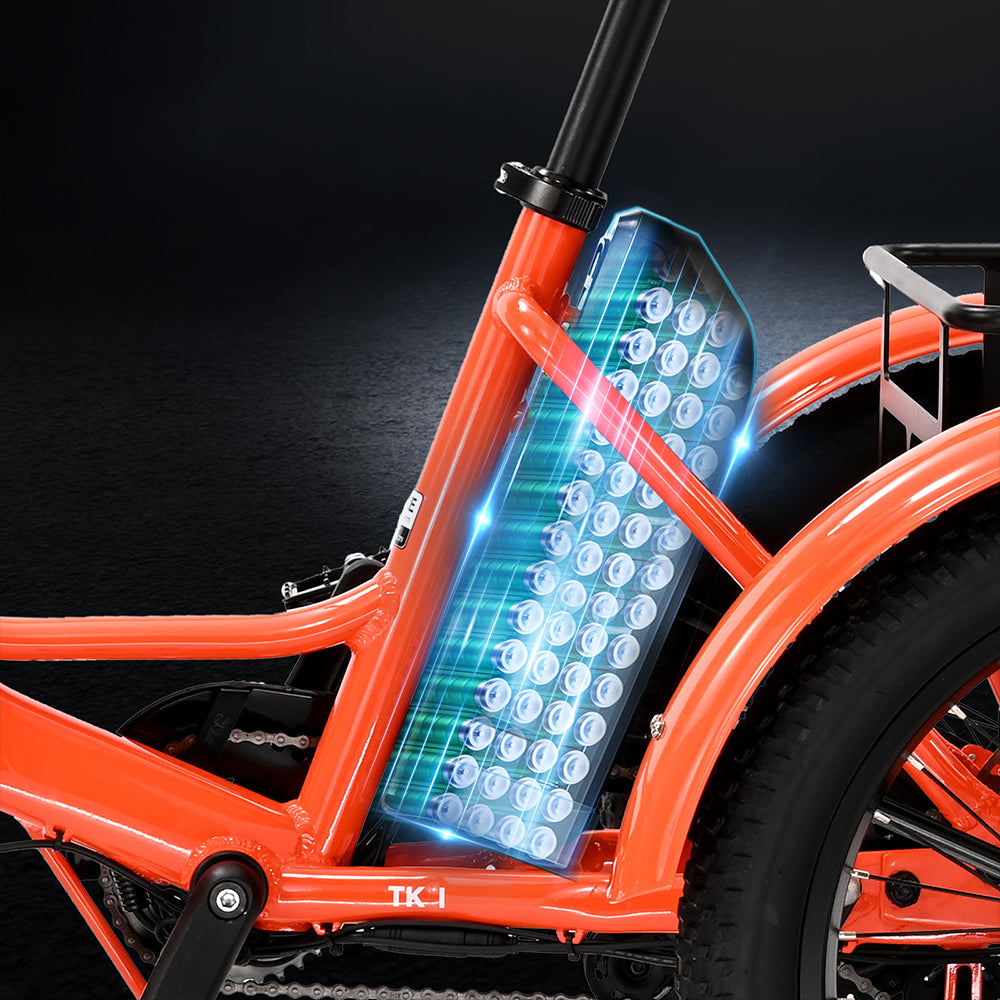

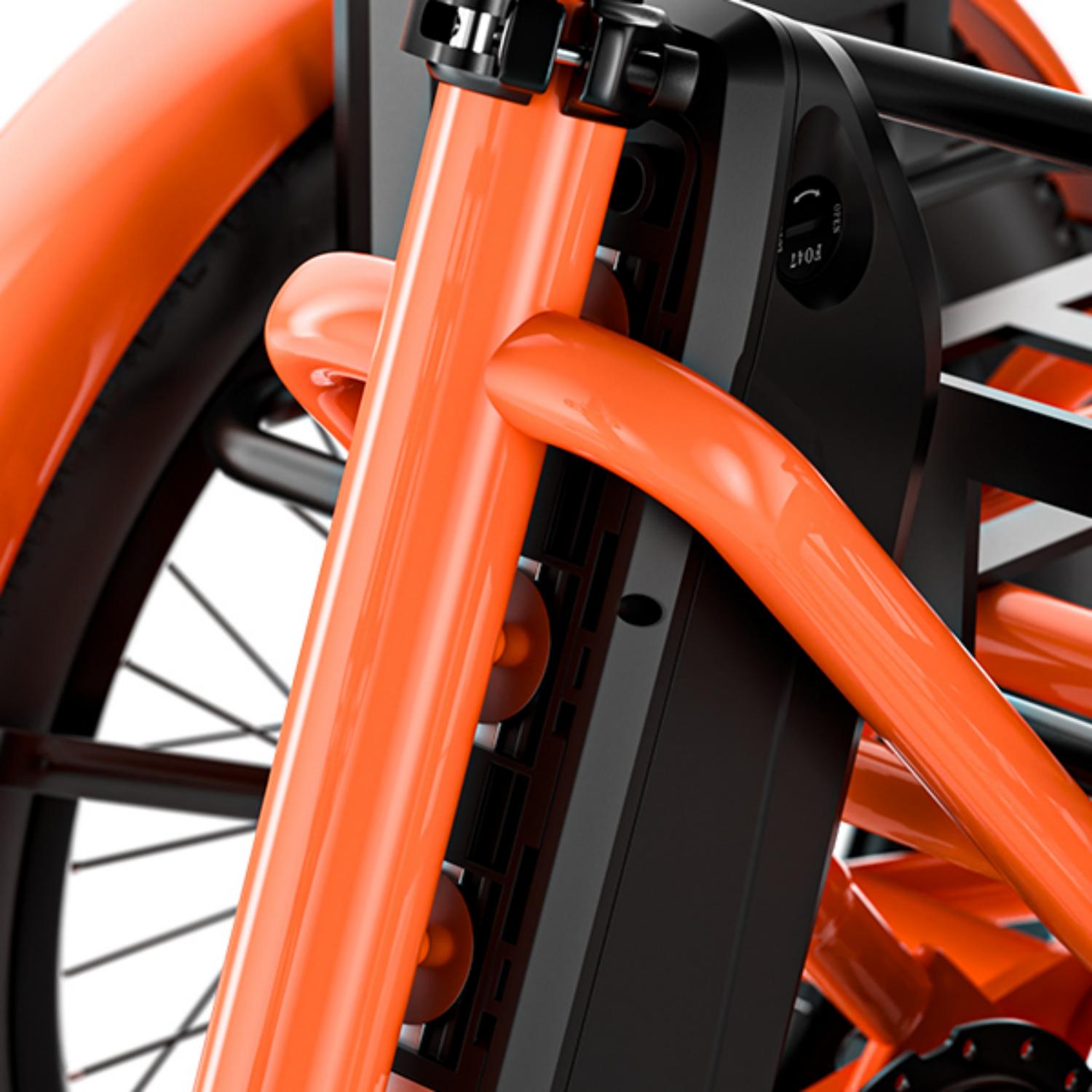

48V*15Ah Battery
TK1 Electric folding trike for adults with a 48V*15Ah removable lithium battery can travel 30-45 miles per charge, totally supports your commuting and daily outside needs.

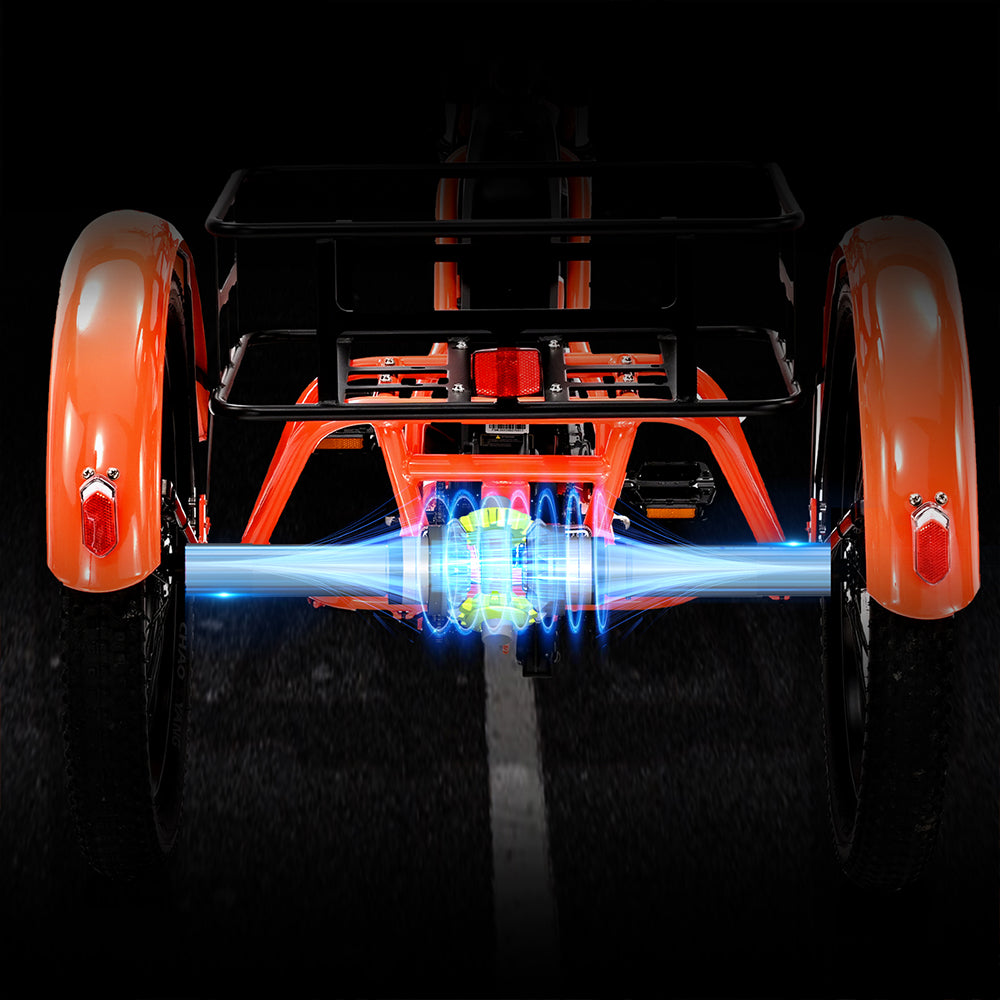

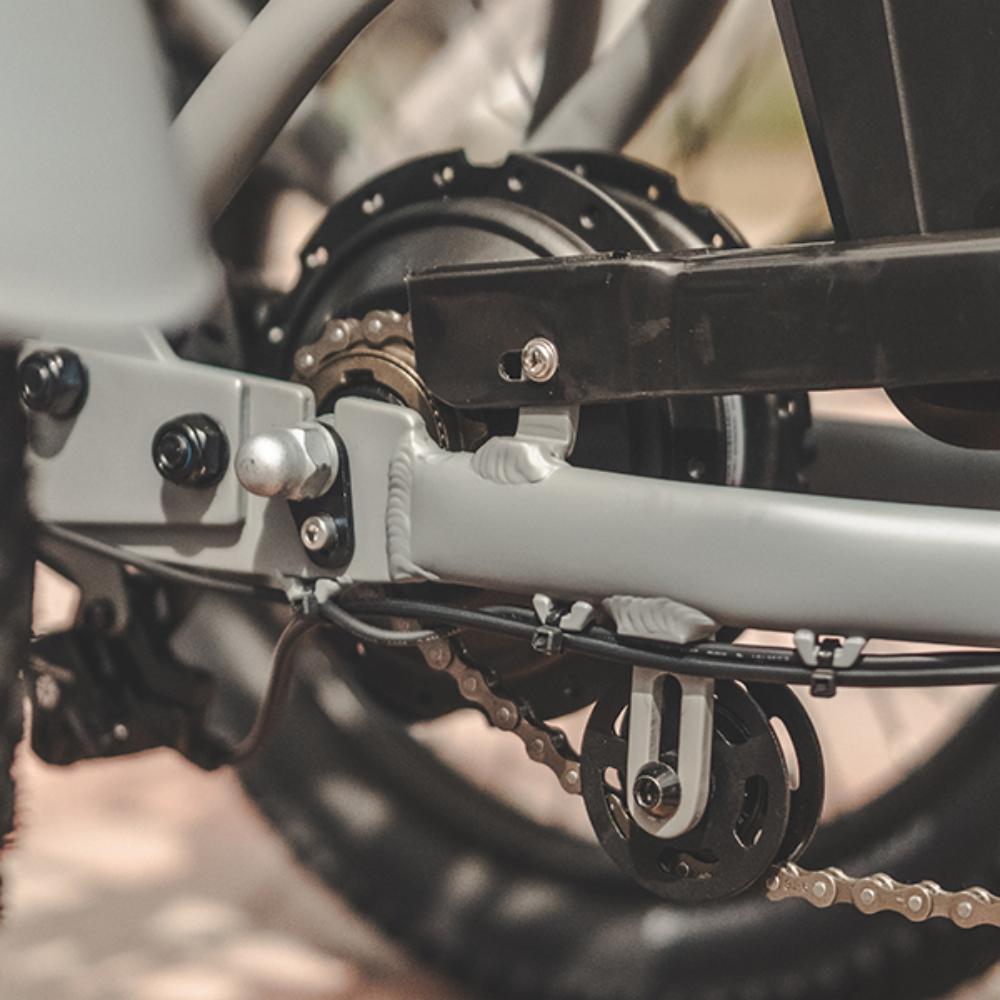

Speed Differential Mechanism
The speed differential on TK1 electric trike solves the solid axle problem, avoiding the single axle situations and ensures the trike corners well.

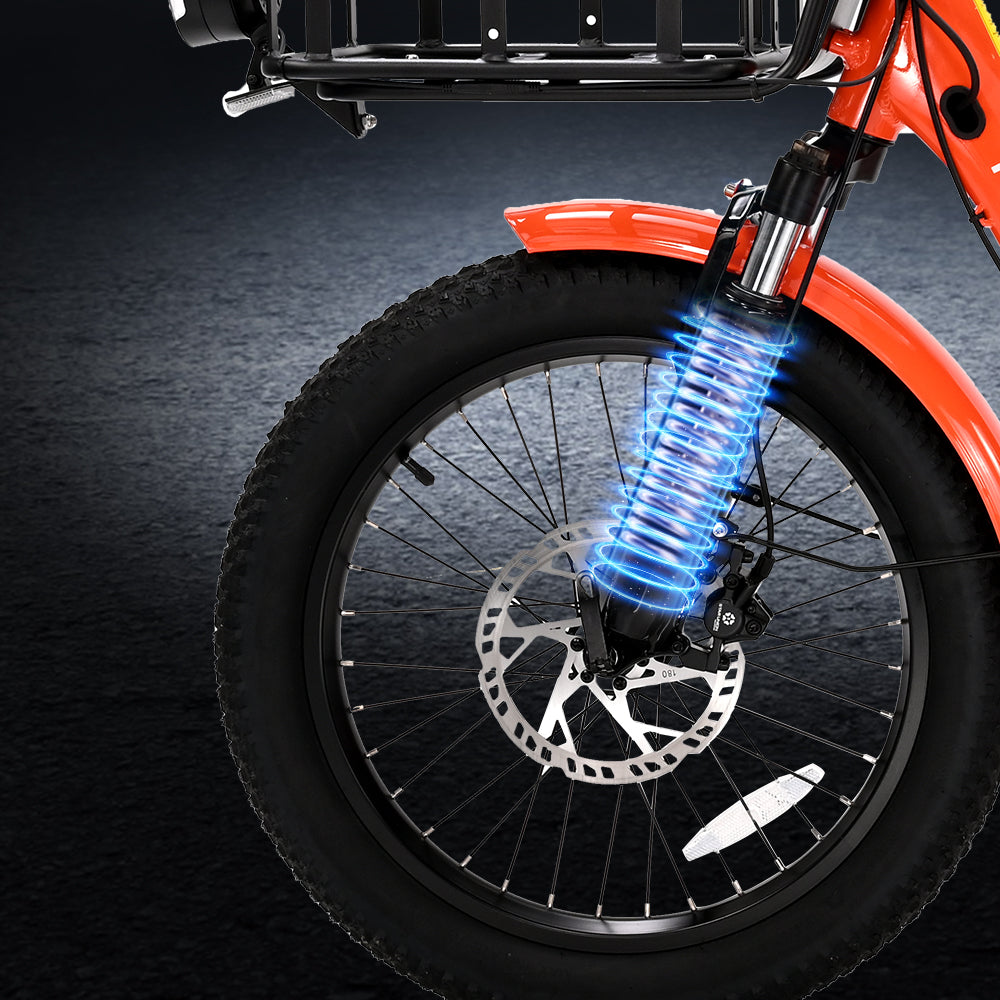

Suspension Front Fork
Suspension fork makes riding more comfortable, holds front wheel on the ground and absorbs the shocks & bumps especially while cornering, it helps you take easier to keep your trike under control.

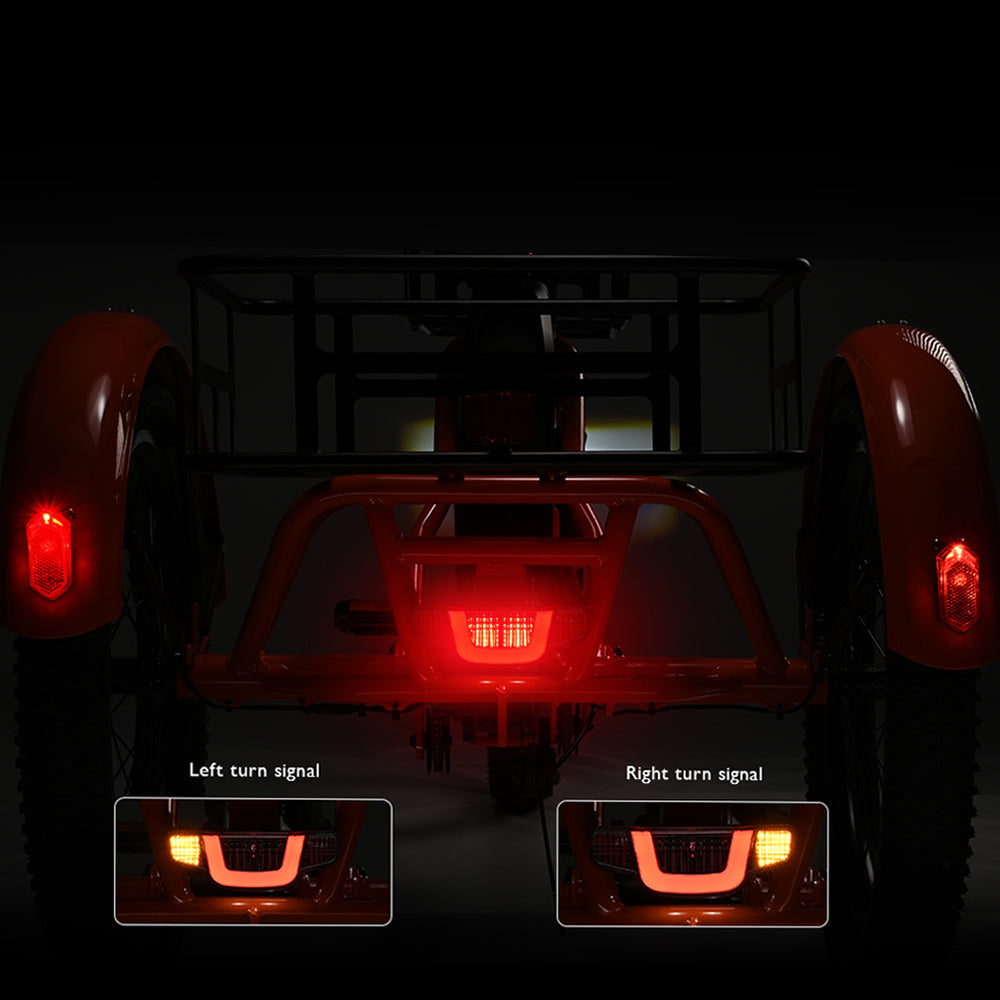

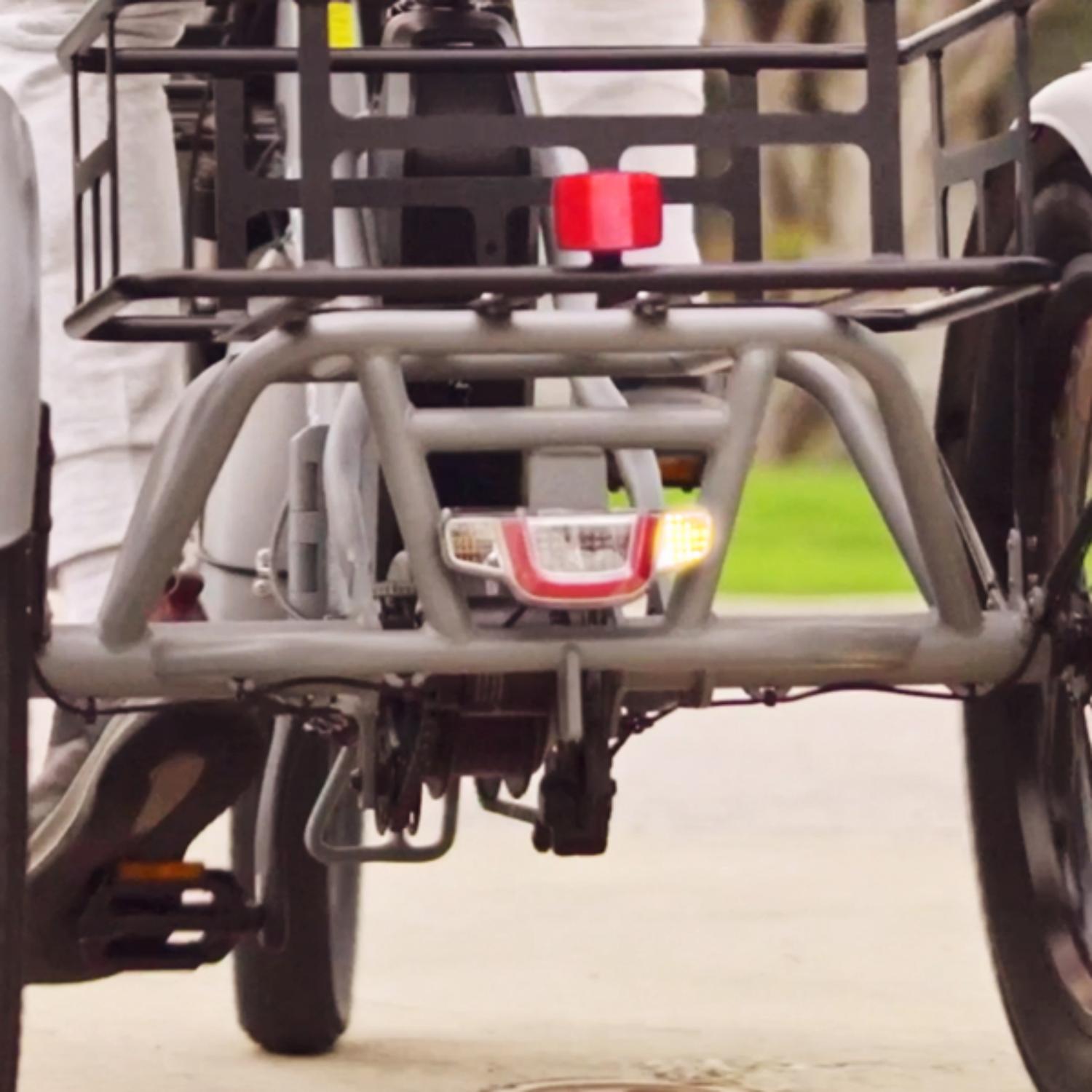

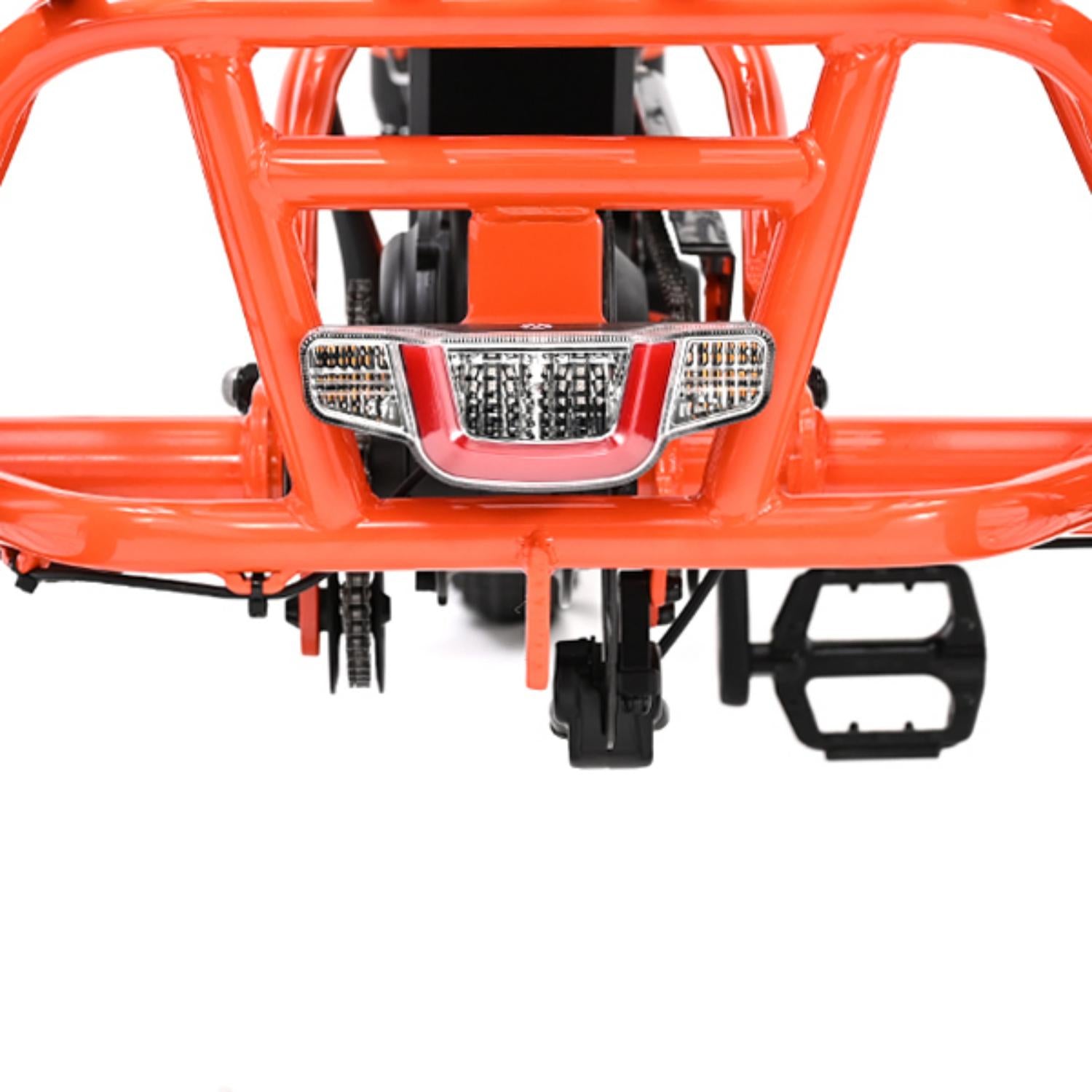

High-brightness Red Brake Lights
Integrated left and right red tail lights are also one of the most critical upgraded areas which are much brighter and will be illuminated when you press the brake pedal.

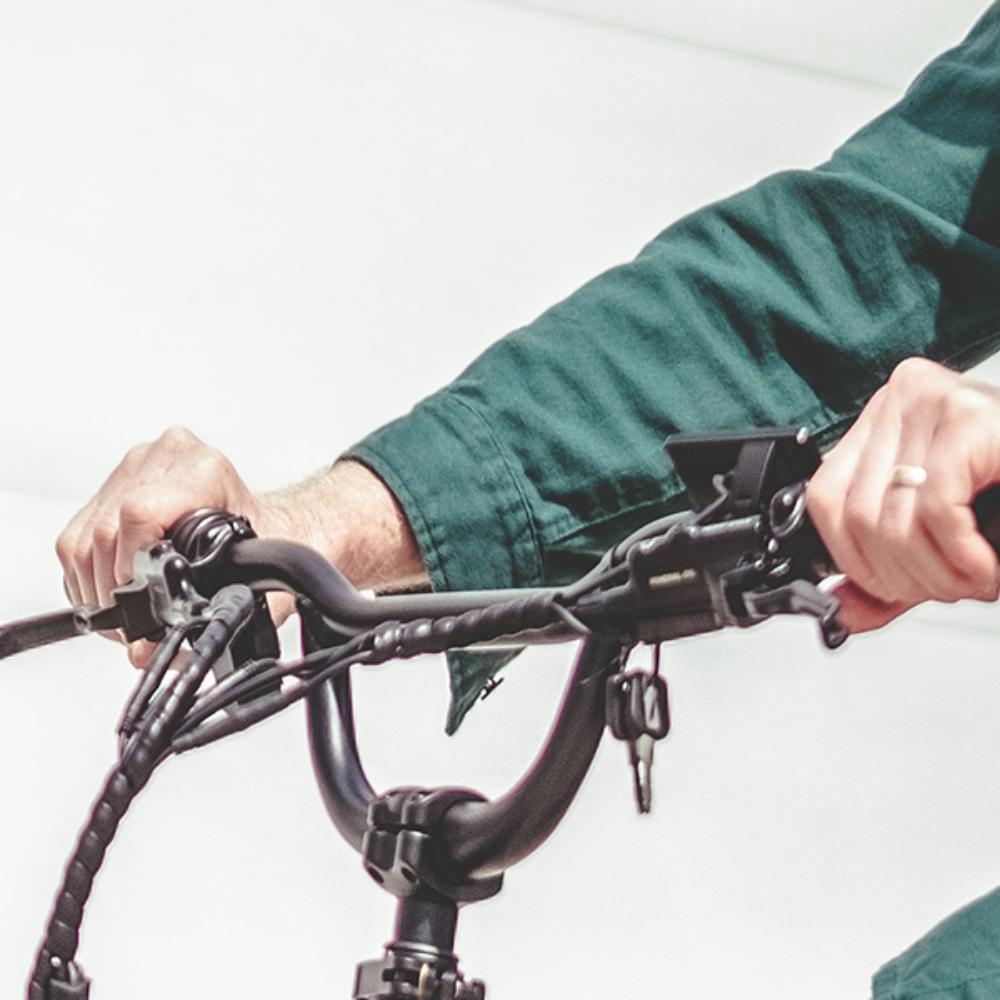

Free Your Hands
Easier to Carry

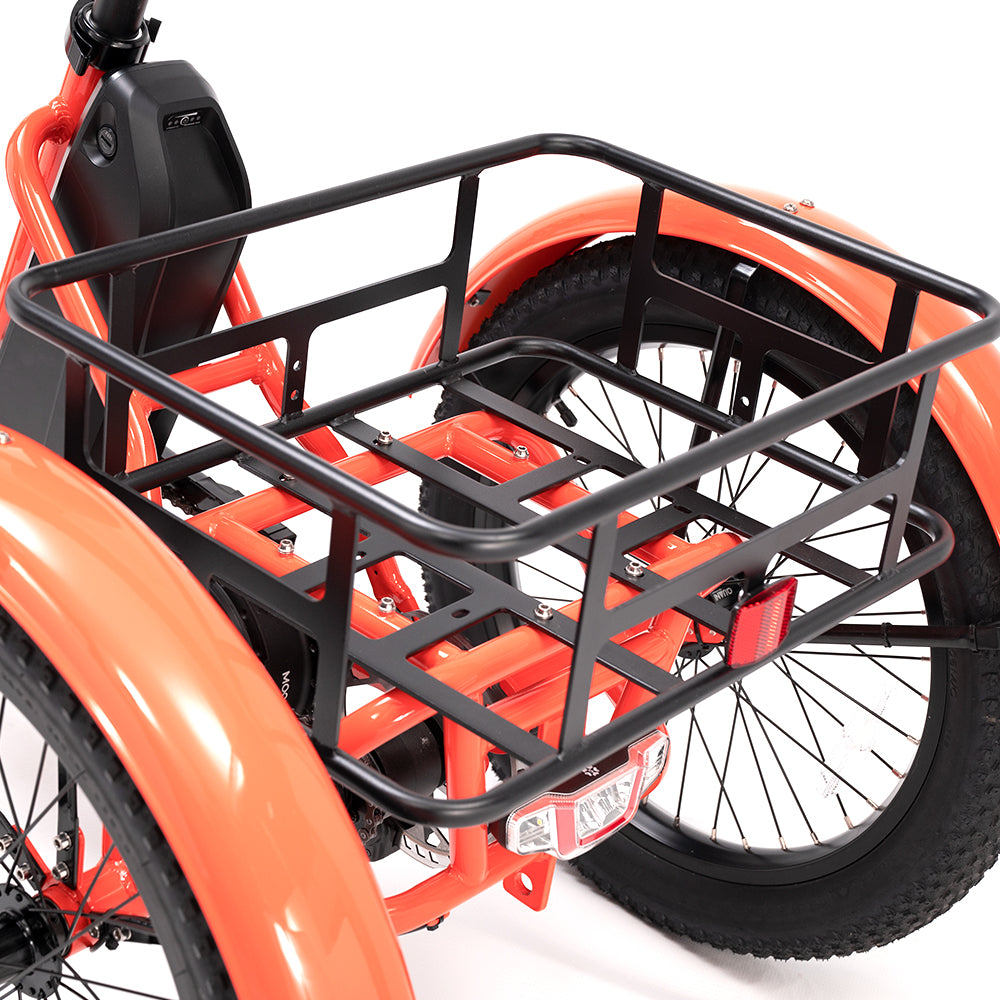

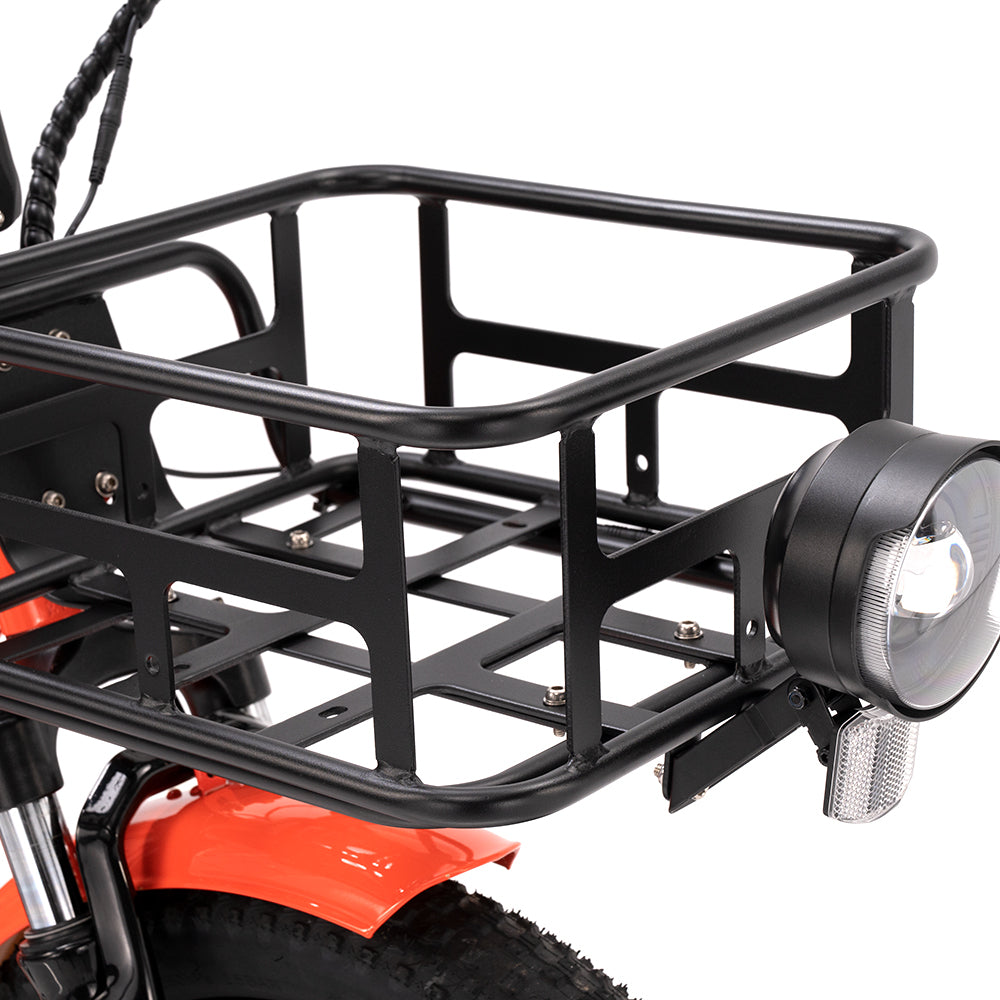

Comfortable Cargo Carrying
Specifications
Electronics
Motor | 48V*500W Peak Power 750W |
Battery | 48V*15Ah |
Range | 30~45 Miles |
Charger | 110-240V 54.6V 2A |
Charging Time | 6-8 Hours |
Max Safe Speed | 16 mph |
Display | Multifuctional G51,LCD Gray Screen |
Controller | Sine Wave FOC 48V 20amp Peak |
Pedal Sensor | 24 Signals Cadence Sensor |
Throttle | Twist Throttle |
Front Light | Big Led eBike Version with Horn Function |
Rear Light | 3 Tail Light, Brake Highlight Function & Turn Signals Function |
Components
Frame | 6061 Aluminum+Hiten Steel, Folding Structure, Rear Differential Mechanism |
Fork | Suspension, Coil Spring Structure, Mechanical Lockout |
Handle Bar | Alloy, BMX Style, Barboe 31.8mm, Length 660mm, Rise 120mm |
Stem | Alloy, Barboe 28.6*31.8mm, Folding, Extension Tube 178mm |
Saddle | Comfortable Big Vacuum Foaming Seat |
Seat Post | Alloy 31.8*500mm Length |
Shifter | Trigger Shifter |
Chainwheel | Alloy Crank 170mm, Steel Chain Ring 36T |
Freewheel | 18T |
Brake | Hydraulic Disc Brake, Alloy, Rotor 180mm |
Brake Level | Alloy 3 Fingers, Hydraulic Disc Brake with Electrical Cut-off Function |
Rim | Alloy 20 Inch*30*13G*36H, AV |
Tire | 20*3.0 |

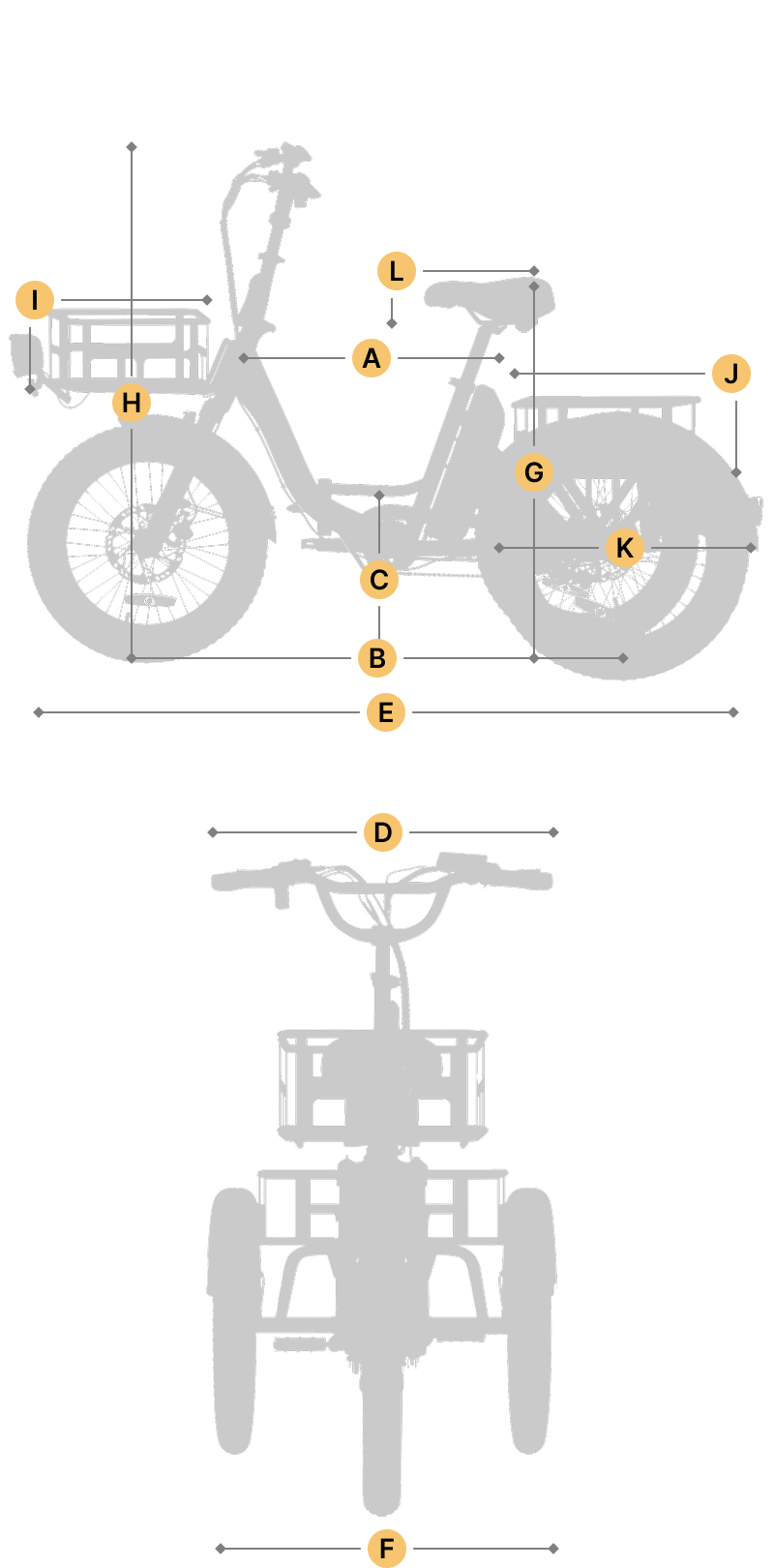

Geometry

Motor | 48V*500W Peak Power 750W |
Battery | 48V*15Ah |
Range | 30~45 Miles |
Charger | 110-240V 54.6V 2A |
Charging Time | 6-8 Hours |
Max Safe Speed | 16 mph |
Display | Multifuctional G51,LCD Gray Screen |
Controller | Sine Wave FOC 48V 20amp Peak |
Pedal Sensor | 24 Signals Cadence Sensor |
Throttle | Twist Throttle |
Front Light | Big Led eBike Version with Horn Function |
Rear Light | 3 Tail Light, Brake Highlight Function & Turn Signals Function |
Frame | 6061 Aluminum+Hiten Steel, Folding Structure, Rear Differential Mechanism |
Fork | Suspension, Coil Spring Structure, Mechanical Lockout |
Handle Bar | Alloy, BMX Style, Barboe 31.8mm, Length 660mm, Rise 120mm |
Stem | Alloy, Barboe 28.6*31.8mm, Folding, Extension Tube 178mm |
Saddle | Comfortable Big Vacuum Foaming Seat |
Seat Post | Alloy 31.8*500mm Length |
Shifter | Trigger Shifter |
Chainwheel | Alloy Crank 170mm, Steel Chain Ring 36T |
Freewheel | 18T |
Brake | Hydraulic Disc Brake, Alloy, Rotor 180mm |
Brake Level | Alloy 3 Fingers, Hydraulic Disc Brake with Electrical Cut-off Function |
Rim | Alloy 20 Inch*30*13G*36H, AV |
Tire | 20*3.0 |

FAQs
How long does it take to assemble the trike? Is it necessary to go to a bike shop?
TK1 folding trike is 95% pre-assembled when you receive the package, jjust take it out and assemble the small parts.
Is TK1 difficult for a senior to ride?
The trike is very easy for seniors or women to ride and it is also equipped with differential that solves the solid axle problem, ensures the trike corners well.
Does the TK1 trike come with a battery and baskets?
Yes, they are all provided to you along with the trike, you don’t need to buy them separately.
How long can receive my trike, is it in stock?
Yes, it's in stock, and we usually ship the order within 24 hours and the average shipping time is 3~7 days.
