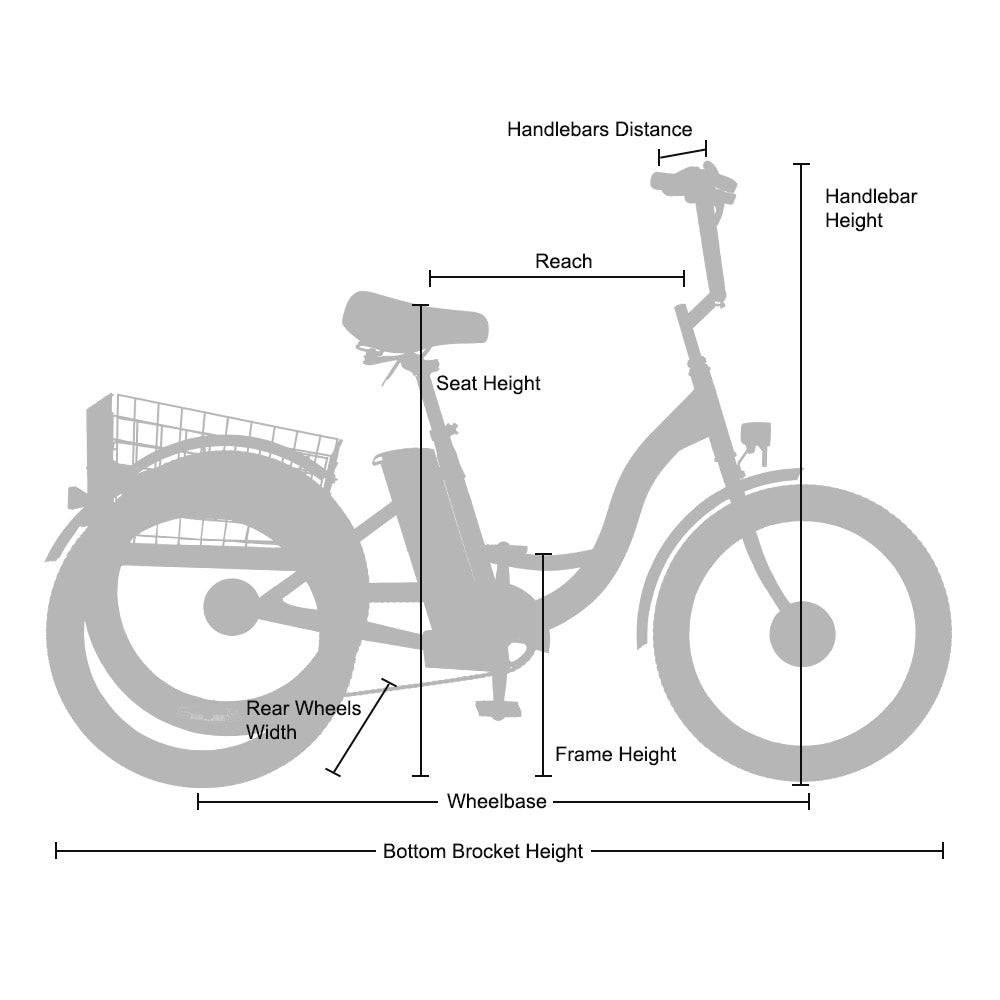

★ | Recommended Height | 24'' : 4'11'' ~ 5'9'' 26'' : 5'3'' ~ 6'2'' |
A | Top Tube Horizontal | 21.6 in |
B | Wheelbase | 45.3 in |
C | Stand Over Height | 17.3 in |
D | Handle Bar Length | 27.5 in |
E | Total Length | 68.9 in |
F | Rear Wheels Width | 28.3 in |
G | Seat Height Min / Max | 34.6 ~ 39.4 in |
H | Handle Bar Height Min / Max | 43.3 ~ 47.2 in |
I | Rear Basket |
20.87 * 17.72 * 11.42 in 53 * 45 * 29 cm |
J | Wheel Size | 24 in / 26 in |
K |
Seat Size
|
11*9.5 in |
Weight | 81 lbs / 90 lbs |

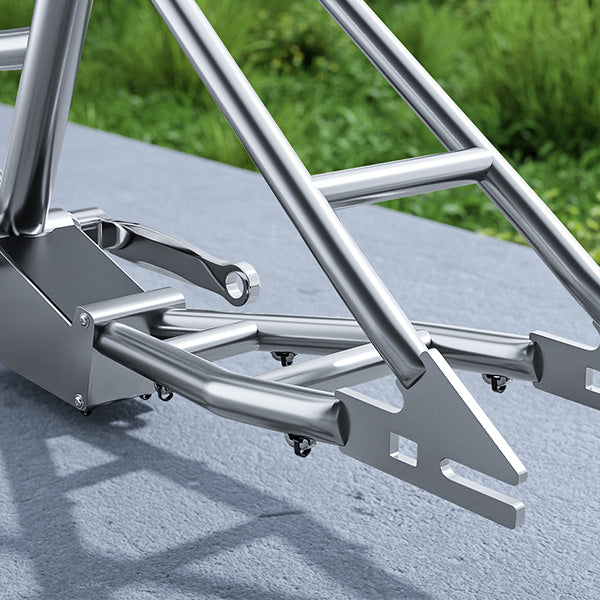

Frame | Hi-ten Steel Frame |
Fork | 24“, 25.6*25.4*30 206mm Steer, Dropout 100 Width |
Handle Bar |
Steel, 25.98 × 0.87 × 1 inches, H: 7.87 inches |
Stem |
Steel Integrated, 1 × 7.1 inches Depth, ex: 3.15 inches |
Saddle | Comfortable Black Saddle |
Seat Post |
Steel, 1.13 × 11.8 inches |
Chain | 1/2*3/32* 130L |
Freewheel | 1/2*3/32*14-28T 7-Speed |
Display |
LCD Display Monitors the Riding Speed, Battery Capacity, Mileage, Power
|
Brake | Alloy Mechanical Disc Brake Set |
Brakerotor |
Front: 6.3 inches, Rear: 5.5 inches |
Shifter | Shimano 7-Speed |
Crankset | 1/2 × 3/32 × 36T × 5.98 inches |
Hub | Steel 36H |
Grip | TPR, 4.72 inches Length |
Headset |
Steel, 1 × 1.18 inches, H: 1.48 inches |
Rim | Alloy Double Wall Rims |
Tire | 24*1.95 / 26*2.125 inch, A/V |
Spokes |
Steel 13G |
Fenders | 24"/26", Steel |
Rear Rack | With |
Basket | Steel and Plastic Mesh |
Assembly | 50% |
Colors | 9 Colors |
Carton Size | 44.88*29.53*12.20 inch / 47.24*29.53*11.81 inch |
Load Capacity | 350 LBS |
Top Speed | 16 MPH |
Motor | 350W |
Battery | 36V 10.4Ah / 36V 14.5Ah |
Range | 15~30 Miles / 15~40 Miles |
Charger | 36V 2A DC2.1, FOC American Standard Charger |
Charging Time | 6-8 Hours |
Max Safe Speed | 16 MPH |
PAS | 12 Magnet, Double Hall, Cadence |
Pedal Sensor | 24 Signals Cadence Sensor |
Throttle | 300x |

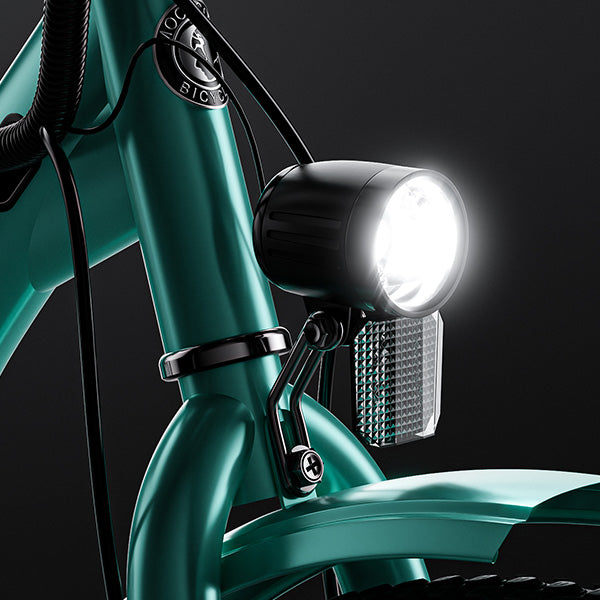

Light | Front Headlight is Equipped with Reflectors |
Our approach to accessibility goes beyond physical design
And inclusivity, making sure every rider feels confident and empowered
It encompasses affordability, ensuring our E-Trikes are within reach
High-quality Motor
350w Front-drive motor provides reliable support and a 16 mph top speed helps you to ride on terrain change with ease.

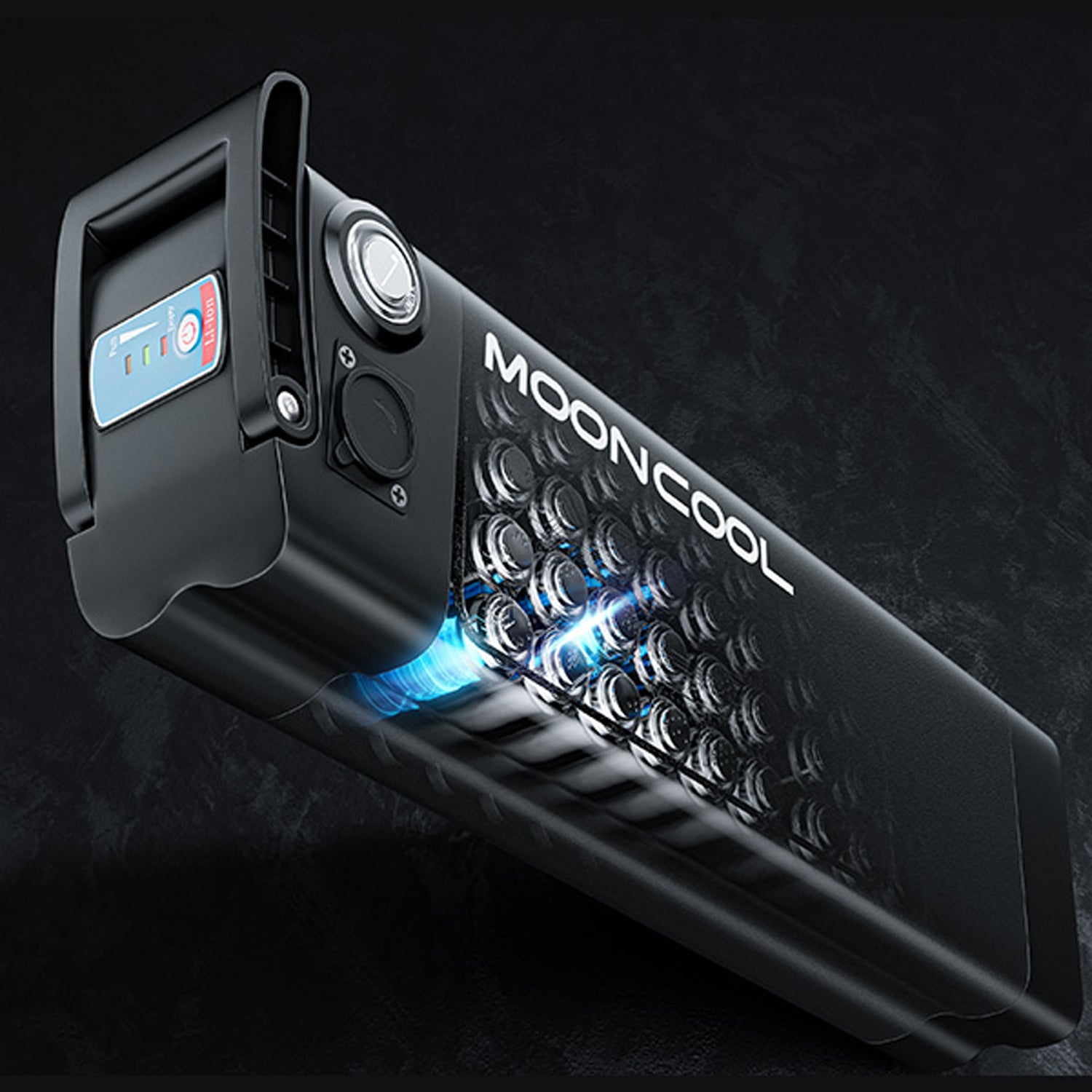

Capacity Battery
36V 10.4Ah / 36V 14.5Ah Battery with 20A hardware protection board and anti-sparking, covering a range of 30/40 miles per full charge.

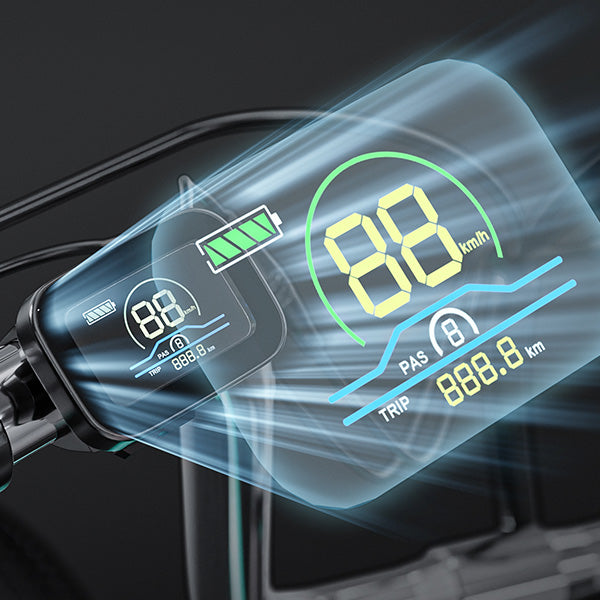

Multi-functional LCD Display
With the LCD display button, you could choose the electric assist level as required, and it also can monitor the riding speed, battery capacity, mileage, power, etc.
Adjustable Wide Seat
Equipped with a spacious, adjustable seat designed for ultimate comfort. Its wide, cushioned surface ensures a smooth and enjoyable ride, even on long journeys.

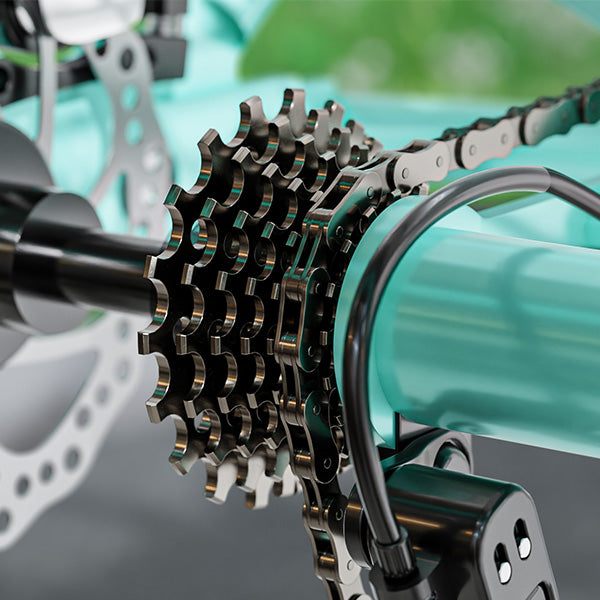

Shimano 7 Speed
Equipped with the Shimano 7-speed gear system, the eTrike effortlessly maintains smooth speed, ensuring comfort and control on every ride.

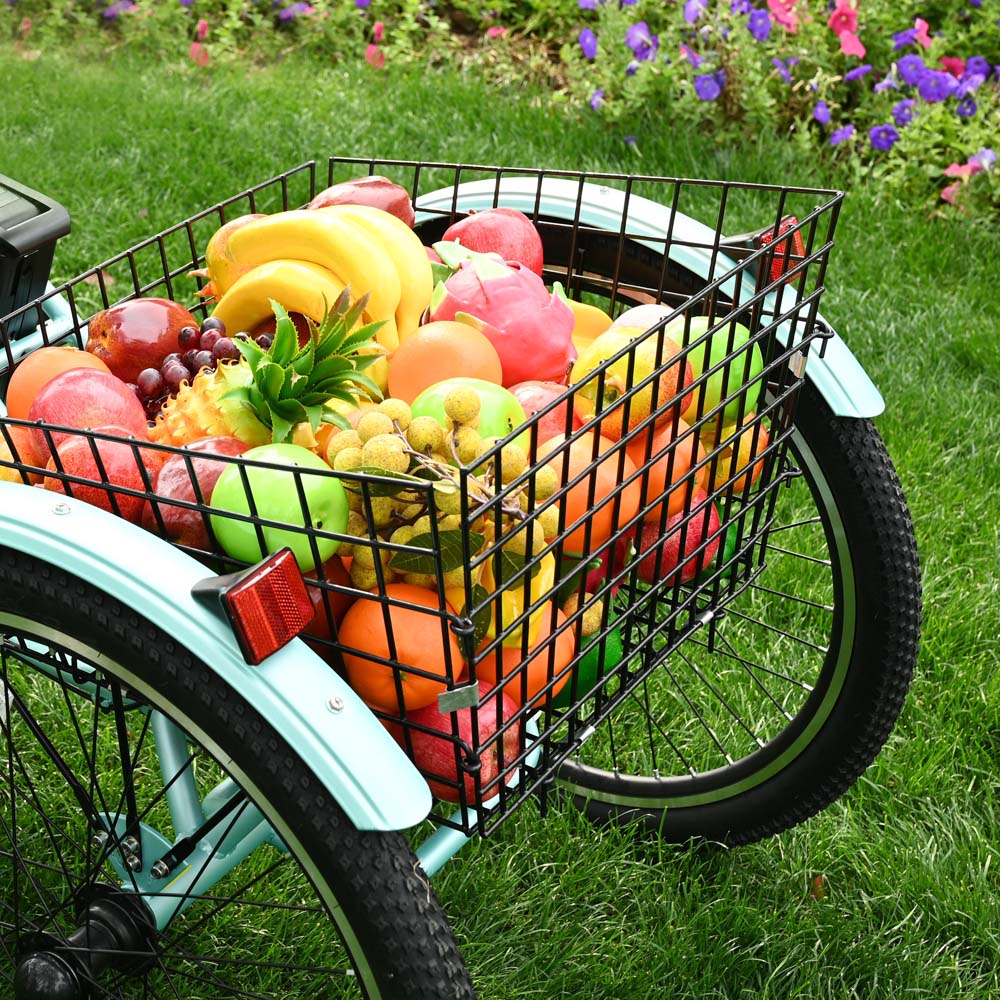

Large Rear Basket
Featuring a spacious rear basket, it easily accommodates personal belongings and larger items, making every journey more convenient and versatile.
Joyful Leisure Rides
350W Front Drive Motor
No
36V*10.4Ah
No
350 LBS
350 LBS
81 LBS / 90 LBS
64 LBS / 66 LBS
25.6*25.4*30 206mm Steer
25.4*22.2*212mm, Steel Fork
Hi-ten Steel Frame
Hi-ten Steel Frame
No
Yes
50%
50%
Assembly Video
Our assembly videos will walk you through assembly
This product is rated 4.4 of 5.0 stars.
It has received 10 reviews.

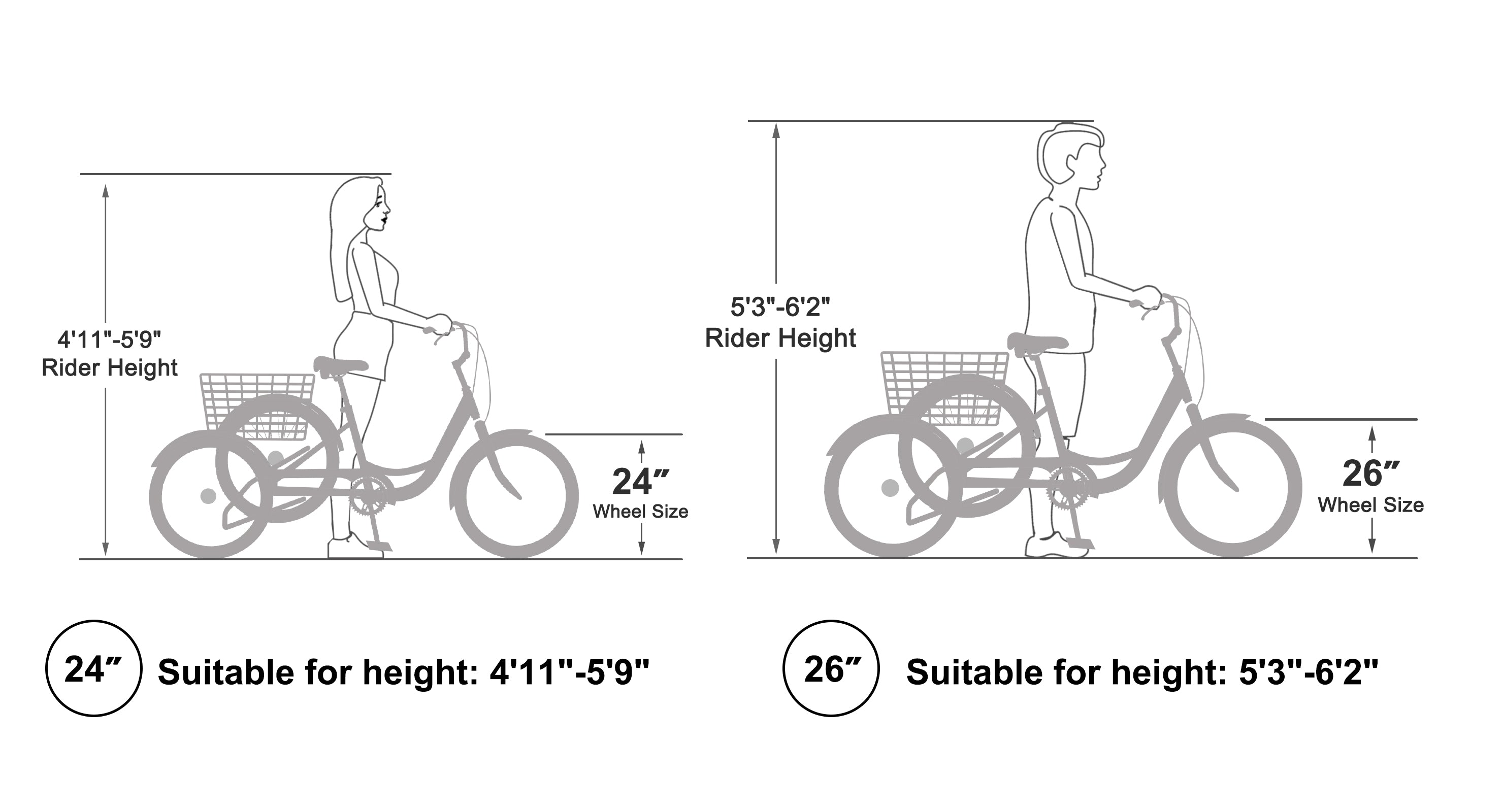

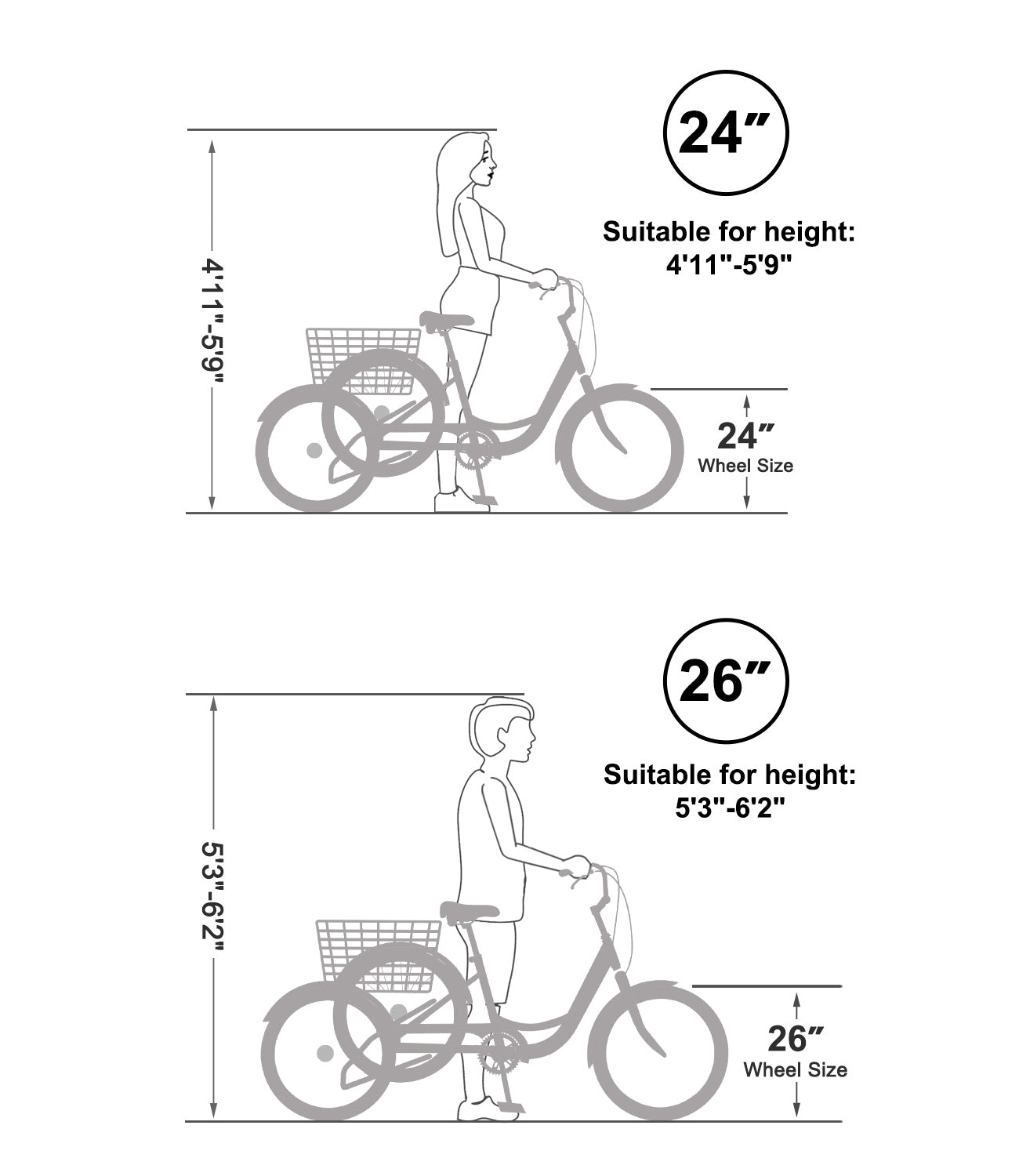

24" wheel suitable for rider height: 4'11" - 5'9" (150cm-176cm) Electric Tricycle add 2" into 5'11" /180
26" wheel suitable for rider height: 5'3" - 6'2" (160cm-187.5cm)
The rear wheel spacing (24",26" tricycle) all have the same size of 27.5 inches
For 24" tires about 14"
For 26" tires about 15”
The serial number of the tricycle is located on the frame near the front sprocket.
Up to 25+ miles per charge. Maximum speed 25KM/H
G.W. 92lbs, N.W. 83lbs
