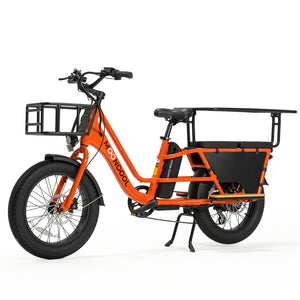

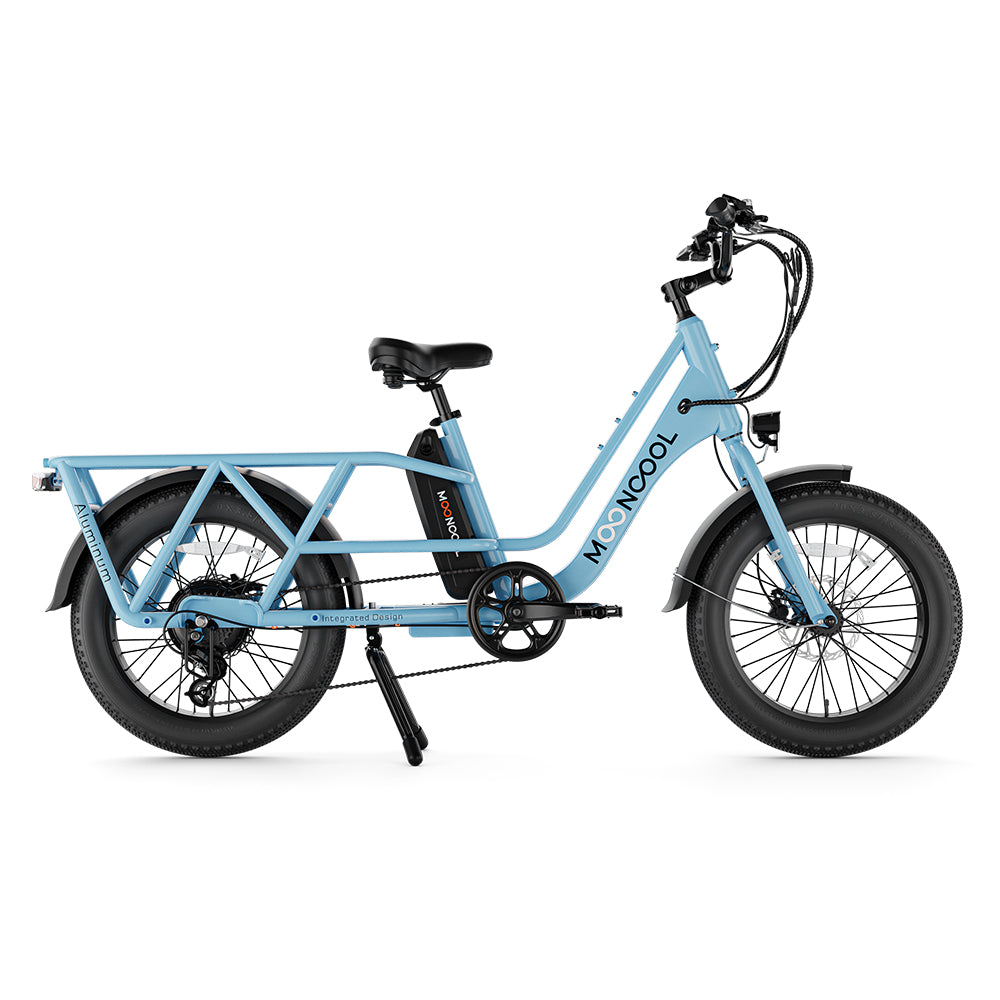

CG2 Electric Cargo Bike
Size & Fit
Recommended Height: 5'1"~6'4"
| A | Top Tube Horizontal | 22 in / 56 cm |
| B | Wheelbase | 46.85 in / 119 cm |
| C | Stand Over Height | 17.72 in / 45 cm |
| D | Handle Bar Length | 27.95 in / 71 cm |
| E | Total Length | 68.9 in / 175 cm |
| F | Seat Height Min / Max | 31.5~39.37 in / 80~100 cm |
| G | Handle Bar Height Min / Max | 43.31~47.24 in / 110~120 cm |
| H | Wheel Size | 22.83 in / 58 cm |
| I | Seat Size | 10.24*8.66 in / 26*22 cm |
| ★ | Recommended Height | 5'1"~6'4" / 155~193 cm |
Components
| Frame | 6061 Aluminum, Hydroformed Tubes |
| Fork | Hiten Steel, Rigid Fork |
| Handle Bar | 6061 Aluminum T6, Swallow Style, Barboe 31.8mm, Length 700mm |
| Stem | 6061 Aluminum T6, Adjustable 0-60d, 110L 40H |
| Grip | Soft PVC Rubber |

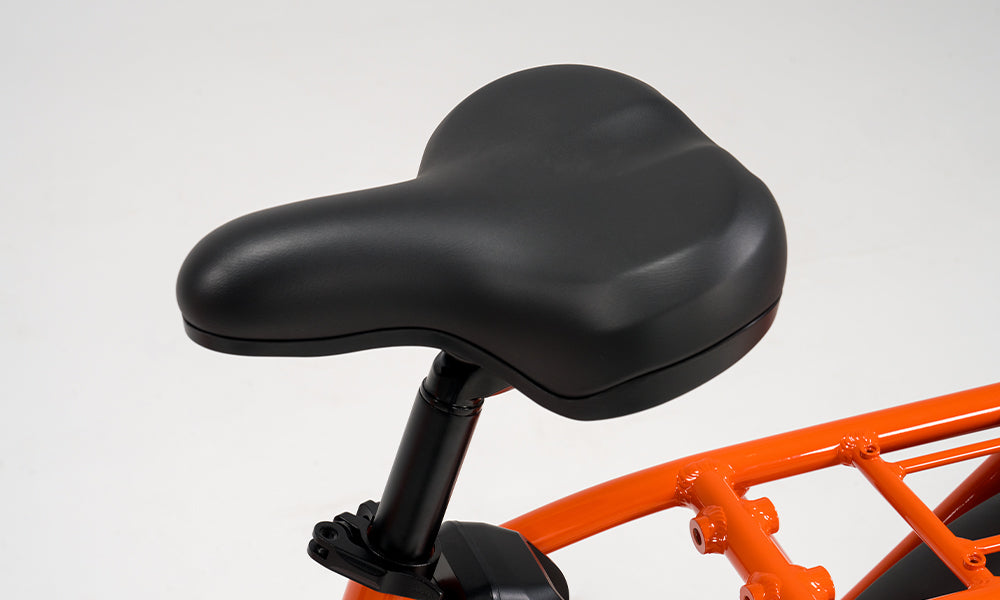

| Saddle | Comfortable Big Vacuum Foaming Seat |
| Seat Post | 6061 Aluminum T6, 30.9*350mm Length |
| Seat Post Clamp | 35mm, Quick Release |
| Shifter | Shimano Tourney TX50 7 Speed |
| Chainwheel | Alloy Crank 170mm, Steel Chain Ring 46T |
| Chain | KMC Z7 |
| Freewheel | Shimano 7 Speed |
| Pedal | Alloy Body 9/16" |

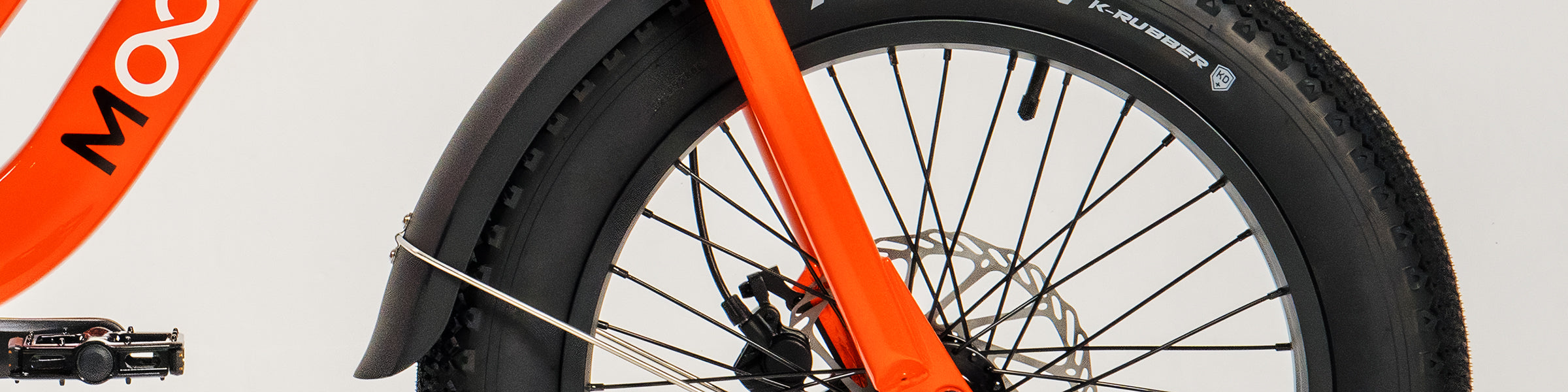

| Brake | Starunion, Hydraulic Disc Brake, Alloy, Rotor 180mm |
| Brake Level | Starunion, Alloy 3 Fingers, Hydraulic Disc Brake with Electrical Cut-off Function |
| Rim | Alloy 20Inch*30Inch*13G*36H, AV |
| Tire | 20 * 3.5, 30TPI |
| Spokes |
Stainless 304, 12G |
| Fenders | With |
| Assembly | 95% |
| Colors | 2 Colors |
| Weight | G.W. 97lbs |
| Carton Size | 157.5*83*35.5 cm / 62.01* 32.68* 13.98 inch |
| Load Capacity | 450 LBS |
Specification
| Motor | 48V*750W |
| Battery | LG LITHIUM 48V*20Ah |
| Range | 60~75 Miles |
| Charger | 110-240V 54.6V 2A |
| Charging Time | 10 Hours |
| Max Safe Speed | 20 MPH |
| Display | Multifuctional G51, LCD Gray Screen, Appears More Clearly in Sunlight, 5 Levels |
| Controller | Sine Wave FOC 48V 28amp Peak |
| Pedal Sensor | 24 Signals Cadence Sensor |
| Throttle | Twist Throttle |
| Front Light | Starunion Led 30Lux, Horn Function |
| Rear Light | Starunion Led Brake Highlight Function & Turn Signals Function |
| Wire Harness | All Water Resistant |
Safety
Our approach to accessibility goes beyond physical design
Comfort
And inclusivity, making sure every rider feels confident and empowered
Accessibility
It encompasses affordability, ensuring our E-Bikes are within reach

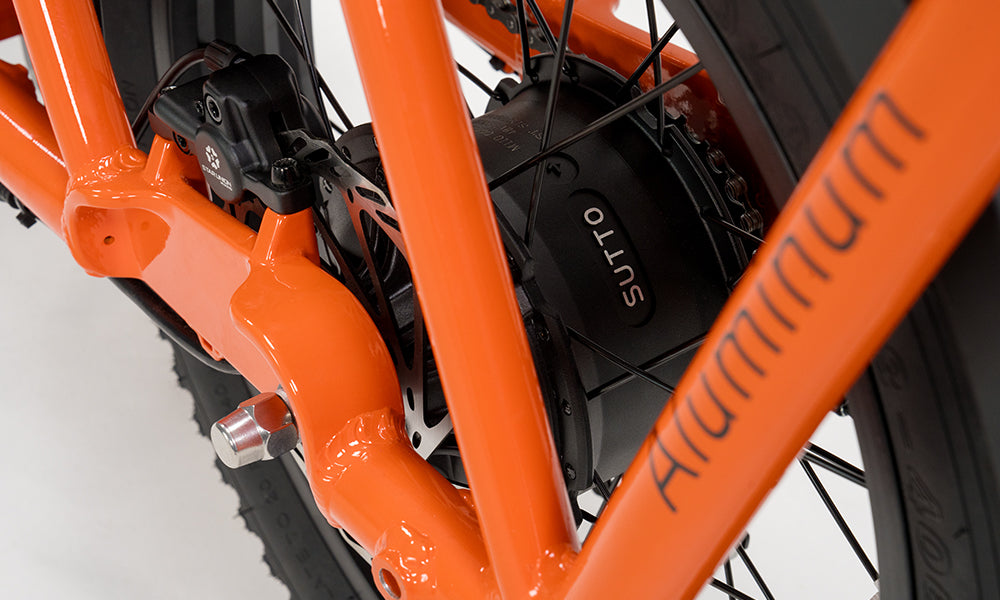

Powerful Motor
Enhance your electric bike with the 48V*750W motor, designed to provide exceptional power and efficiency for a superior riding experience.

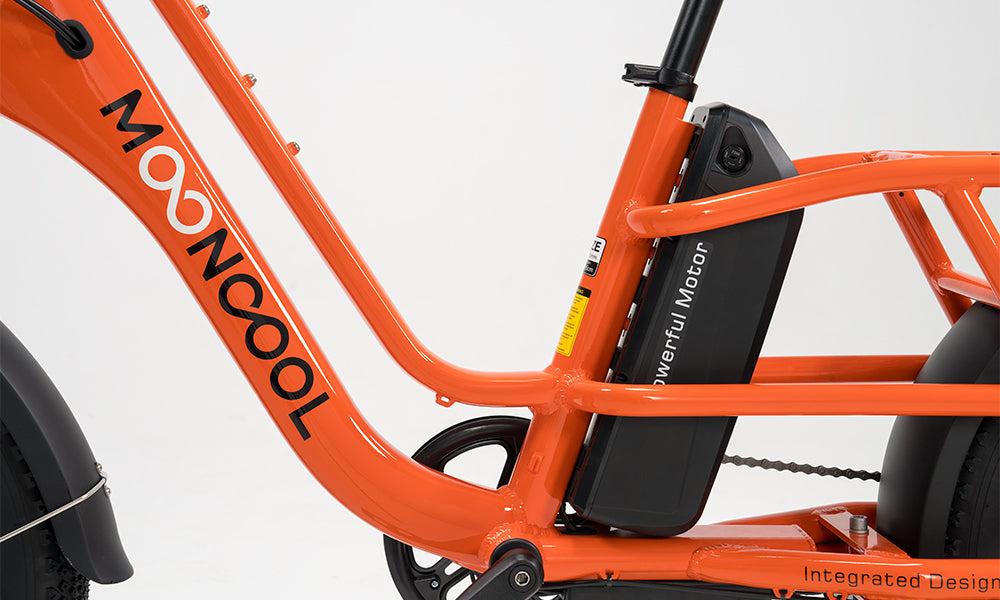

Battery Power
Experience the power and reliability of the LG Lithium 48V*20AH battery, with a range of 60-75 miles, and enjoy longer, smoother rides.

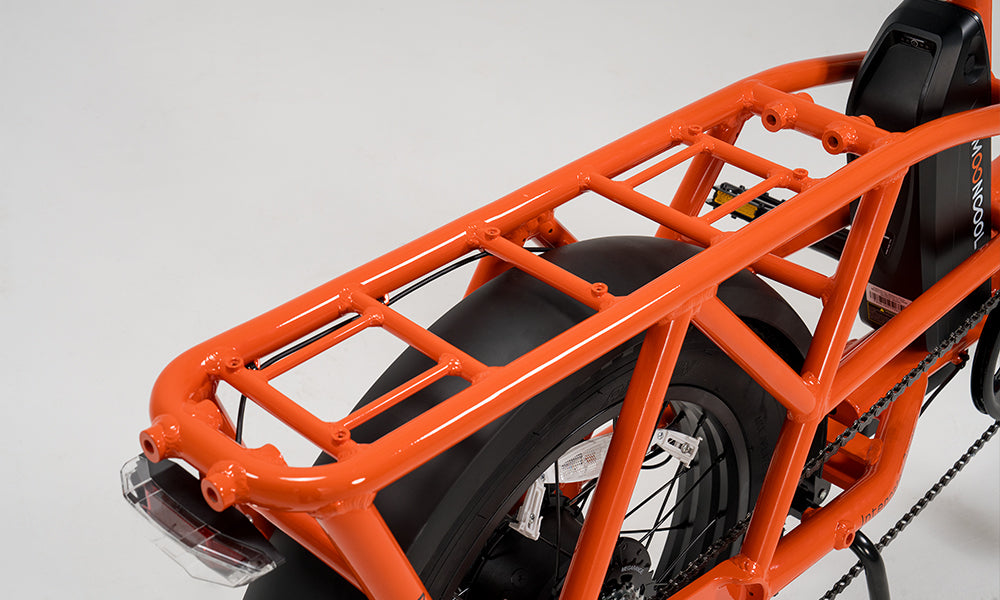

Integrated Rear Rack
By adding seats, bags, baskets, or directly strapping on large items, you can customize the rear rack setup of your electric bike to perfectly meet your travel needs. The extended frame makes transporting and traveling effortless, ensuring every ride is convenient and flexible.

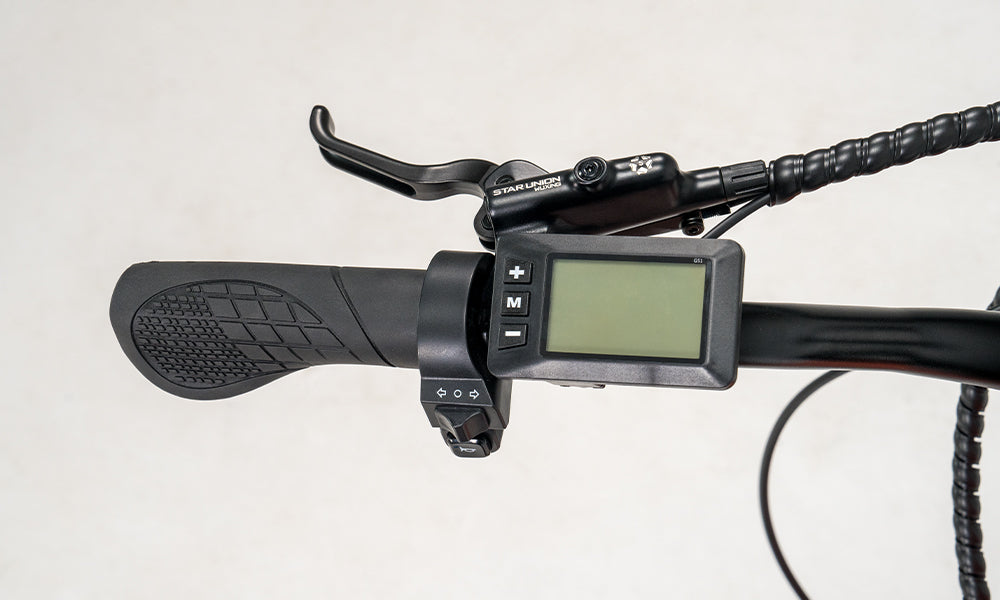

LCD Display
The multifunctional LCD screen tracks your stats and displays clearly even in sunlight. With 5 levels of speed settings, your ride is more comfortable and adaptable to your needs.
Shimano 7 Speed
Achieve precise and smooth shifting with the SHIMANO MFTZ510 7-Speed 14-34T freewheel, enhancing your e-bike experience. Enjoy a smoother, more efficient ride, no matter where you go.
Turn Signals & Horn Function
Equipped with turn signals and a horn, it clearly communicates your intentions to other road users. The turn signals alert others to your direction changes, while the horn ensures they know you're there, creating a safer environment and making each ride more confident and secure.
Versatile Assembly Options
This electric bike is designed with both practicality and family-friendliness in mind, featuring a front basket for storage and an integrated rear rack, making it ideal for daily multifunctional use.
1. Passenger Seating Mode
The rear rack can be equipped with two seats and a protective brace, making it safe for parents to take two children out, whether it’s for school, the park, or family gatherings.
2. Cargo Transport Mode
The rear rack can be transformed into a flat cargo area, suitable for carrying larger items. It’s perfect for everyday shopping or other activities that require transporting a lot of items.
This product has no reviews yet.
FAQ
How assembled is the CG2 when it's delivered, and is it easy to finish the assembly myself?
The CG2 arrives 95% pre-assembled for your convenience. The remaining assembly is straightforward and can be completed with just a bit of DIY — no need to be a professional. You'll be ready to ride in no time!
What's inside the accessory package exclusively for the CG2 electric bike?
Front basket x 1, Rear protection rack x 1, Rear Seats x 2, Pedals x 2, Protective baffles x 2
Does the purchase of a CG2 include a battery, front basket, and rear protection rack?
The CG2 comes with a battery, but the front basket and rear rack are part of the exclusive accessory pack for the CG2 and need to be purchased separately.
