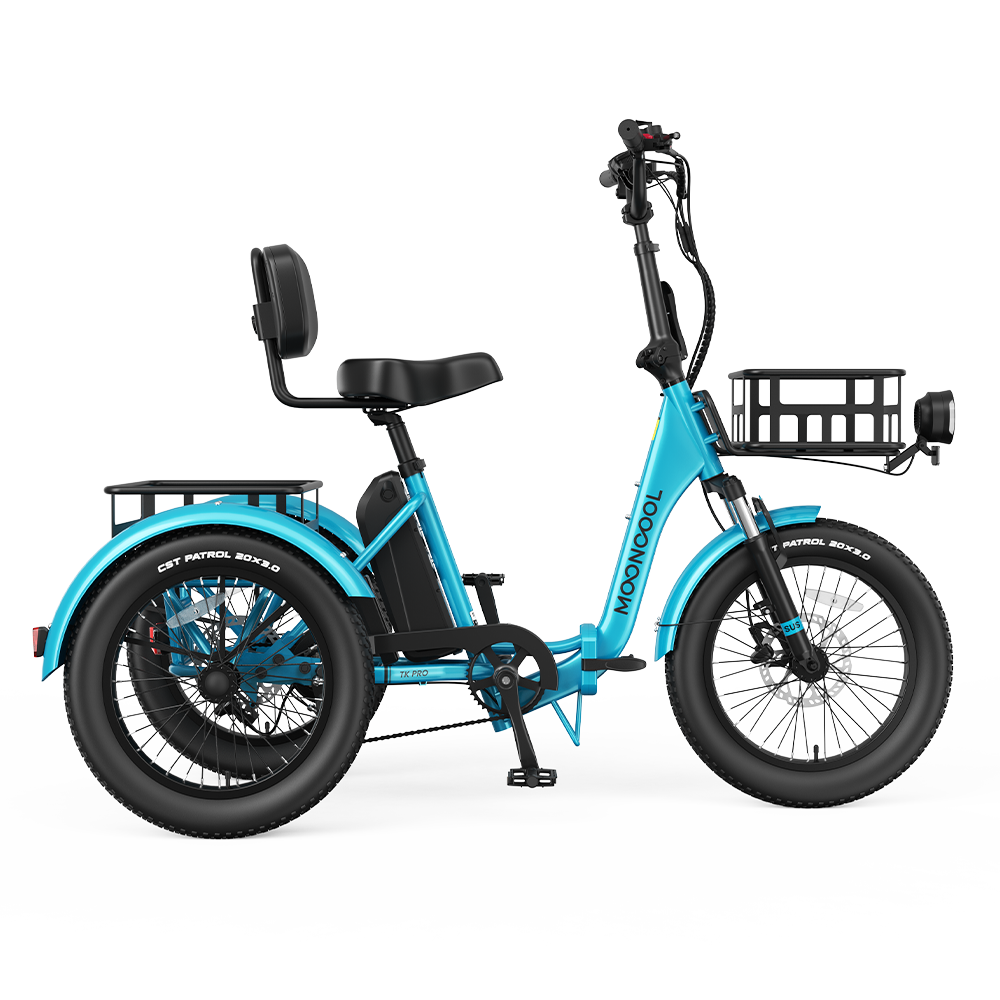

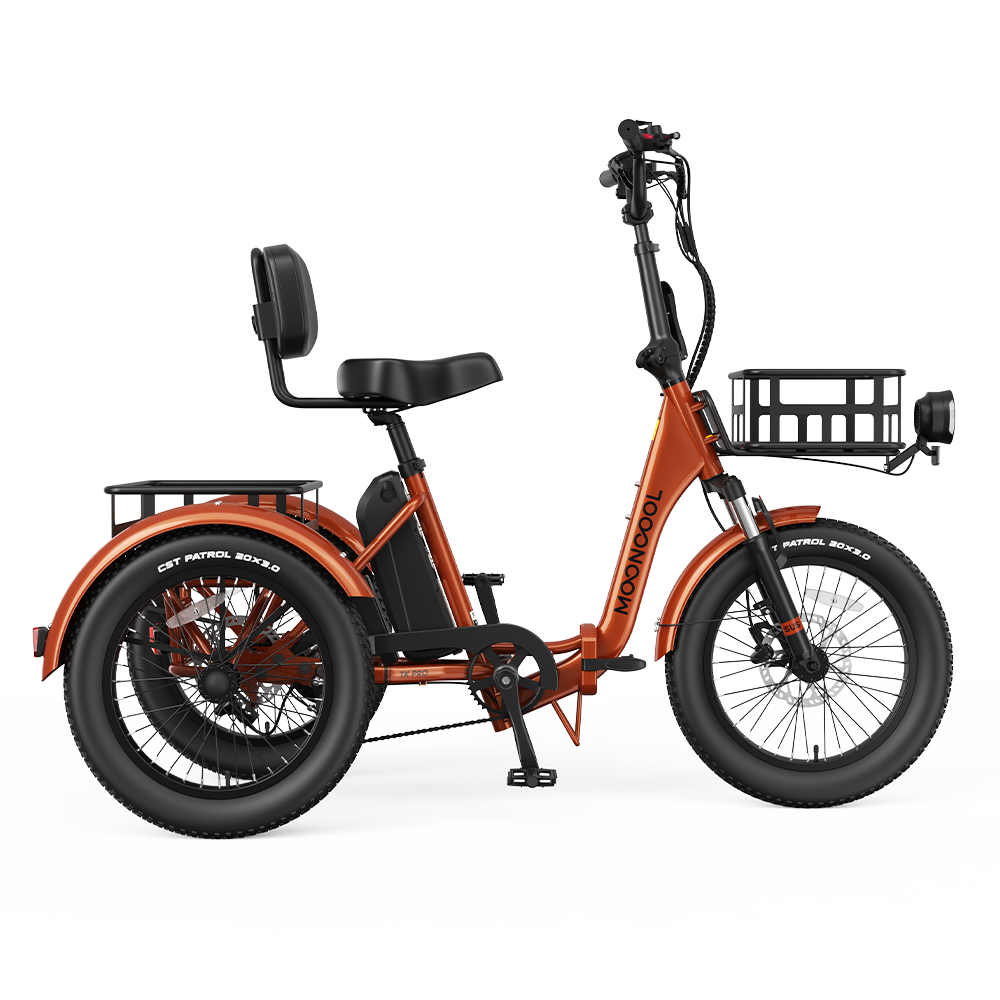

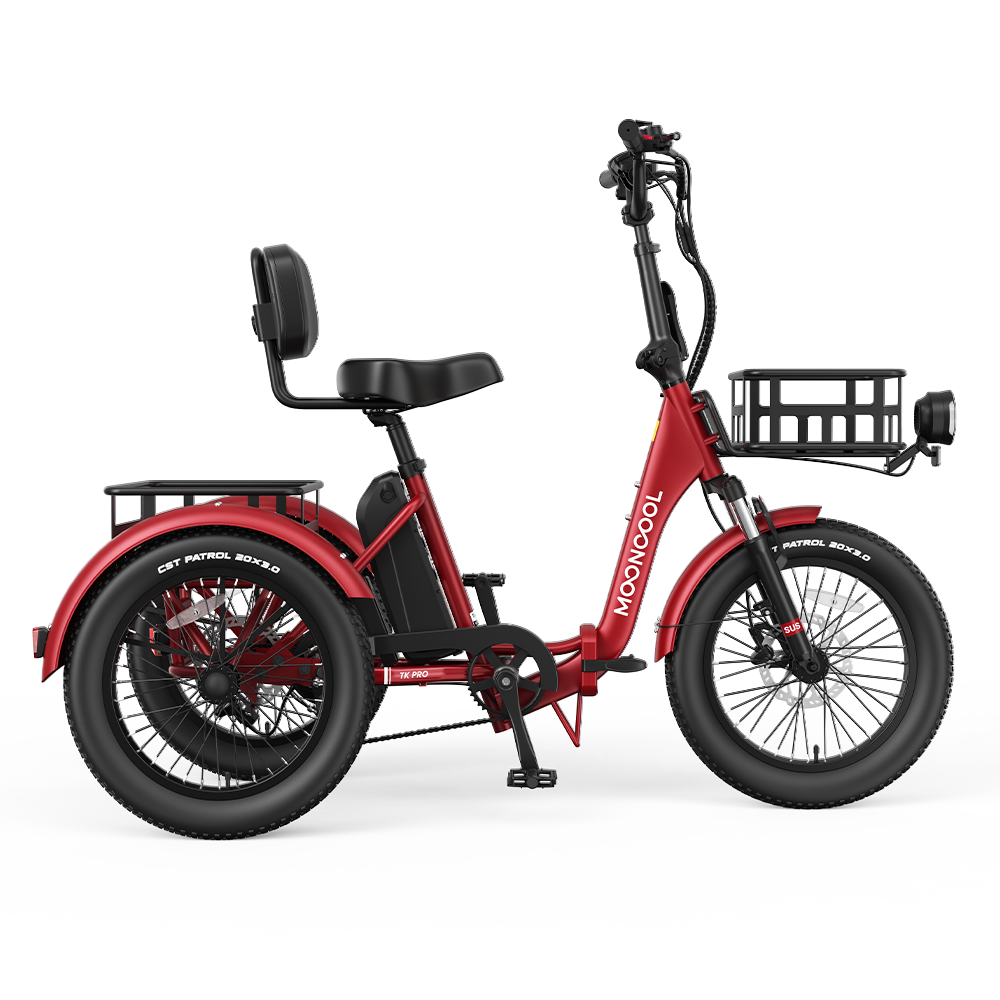

TK Pro Electric Trike

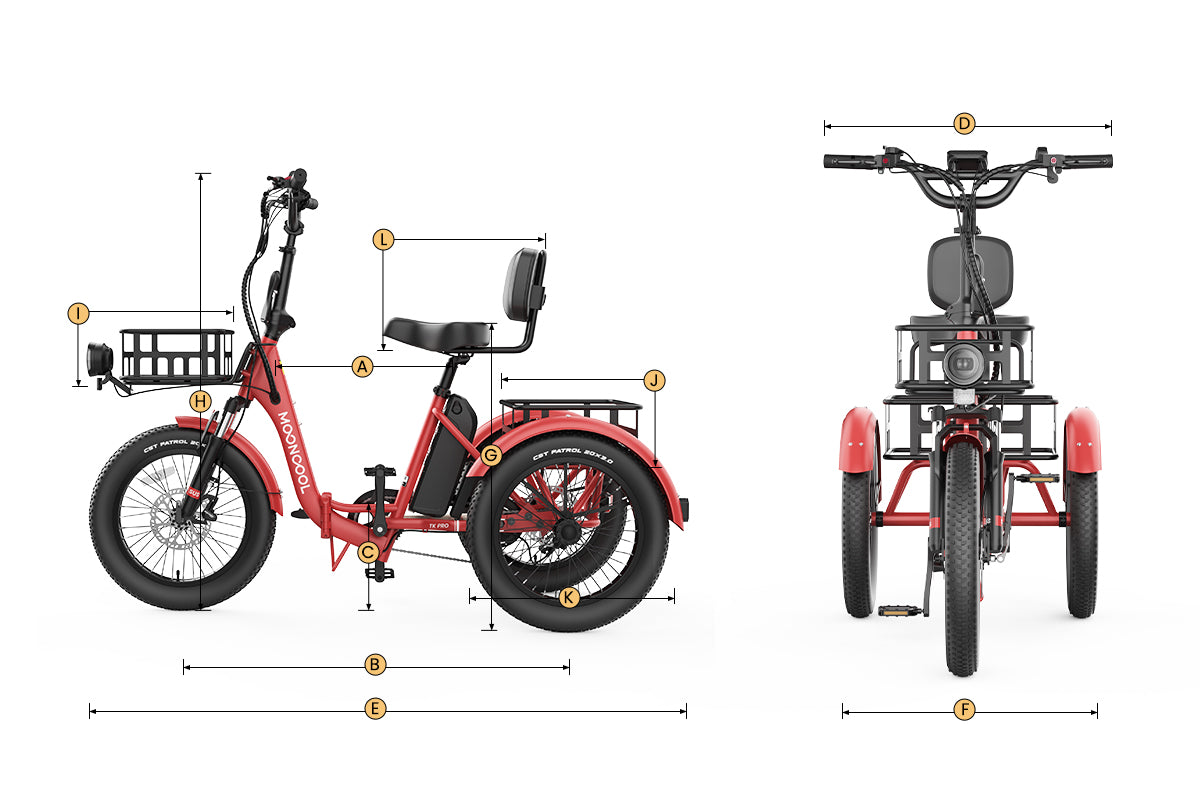

Size & Fit
| ★ | Folded Size |
39.9(L) x 29.9(W) x 30.7(H) in 101.5(L) x 76(W) x 78(H) cm |
| ★ | Recommended Height | 5'~6'3" |
| A | Top Tube Horizontal | 20.9 in / 53 cm |
| B | Wheelbase | 44.1 in / 112 cm |
| C | Stand Over Height | 12.2 in / 31 cm |
| D | Handle Bar Length | 27.2 in / 69 cm |
| E | Total Length | 65 in / 165 cm |
| F | Total Width | 28.4 in / 72 cm |
| G | Seat Height Min / Max |
30.3~42.1 in 77~107 cm |
| H | Handle Bar Height Min / Max |
44.1~46.1 in 112~117 cm |
| I | Front Basket |
12.6 x 11.8 x 5.5 in 32 x 30 x 14 cm |
| J | Rear Basket |
18.9 x 14.2 x 6.3 in 48 x 36 x 16 cm |
| K | Wheel Size | 20 x 3 in |
| L | Seat Size |
12.6 x 11.8 in 32 x 30 cm |
Components
| Weight |
G.W. 112.4 lbs, N.W. 90.4 lbs
|
| Frame | 6061 Aluminum, Hydroformed Tubes |
| Fork | Shock Absorber Front Fork |
| Handle Bar | W: 660 * H: 120 * φ22.2 * 2.6T, φ31.8 |
| Stem | Adjustable 0-80d, L: 10.354 in |
| Grip | Soft PVC Rubber |
| Saddle | Seat with Backrest, Comfortable Large Vacuum-Foamed Seat |
| Seat Post | 6061-T6 Aluminum, φ1.25in x 21.65in Length |
| Seat Post Clamp | D40*25, Quick Release |
| Shifter | 6-Speed |
| Derailleur | Shimano |
| Chainwheel | 6.5in Alloy Crank, 38T Steel Chainring |
| Chain | KMC Z7 |
| Freewheel | 5S^14T/16T/20T/24T/28T, Special Purpose for E-bike |
| Pedal | Alloy Body, 9/16-inch |
|
Display
|
Intelligent Digital LCD Display Appears More Clearly in Sunlight, Color
|
| Brake | STARUNION Hydraulic Disc Brake, Alloy, 180mm Rotor |
| Brake Level | STARUNION Alloy 3-Finger Hydraulic Disc Brake with Electrical Cut-Off Function |
| Rim | 20-inch Alloy Rim, 3.0" Width, 13G Spokes, 36 Holes, AV |
| Tire | 20 x 3.0 Tire, 30 TPI |
| Spokes | 304 Stainless Steel, 13G |
| Parking Brake | With |
| Fenders | With |
| Rear Rack | With |
| Front Basket | With |
| Rear Basket | With |
| Assembly | 95% |
| Colors | 5 Colors |
| Carton Size |
39.8 x 29.9 x 30.3 inches 1010 x 760 x 770mm |
| Load Capacity |
450LBS
|
| Recommended Height | 5'-6'3" |
Specification
| Motor | 48V*750W |
| Battery | 48V*20Ah |
| Range | 45-75 Miles |
| Charger | 110-240V 54.6V 3A |
| Charging Time | 7 Hours |
| Max Safe Speed | 16 Mph |
| Controller | Sine Wave FOC 48V 24amp Peak |
| Sensor | Upgraded Torque Sensor |
| Throttle | Half Twist Throttle |
| Wire Harness | All Water-Resistant |
| Front Light | Starunion LED, Horn Function, CPSP Reflector |
| Rear Light | Starunion LED, Brake Highlight Function, Turn Signals Function |
Pick the Ride That Suits You Best!
750W Rear Drive Motor
500W Rear Drive Motor
48V*20Ah
48V*14.5Ah
45~75 Miles
35~70 Miles
95%
95%
G.W. 112.4 lbs, N.W. 90.4 lbs
G.W. 115.7lbs, N.W. 89.9lbs
450LBS
450LBS
20" x 3.0, 30 TPI
20" x 3.0 CHAOYANG H5183
16MPH
16MPH
Torque Sensor
Cadence Sensor
Six-Speed
Single-Speed
LCD Color Screen
LCD Gray Screen
With Backrest
Without Backrest
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Safety
Our approach to accessibility goes beyond physical design
Comfort
And inclusivity, making sure every rider feels confident and empowered
Accessibility
It encompasses affordability, ensuring our E-Trikes are within reach
Rear Drive Motor
Equipped with a 750W rear drive motor, reaching up to 1500W peak power and a 450 lbs load capacity, it offers more powerful and reliable performance to tackle various terrains and travel needs.
Battery Power
Equipped with a removable 48V*20Ah lithium battery. Provides a range of 45 to 75 miles on a single charge. Explore with confidence and no worries about battery life.
Torque Sensor
The torque sensor detects the rider's pedaling force, offering responsive and efficient assistance for a natural riding experience, making it a better choice than cadence sensors.
Shimano 6 Speed
The Shimano 6-speed gear system allows riders to select the appropriate gear based on speed and terrain, enhancing functionality and making rides more enjoyable and efficient.
More Comfort, Less Worry
Low-Step Frame
The low-step design makes mounting and dismounting easier, reducing the risk of tripping and ensuring a safe, smooth ride for all mobility levels.
Speed Differential Mechanism
Adjusting the wheel speed difference enhances vehicle handling and stability, allowing for smoother turns and greatly improving riding safety.

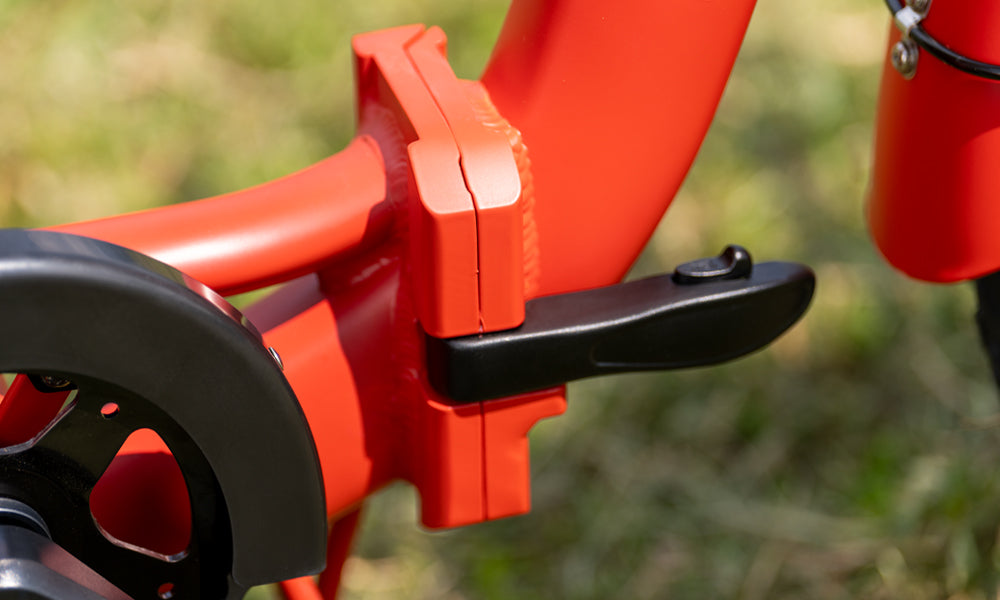

Folding Structure
Equipped with a quick and compact folding mechanism, it facilitates easy transportation and storage without occupying excessive space.
Turn Signals & Horn Function
Equipped with turn signals and a horn, it enhances visibility and safety, enabling riders to navigate urban environments with greater confidence.
Comfort and Care in Every Ride

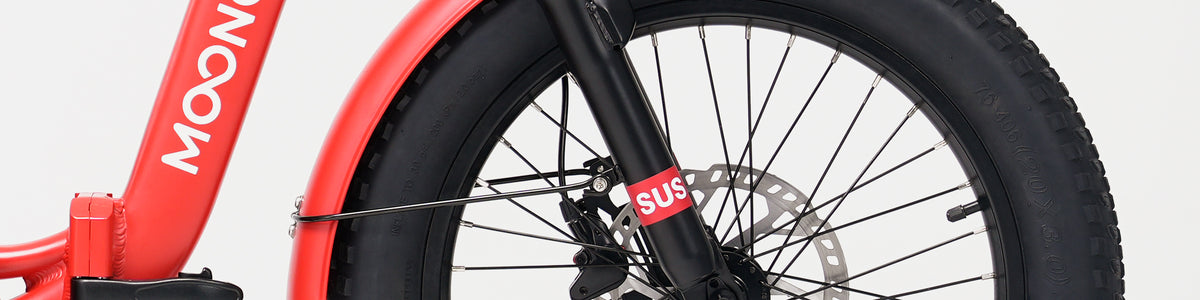

Assembly Video
Our assembly videos will walk you through assembly
This product is rated 5.0 of 5.0 stars.
It has received 7 reviews.
Customer Reviews

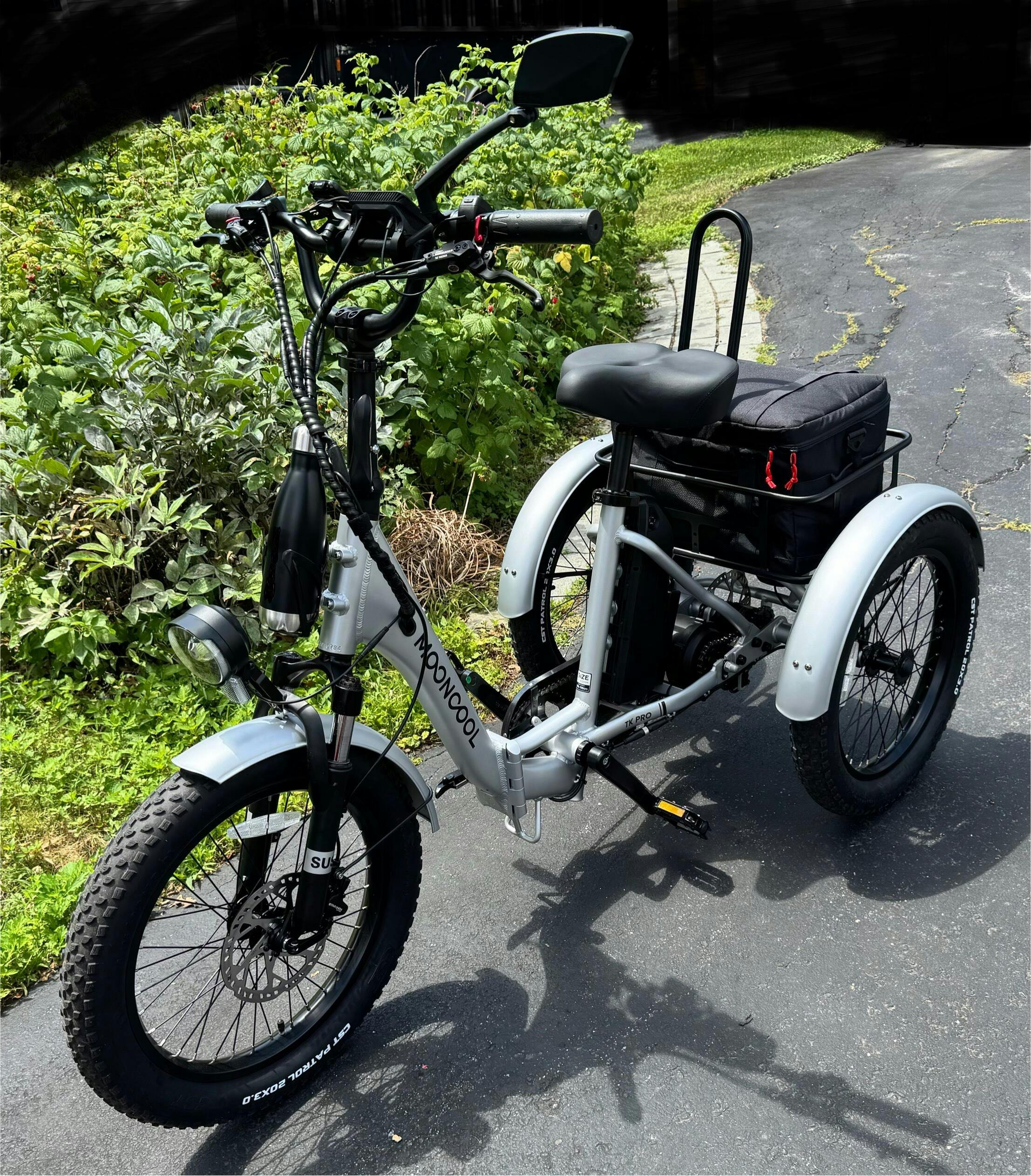

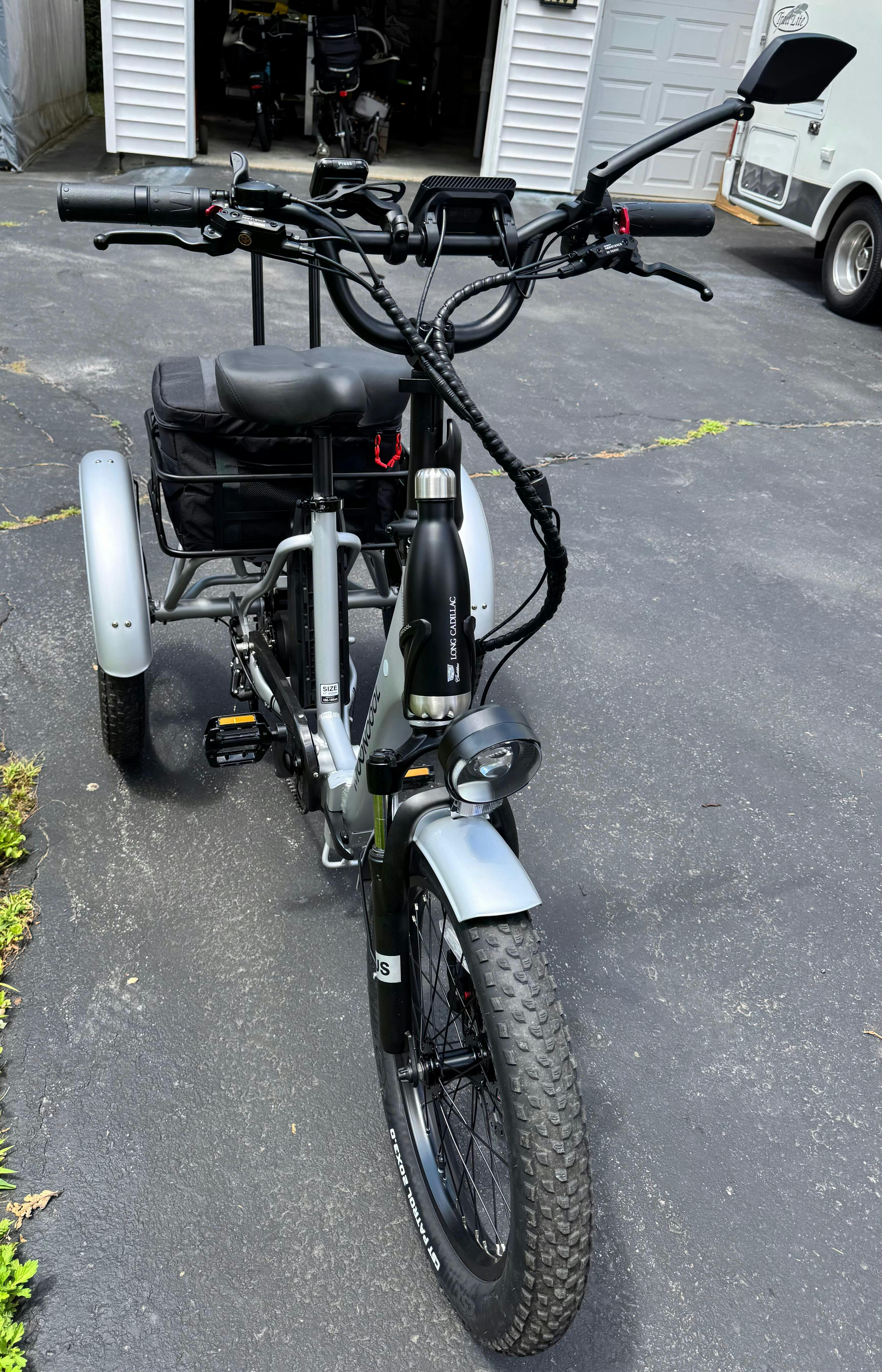

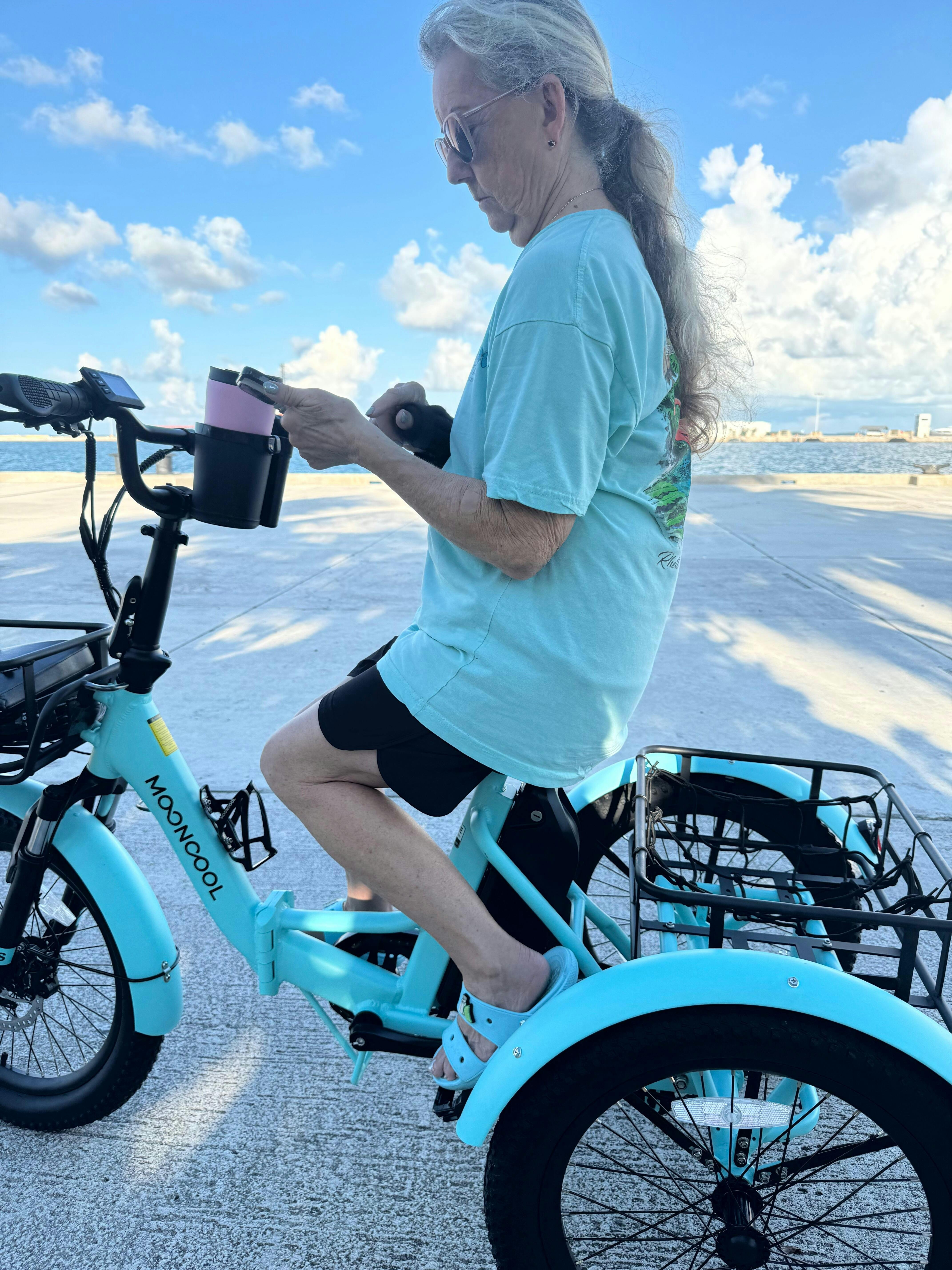

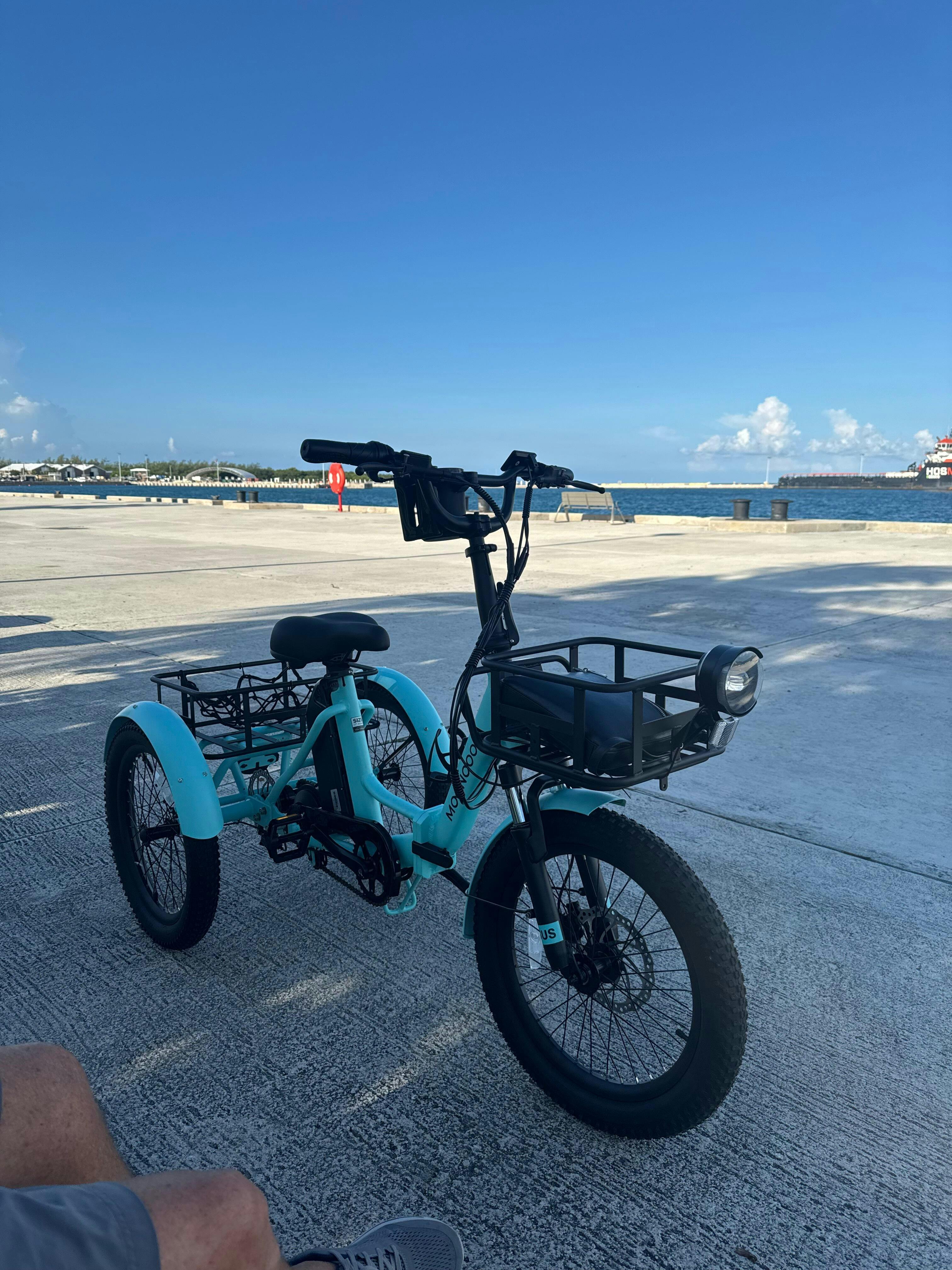

Just waiting on a part that has delayed riding my trike. Everything looks as advertised on all videos, that's why it's title. ALMOST
I absolutely love this trike! It is stable and comfortable!

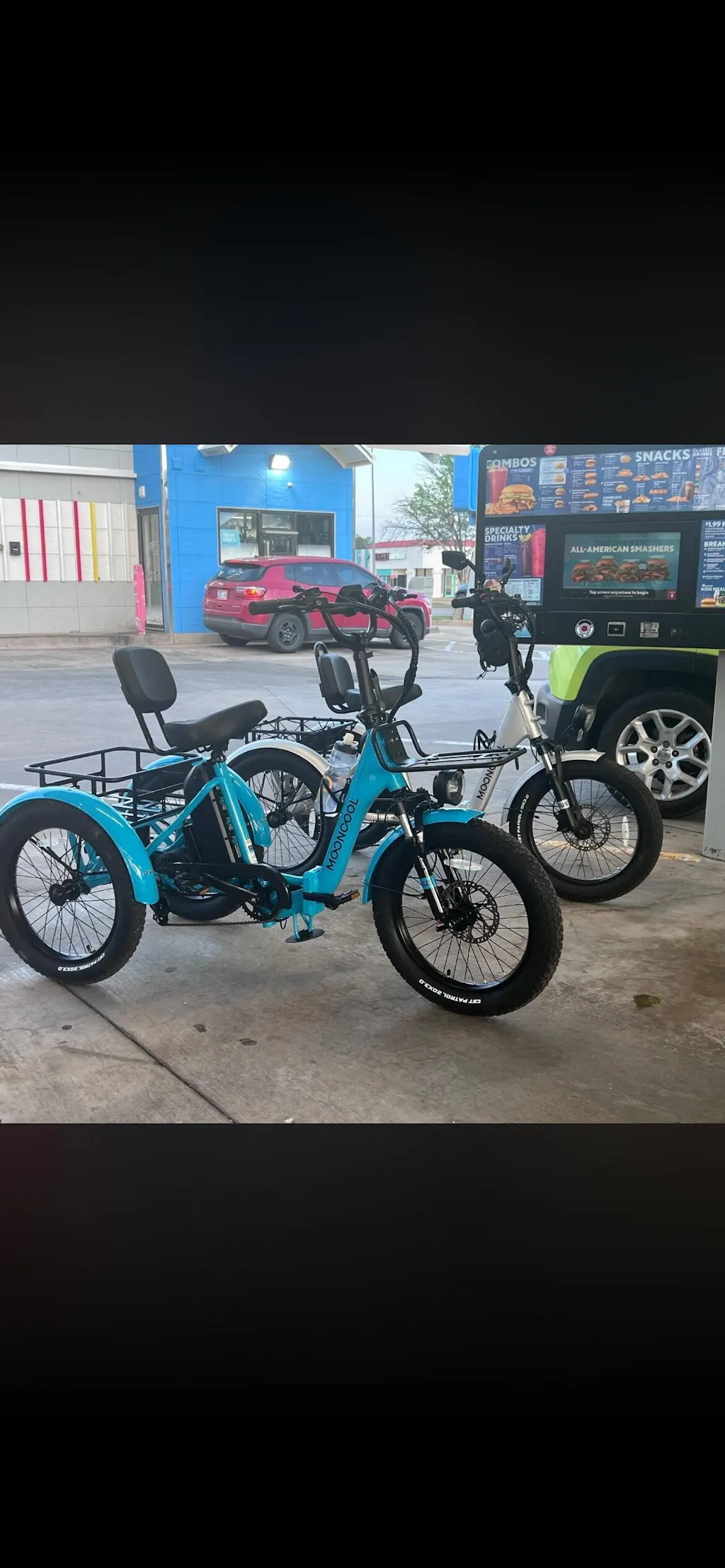

I bought this Foldable PK pro A couple of weeks ago, I also bought mirrors in the storage baskets for It, I hook my 4 pound Yorky to her little leash that I installed in the basket and zip both sides, and she just loves riding in there. With a disability of not having the full strength in my left leg from breaking vertebra’s in my back, I find this the perfect way to be able to get outside and just go for nice rides, The first day I put 10 miles on it and then we had about of rain here in Iowa, then I put 8 miles on it. The next time I rode Looking forward to Going for another ride tomorrow
I love the TK Pro Electric Trike. It's great that it's foldable and you can travel with it easily. And, there is so much storage between the front and back baskets that it's perfect for picking up groceries at my local store.
I have both the TK1 folding and the TK1 Pro. After considerable riding on both trikes I would recommend the TK Pro because of the many exciting upgrades. The addition of the torque sensor is a very noticeable upgrade and helps to bring out a more natural feel to the ride. The 48 volt 20 ah battery will also remove any range anxiety that may come from those longer rides. The 750 watt motor turns the trike into a beast for climbing those hills. What are you waiting for? Let the fun begin!
I did my due diligence, and could not find a comparable trike for less than $2000. I love it! It arrived in 6 days and assembled in less than an hour. I really appreciate the attention to detail. With its comfort seat, sturdy baskets, dual parking brakes, rear differential, and 750 watt rear drive, it looks and feels like a $3000 trike. I've been riding it almost a month, and it's flawless. Highly recommended!
FAQs
What are the dimensions of the TK Pro when it's folded?
When folded, the TK Pro Electric Trike measures 101.5 x 76 x 78 cm (39.9 x 29.9 x 30.7 inches), making it compact for storage and convenient to transport.
How assembled is the TK Pro electric trike when it arrives, and what will I need to do to finish the assembly?
Arrives 95% assembled with simple final steps. Tools and clear instructions included for a quick, hassle-free setup.
Does the electric trike come with a battery and both front and rear baskets included?
Yes, indeed! Your trike arrives with a battery and both baskets included, ready for immediate use.
