MC3 MTB AWD
All Terrain Electric Dual Drive Off-Road Mountain Bike.
Features and Details
- Motor: 500W*2 All-wheel drive
- Battery: 48V*15Ah Battery
- Range: 30-45 Miles
- Tires: 26*4.0″ Fat tire
MC3 MTB AWD—The best fat tires e-bike for all terrains such as mountains, beaches, snow, and city roads.

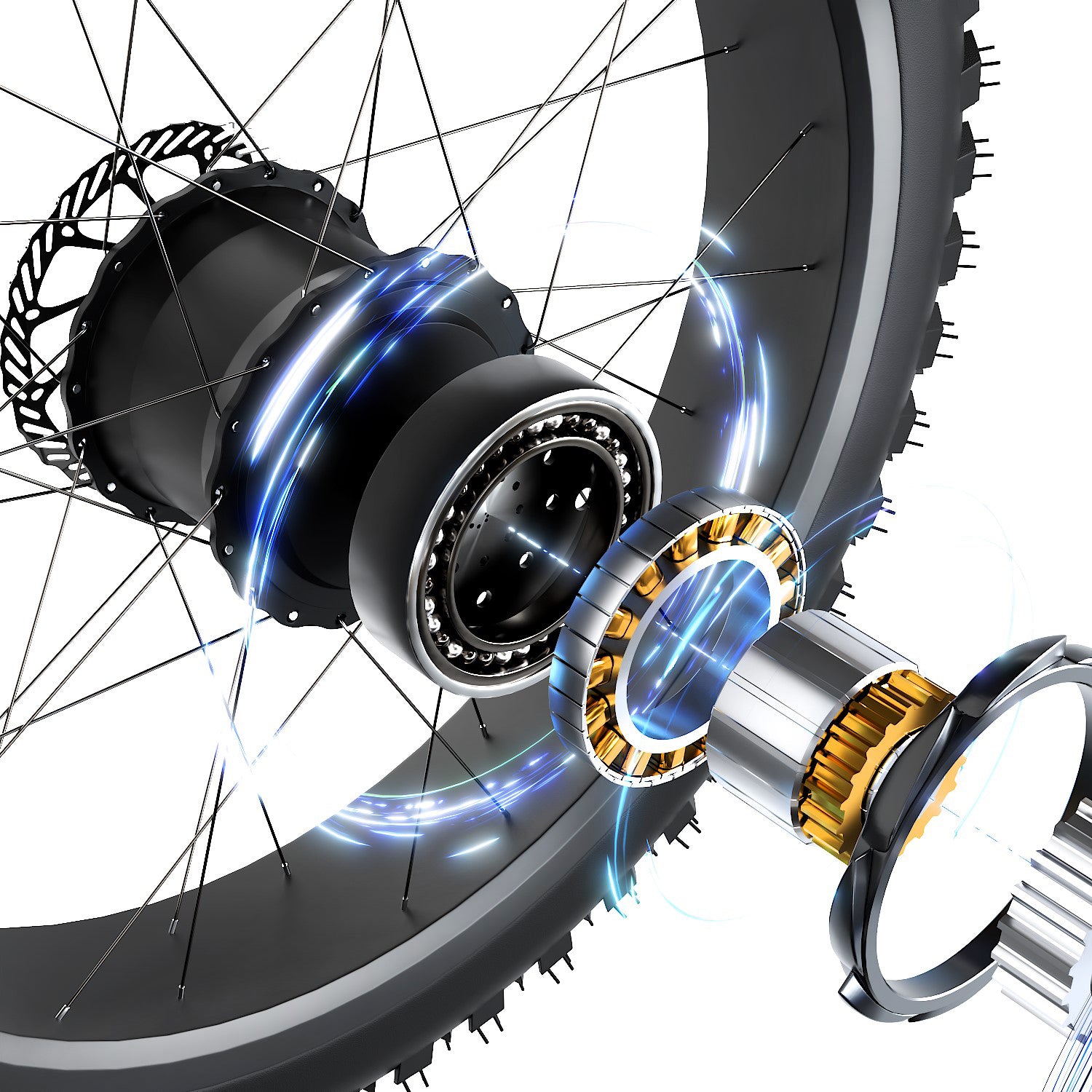

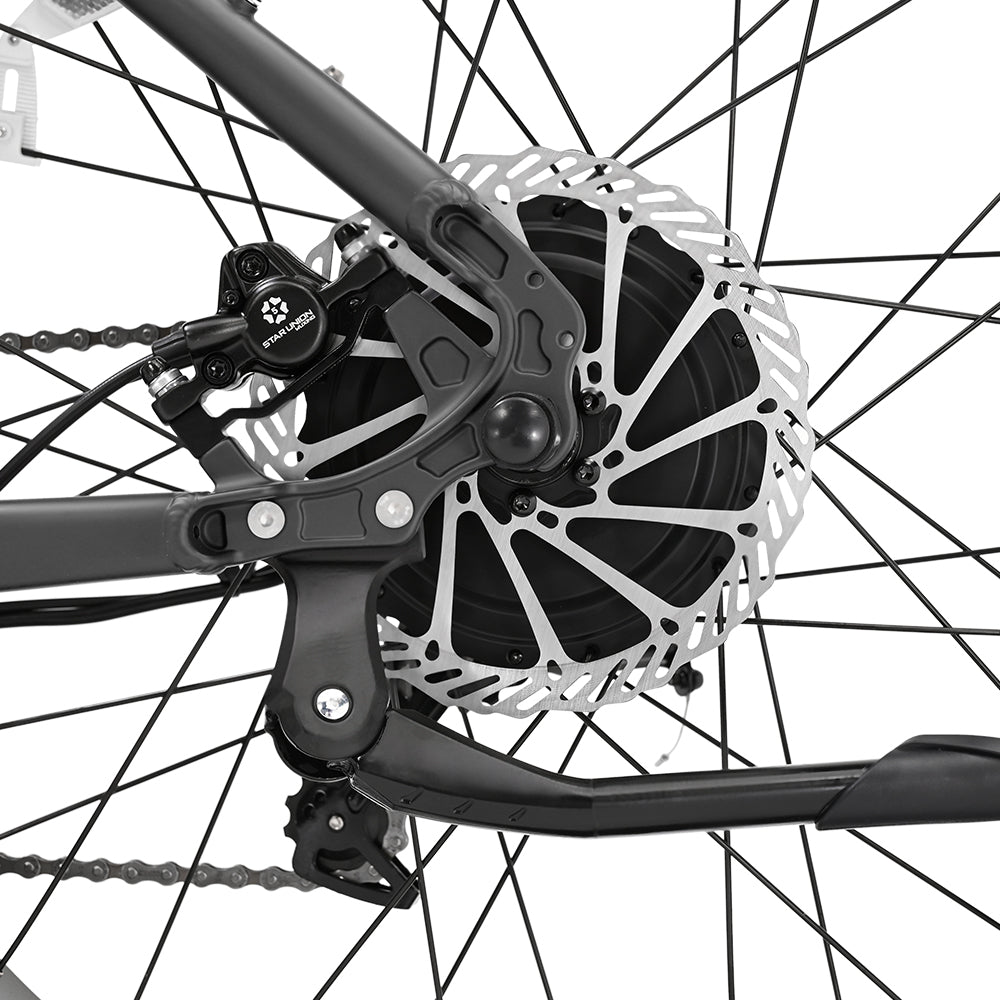

500W*2 Powerful Hub Motor
Equipped with a 500W front motor and a 500W rear motor can reach a powerful peak of 1300w and 150 NM torque providing strong drive power which makes your journey effortless.

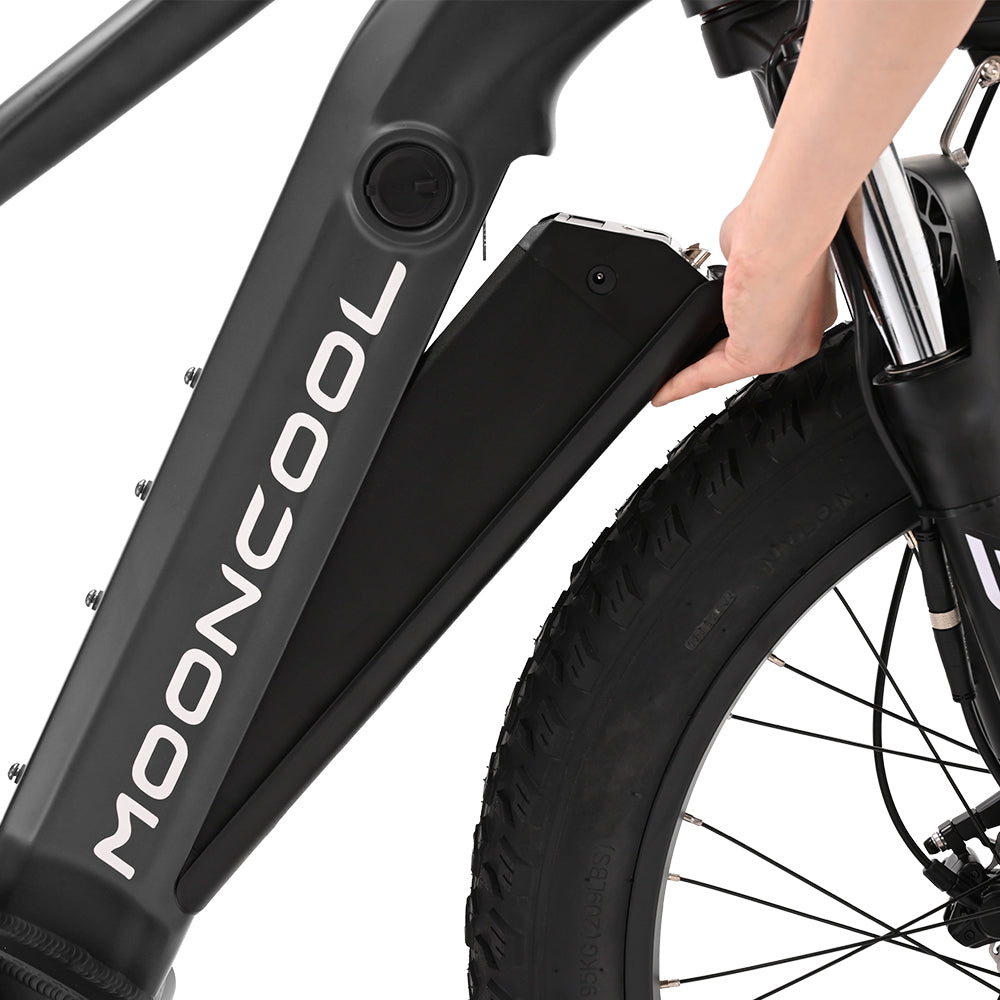

48V*15Ah Large Capacity Battery
48V*15Ah Removable Lithium Battery
The battery ensures long service life and excellent performance, offering a maximum range of 45 miles. MC3 also supports dual batteries, giving it a range of up to 80 miles.

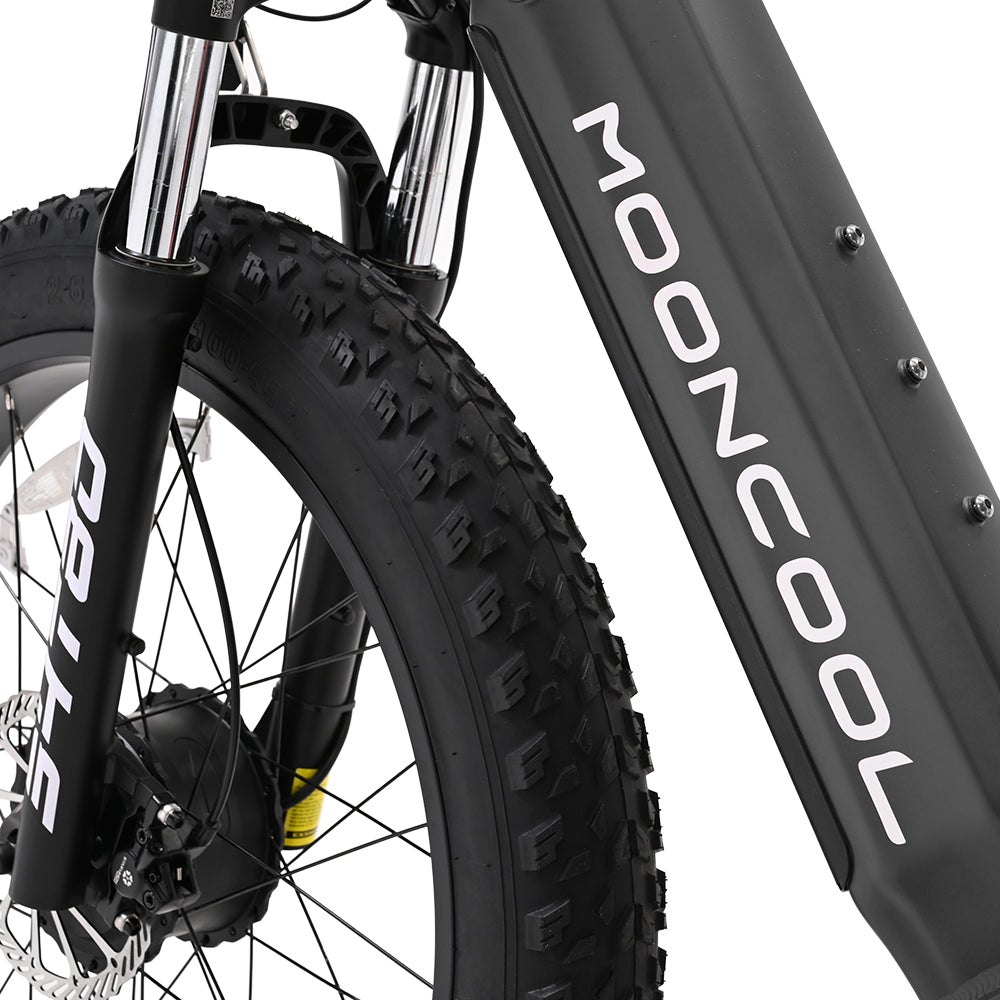

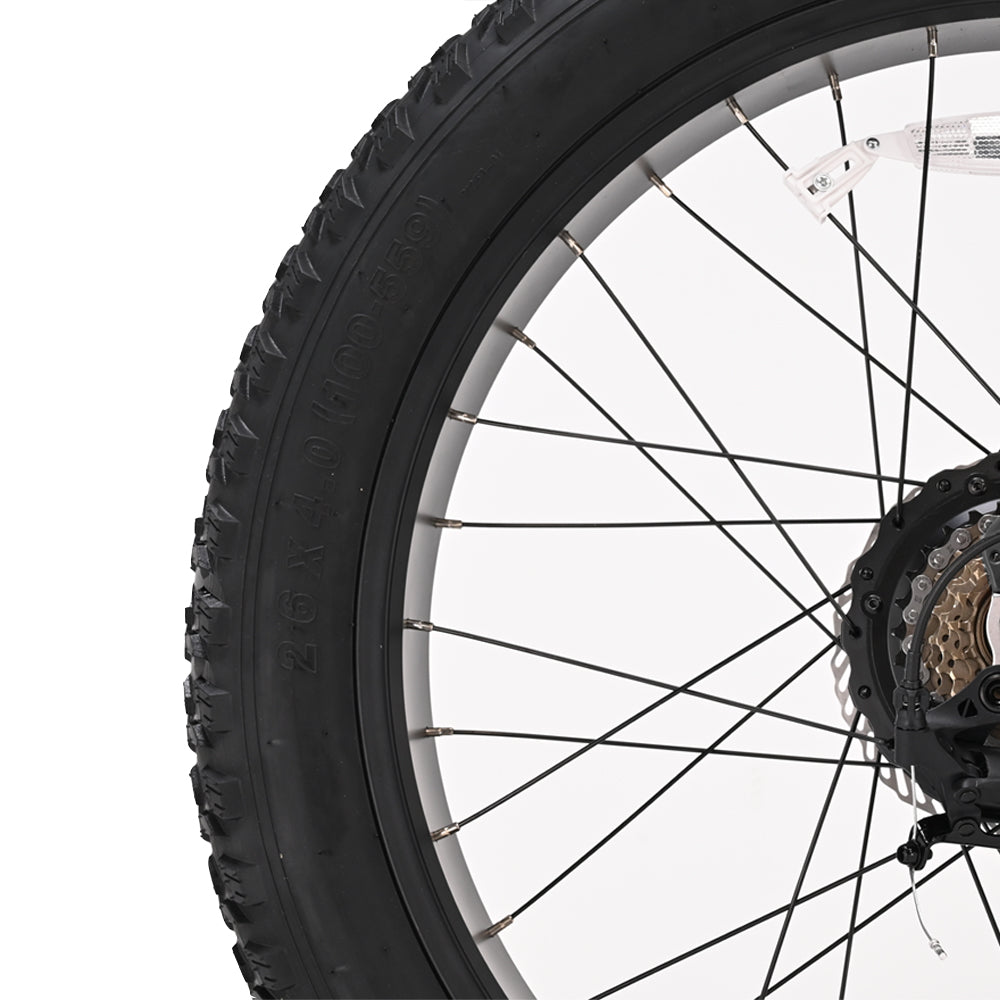

26*4.0 Fat Tires
The 26*4.0 fat tires easily cope with various terrains such as mountains, beaches, snow, and urban roads, let you feel better and faster when riding.

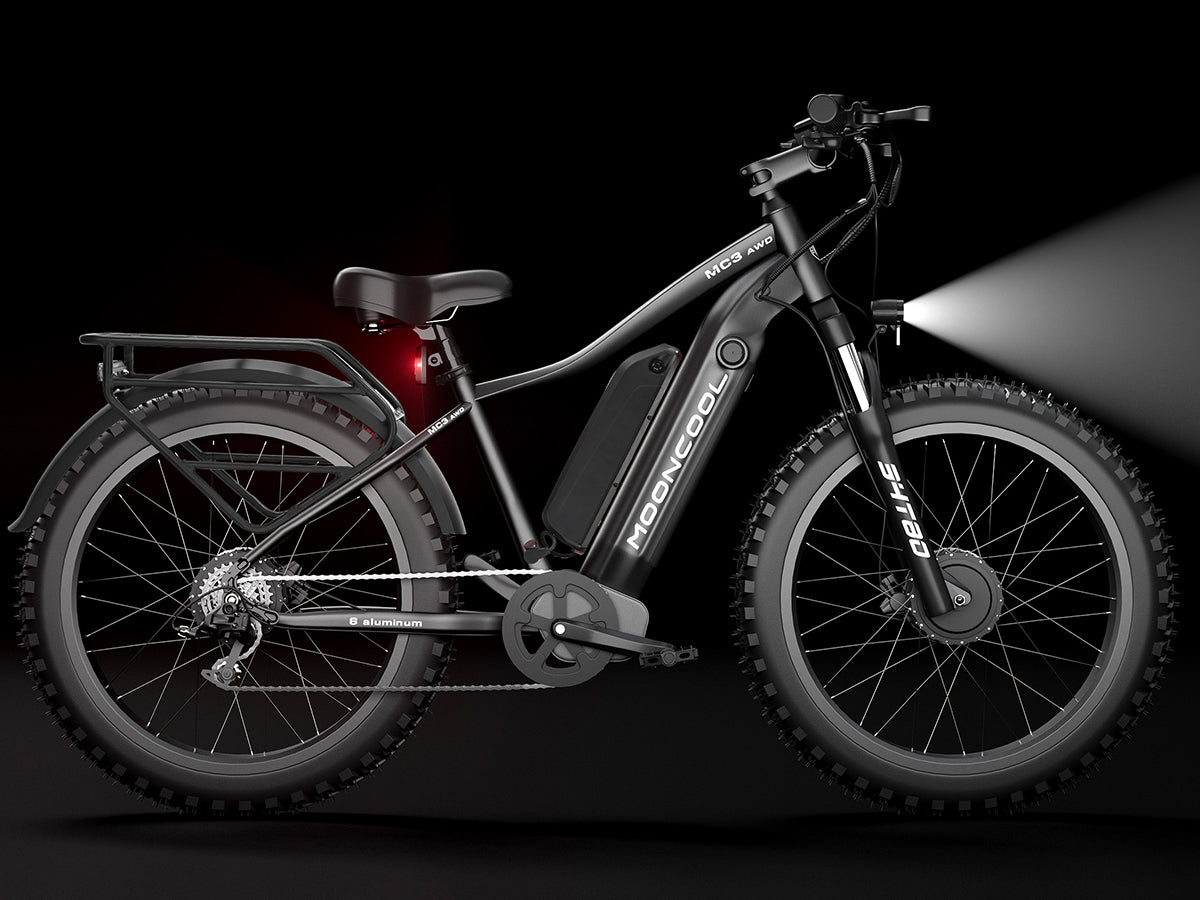

Rear Light
LED 3A*2 rear light. Brake stoplight function

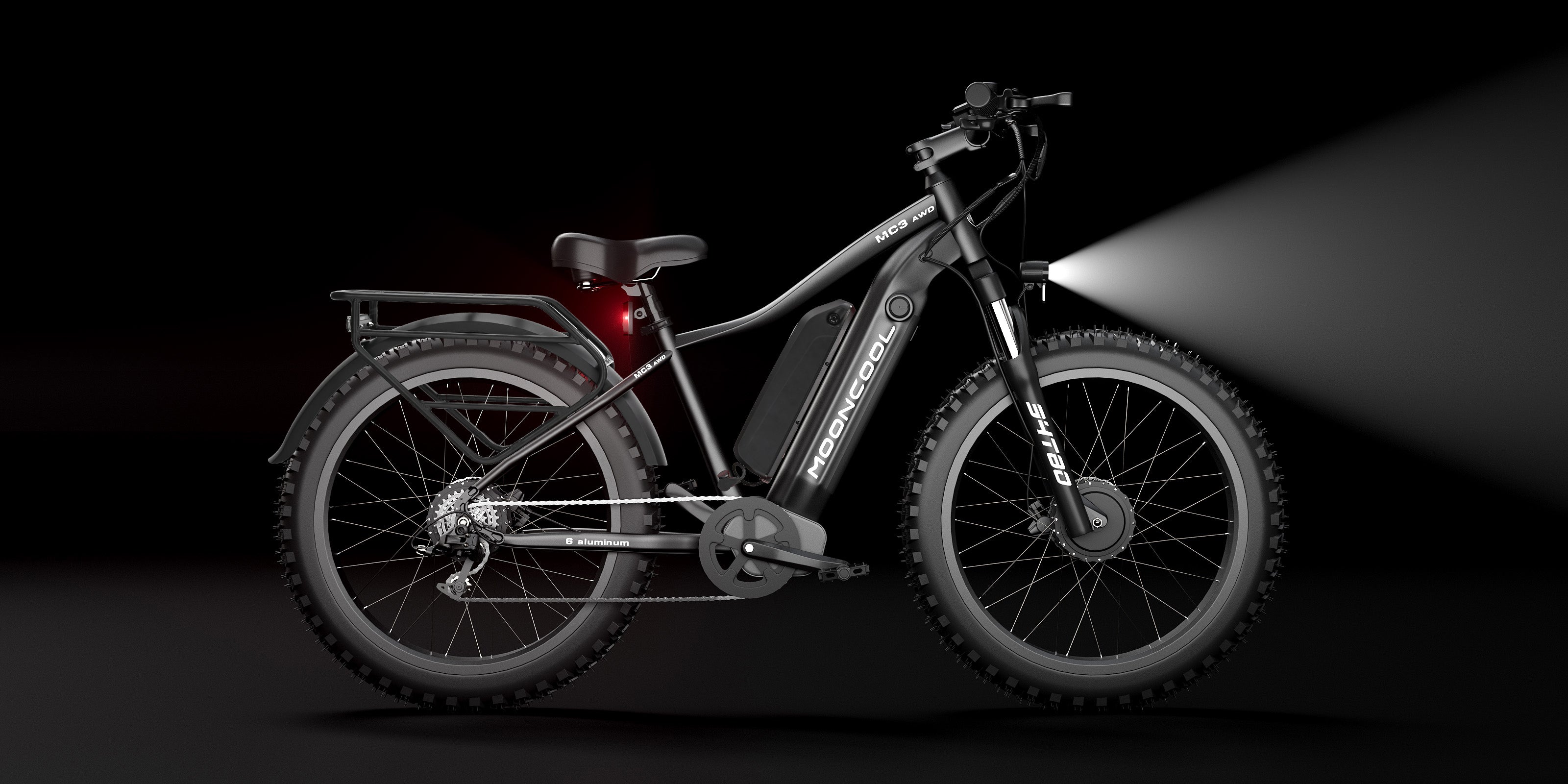

Front Light
High brightness LED ebike headlight
Racks & Fenders
The rear rack offers additional storage space, perfect for carrying bags, equipment or other items.The fenders provide excellent protection from mud, dirt and water, keeping the rider and bike clean and dry during the ride.
The Second Battery
MC3 also supports dual batteries, giving it a range of up to 80 miles.
Specifications
Electronics
| Motor | 500W*2 (Peak 1300W, 150NM) |
| Battery | 48V*15Ah |
| Range | 30~45 Miles |
| Charger | 110-240V 54.6V 2A |
| Charging Time | 6-8 Hours |

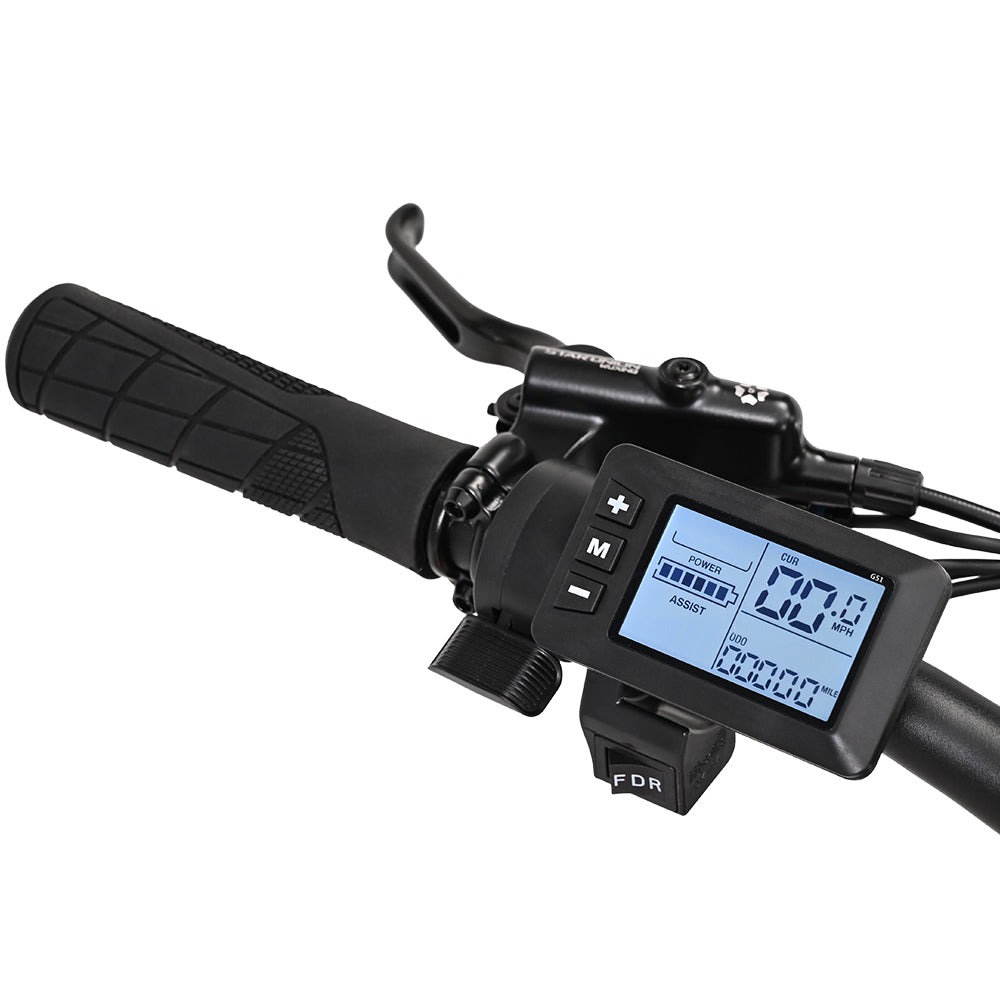

| Display | Multifuctional G51，LCD Gray Screen |
| Controller | FOC 48V 20AMP Peak |
| Pedal Sensor | 24 Signals Cadence Sensor |
| Throttle | Thumb-control，130X |
| Front Light | Integrated Led Light |
| Rear Light | Led 3A*2 ,Brake Stoplight Highlight |
Components
| Frame | 6061 Aluminum, Integrated and Removable Down-tube Battery |
| Fork | Alloy, Travel 80mm Suspension,Mechanical Lockout |
| Handle Bar | Alloy, Barboe 31.8mm, Length 705mm, Rise 20 |
| Stem | Alloy, Barboe 28.6*31.8mm, Extension 90MM, 7 Degree |
| Charging Time | 6-8 Hours |
| Saddle | Comfortable Vacuum Foaming Seat |
| Shifter | Trigger Shifter 7 Speed |
| Chain | KMC Z7 122 Links |
| Freewheel | SHIMANO TZ500 7 Speed 14-28T |
| Brake | Hydraulic Disc Brake, Alloy, Rotor 180MM |
| Rim | Alloy 26"x4.0"x13G*36H, AV |
| Tire | Fat Tire , 26*4.0 P1258 |
Geometry
| Step Thru | Step Over | |
| Body Height in cm | ≤ 175 | 175 ~190 |
| Seat Tune Length in mm |
423 | 423 |
| Seat Tube Angle (B) |
72° | 72.2° |
| Top Tube Horizontal in mm (C) |
602.4 | 621.7 |
| Head Tube Length in mm (D) | 160 | 160 |
| Head Tube Angle (E) | 70° | 70° |
| Stack in mm (F) | 681.6 | 681.6 |
| Wheelbase in mm (G) | 1132.8 | 1162.1 |
| Stand-over Height in mm (H) |
499 | 770 |
| Reach in mm (I) | 399 | 399 |
| Bottom Barcket Offset in mm (J) |
60 | 60 |
| Chain Stay Length in mm (K) | 480 | 480 |
| Crank Length in mm (L) |
170 | 170 |
| Stem Length in mm (M) |
90 | 90 |
| Handlebar Length in mm (N) |
700 | 700 |
| Motor | 500W*2 (Peak 1300W, 150NM) |
| Battery | 48V*15Ah |
| Range | 30~45 Miles |
| Charger | 110-240V 54.6V 2A |
| Charging Time | 6-8 Hours |
| Display | Multifuctional G51，LCD Gray Screen |
| Controller | FOC 48V 20AMP Peak |
| Pedal Sensor | 24 Signals Cadence Sensor |
| Throttle | Thumb-control，130X |
| Front Light | Integrated Led Light |
| Rear Light | Led 3A*2 ,Brake Stoplight Highlight |
| Frame | 6061 Aluminum, Integrated and Removable Down-tube Battery |
| Fork | Alloy, Travel 80mm Suspension,Mechanical Lockout |
| Handle Bar | Alloy, Barboe 31.8mm, Length 705mm, Rise 20 |
| Stem | Alloy, Barboe 28.6*31.8mm, Extension 90MM, 7 Degree |
| Charging Time | 6-8 Hours |
| Saddle | Comfortable Vacuum Foaming Seat |
| Shifter | Trigger Shifter 7 Speed |
| Chain | KMC Z7 122 Links |
| Freewheel | SHIMANO TZ500 7 Speed 14-28T |
| Brake | Hydraulic Disc Brake, Alloy, Rotor 180MM |
| Rim | Alloy 26"x4.0"x13G*36H, AV |
| Tire | Fat Tire , 26*4.0 P1258 |
| Step Thru | Step Over | |
| Body Height in cm | ≤ 175 | 175 ~190 |
| Seat Tune Length in mm |
423 | 423 |
| Seat Tube Angle (B) |
72° | 72.2° |
| Top Tube Horizontal in mm (C) |
602.4 | 621.7 |
| Head Tube Length in mm (D) | 160 | 160 |
| Head Tube Angle (E) | 70° | 70° |
| Stack in mm (F) | 681.6 | 681.6 |
| Wheelbase in mm (G) | 1132.8 | 1162.1 |
| Stand-over Height in mm (H) |
499 | 770 |
| Reach in mm (I) | 399 | 399 |
| Bottom Barcket Offset in mm (J) |
60 | 60 |
| Chain Stay Length in mm (K) | 480 | 480 |
| Crank Length in mm (L) |
170 | 170 |
| Stem Length in mm (M) |
90 | 90 |
| Handlebar Length in mm (N) |
700 | 700 |
Step Over / Step Thru
Step Over
Step Thru
FAQs
How to assemble MC3, easy or difficult?
MC3 is 85% pre-assembled before shipping, you just install the handlebar, front wheel, and the remaining small components according to the instructions or our assembly video.
Does MC3 come with two batteries or do I need to buy another by myself?
Yes, if you want a dual-battery e-bike, we also have a second battery on sale, just order as you need.
Can you send us the weight of the bike and what is the payload capacity?
The gross weight of MC3 is 100lbs around and the padload capacity is 350lbs.
