Assembly tools included
Yes
Range
35~60 MI
Top Speed
15.5MPH
Load Capacity
400 LBS
Motor
Peak 1092W
Foldable
Yes
Certified by SGS

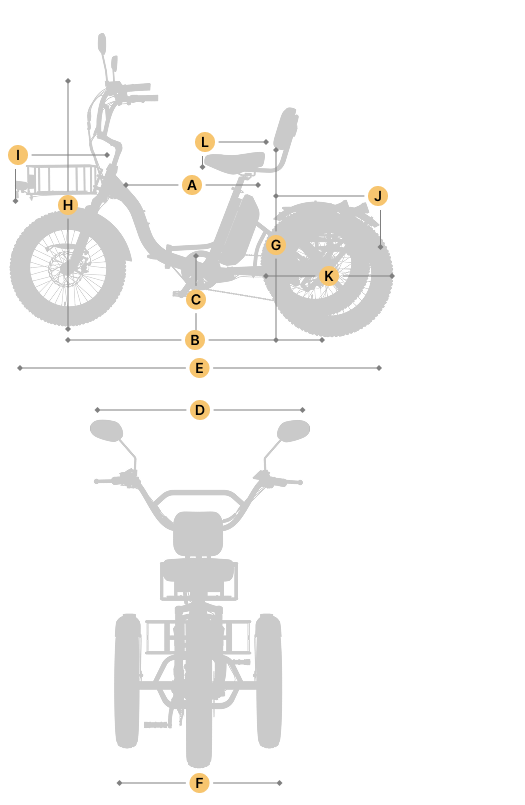

Configure
Size
Component
Specification

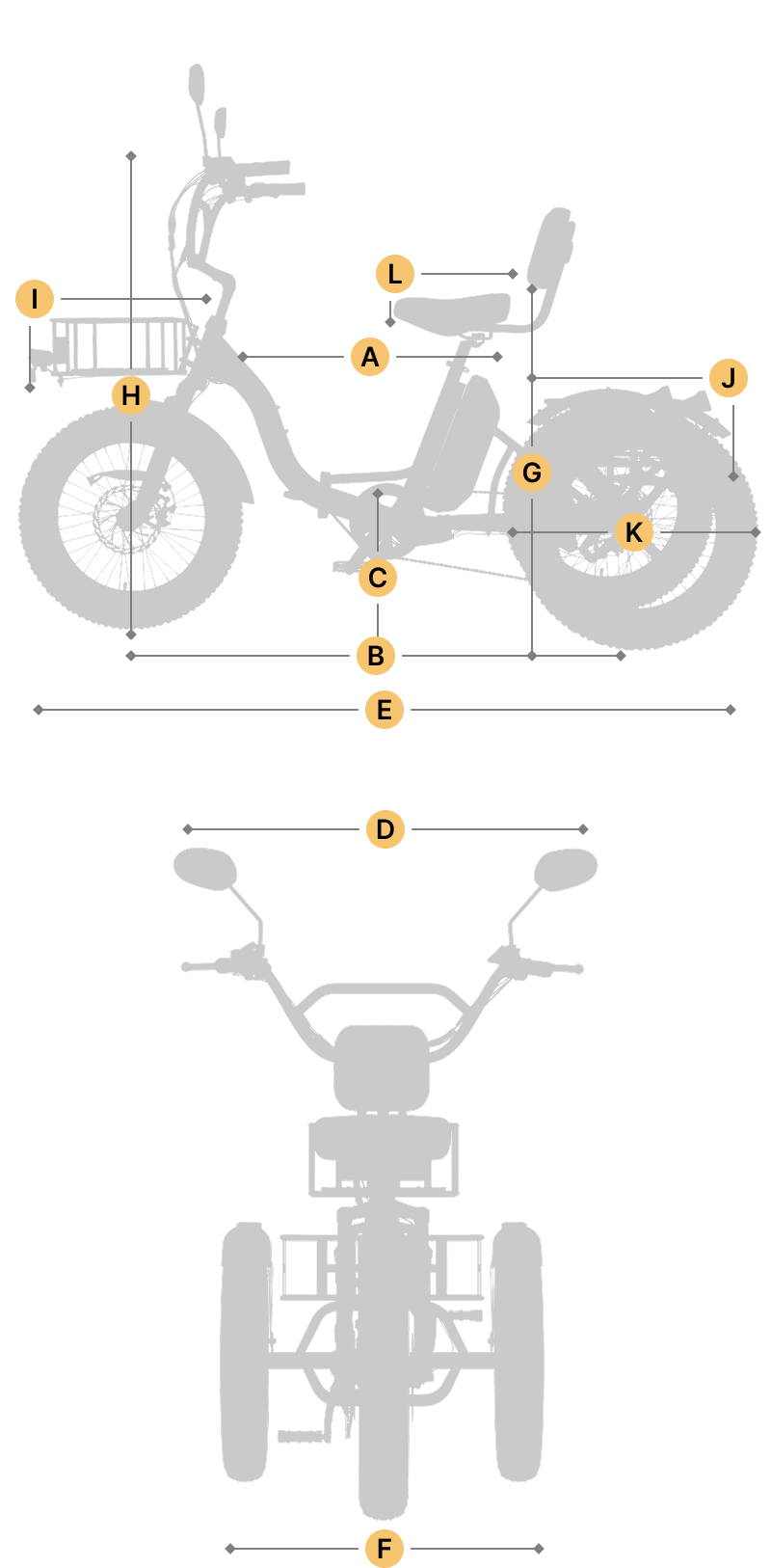

| ★ | Folded Size |
41.3 × 33.5 × 50.4 in 105(L) *85(W) *128(H) cm |
| ★ | Recommended Height | 5'~6'3" |
| A | Top Tube Horizontal | 25.2 in |
| B | Wheelbase | 51.2 in |
| C | Stand Over Height | 15.7 in |
| D | Handlebar Length | 33.9 in |
| E | Total Length | 70.9 in |
| F | Total Width | 30.7 in |
| G | Seat Height Min/Max | 30 in ~ 40 in |
| H | Handlebar Height Min/Max | 44 in ~ 45 in |
| I | Front Basket | 12.2 * 11.8 * 5.5 in |
| J | Rear Basket | 18.9 * 14.2 * 5.9 in |
| K | Wheel Size | 20.0 * 4.0 in |
| L |
Seat Size
|
12.6 * 11.4 in |
| Weight | G.W. 116.4lbs, N.W.89.9lbs |
| Frame | 6061 Aluminum+Hiten Steel, Folding Structure, Rear Differential Mechanism. |

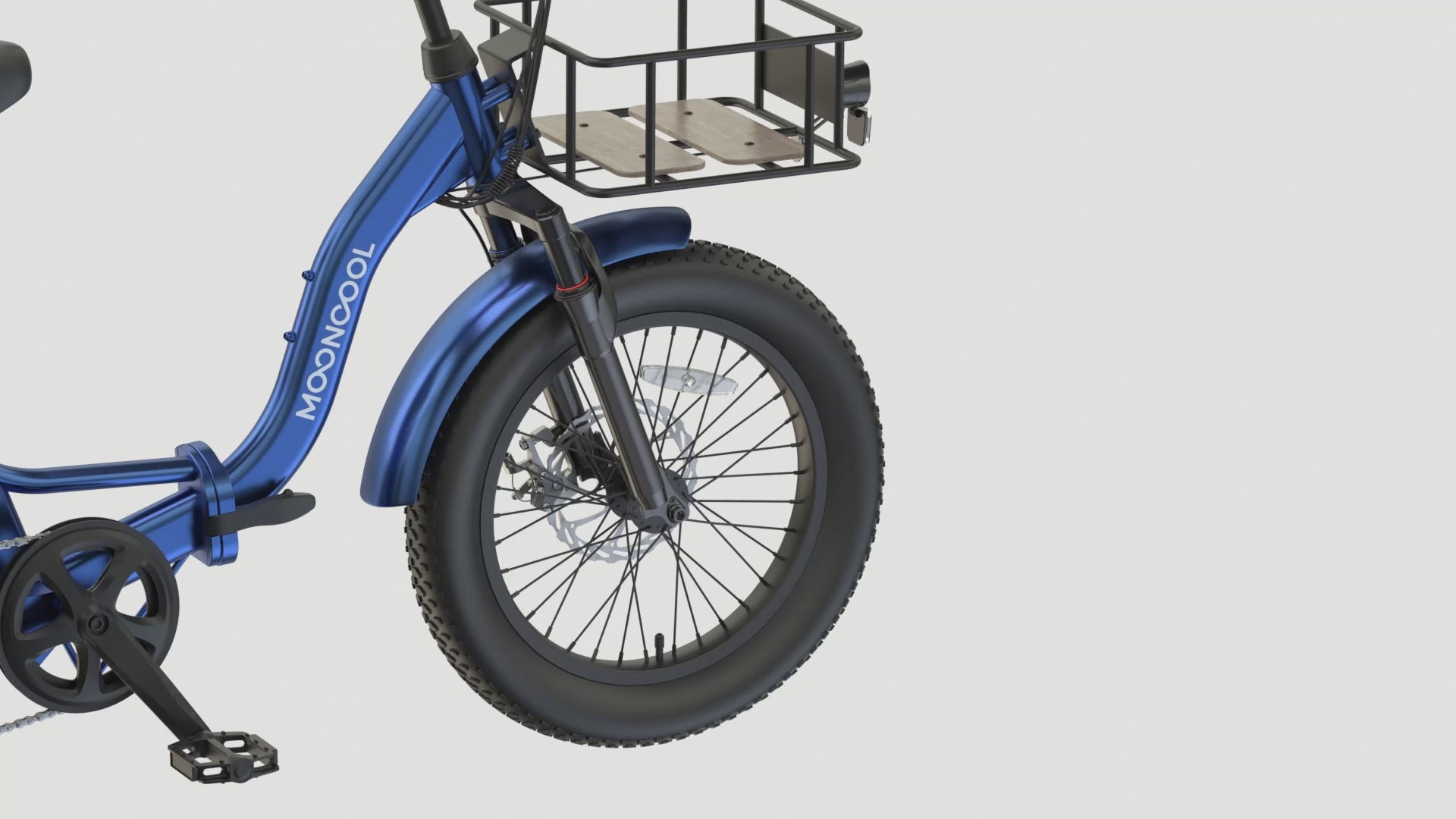

| Fork | Suspension, Spring Structure. |

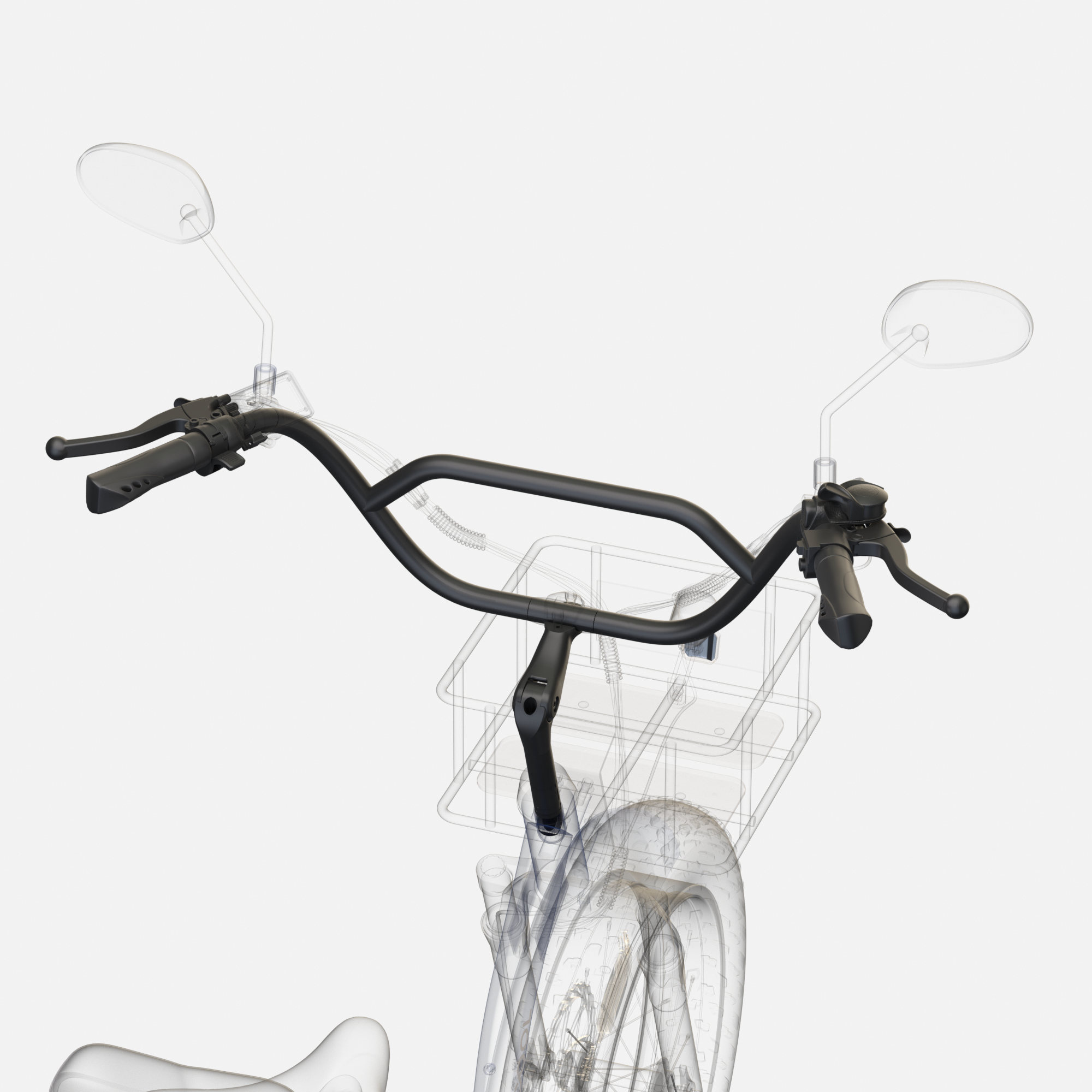

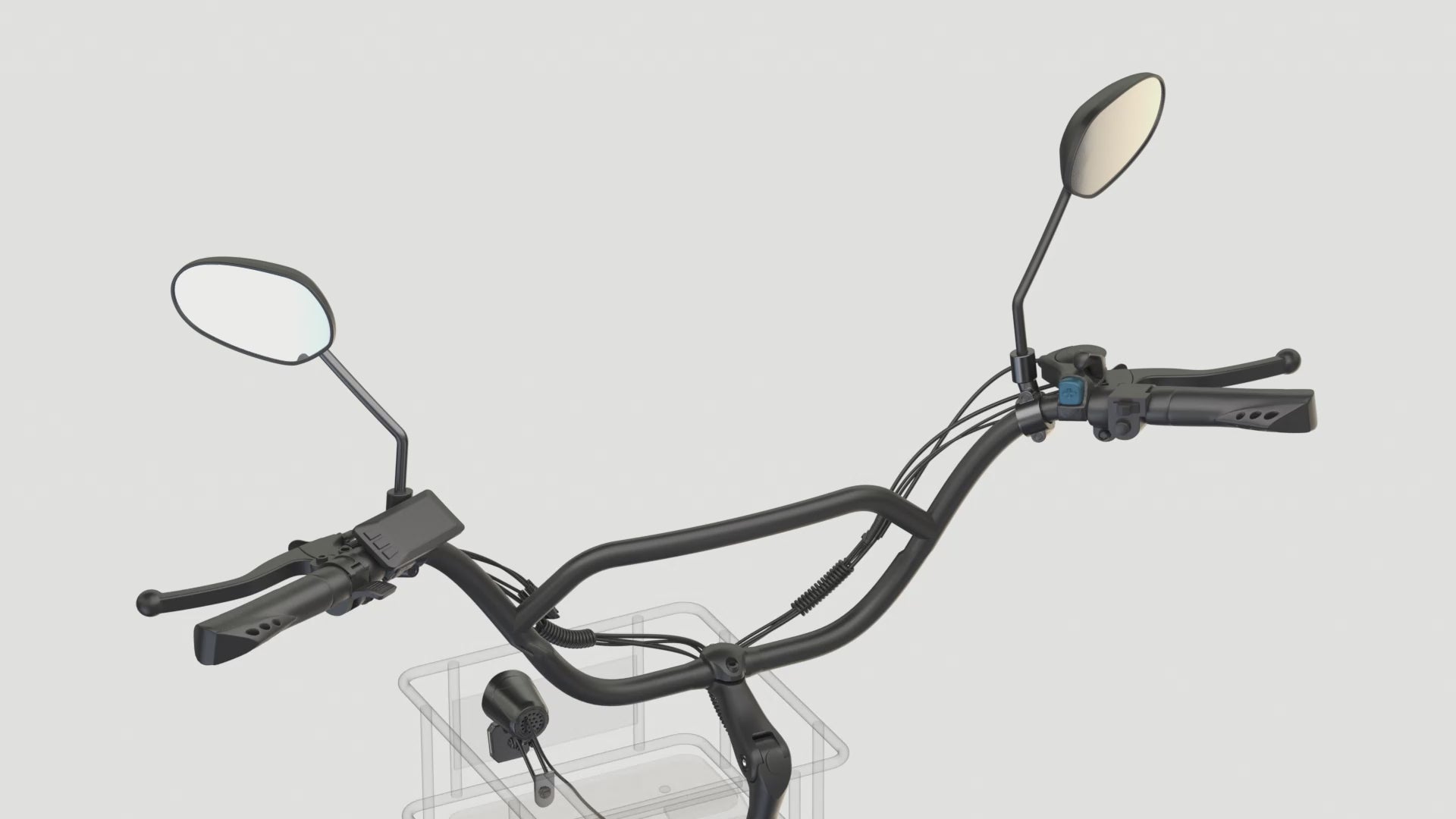

| Handlebar | Alloy ,Bmx Style, Bar bore 1.25in, Length 25.98in, Rise 4.72in |
| Stem | Alloy,Barboe 1.13in x 1.25in, Folding, Extention Tube 7.1in |
| Grip | Soft PVC Rubber |
| Saddle | Comfortable Big Vacuum Foaming Seat With Backrest |
| Seat Post | Alloy ∮1.22 x 0.09t x 11.8in Length |
| Seat Post Clamp | ID1.37in, Quick Release |
|
Display
|
Multifuction YL81, LCD Color Screen, Appears More Clearly in Sunlight, 3 Levels, Speed Limit 16MPH
|

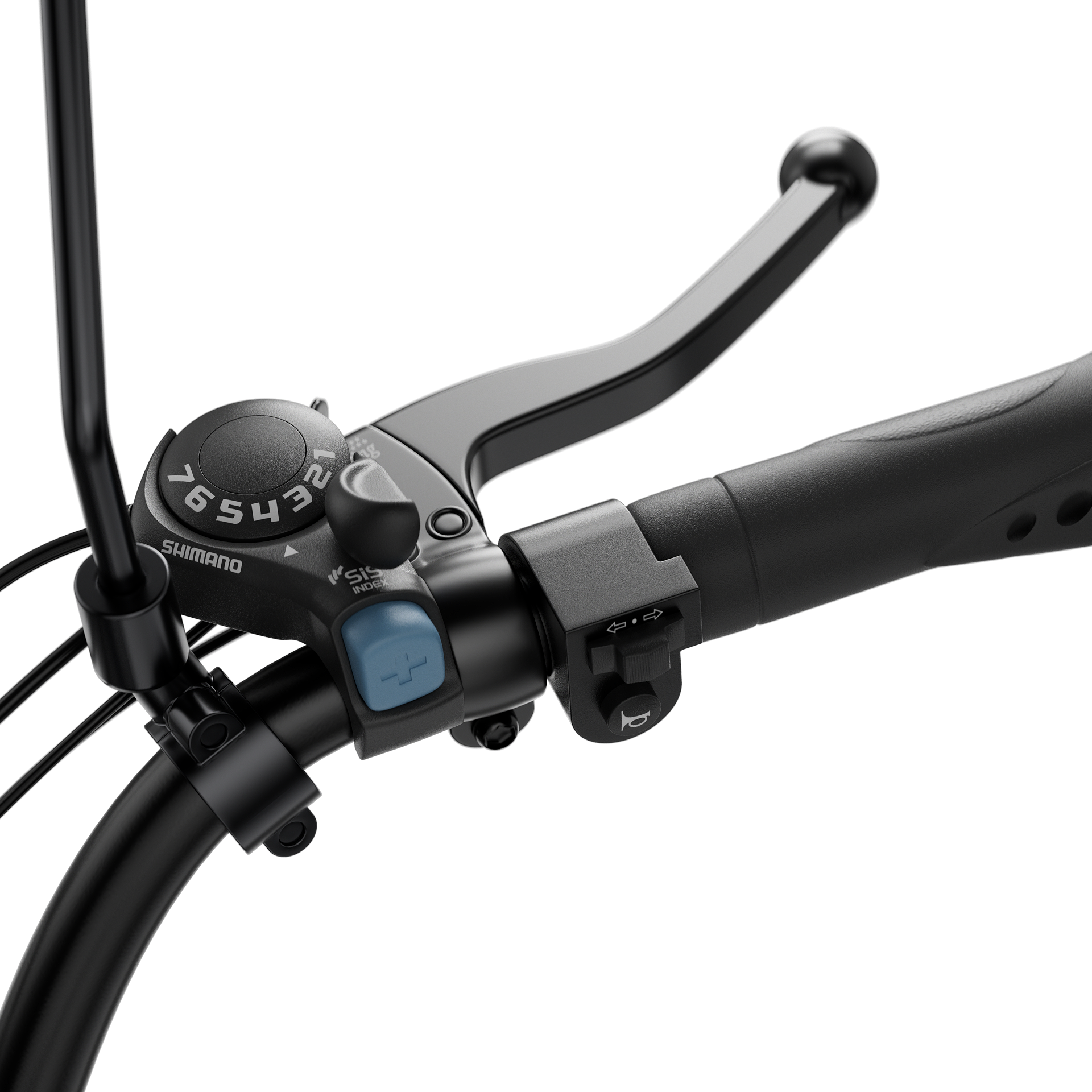

| Shifter | Shimano 7 Speed |
| Derailleur | Shimano |
| Chainwheel | 1/2 × 3/32 × 44t × 6.69 inches Alloy Crank, Steel Chainring 44t |
| Chain | 1/2*3/32*132l |
| Freewheel | 1/2*3/32*14-28t |
| Pedal | Alloy Body 9/16" |
| Brake |
Yak, Merchanic Disc Brake , Alloy , Rotor 180mm
|
| Brake Level |
Starunion, Alloy 3fingers, Mechanic Disc Brake With Electrical Cut-off Fuction With Parking Fuction
|
| Rim | Alloy 20inch * 4.0" * 13g * 36h, AV |

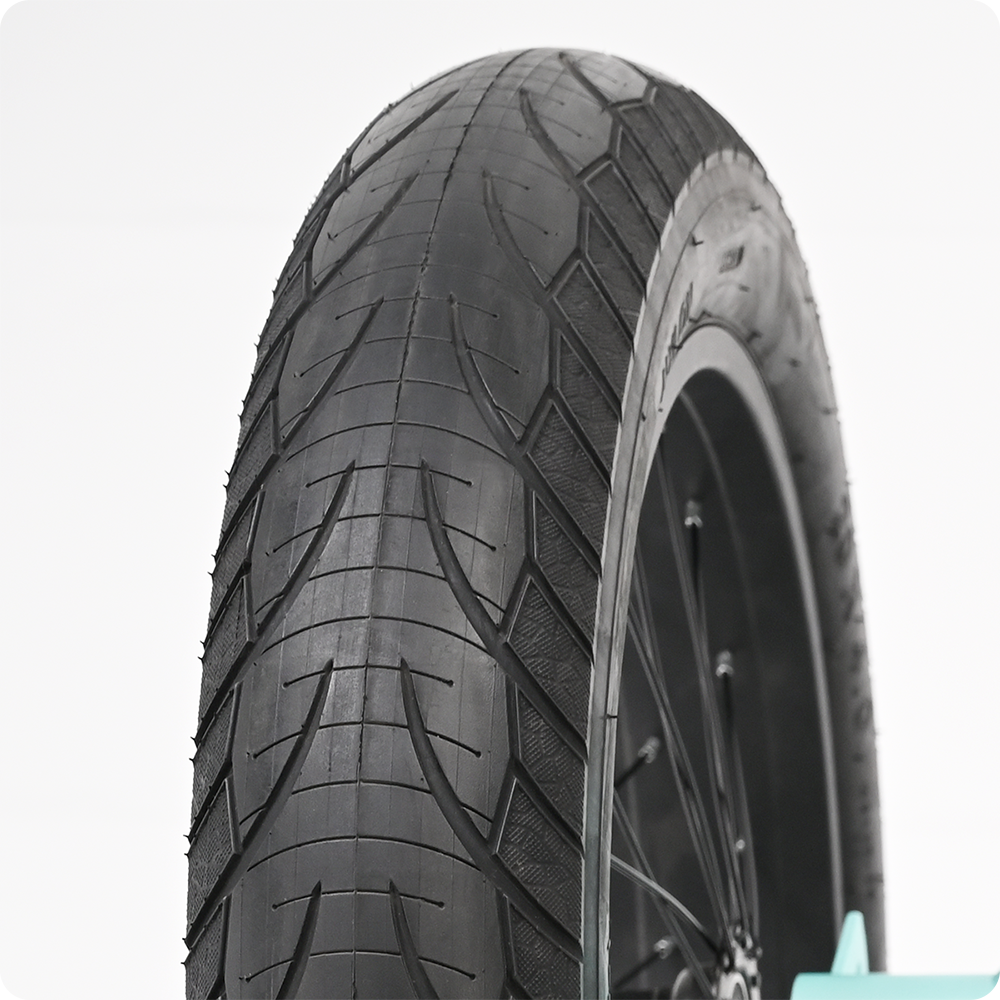

| Tire | 20" *4.0 |
| Spokes | Stainless, 13g |
| Parking Brake | With |
| Fenders | With |
| Rear Rack | With |

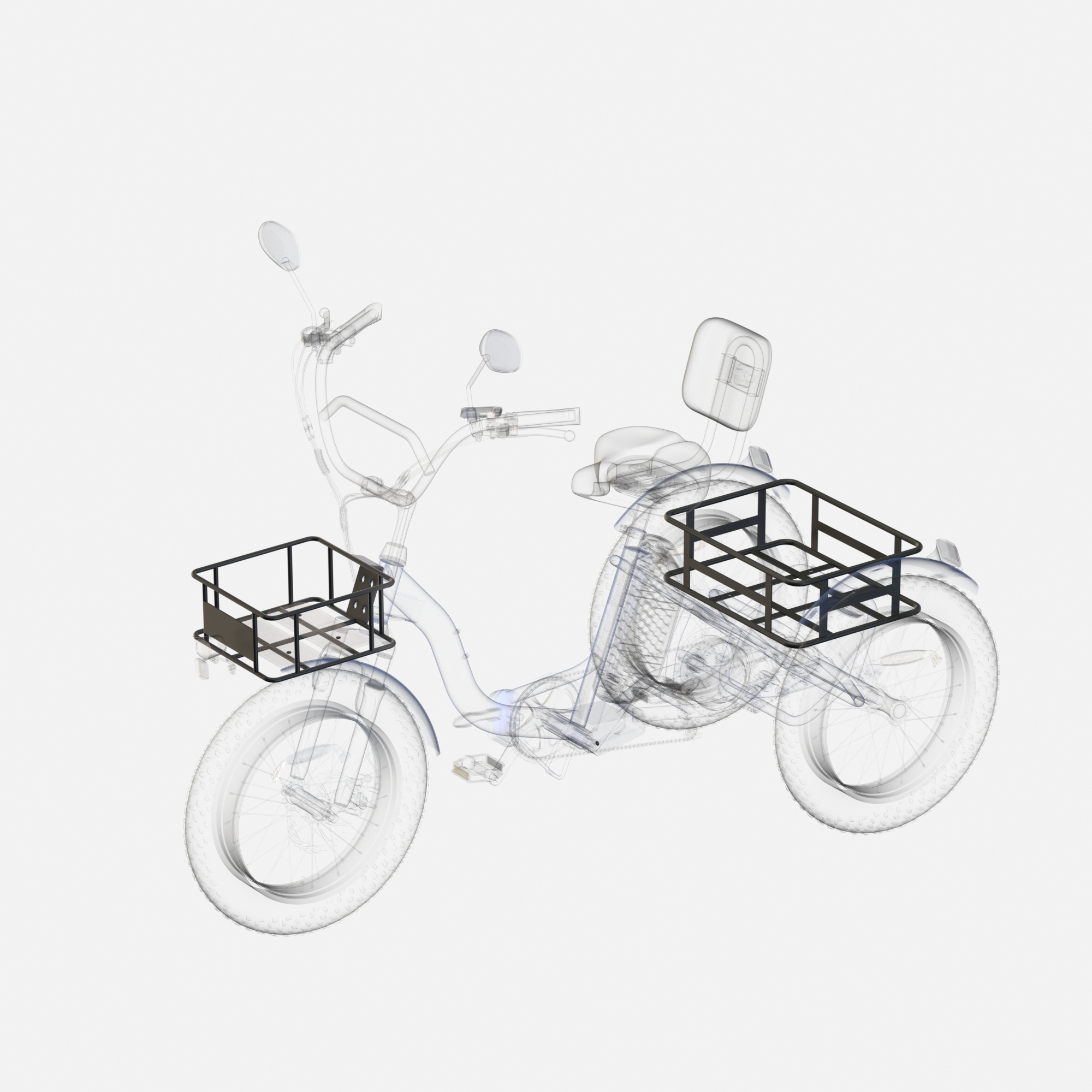

| Front Basket | With |
| Rear Basket | With |
| Assembly | 90% |
| Colors | 6 Colors |
| Carton Size |
58.7 × 13.8 × 37 inches 149 x 35 x 94 cm |
| Load Capacity | 400LBS |
| Motor | 48V*500W Peak Power 1092W, 45Nm Peak Torque |
| Battery Capacity | Lithium 48V*14.5Ah |
| Battery Range | 35~60 Miles |
| Charger | 100-120V 54.6V 2.0A |
| Battery Charging Time | 7-9 Hours |
| Top Speed | 15.5 MPH |
| Controller | Sine Wave Foc 48V20AMP Peak |
|
Pedal Sensor |
Cadence Sensor |
|
Wire Harness |
All Water Resistant |

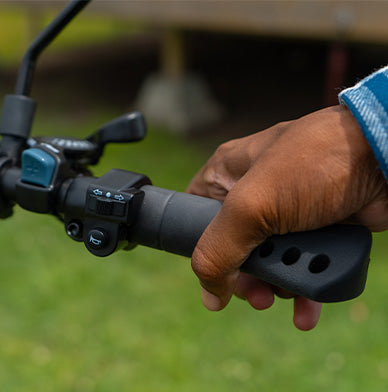

| Throttle | Thumb Throttle |

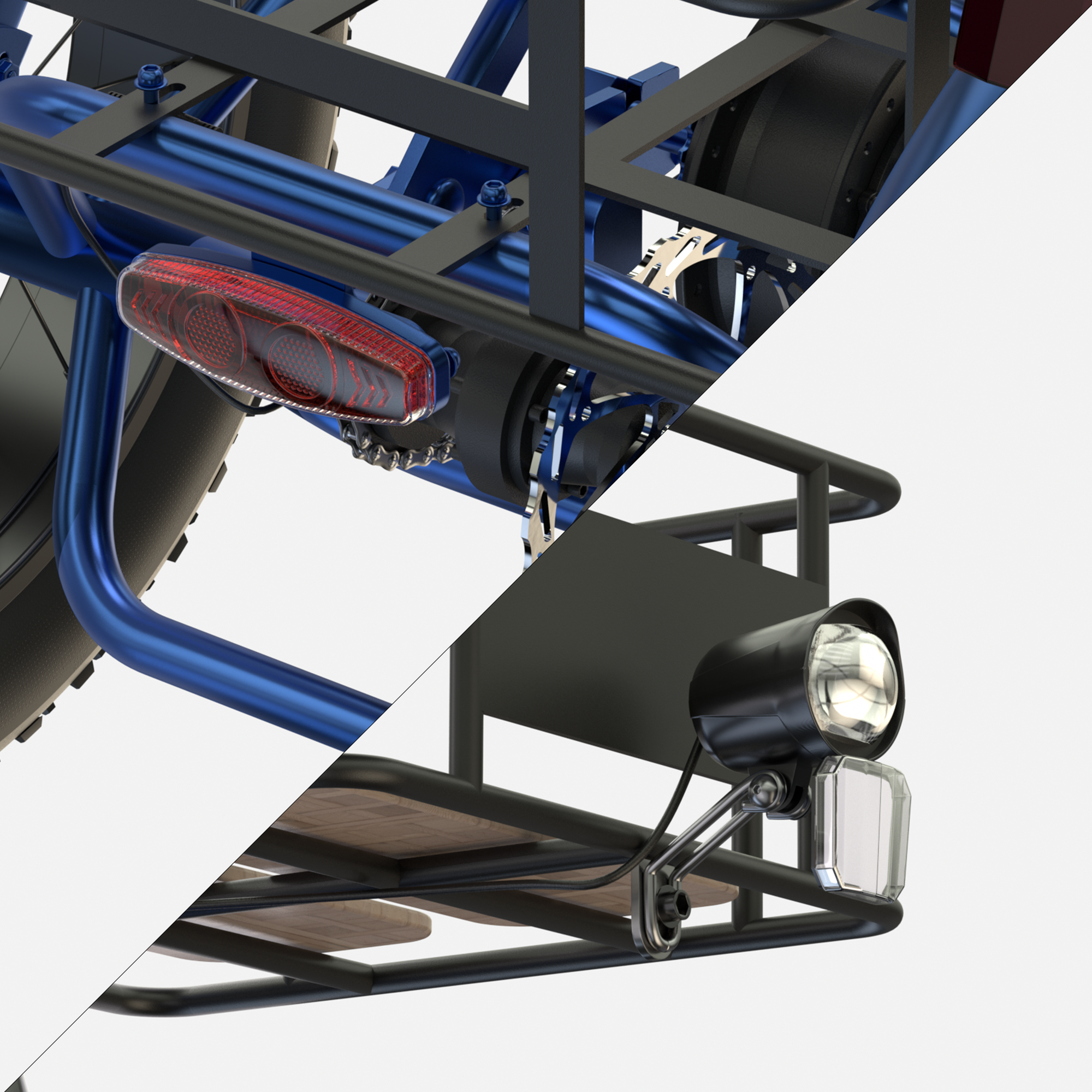

| Front Light | LED Ebike Version with Horn Function |
| Rear Light | LED Tail Light, Brake Highlight Function, Turn Signals Function |
Stable triangular & Low-step frame design,Our approach to accessibility goes beyond physical design
Vacuum Foam Seat,And inclusivity, making sure every rider feels confident and empowered
90% assembled with simple final steps,It encompasses affordability, ensuring our E-Trikes are within reach

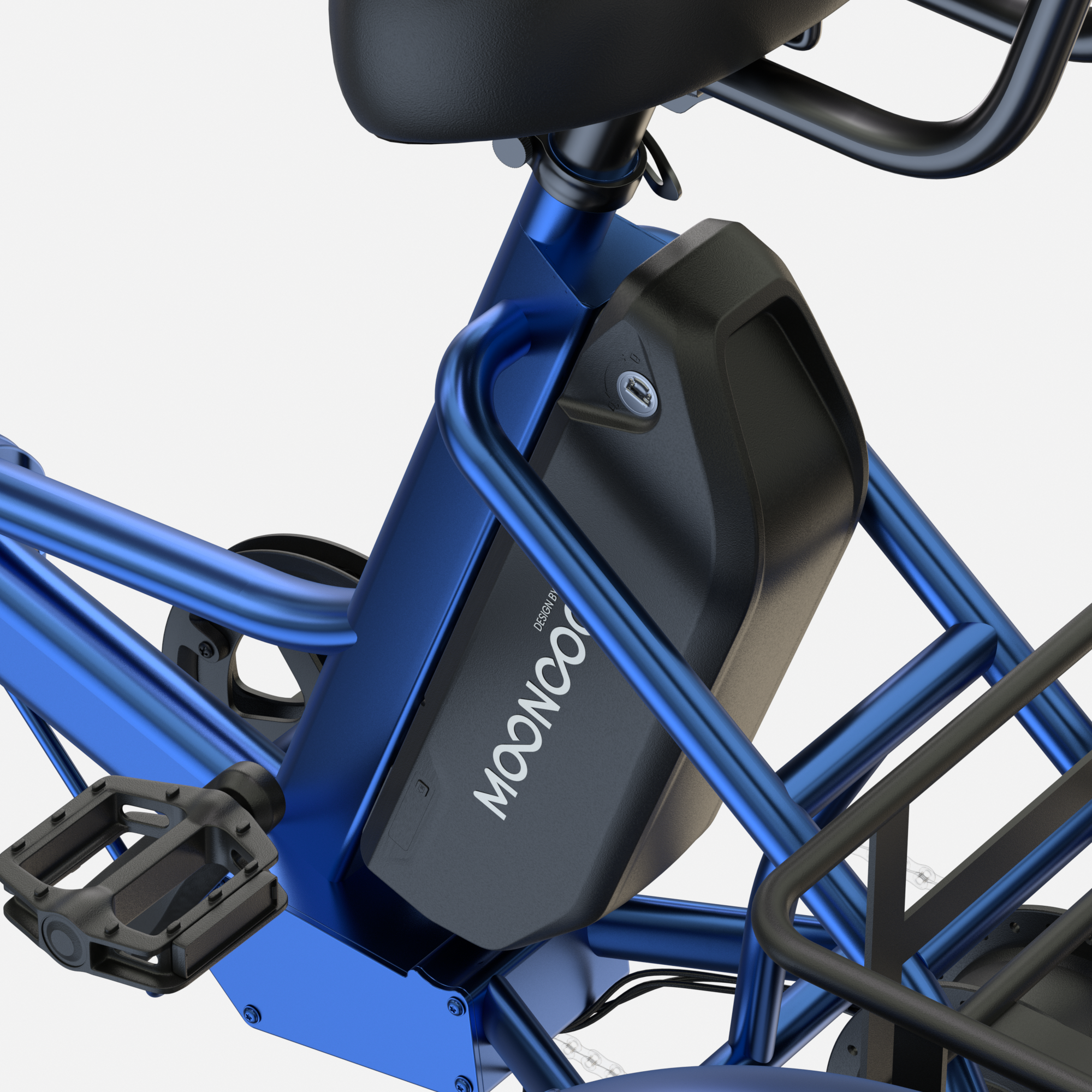

Battery Power
With a 48V*14.5Ah lithium battery, it allows for extended rides with a range of 35-60 miles. Requiring a charging time of 7-9 hours, the battery ensures reliable, sustained power.

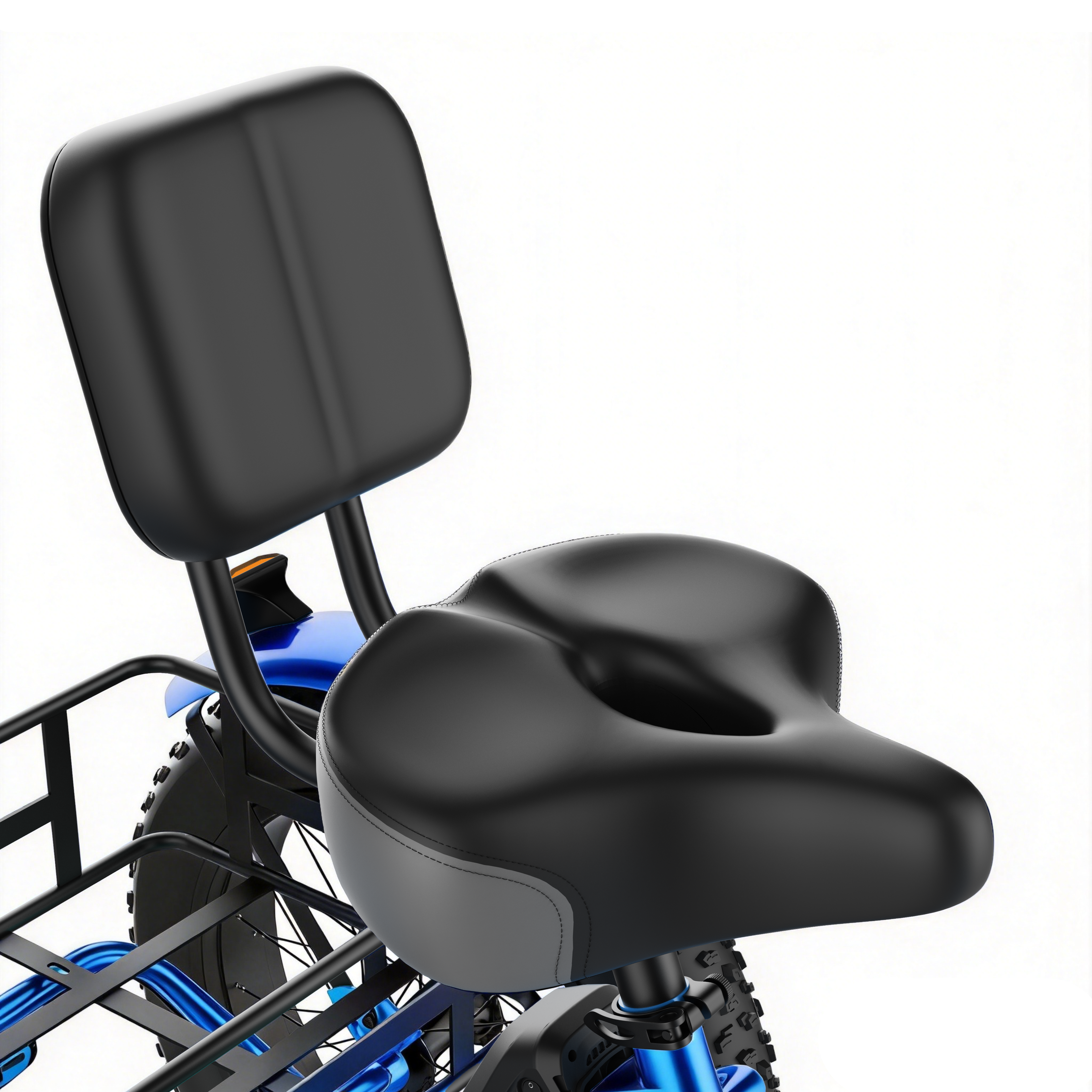

Vacuum Foam Seat
With a robust 400 lbs weight capacity, this chair boasts a generously padded vacuum-foam seat and ergonomic backrest, providing unparalleled comfort and support for every ride.

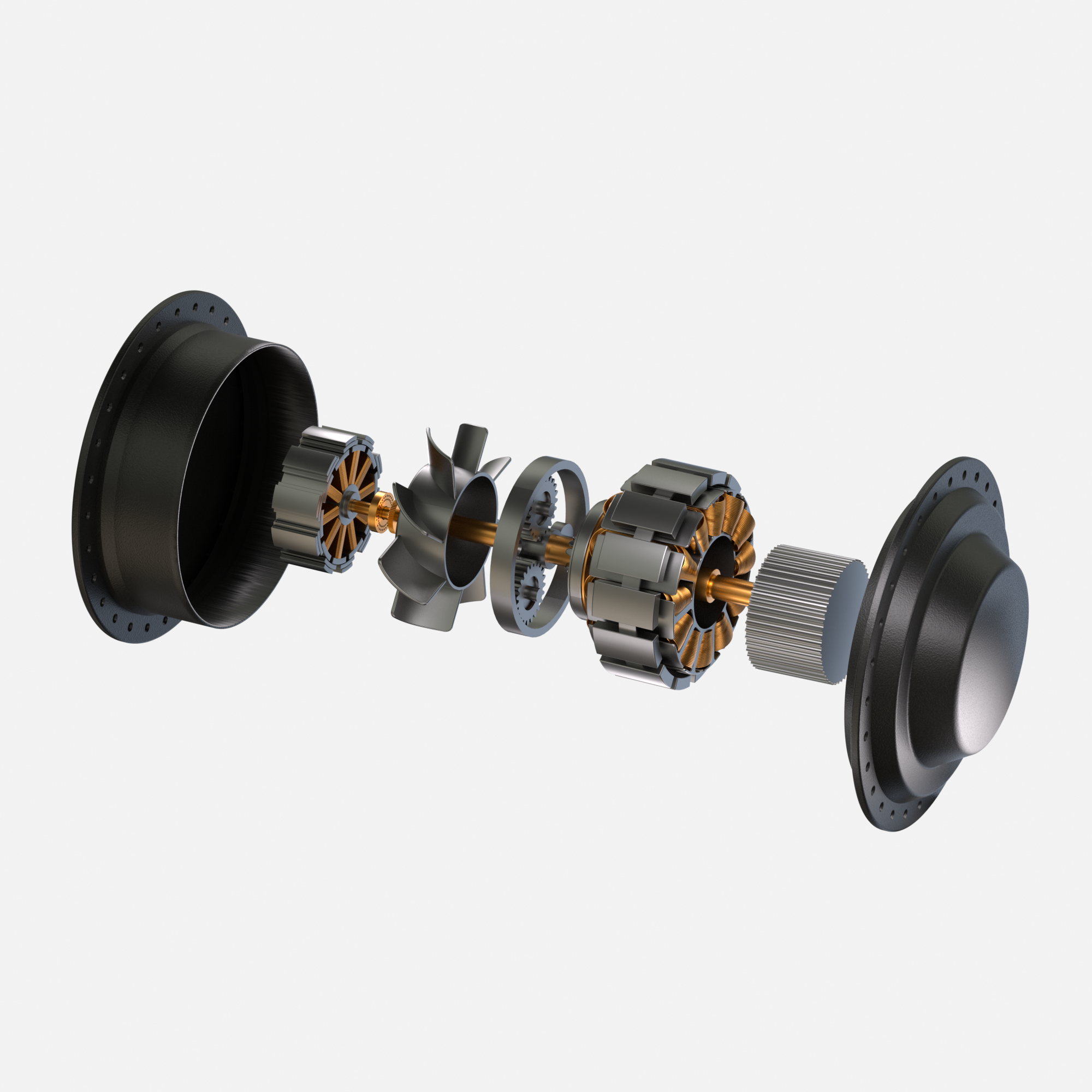

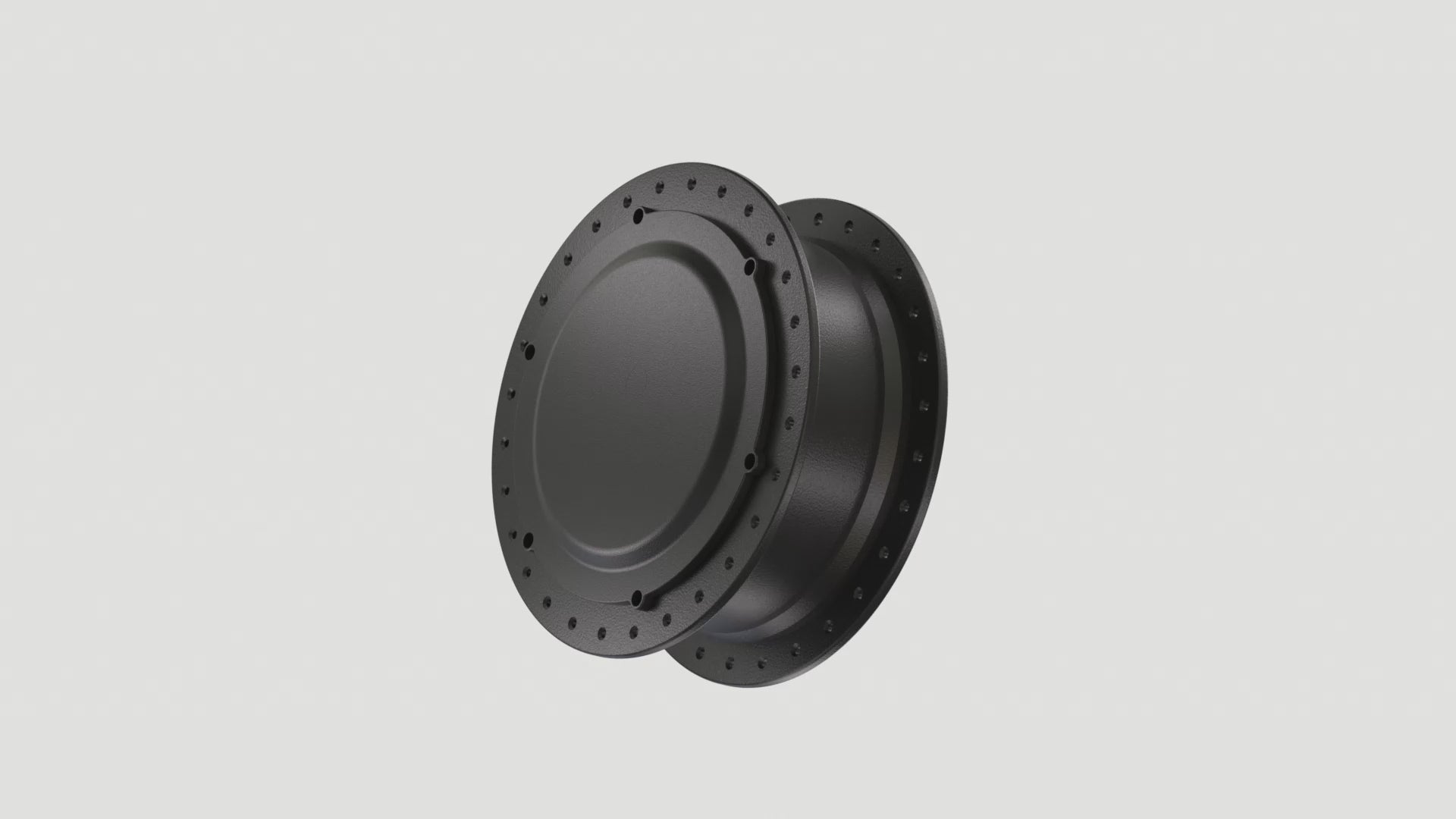

Rear Drive Motor
500W rated power, with instant peak power surging to 1092W ensures no skidding during riding. Paired with a differential, it delivers more efficient power transmission.
Parking Brake
The parking brake keeps the trike securely in place when stopped, preventing rolling on slopes or uneven ground. Easy to engage and release, it adds peace of mind for a safer, more comfortable ride.

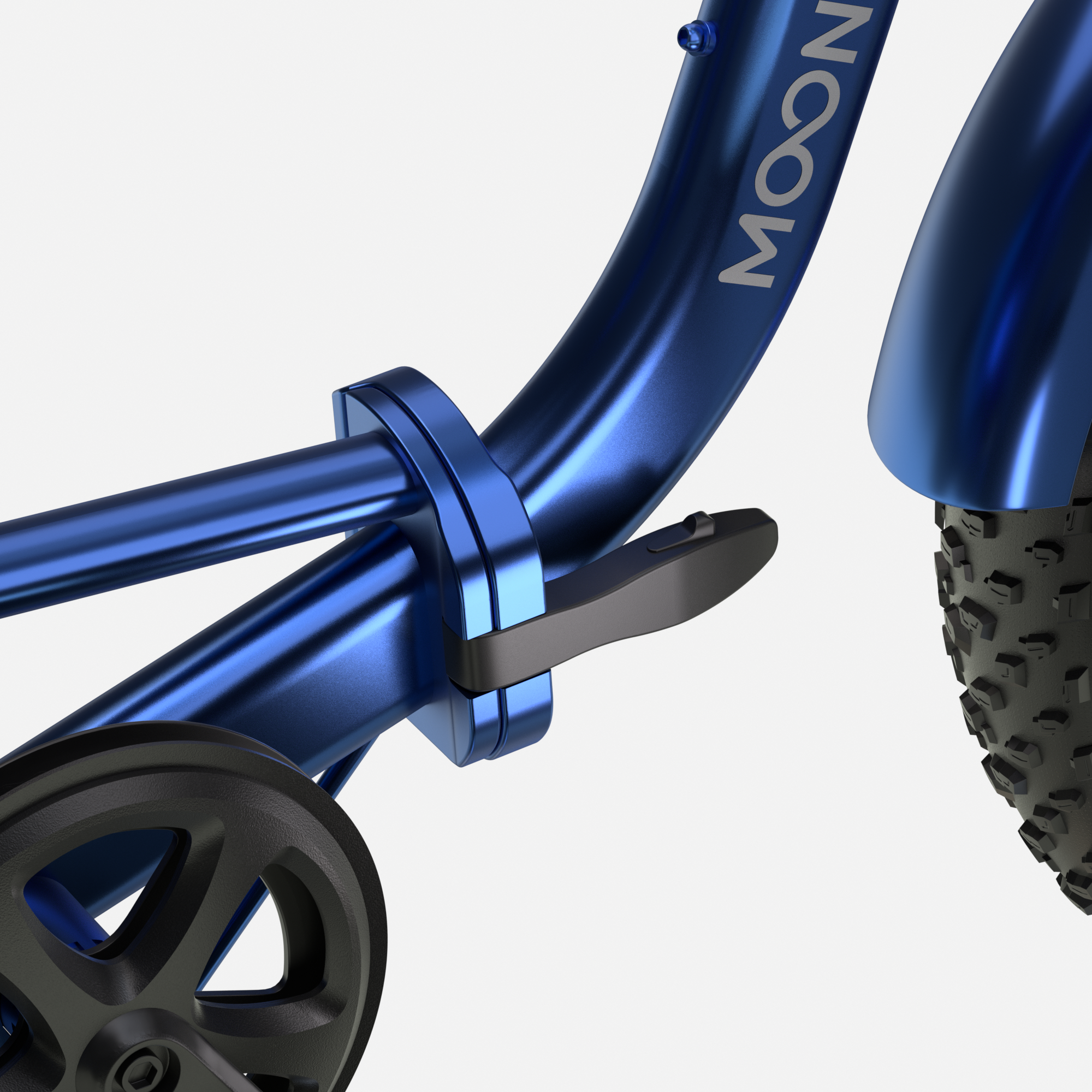

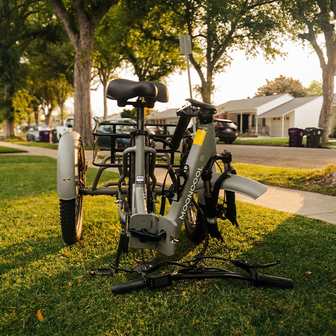

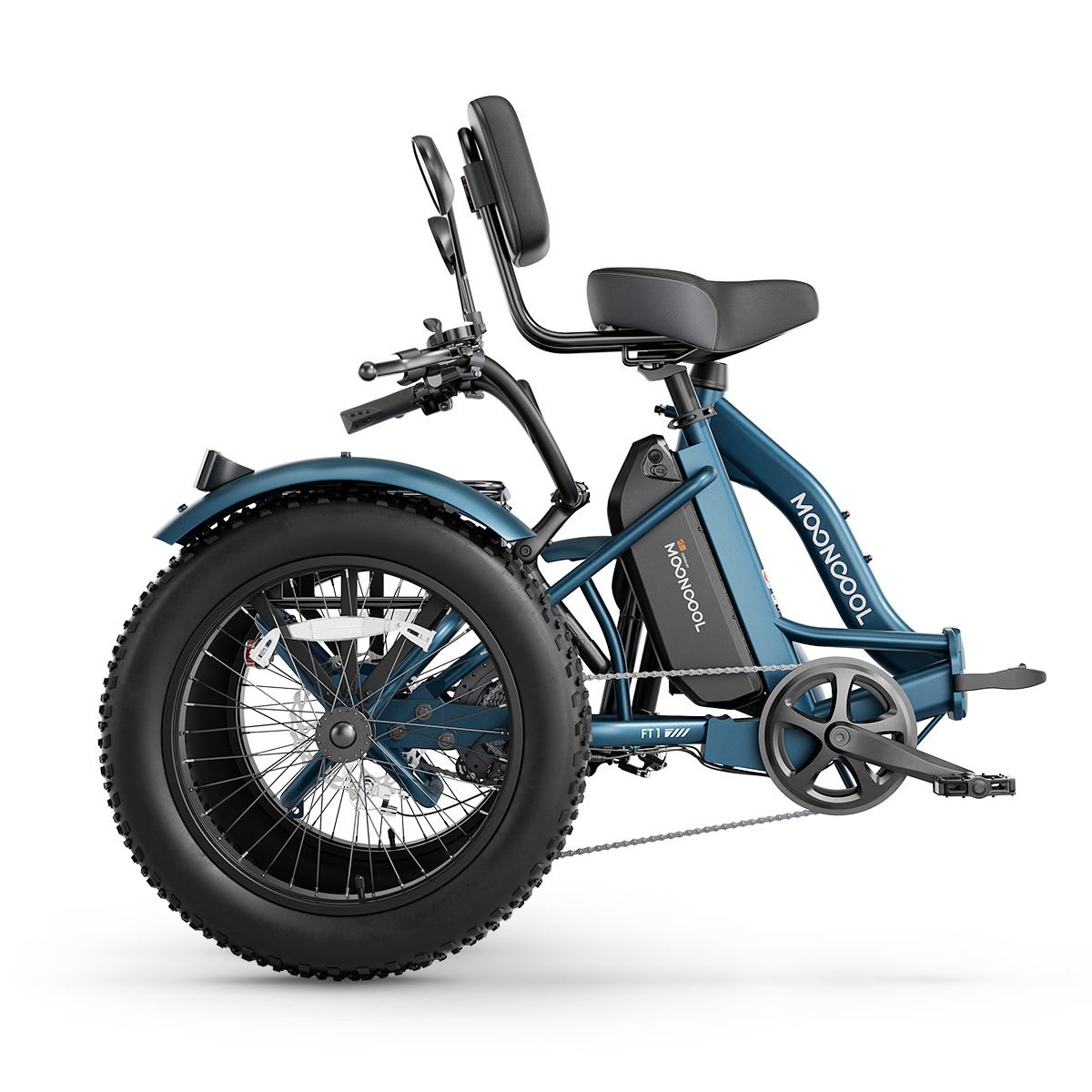

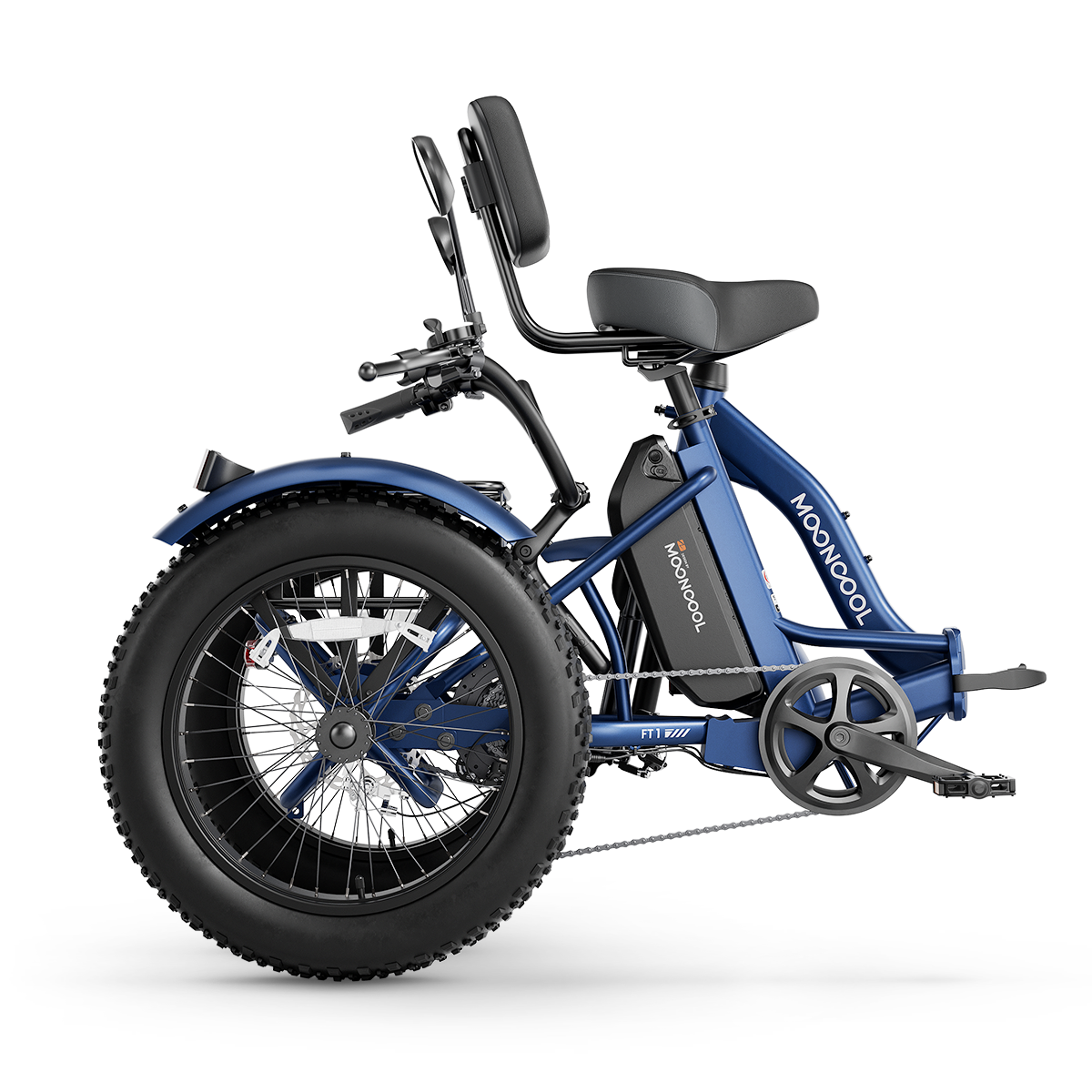

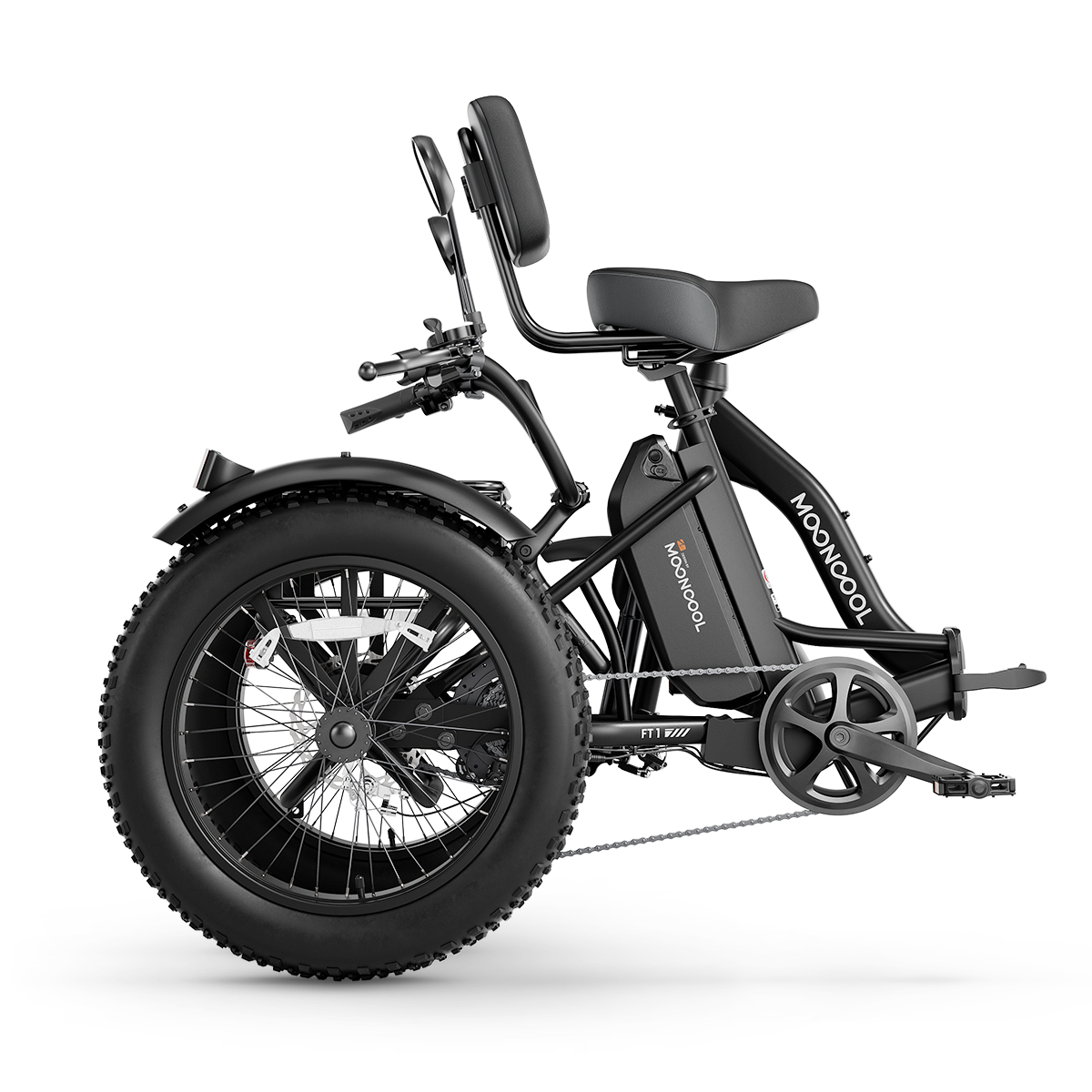

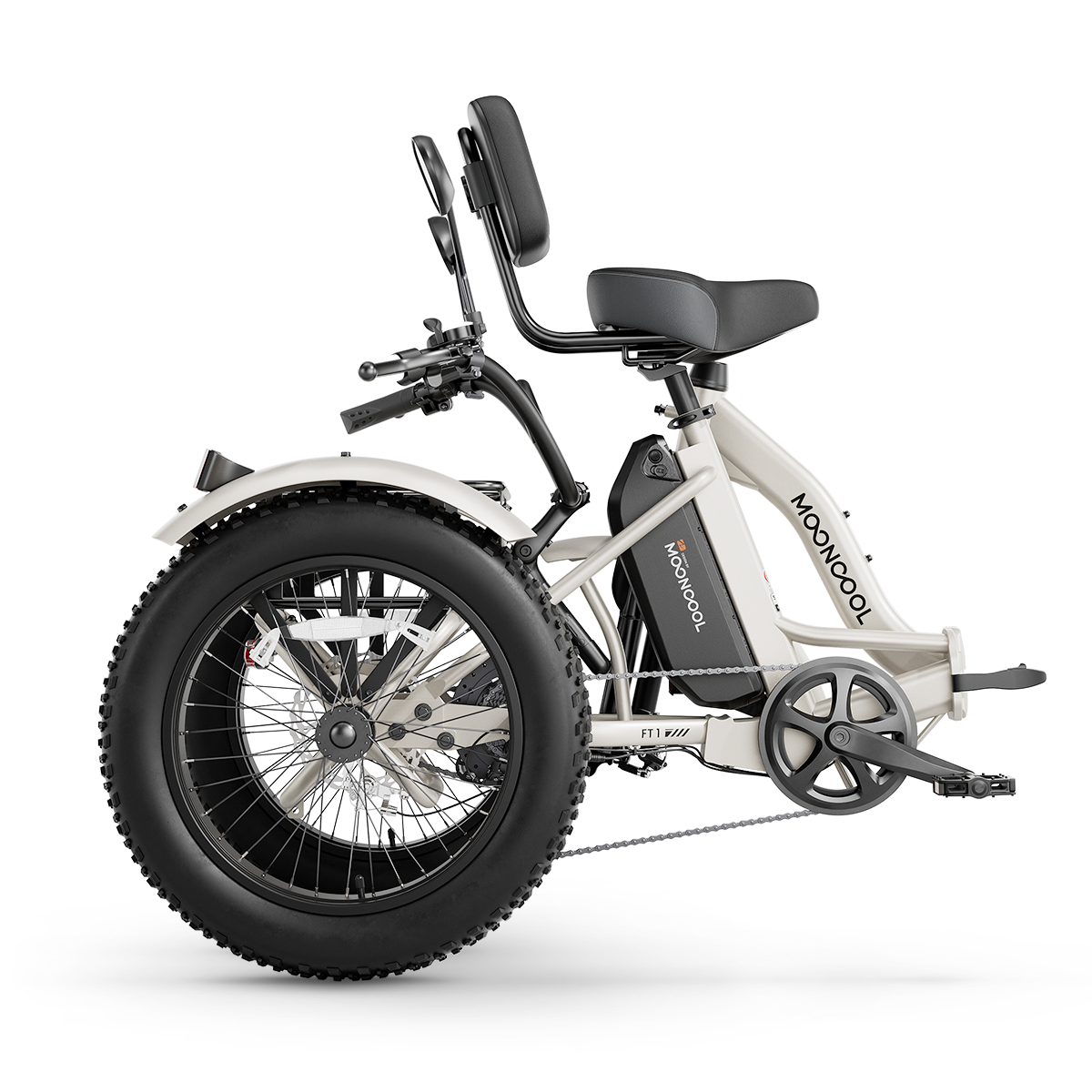

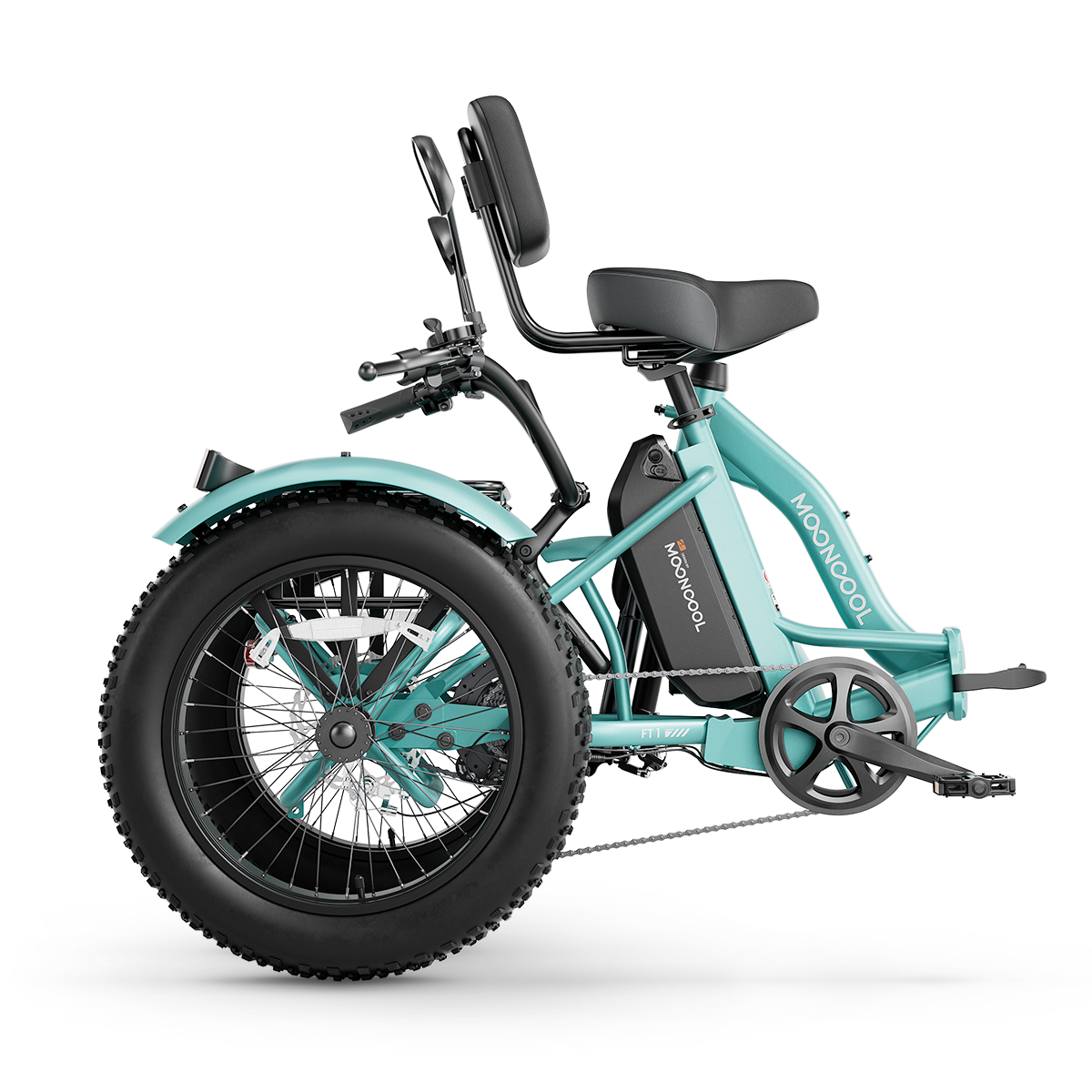

Folding Structure
Boasts a Folding Structure, a convenient feature that allows for easy storage and transportation. This compact design element enhances the practicality of the electric trike, making it a perfect fit for urban living.
Battery Power
With a 48V*14.5Ah lithium battery, it allows for extended rides with a range of 35-60 miles. Requiring a charging time of 7-9 hours, the battery ensures reliable, sustained power.

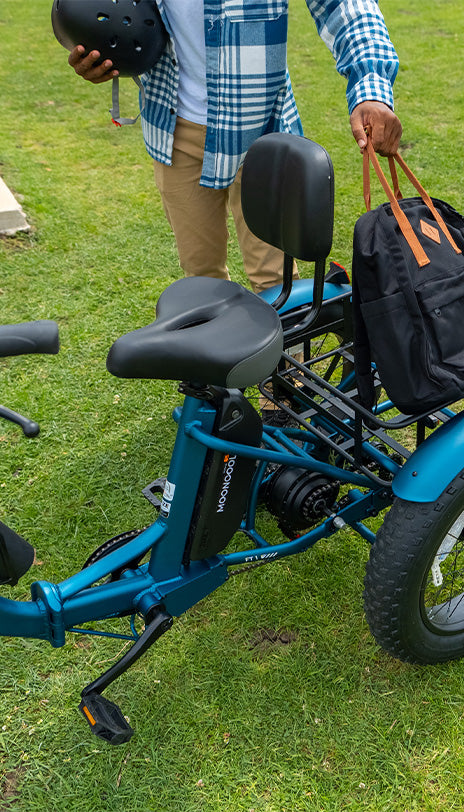

Vacuum Foam Seat
With a robust 400 lbs weight capacity, this chair boasts a generously padded vacuum-foam seat and ergonomic backrest, providing unparalleled comfort and support for every ride.
Rear Drive Motor
500W rated power, with instant peak power surging to 1092W ensures no skidding during riding. Paired with a differential, it delivers more efficient power transmission.
Parking Brake
The parking brake keeps the trike securely in place when stopped, preventing rolling on slopes or uneven ground. Easy to engage and release, it adds peace of mind for a safer, more comfortable ride.
Folding Structure
Boasts a Folding Structure, a convenient feature that allows for easy storage and transportation. This compact design element enhances the practicality of the electric trike, making it a perfect fit for urban living.
Exquisite Workmanship
Every detail is thoughtfully designed.

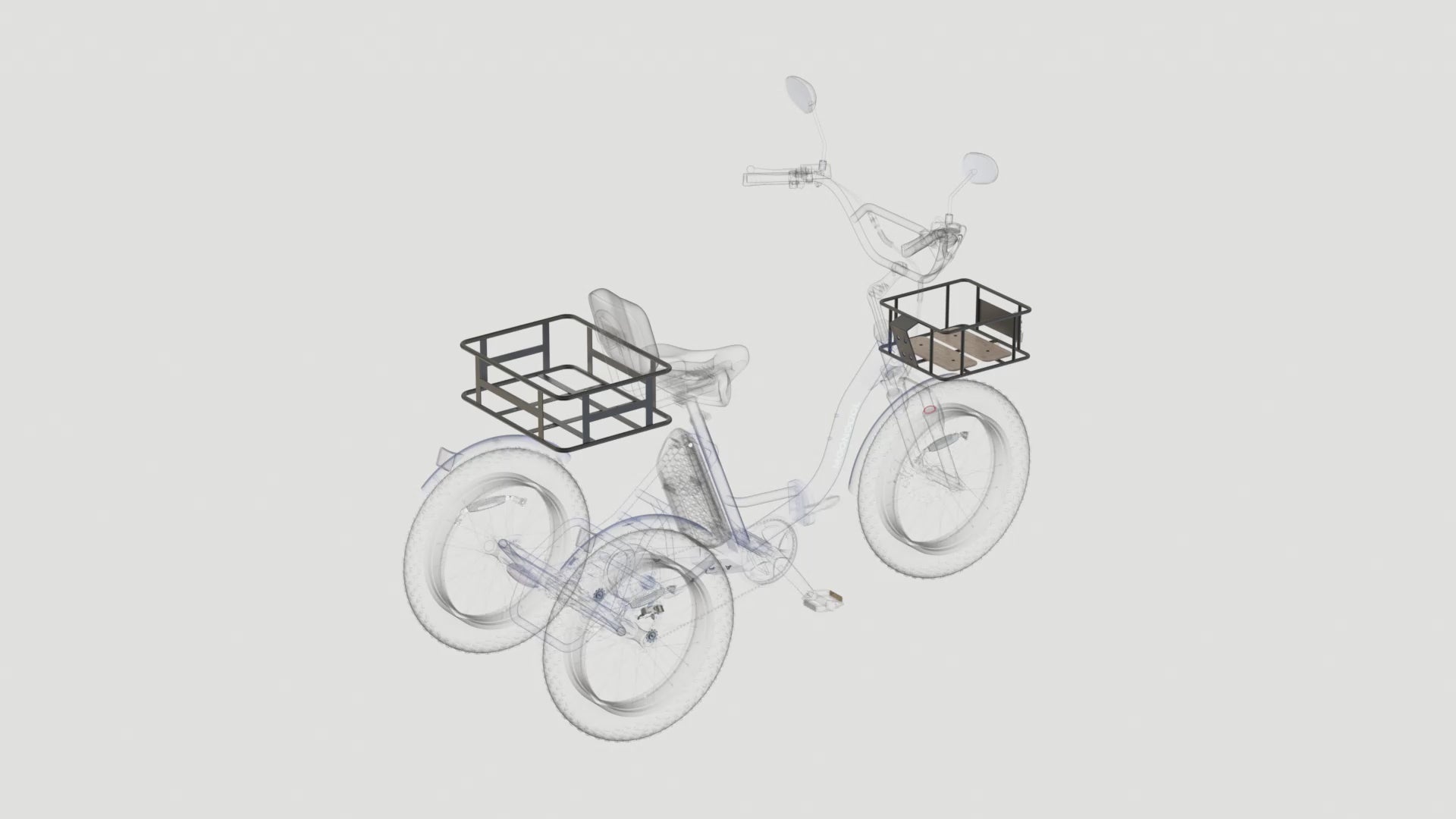

Assembly Video
Our assembly videos will walk you through assembly
This product is rated 5.0 of 5.0 stars.
It has received 3 reviews.
If you have any questions, you may get answers from here
The TK1 electric trike comes 90% pre-assembled. The final steps are simple and can be easily completed by you in just a few minutes. The necessary tools and clear instructions are provided, ensuring a hassle-free final setup.
Yes, indeed. Our trike is designed with ease of use and stability in mind, making it a great choice for older adults and persons with disabilities who are looking for a safe and comfortable riding experience.
Yes, it does. The trike comes equipped with a battery, and we include both a front and a rear basket as standard features, so you have everything you need to get started right away.
The FT1 electric trike is designed for riders who are between 5’-6’3’’ tall for optimal comfort and performance.
