Assembly tools included
Yes
Range
45~75 MI
Top Speed
15.5MPH
Load Capacity
450 LBS
Motor
Peak 1310W

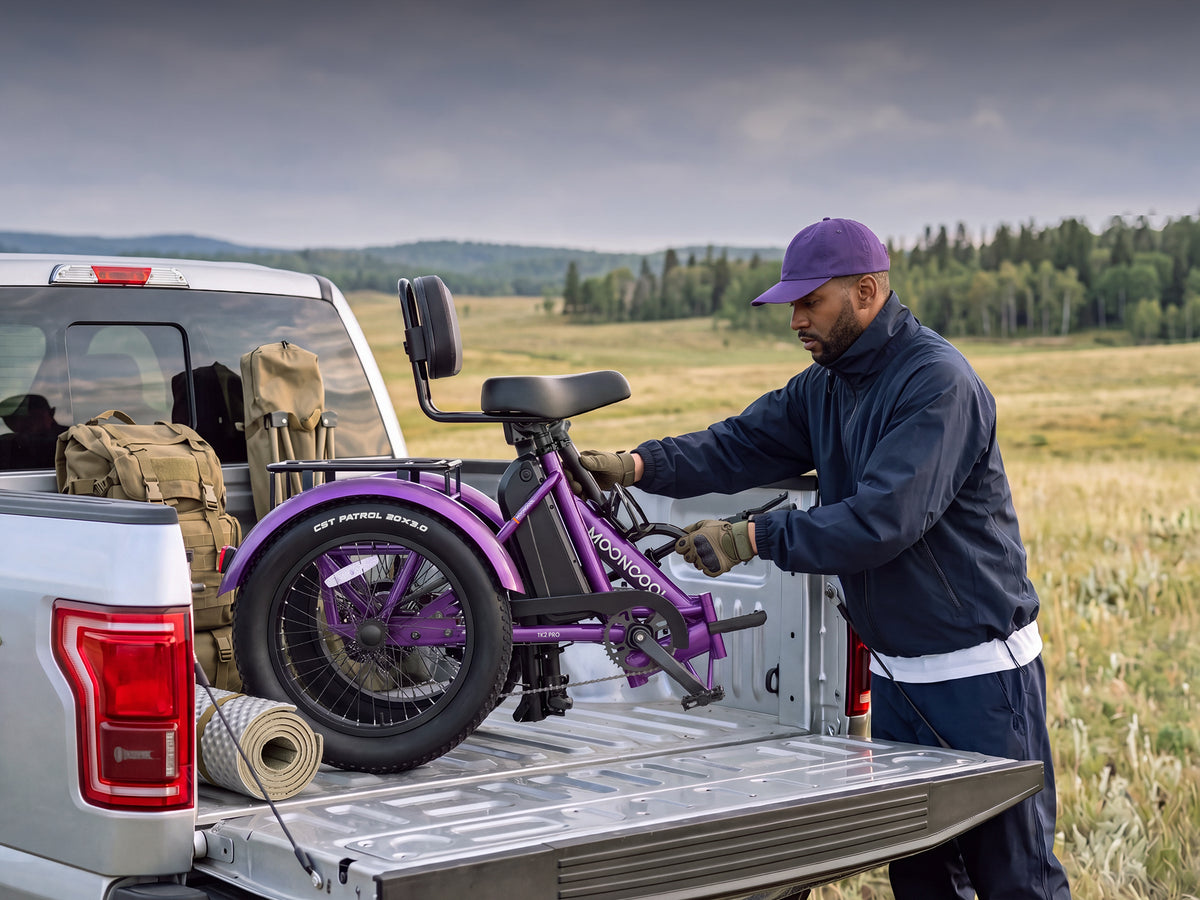

Foldable
Yes
Certified by SGS
Brand Philosophy
MOONCOOL believes that true mobility should be stable, safe, and convenient which providing a riding experience that builds confidence.
Helical Motor
48V*750W HELICAL MOTOR, PEAK POWER 1310W, 55NM PEAK TORQUE IP65 Powerful, smooth, effortless.

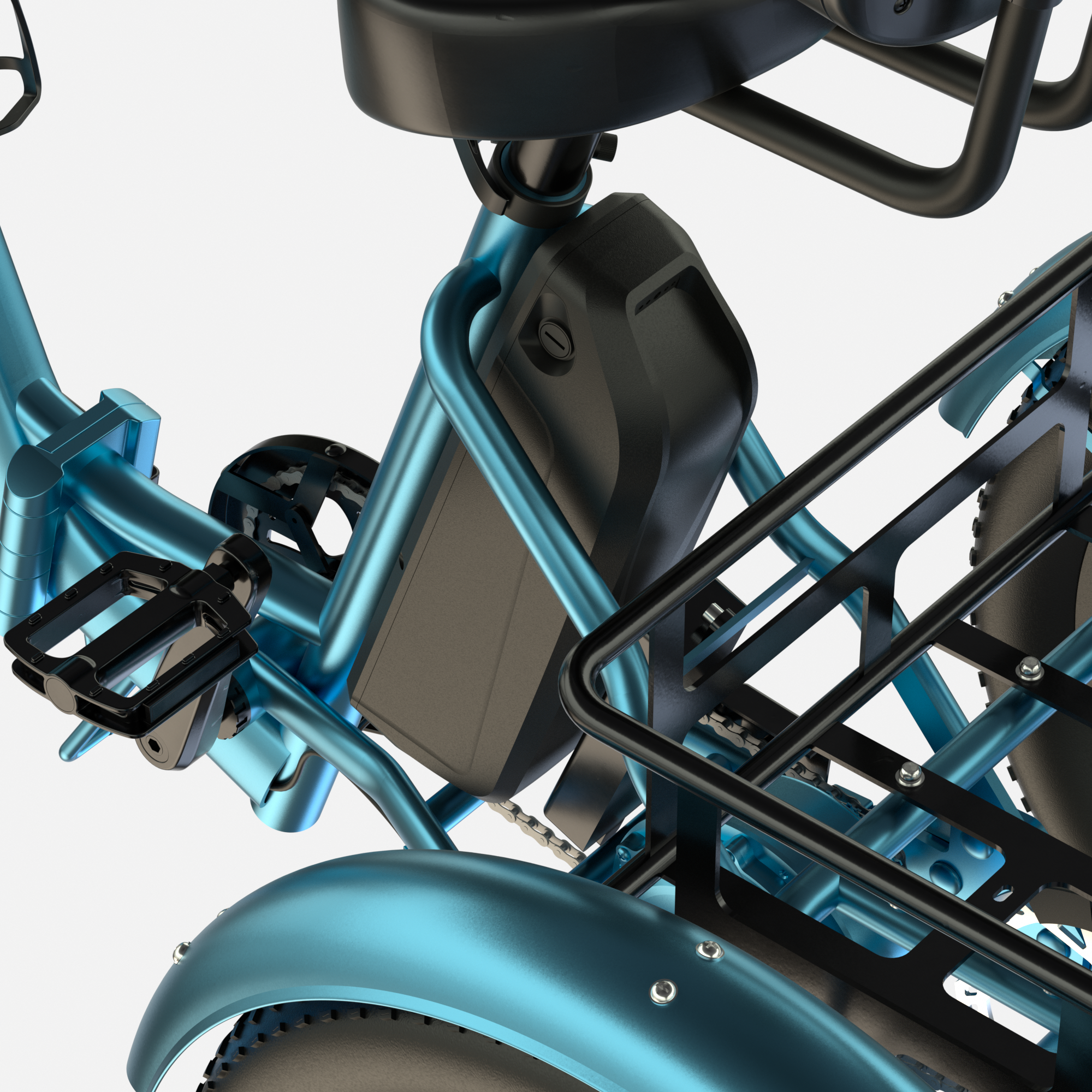

Battery Power

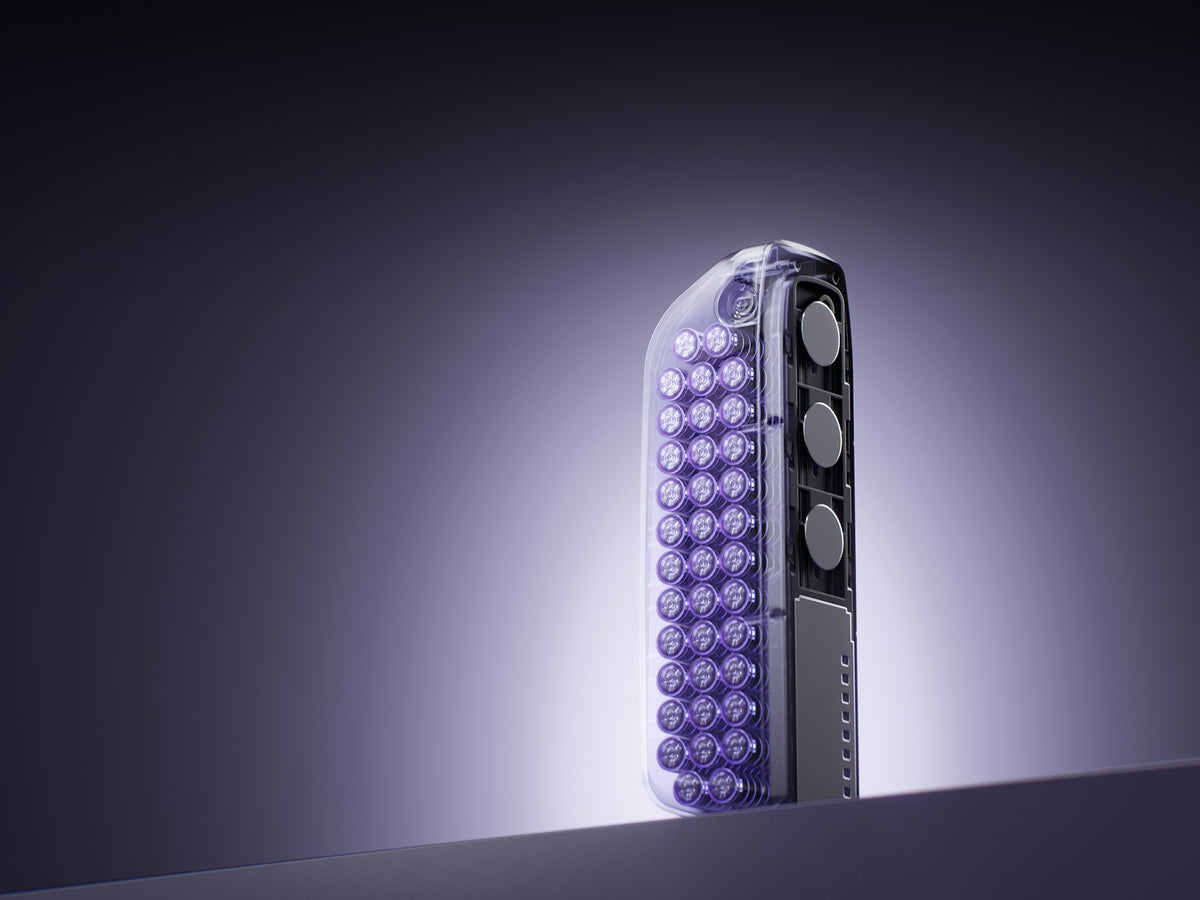

48V 20Ah removable lithium battery — reliable range for daily commutes, easy to charge on or off the trike.
Speed Differential
Rear differential mechanism for better control and stability on turns — ride with confidence.

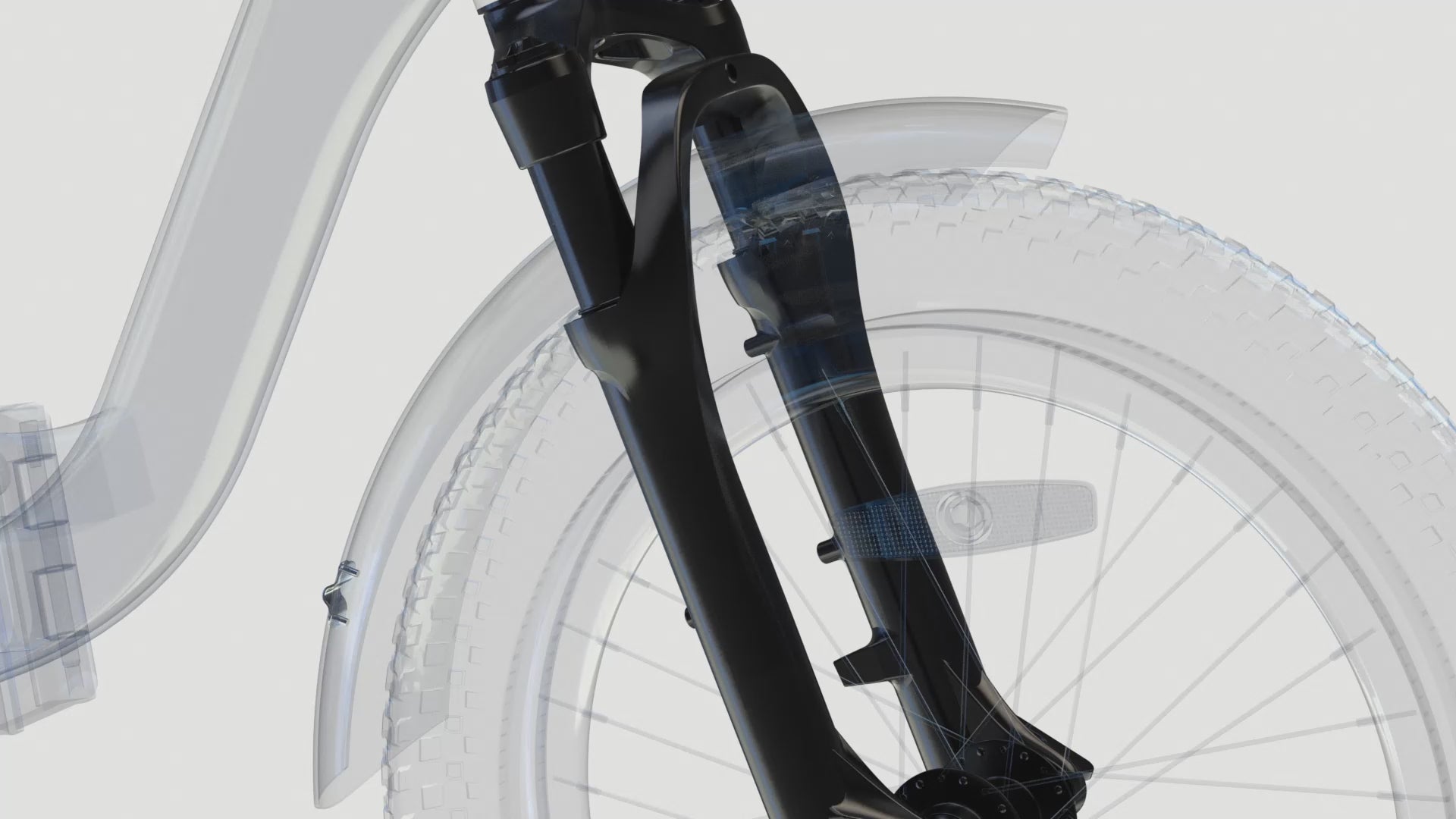

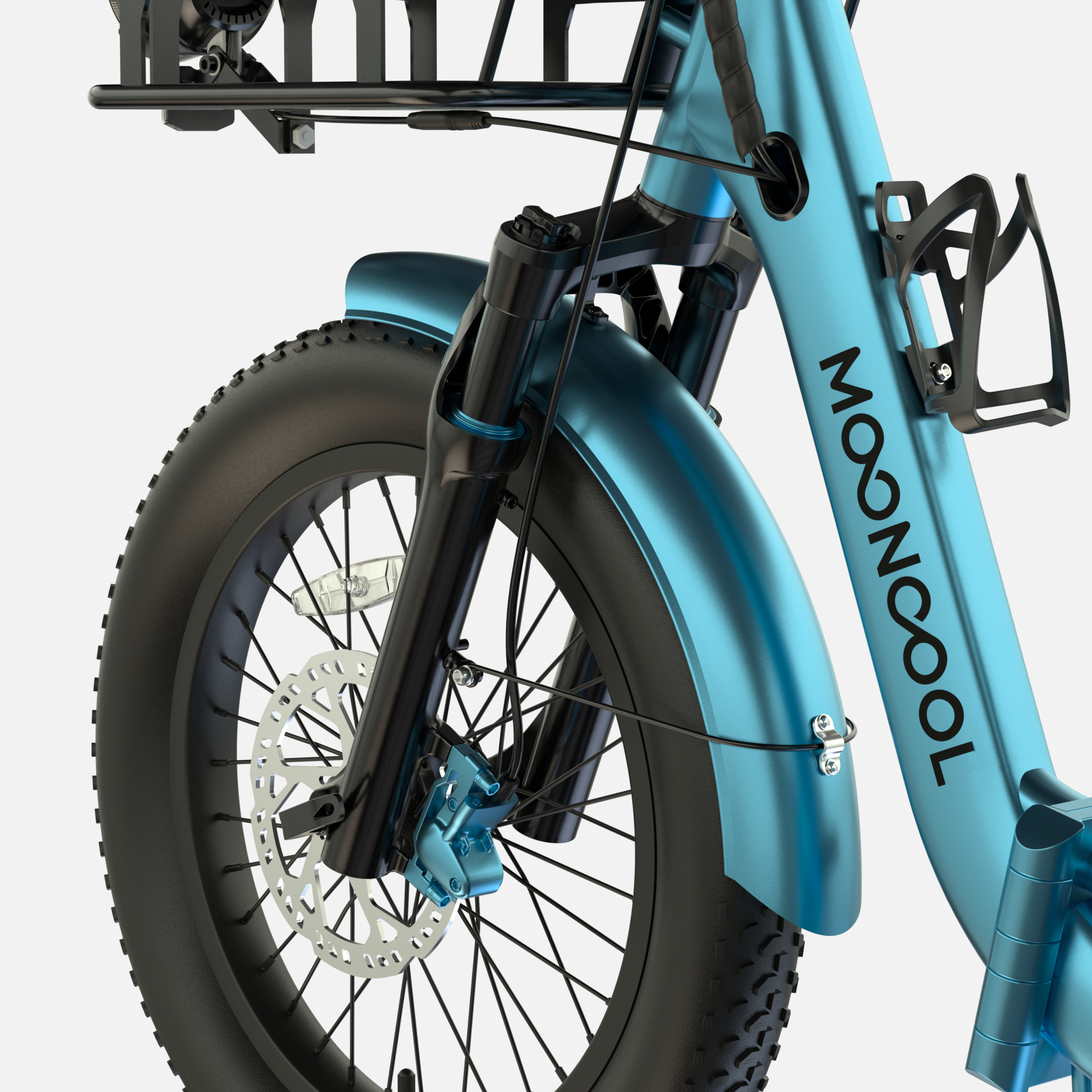

Suspension Front Fork
Absorbs bumps and shocks, keeps the front wheel grounded through corners for a smoother, more controlled ride.

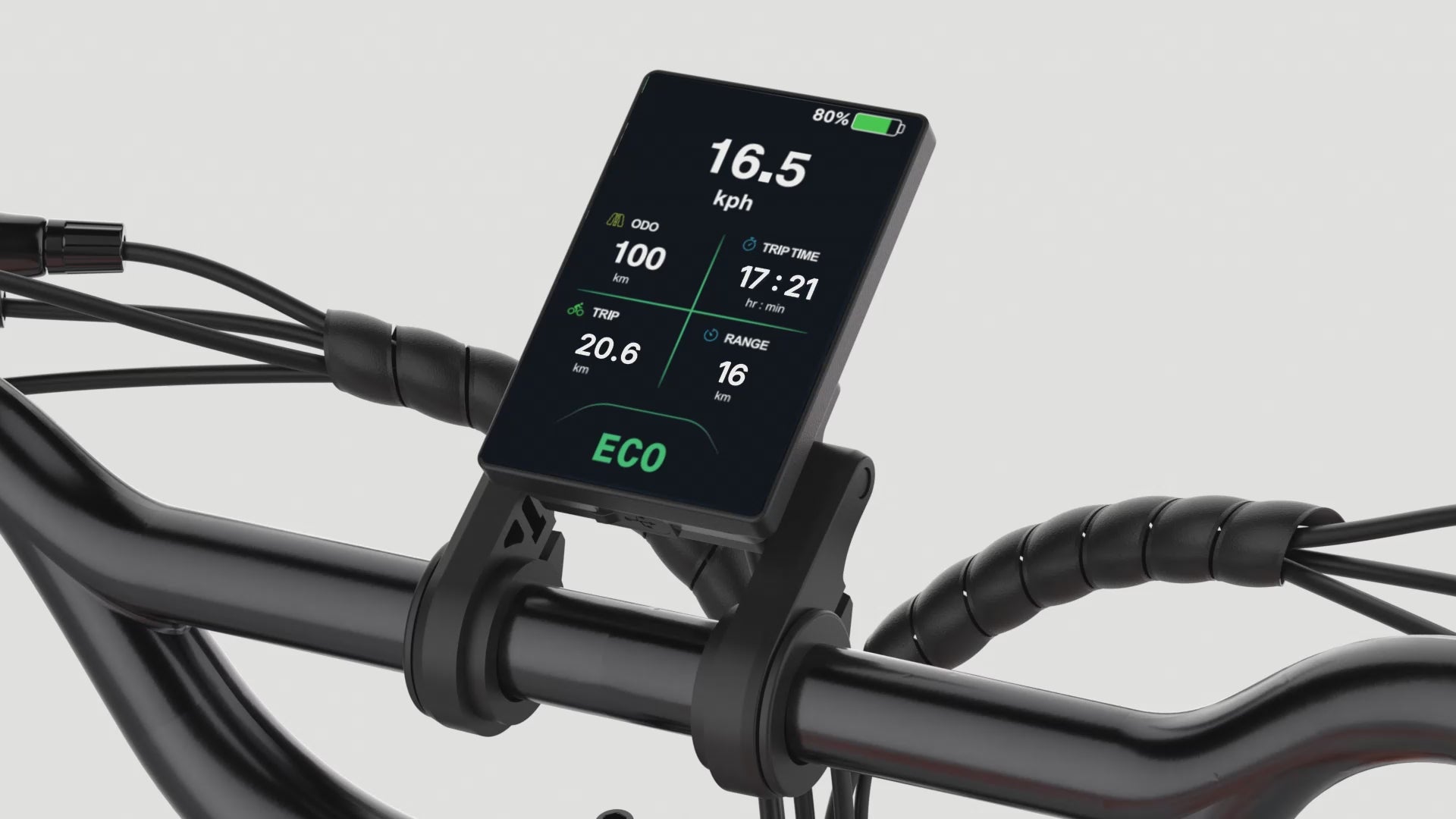

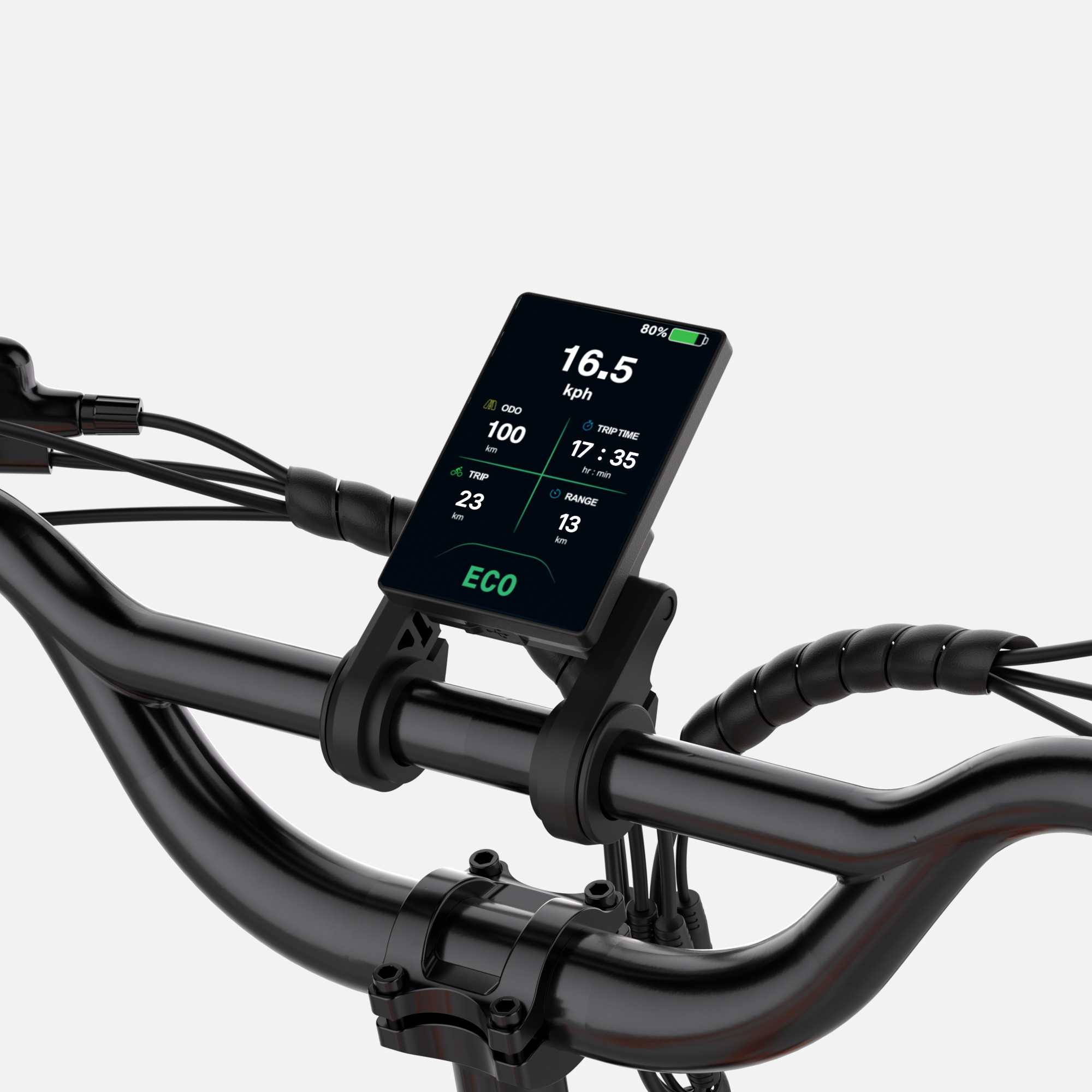

3.5″ Full-color FTF display
supports reading in sunlight, and allows viewing of speed, battery, range, and power level, waterproof and glove-friendly
Helical Motor
48V*750W HELICAL MOTOR, PEAK POWER 1310W, 55NM PEAK TORQUE IP65 Powerful, smooth, effortless.
Battery Power
48V 20Ah removable lithium battery — reliable range for daily commutes, easy to charge on or off the trike.
Speed Differential
Rear differential mechanism for better control and stability on turns — ride with confidence.
Suspension Front Fork
Absorbs bumps and shocks, keeps the front wheel grounded through corners for a smoother, more controlled ride.
3.5″ Full-color FTF display
supports reading in sunlight, and allows viewing of speed, battery, range, and power level, waterproof and glove-friendly

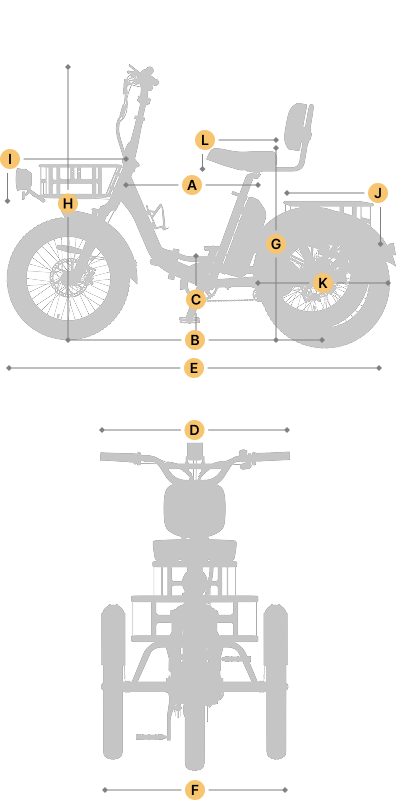

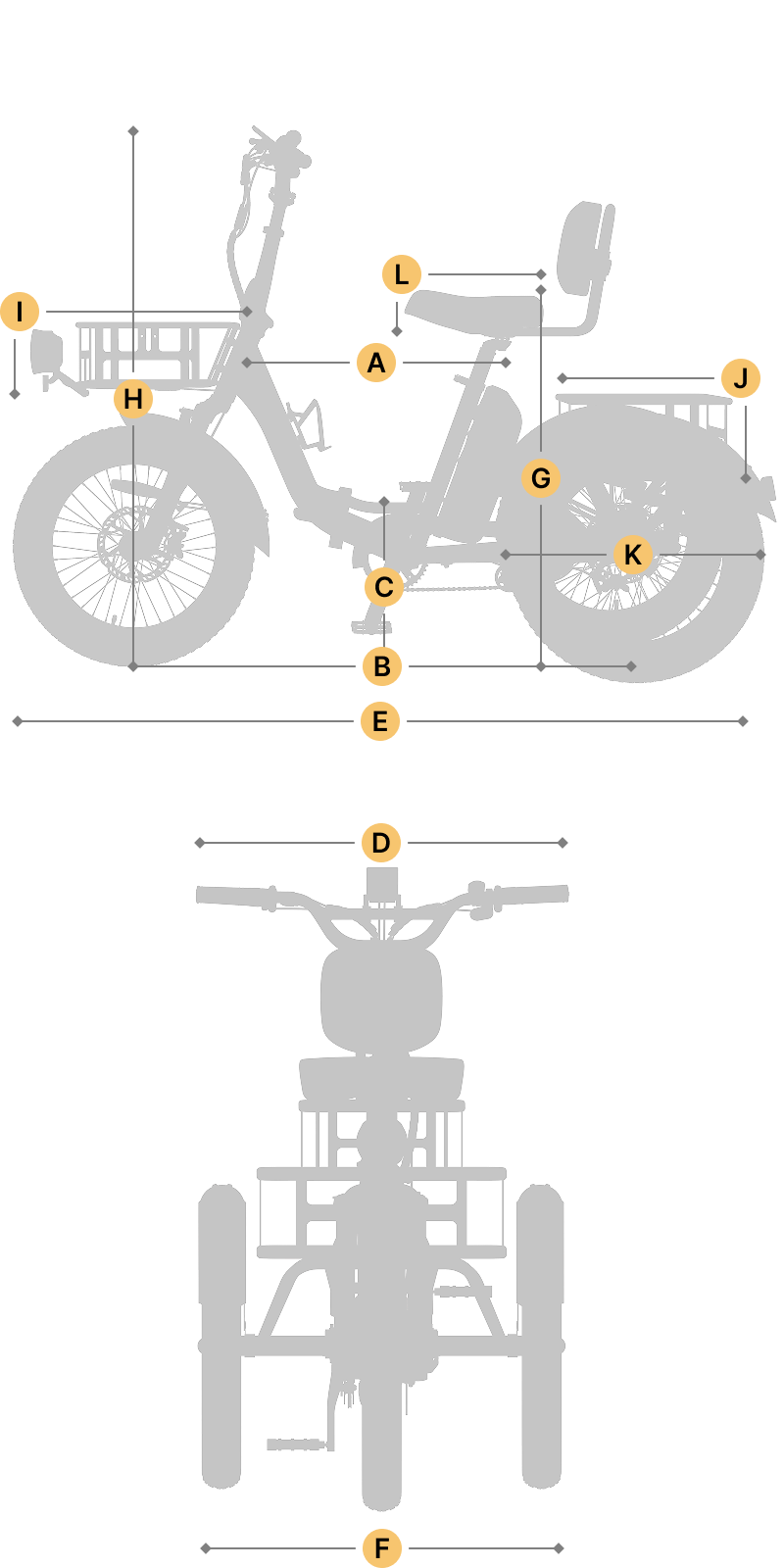

Size
Component
Specification
configure

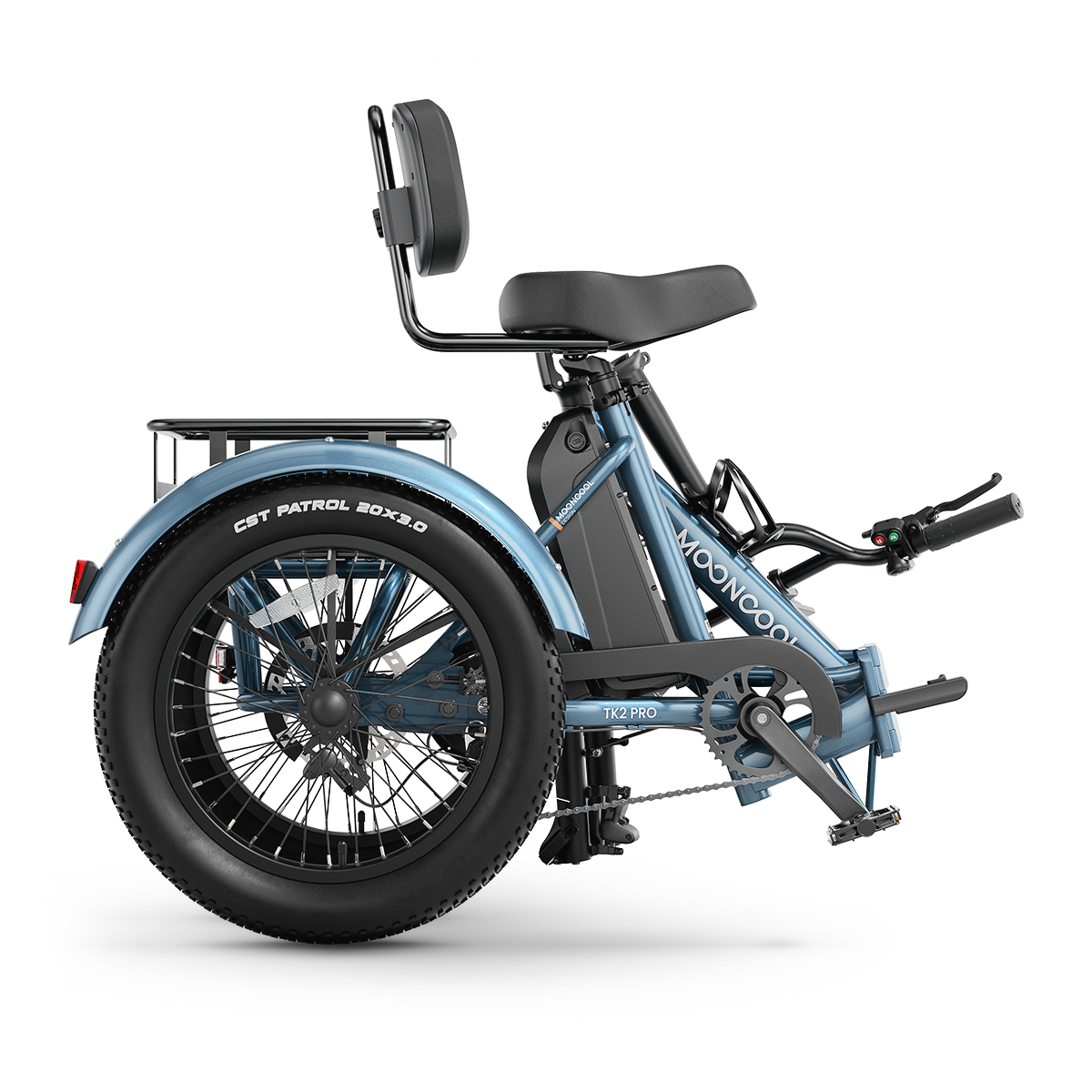

| ★Folded Size |
39.4(L) * 30.3(W) * 29.5(H) in 100(L) * 77(W) * 75(H) cm |
| ★Recommended Height | 5'-6'3" / 153-190 cm |
| A Top Tube Horizontal | 22 in / 558 mm |
| B Wheelbase | 36 in / 913 mm |
| C Stand Over Height | 16 in / 407 mm |
| D Handle Bar Length | 26 in / 660 mm |
| E Total Length | 66 in / 1670 mm |
| F Total Width | 29 in / 730 mm |
| G Seat Height Min / Max |
30.3~39 in 770~990 mm |
| H Handle Bar Height Min / Max |
43.7~45.7 in 1110~1160 mm |
| I Front Basket |
12.6 * 11.8 * 5.7 in 320 * 300 * 145 mm |
| J Rear Basket |
18.9 * 14.2 * 6.3 in 480 * 360 * 160 mm |
| K Wheel Size | 20" x 3.0 |
| LSeat Size |
11.8 * 10.6 in 30cm * 27 cm |
| Weight | G.W. 115.7lbs, N.W. 89.9lbs |
| Frame | 6061 Aluminum+Hiten Steel, Folding Structure, Rear Differential Mechanism. |
| Fork | Alloy Suspension, Travel 40mm, Oil Spring Structure With Mechanical Lock Out. |
| Handlebar | Alloy, BMX Style, Bar bore 1.25in, Length 25.98in, Rise 4.72in |
| Stem | Forged Alloy, Barboe 28.6*31.8mm, Folding, Extension Tube 178mm. Sandblasted Anodized Black |

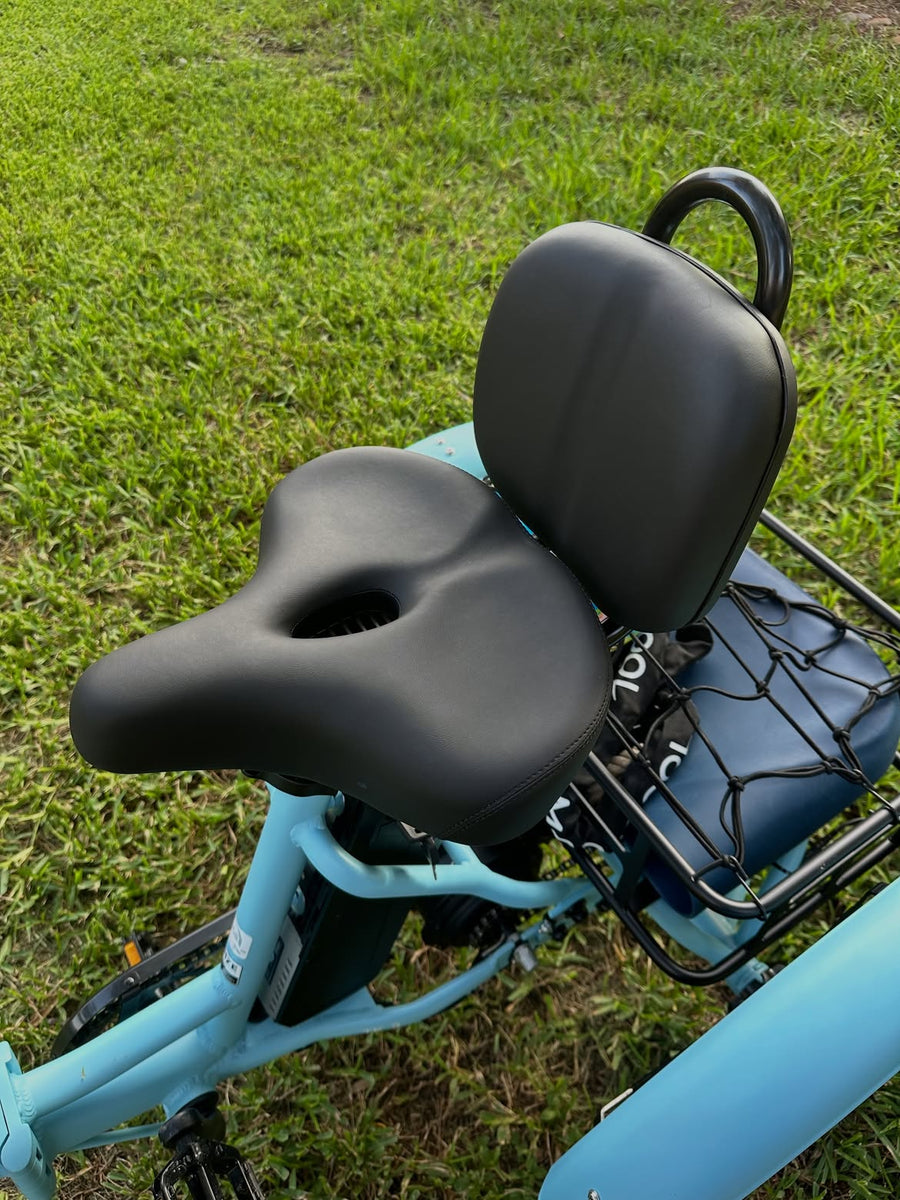

| Saddle | Comfortable Big Vacuum Foaming Seat |
| Seat Post | Alloy 31.8*450mm Length |
| Chainwheel | Alloy Crank 170mm, Steel Chainring 36T |
| Freewheel | 18T |
|
Display
|
Starunion Tft 3.5inch Colorful, 5 Levels, Speed Limit 15.5mph, Ipx5 En15194
|
| Brake | Starunion, Hydraulic Disc Brake, Alloy, Rotor 180mm |
| Brake Level | Alloy 3 Fingers, Hydraulic Disc Brake with Electrical Cut-off Function |
| Rim | Alloy 20 Inch x 30 x 13G x 36H, AV |
| Tire | 20" x 3.0 CHAOYANG H5183 |
| Spokes | Stainless, 13G |
| Parking Brake | With |
| Fenders | With |
| Rear Rack | With |
| Front Basket | With |
| Rear Basket | With |
| Assembly | 90% |
| Colors | 6 Colors |
| Carton Size |
40in x 29.92in x 29.13in 101.5 x 76 x 74cm |
| Load Capacity | 450 LBS |
| Motor | 48V*750W Peak Power 1310W |
| Battery | Lithium 48V*20AH 21700 |
| Range | 45~75 Miles |
| Charger | 110-240V 54.6V 3A |
| Charging Time | 6-8 Hours |
| Max Safe Speed | 15.5 Mph |
| Controller | Sine Wave FOC 48V 24amp Peak |
| Pedal Sensor | Torque Sensor and Cadence Sensor |

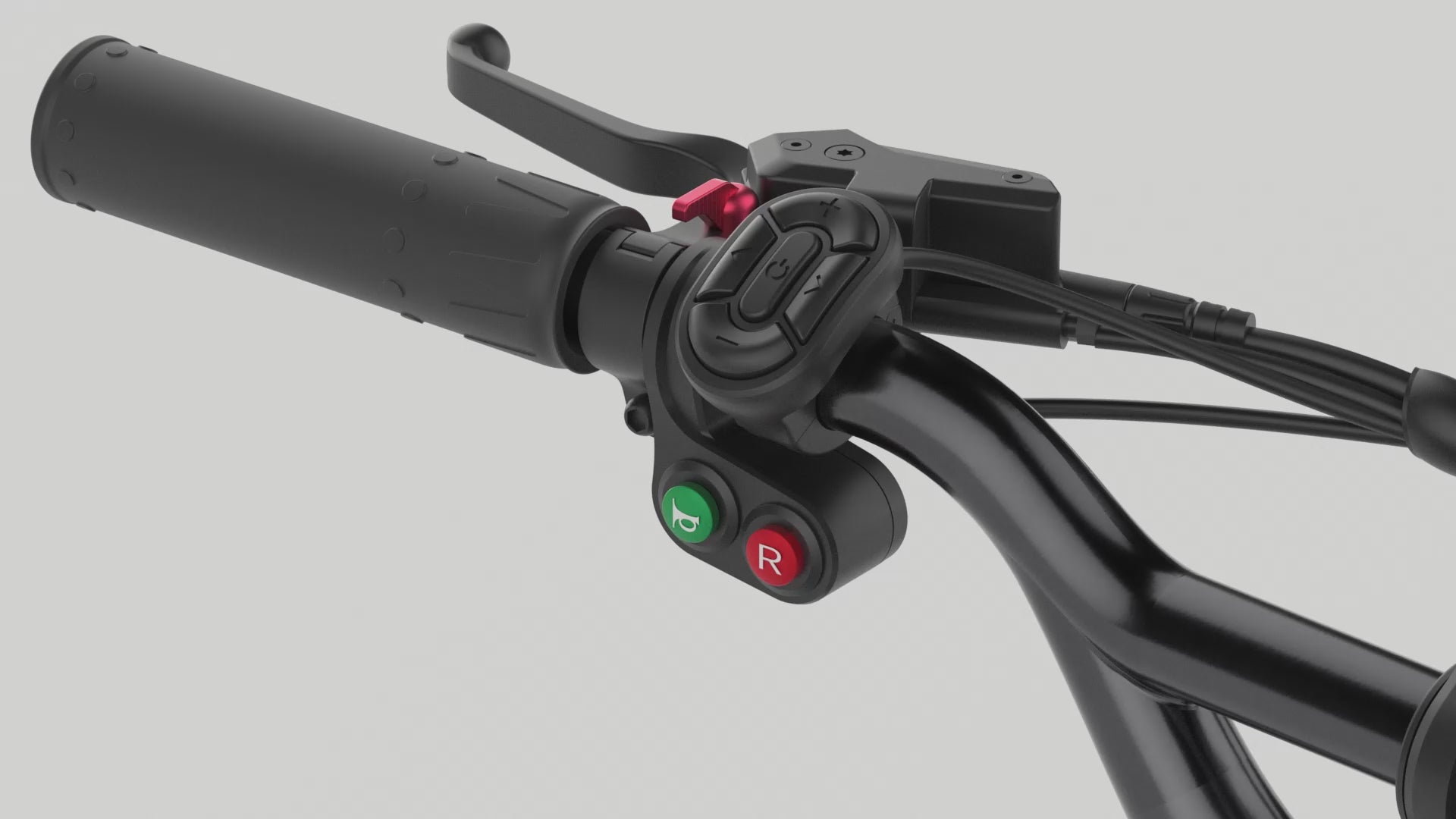

| Throttle | Twist Throttle |
| Front Light | Big Led eBike Version with Horn Function |
| Rear Light | 3 Tail Light, Brake Highlight Function & Turn Signals Function |
Assembly Video
Our assembly videos will walk you through assembly
Here we gather thousands of reviews from real users
The trike was extremely easy to assemble. Only took about 20 minutes. Very comfortable to ride. Has plenty of power. I got up to 16mph on setting one and the range is amazing. I am very pleased with my purchase.
It works very nicely, and is a great benefit to those who have difficulty dismounting a trike, pushing it into position, and getting back onboard.
Enjoying my new trike. Turning 80 this year, this is the way to go. It’s quick, quiet and quite the ride. Made a stand for the back of my RV. The trike will definitely come in handy at the campgrounds.

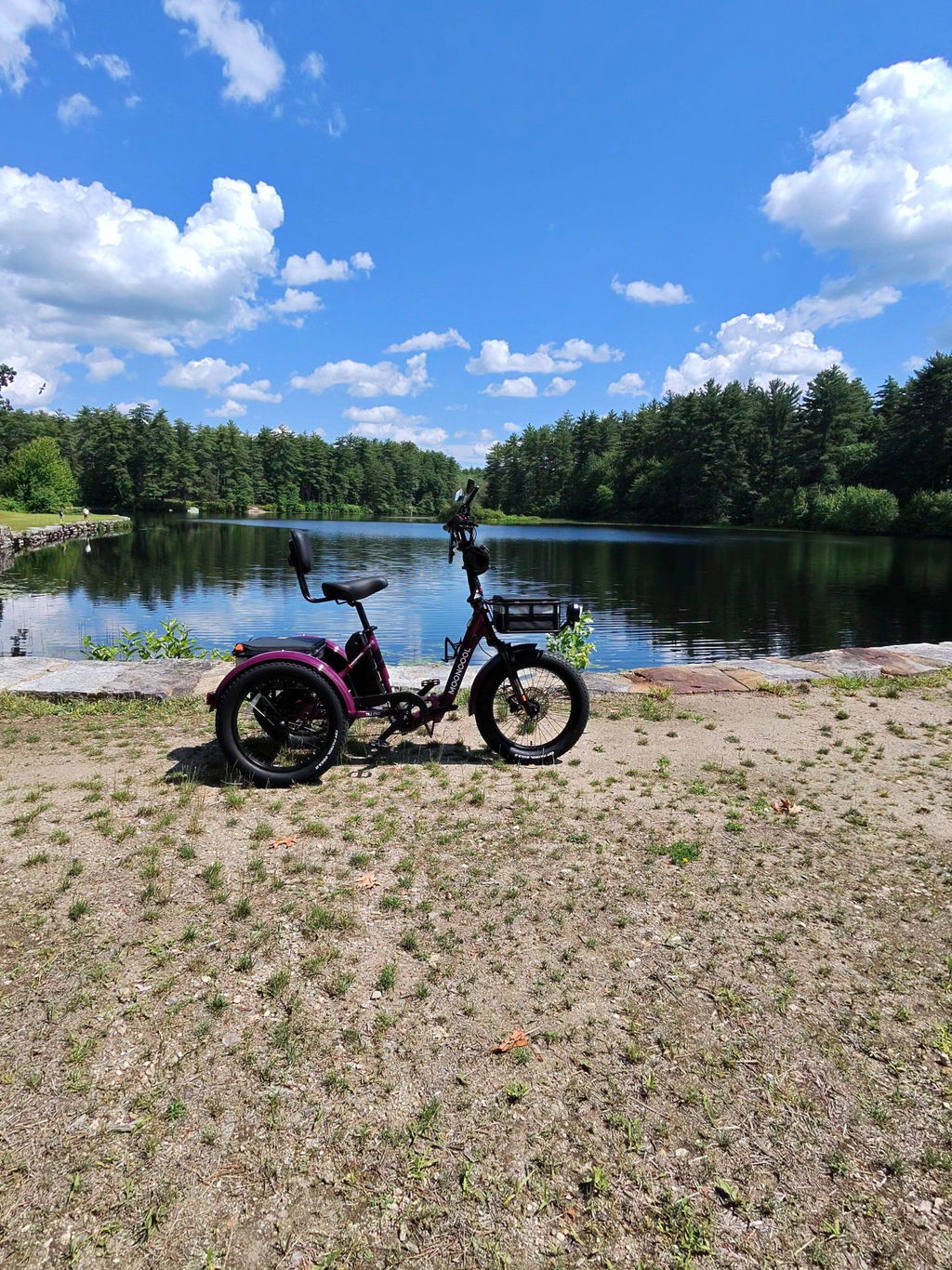

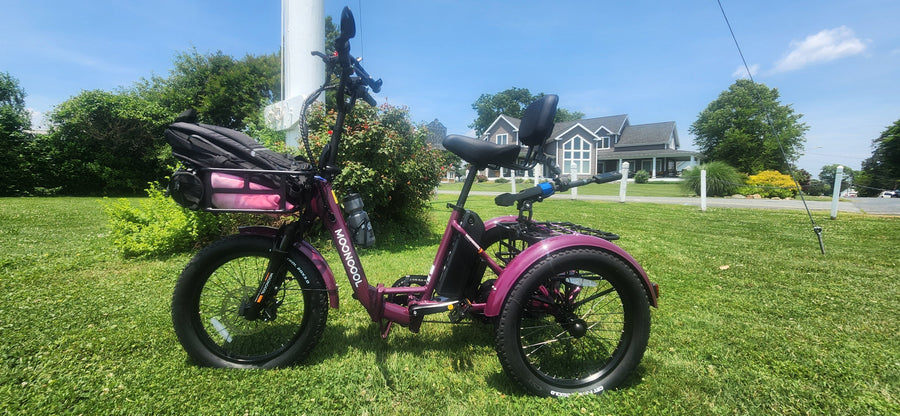

Took a nice ride yesterday evening to Grand View Drive just to get out a little after a busy day. A couple walking by offered to take my photo.
I went to the Test Ride a Mooncool event
It was so much fun. Here’s a photo of me and Patch with Neil and Nate.
I was a little apprehensive if we could put them together, but they arrived with everything complete. We were able to put them together, and now we've been riding them for a few weeks.
TK pro went together in about four hours. We watched the instruction video several times and it was very useful. No major problems. All necessary tools come with the trike. The packaging was basically superb.
This product has no reviews yet.
If you have any questions, you may get answers from here

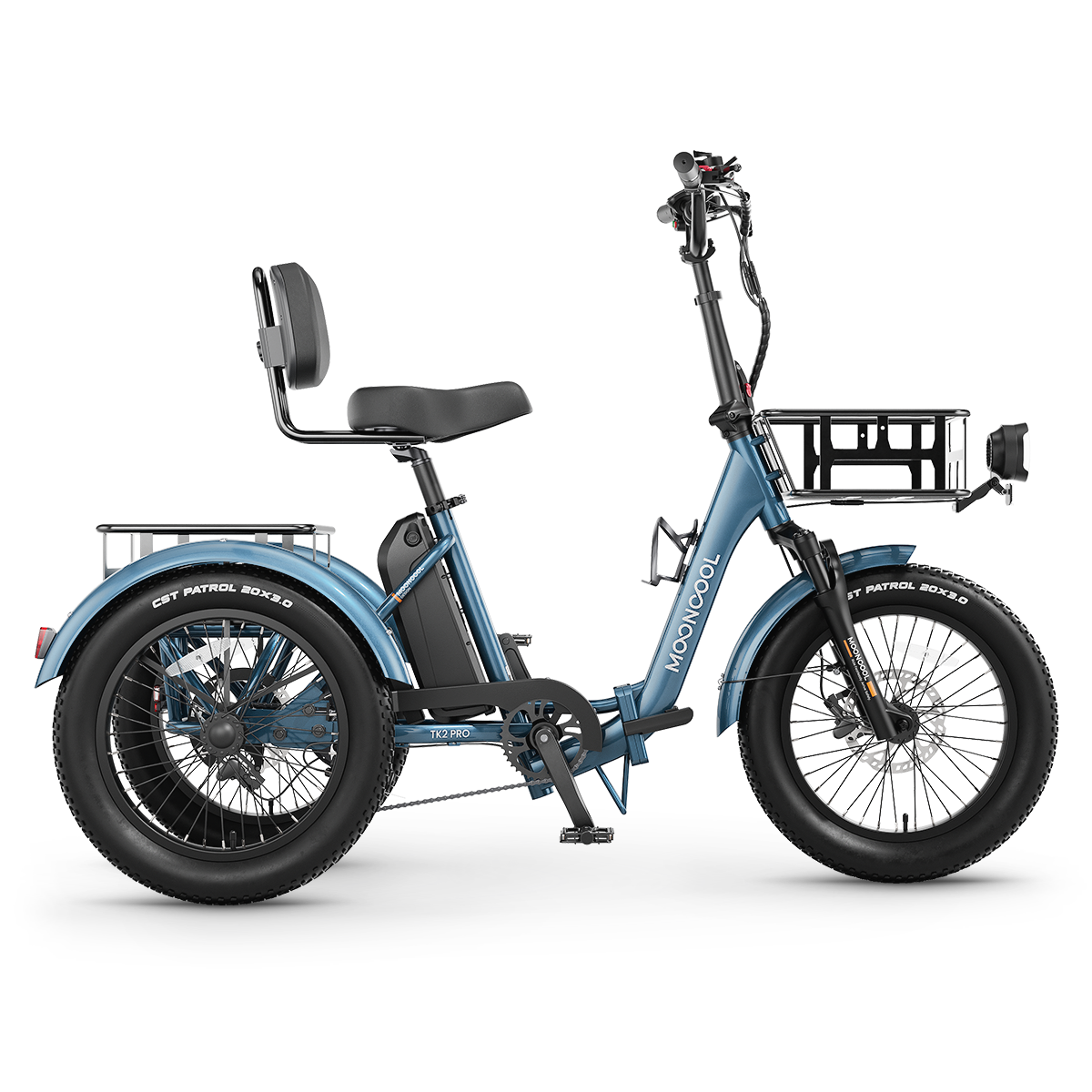

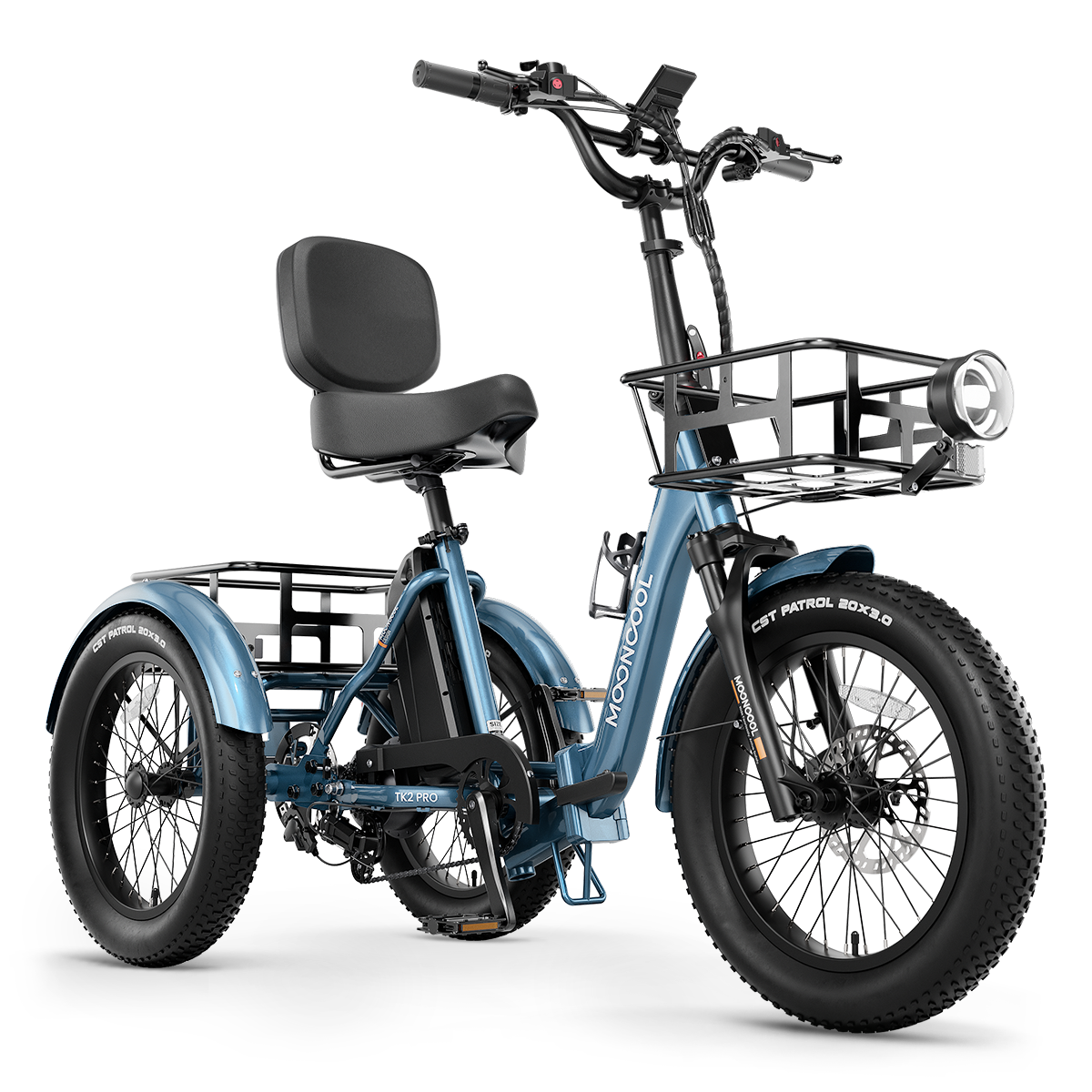

The TK2 PRO electric trike comes 90% pre-assembled. The final steps are simple and can be easily completed by you in just a few minutes. The necessary tools and clear instructions are provided, ensuring a hassle-free final setup.
Yes, indeed. Our trike is designed with ease of use and stability in mind, making it a great choice for older adults and persons with disabilities who are looking for a safe and comfortable riding experience.
Yes, it does. The trike comes equipped with a battery, and we include both a front and a rear basket as standard features, so you have everything you need to get started right away.
The TK2 PRO electric trike is designed for riders who are between 5’-6’3’’ tall for optimal comfort and performance.
