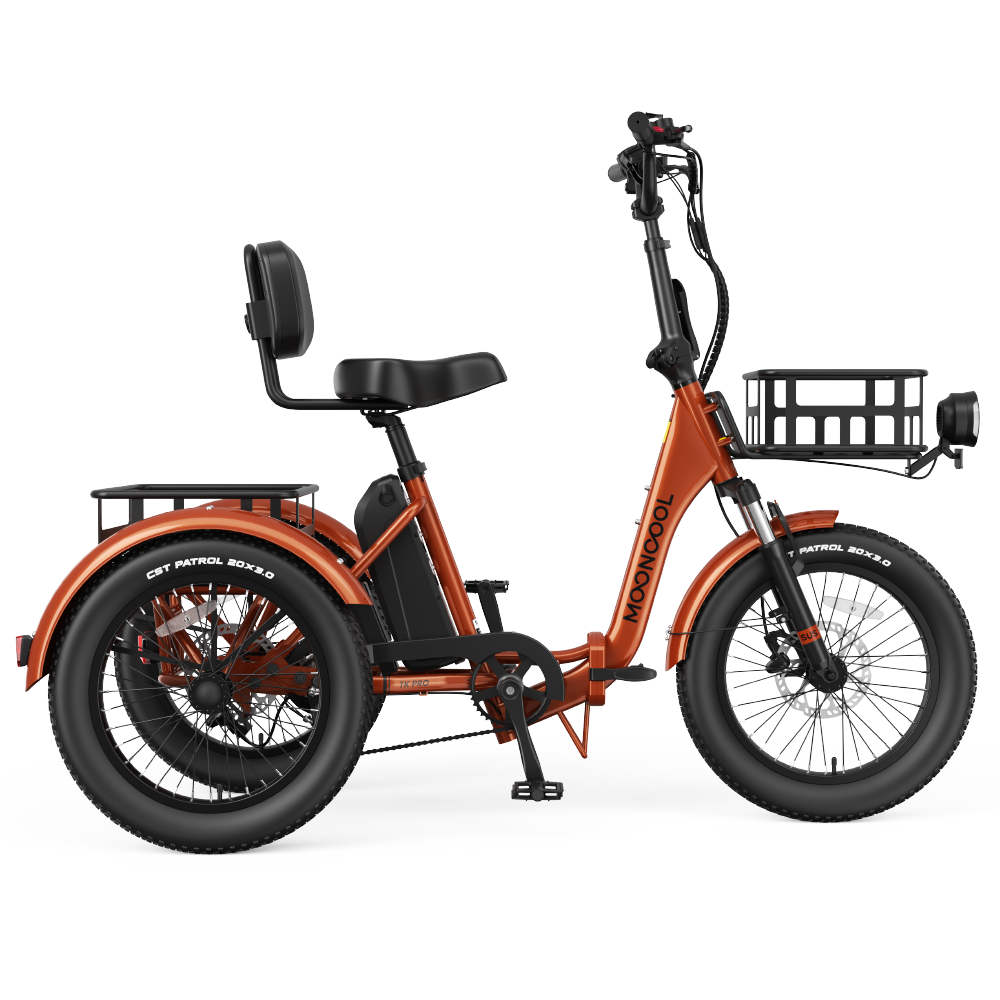

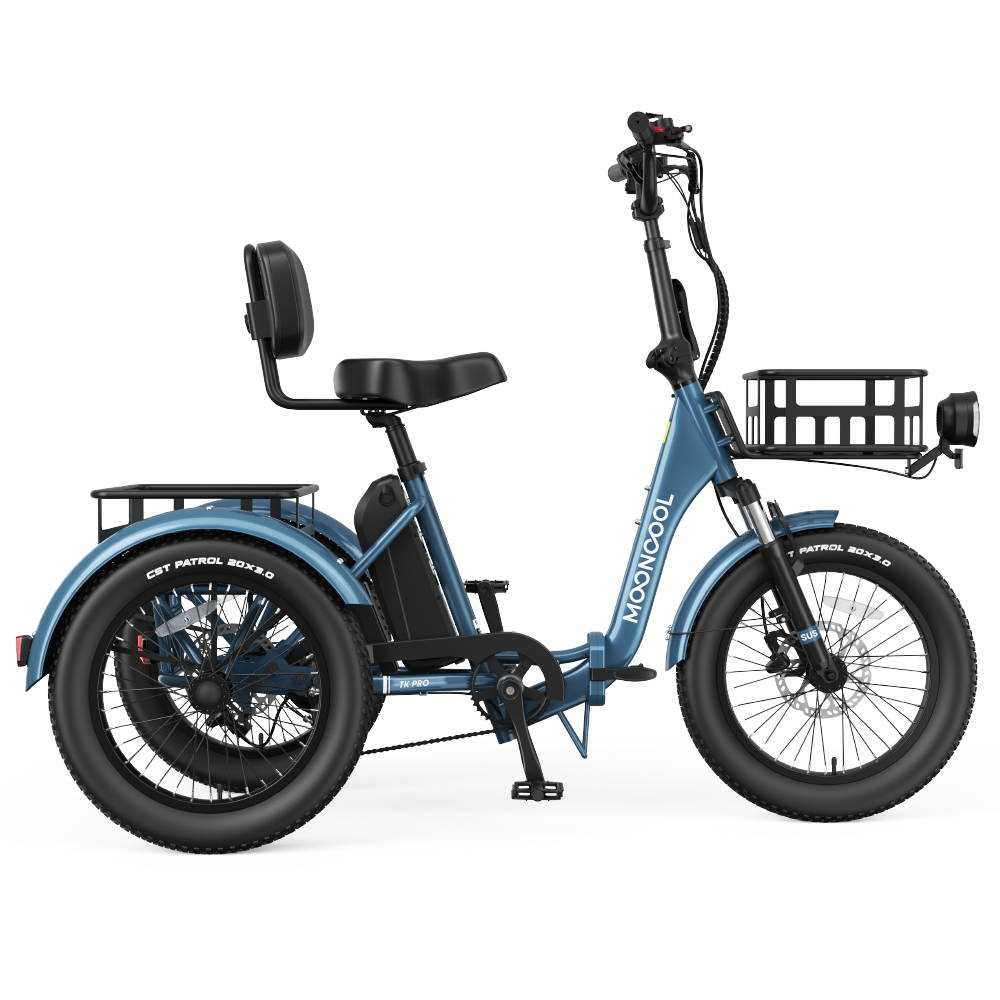

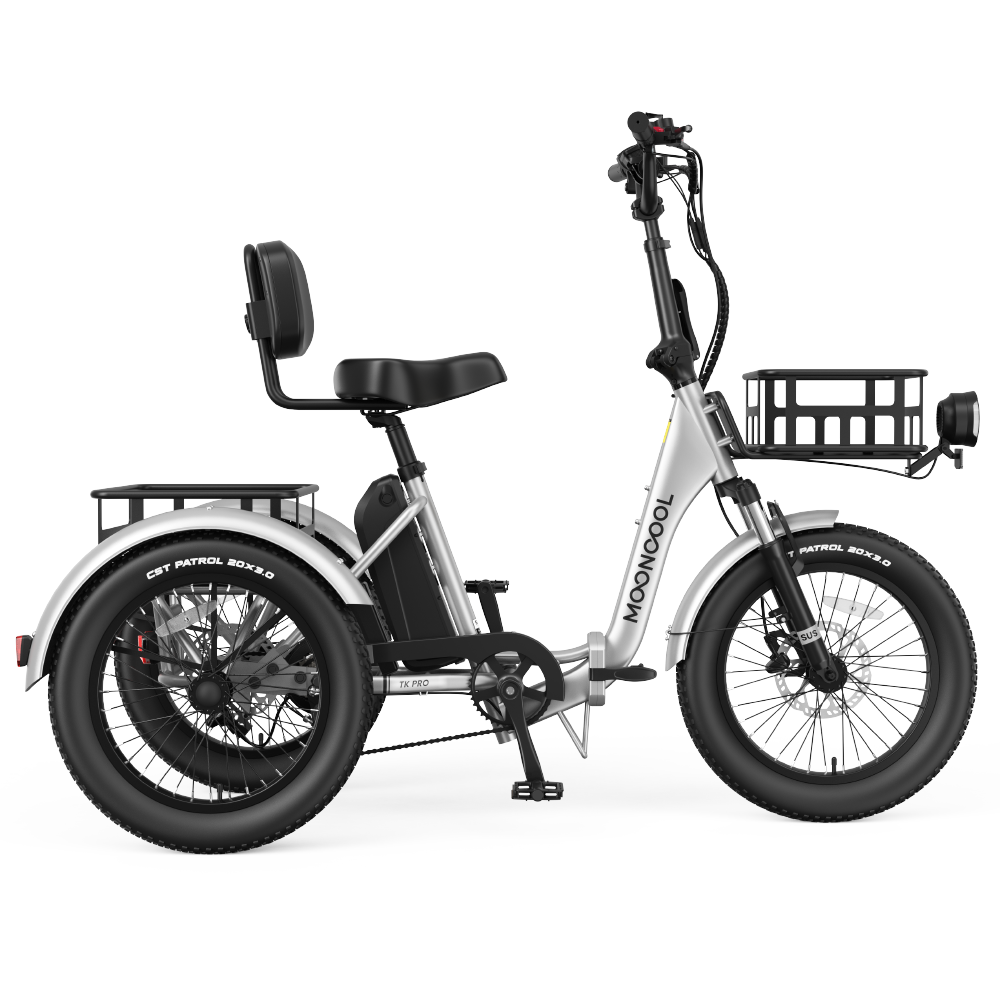

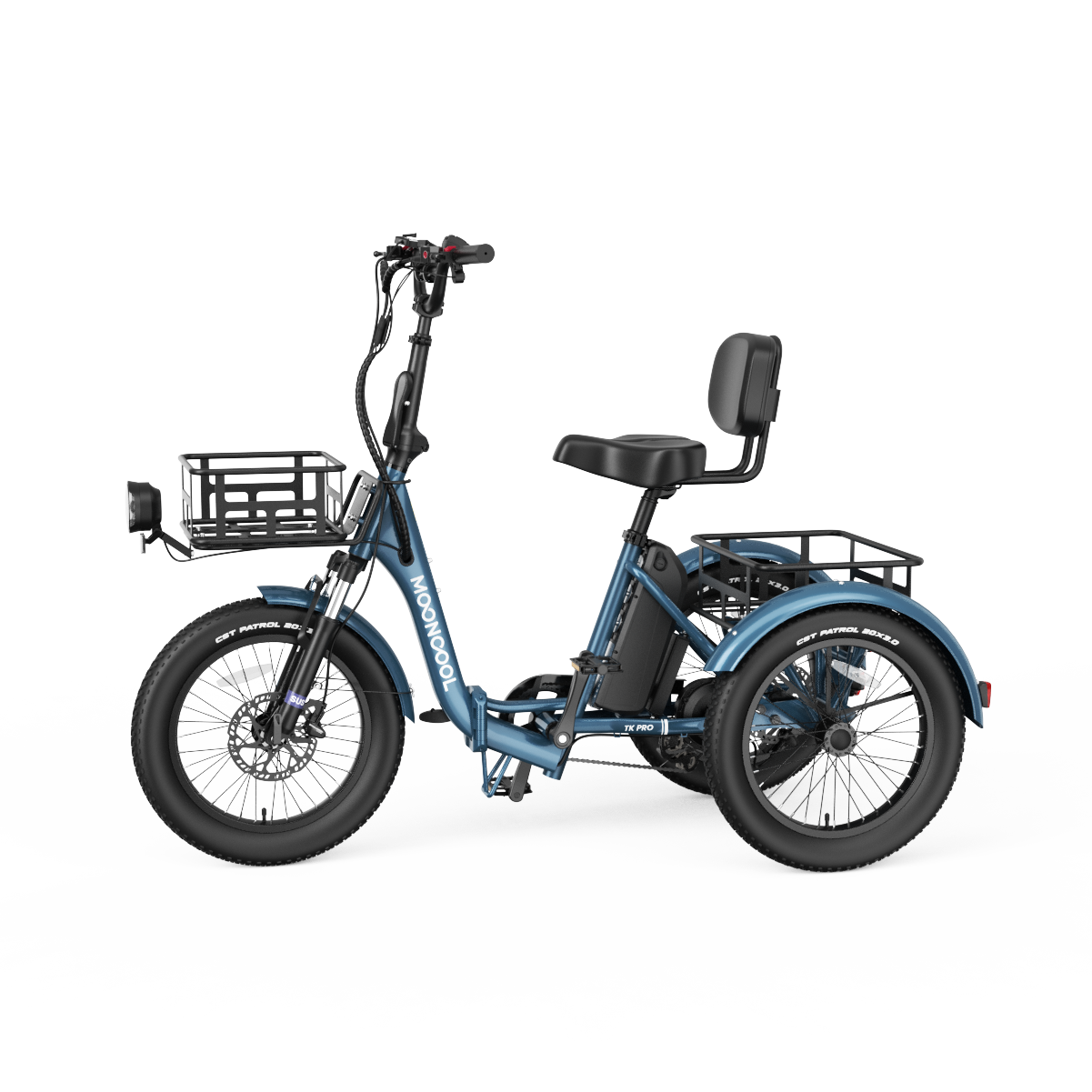

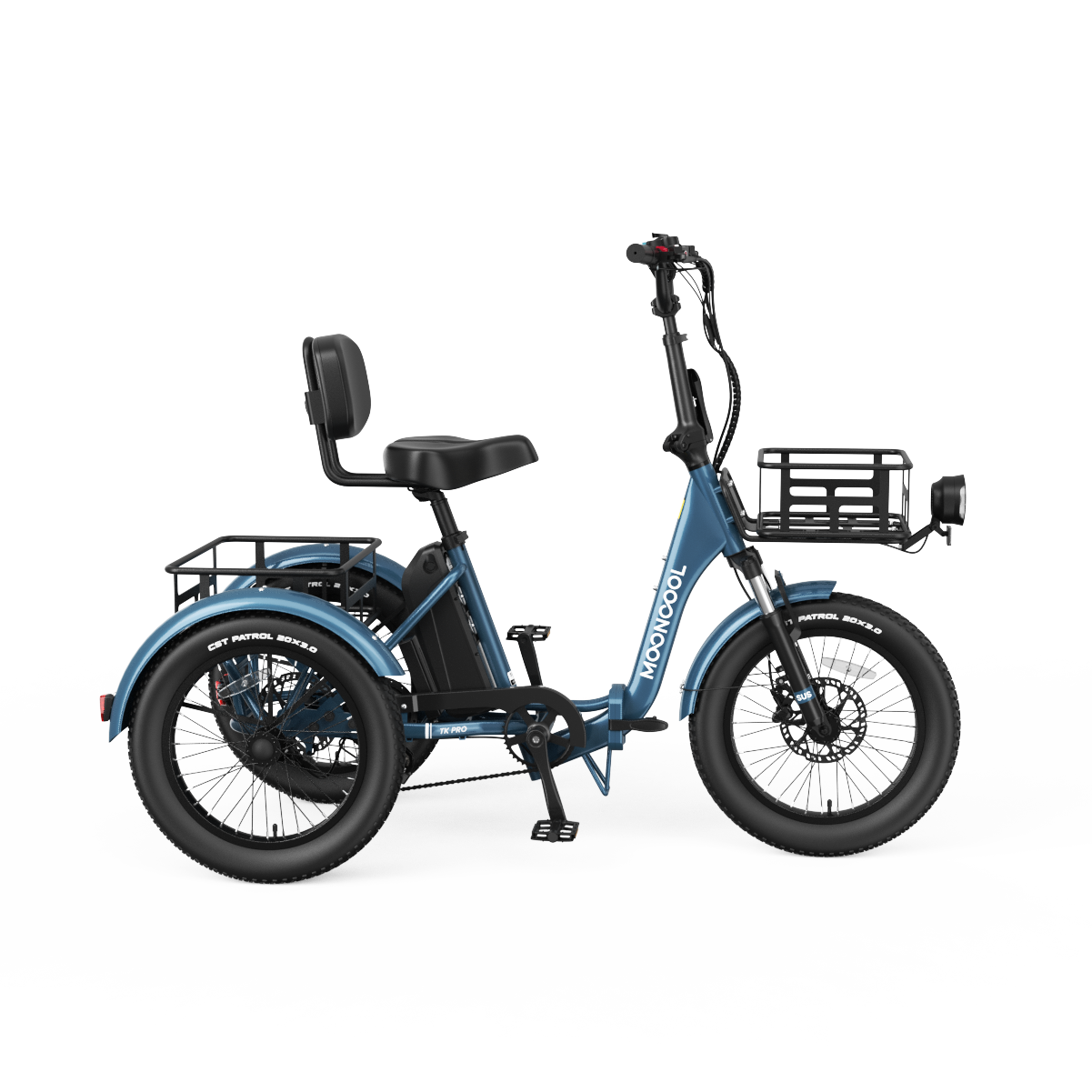

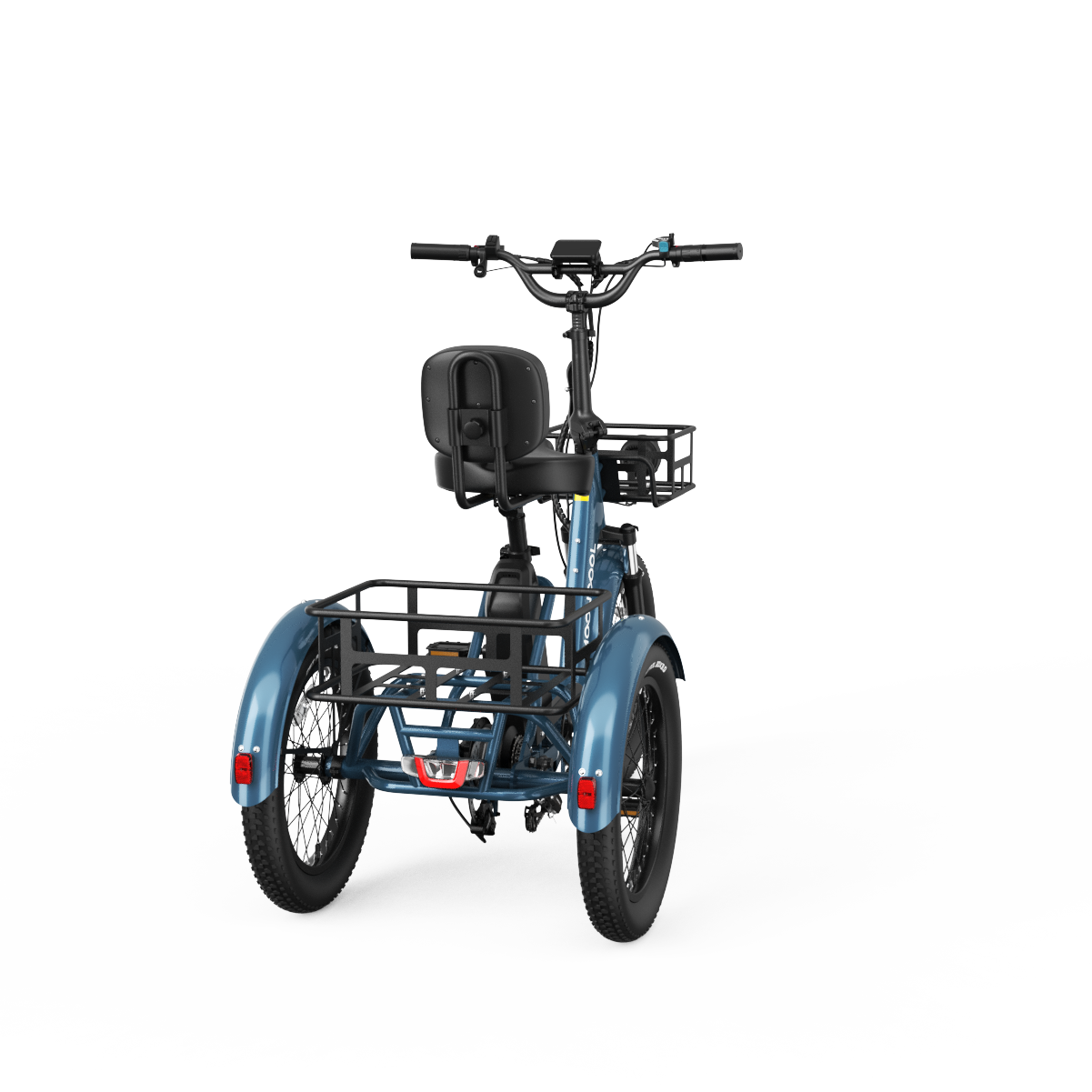

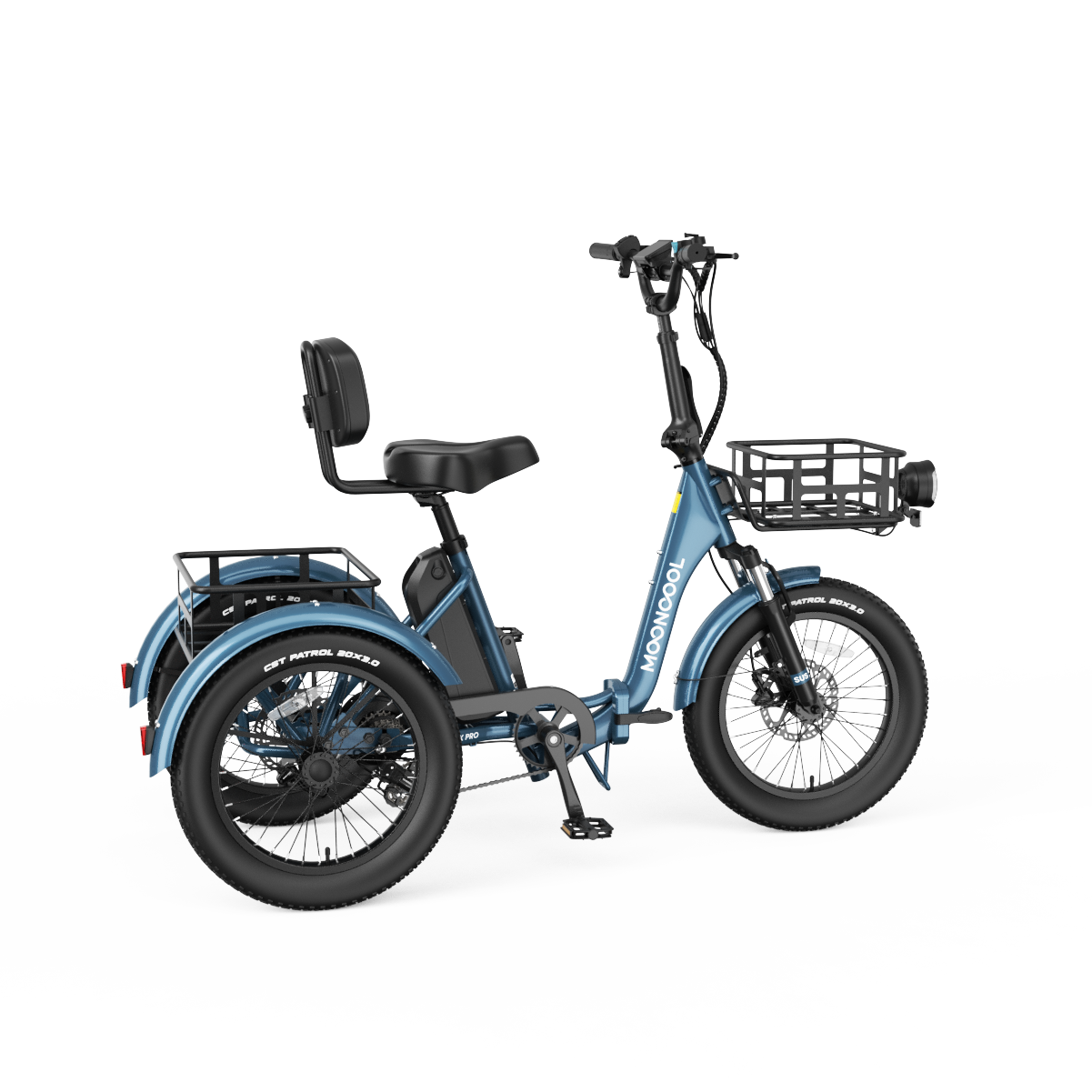

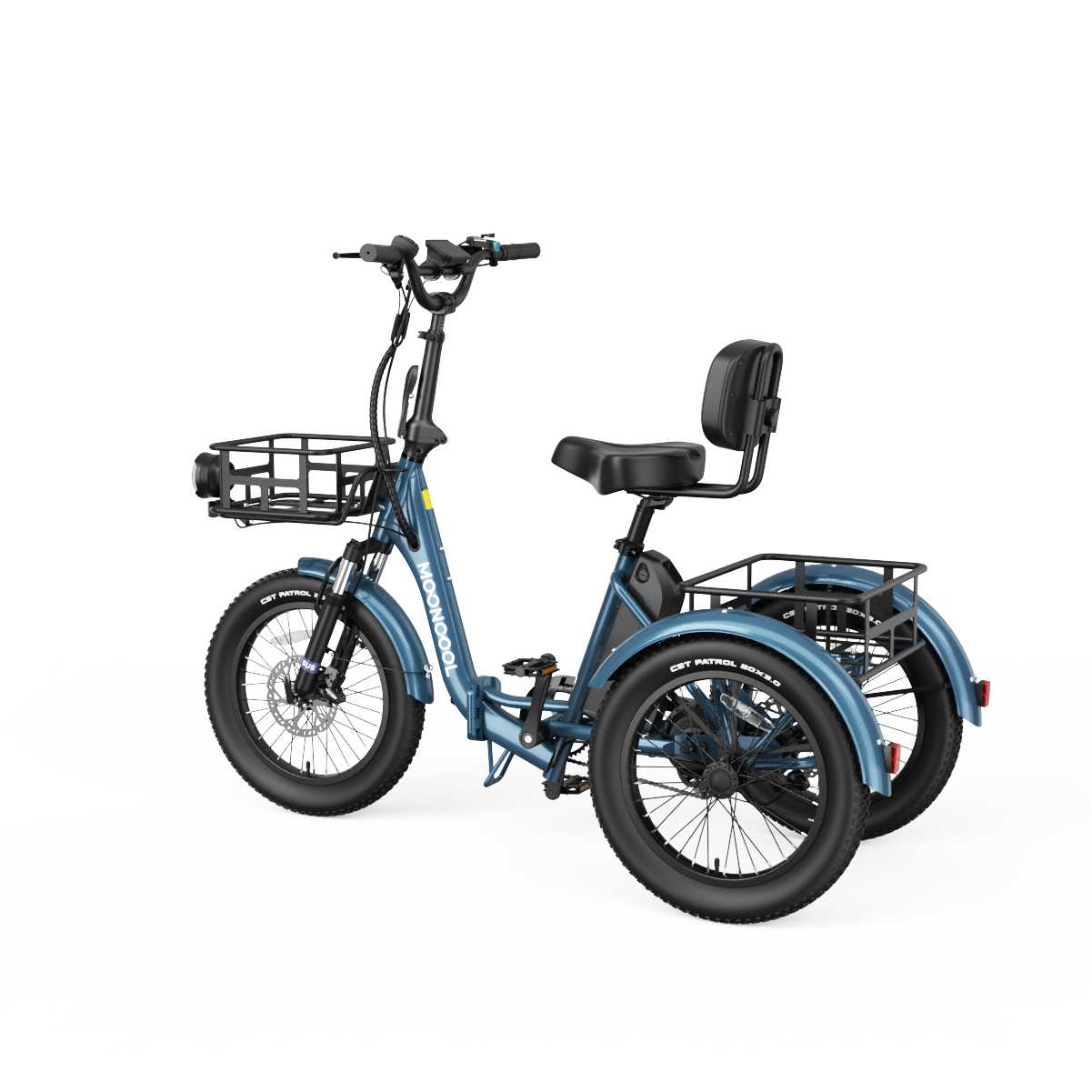

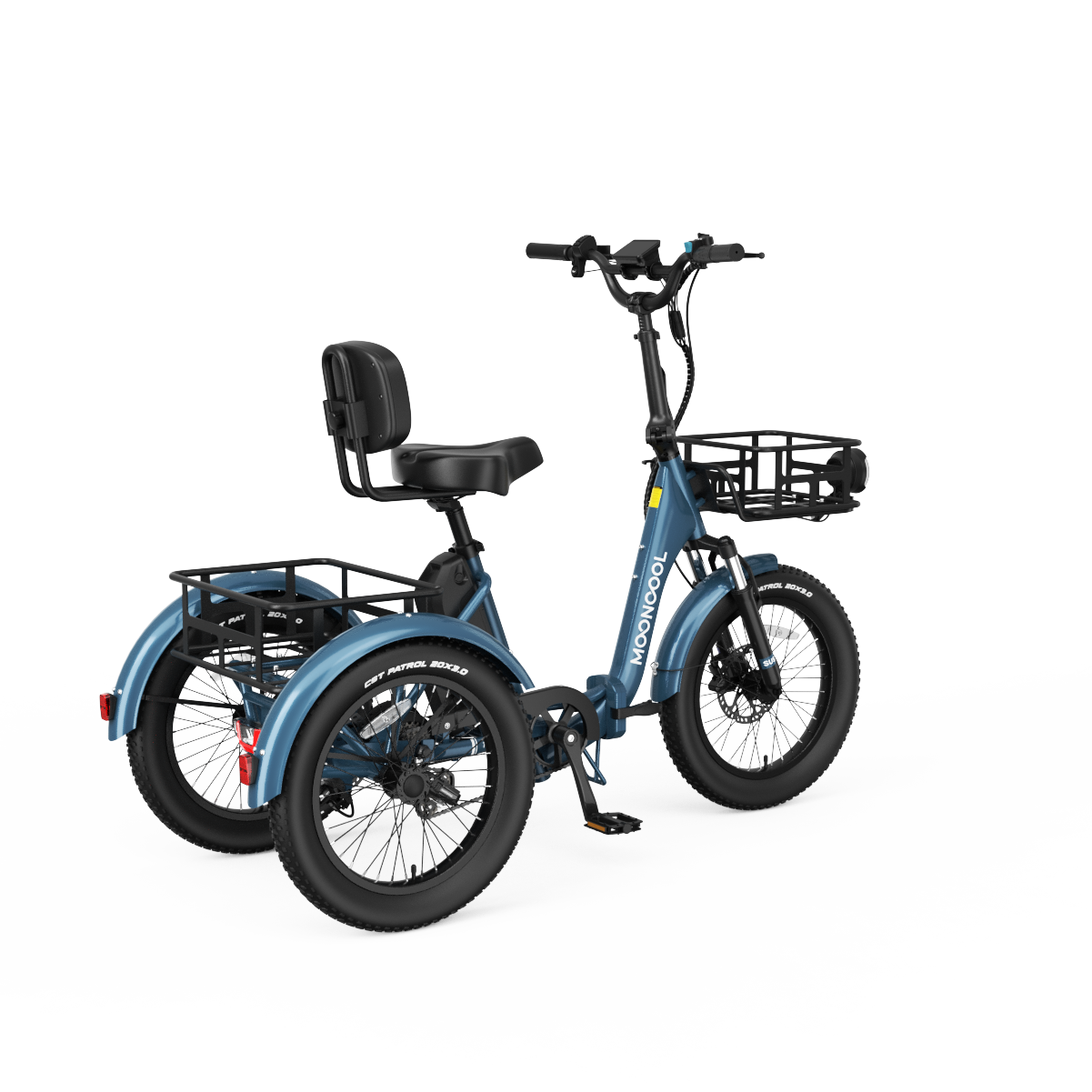

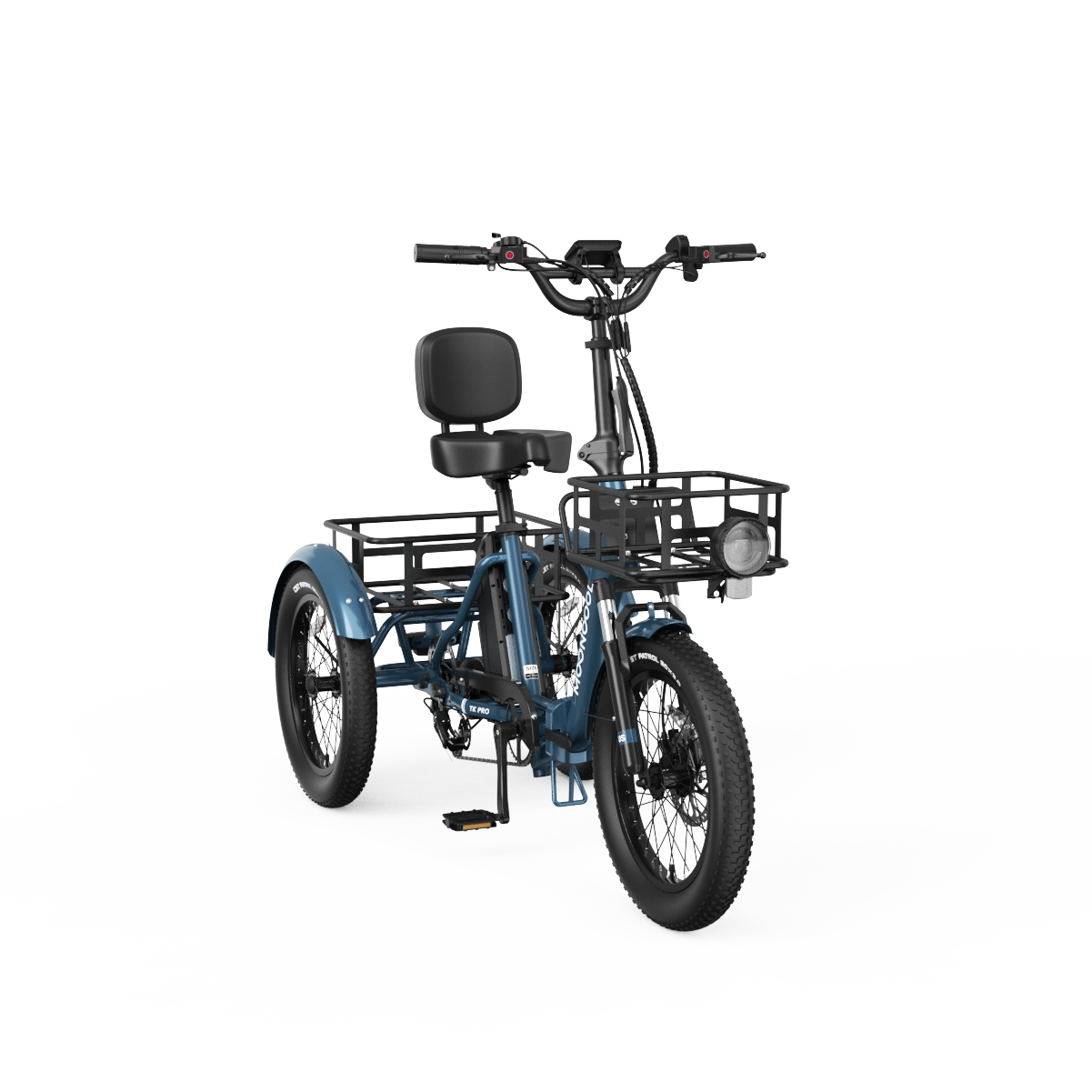

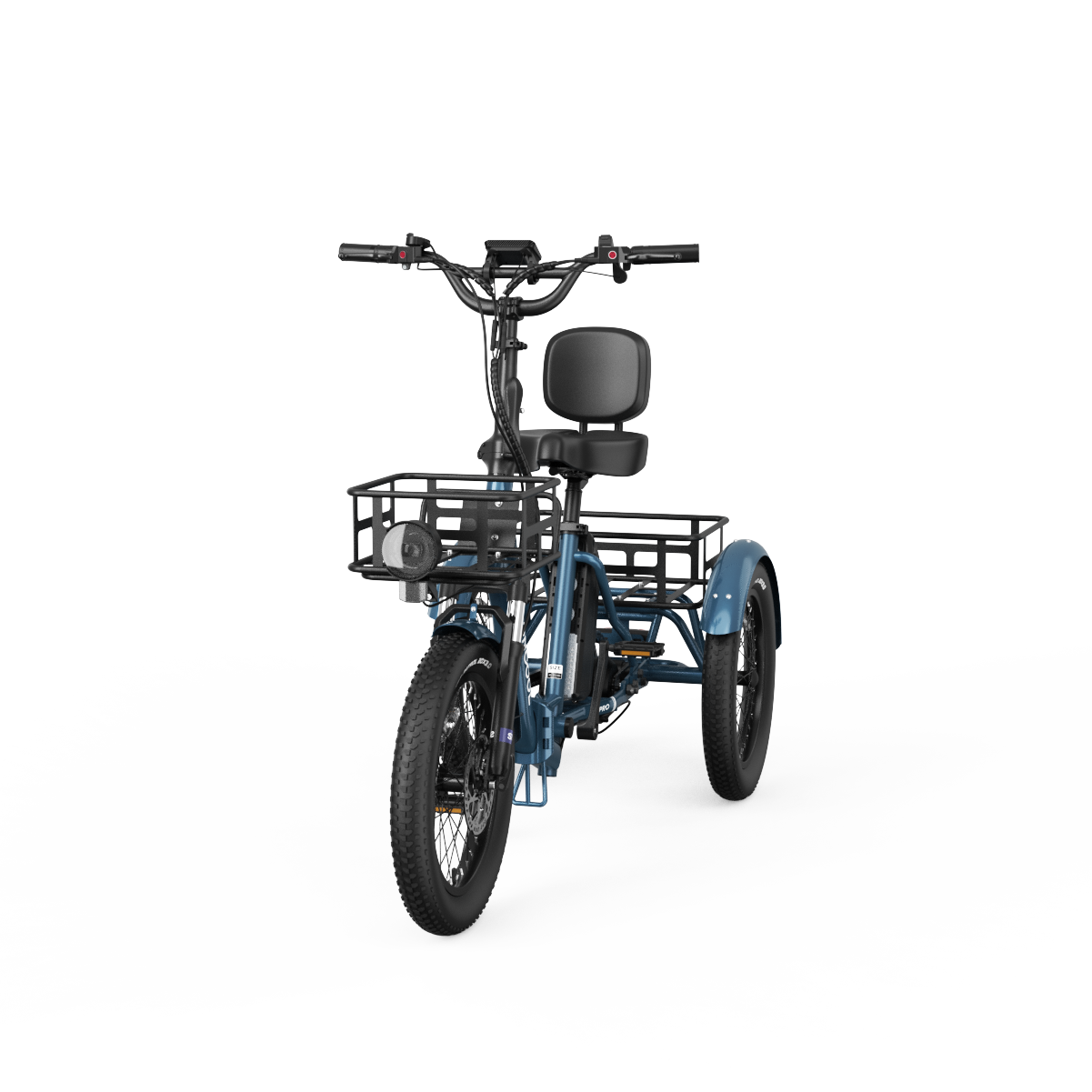

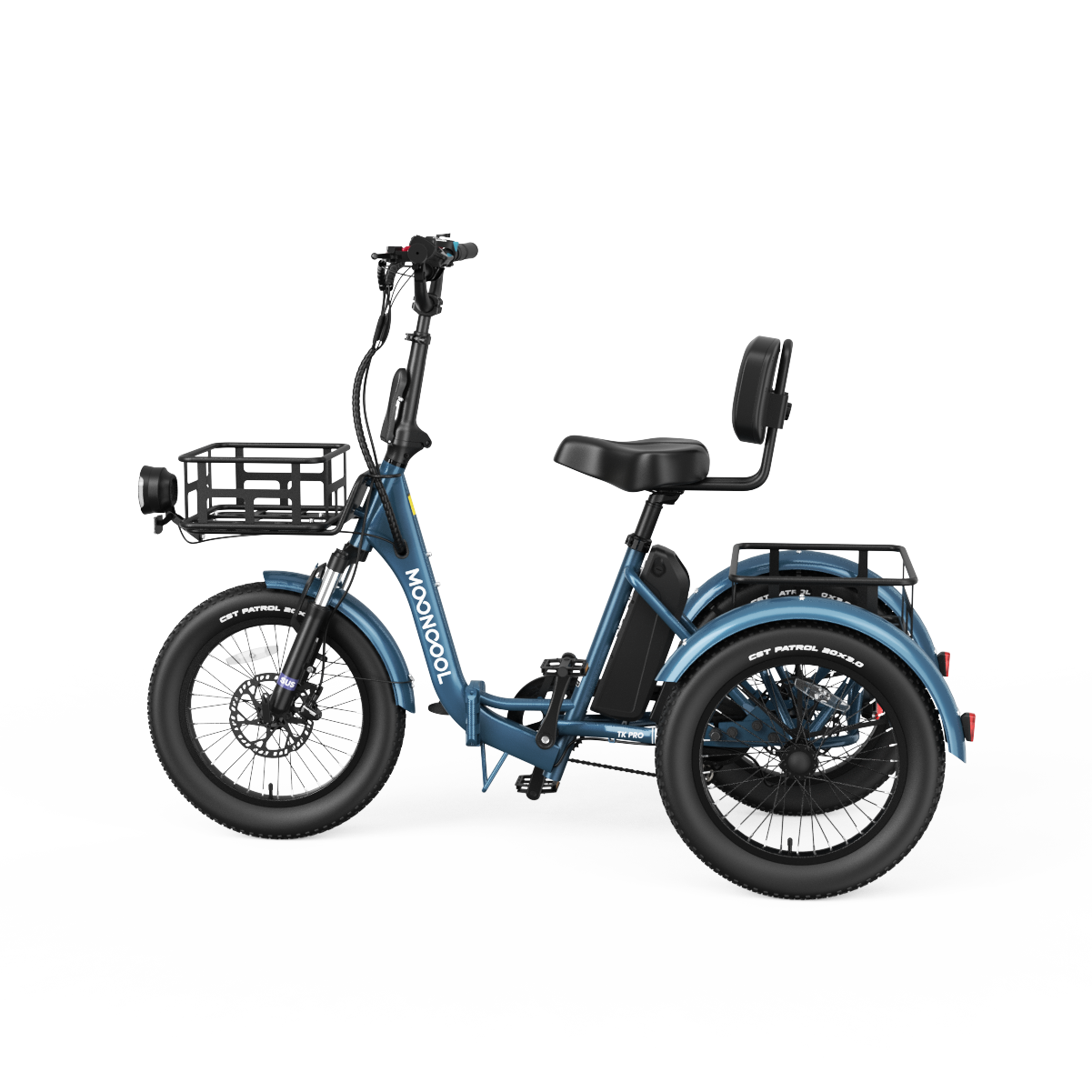

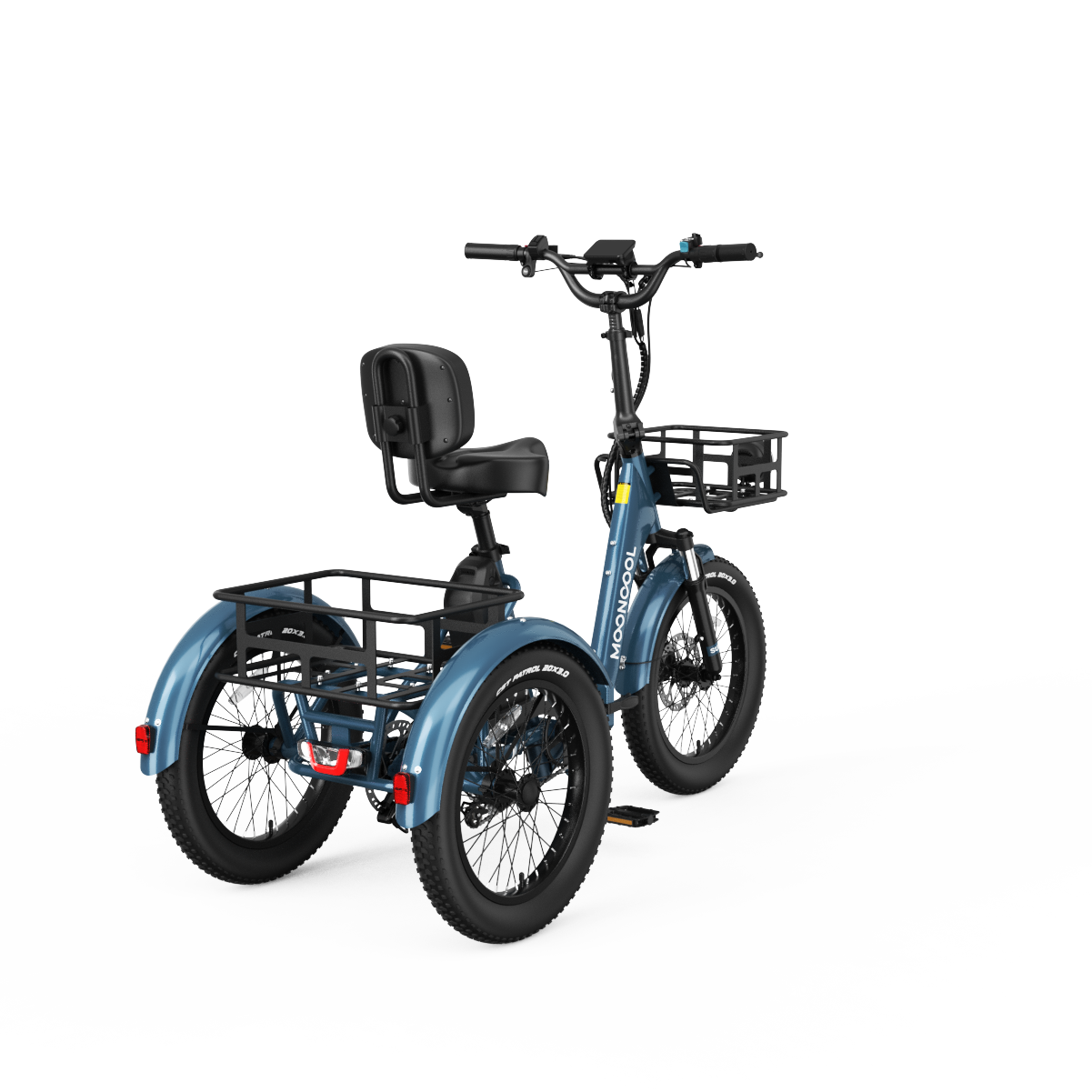

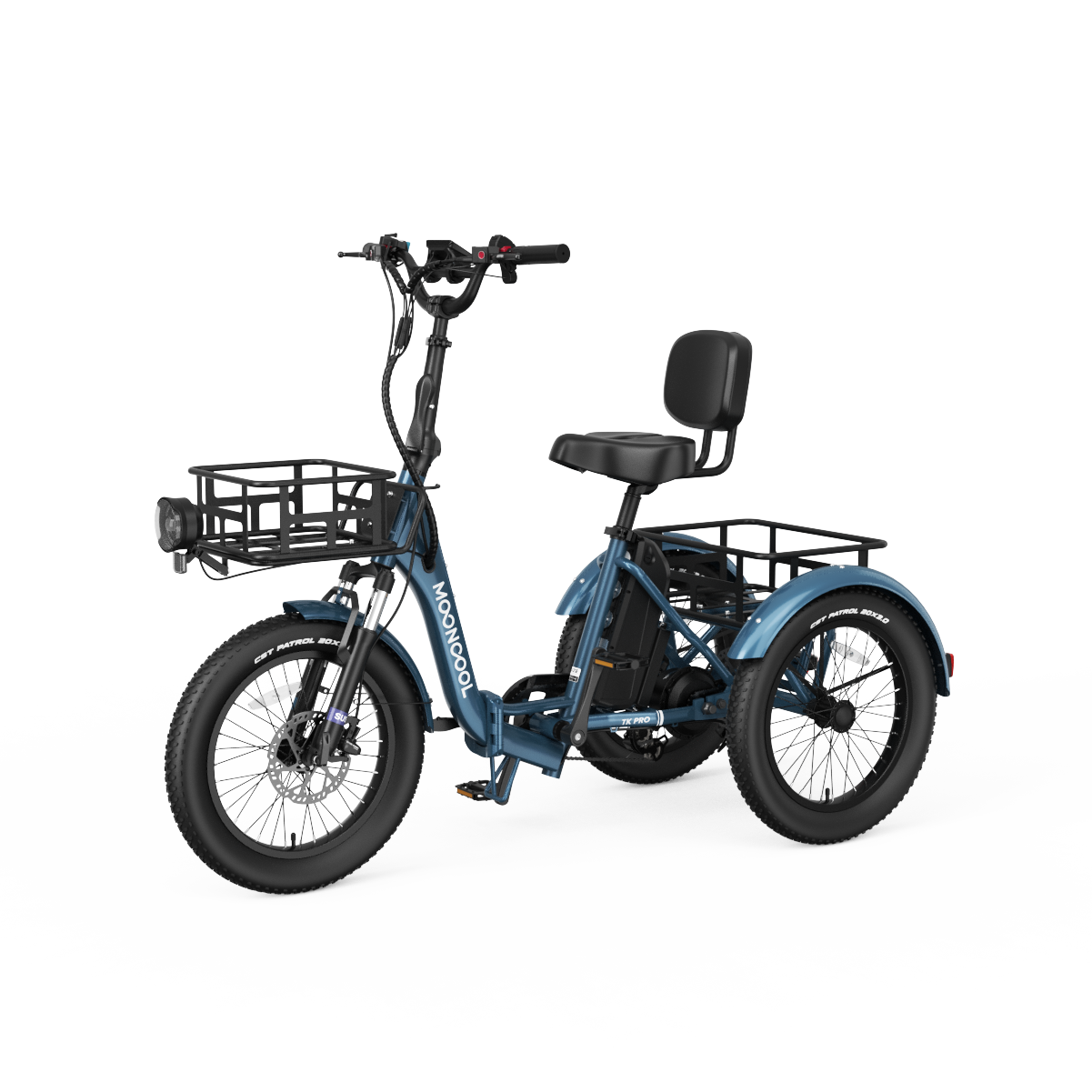

TK Pro Electric Trike
Certified UL 2849Size & Fit
| ★ | Folded Size |
39.9(L) x 29.9(W) x 30.7(H) in 101.5(L) x 76(W) x 78(H) cm |
| ★ | Recommended Height | 5'~6'3" |
| A | Top Tube Horizontal | 20.9 in / 53 cm |
| B | Wheelbase | 44.1 in / 112 cm |
| C | Stand Over Height | 12.2 in / 31 cm |
| D | Handle Bar Length | 27.2 in / 69 cm |
| E | Total Length | 65 in / 165 cm |
| F | Total Width | 28.4 in / 72 cm |
| G | Seat Height Min / Max |
30.3~42.1 in 77~107 cm |
| H | Handle Bar Height Min / Max |
44.1~46.1 in 112~117 cm |
| I | Front Basket |
12.6 x 11.8 x 5.5 in 32 x 30 x 14 cm |
| J | Rear Basket |
18.9 x 14.2 x 6.3 in 48 x 36 x 16 cm |
| K | Wheel Size | 20" x 3.0 |
| L | Seat Size |
12.6 x 11.8 in 32 x 30 cm |
Components
| Weight |
G.W. 112.4 lbs, N.W. 90.4 lbs
|
| Frame | 6061 Aluminum, Hydroformed Tubes |
| Fork | Shock Absorber Front Fork |
| Handle Bar | W: 660 * H: 120 * φ22.2 * 2.6T, φ31.8 |
| Stem | Adjustable 0-80d, L: 10.354 in |
| Grip | Soft PVC Rubber |
| Saddle | Seat with Backrest, Comfortable Large Vacuum-Foamed Seat |
| Seat Post | 6061-T6 Aluminum, φ1.25in x 21.65in Length |
| Seat Post Clamp | D40*25, Quick Release |
| Shifter | 6-Speed |
| Derailleur | Shimano |
| Chainwheel | 6.5in Alloy Crank, 38T Steel Chainring |
| Chain | KMC Z7 |
| Freewheel |
6S, 14-16-18-21-24-28T, Special Purpose for E-bike
|
| Pedal | Alloy Body, 9/16-inch |
|
Display
|
Intelligent Digital LCD Display Appears More Clearly in Sunlight, Color
|
| Brake | STARUNION Hydraulic Disc Brake, Alloy, 180mm Rotor |
| Brake Level | STARUNION Alloy 3-Finger Hydraulic Disc Brake with Electrical Cut-Off Function |
| Rim | 20-inch Alloy Rim, 3.0" Width, 13G Spokes, 36 Holes, AV |
| Tire | 20" x 3.0 Tire, CST, 60TPI |
| Spokes | 304 Stainless Steel, 13G |
| Parking Brake | With |
| Fenders | With |
| Rear Rack | With |
| Front Basket | With |
| Rear Basket | With |
| Assembly | 95% |
| Colors | 6 Colors |
| Carton Size |
39.8 x 29.9 x 30.3 inches 1010 x 760 x 770mm |
| Load Capacity |
450LBS
|
Specification
| Motor | 48V*750W |
| Battery | 48V*20Ah |
| Range | 45-75 Miles |
| Charger | 110-240V 54.6V 3A |
| Charging Time | 7 Hours |
| Max Safe Speed | 16 Mph |
| Controller | Sine Wave FOC 48V 24amp Peak |
| Sensor | Upgraded Torque Sensor |
| Throttle | Half Twist Throttle |
| Wire Harness | All Water-Resistant |
| Front Light | Starunion LED, Horn Function, CPSP Reflector |
| Rear Light | Starunion LED, Brake Highlight Function, Turn Signals Function |
Safety
Our approach to accessibility goes beyond physical design
Comfort
And inclusivity, making sure every rider feels confident and empowered
Accessibility
It encompasses affordability, ensuring our E-Trikes are within reach
Rear Drive Motor
Equipped with a 750W rear-drive motor, delivering up to 1500W of peak power and 85Nm of peak torque, it offers powerful and reliable performance to easily handle various terrains and travel needs.
Battery Power
Equipped with a removable 48V*20Ah lithium battery. Provides a range of 45 to 75 miles on a single charge. Explore with confidence and no worries about battery life.
Torque Sensor
The torque sensor detects the rider's pedaling force, offering responsive and efficient assistance for a natural riding experience, making it a better choice than cadence sensors.
Shimano 6 Speed
The Shimano 6-speed gear system allows riders to select the appropriate gear based on speed and terrain, enhancing functionality and making rides more enjoyable and efficient.
More Comfort, Less Worry
Low-Step Frame
The 12.2-inch low step-over height makes getting on and off the bike easier, reduces the risk of tripping, and ensures a safe, smooth ride for riders of all abilities.
Cruise Control
The newly added cruise control ensures a smoother ride by maintaining a set speed, eliminating the need for constant throttle or pedal adjustments. Press and hold the minus button to activate. To exit, simply twist the throttle or pull the brake lever.
Speed Differential Mechanism
Adjusting the wheel speed difference enhances vehicle handling and stability, allowing for smoother turns and greatly improving riding safety.
Turn Signals & Horn Function
Equipped with turn signals and a horn, it enhances visibility and safety, enabling riders to navigate urban environments with greater confidence.
Comfort and Care in Every Ride
Assembly Video
Our assembly videos will walk you through assembly
This product is rated 4.9 of 5.0 stars.
It has received 41 reviews.
FAQs
What are the dimensions of the TK Pro when it's folded?
When folded, the TK Pro Electric Trike measures 101.5 x 76 x 78 cm (39.9 x 29.9 x 30.7 inches), making it compact for storage and convenient to transport.
How assembled is the TK Pro electric trike when it arrives, and what will I need to do to finish the assembly?
Arrives 95% assembled with simple final steps. Tools and clear instructions included for a quick, hassle-free setup.
Does the electric trike come with a battery and both front and rear baskets included?
Yes, indeed! Your trike arrives with a battery and both baskets included, ready for immediate use.
