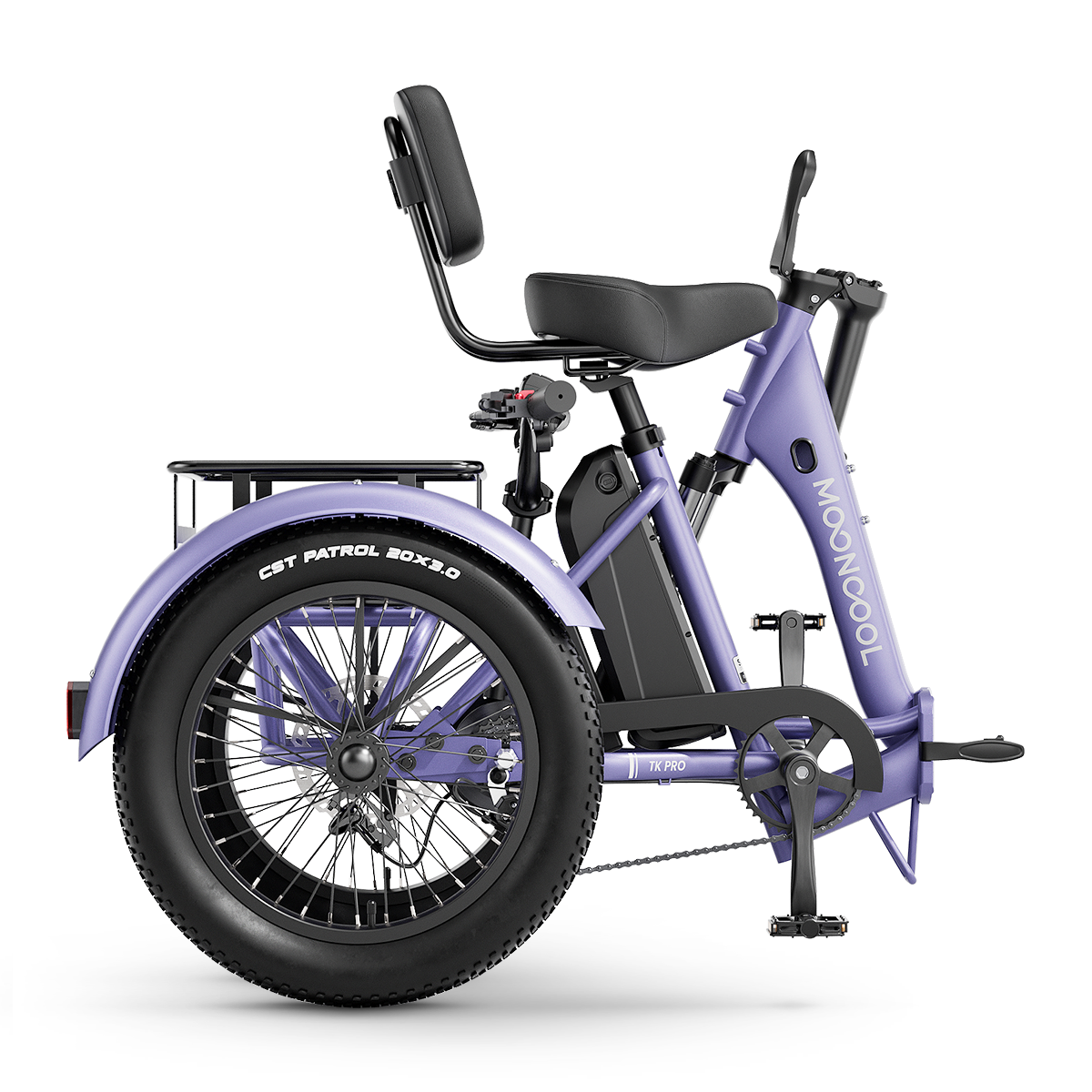

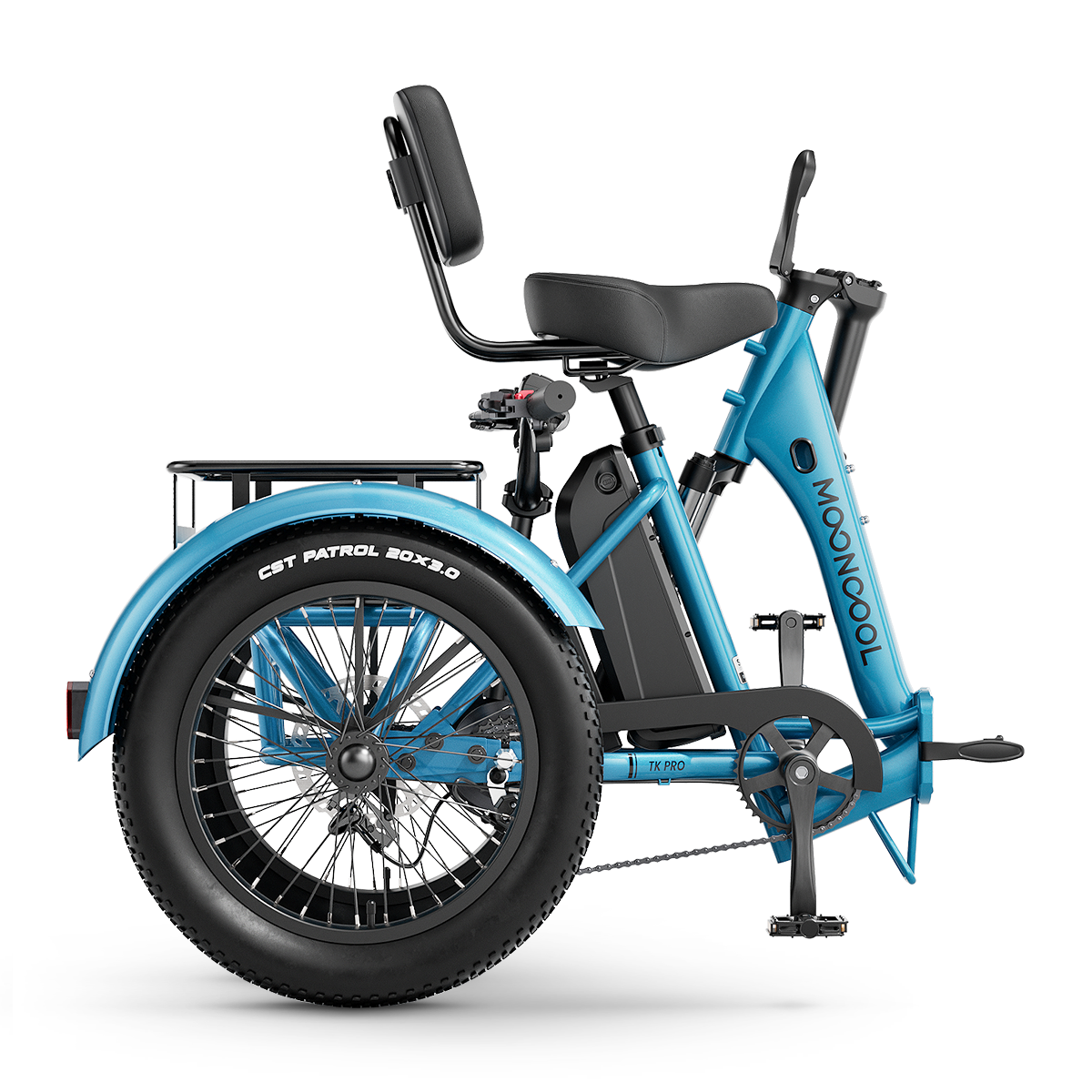

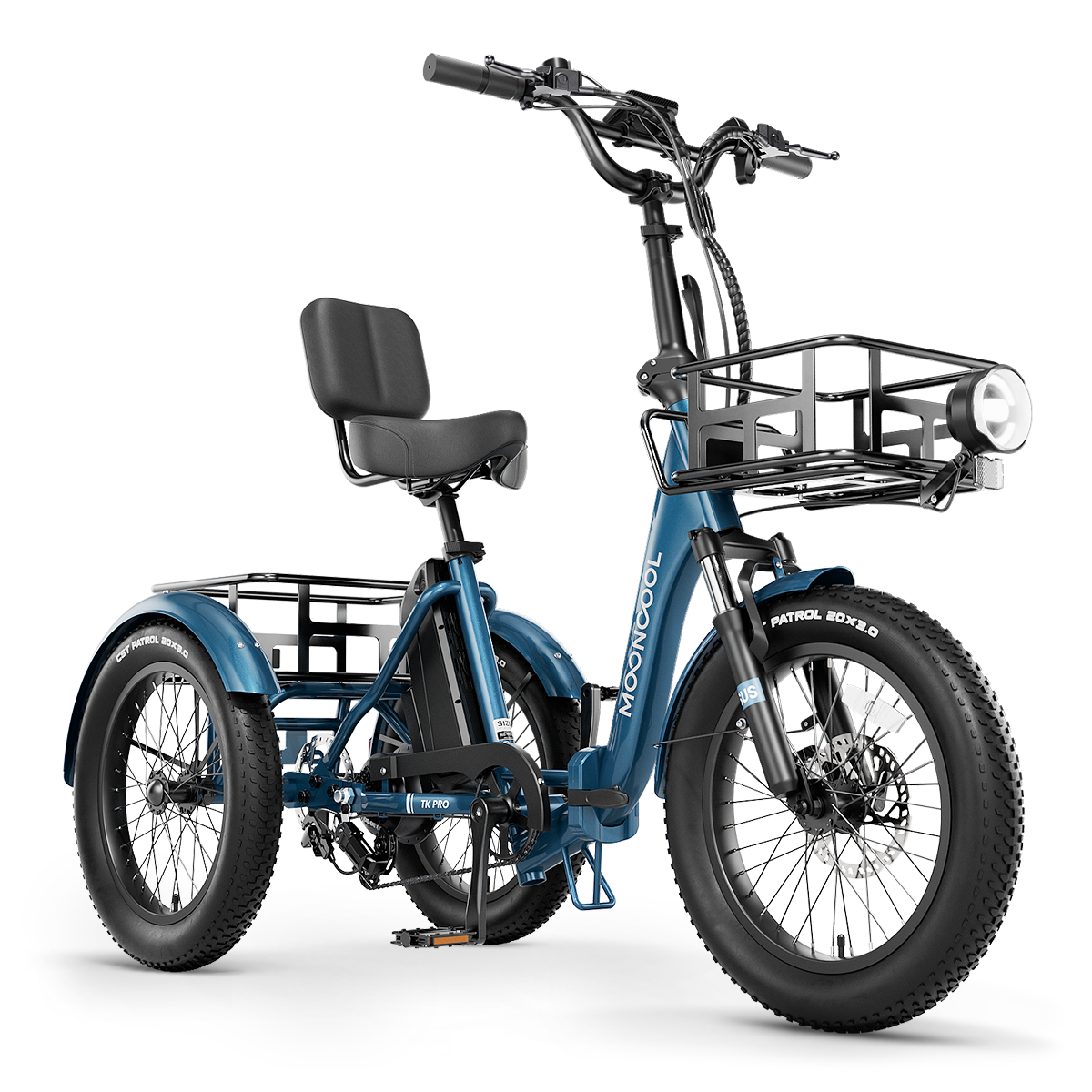

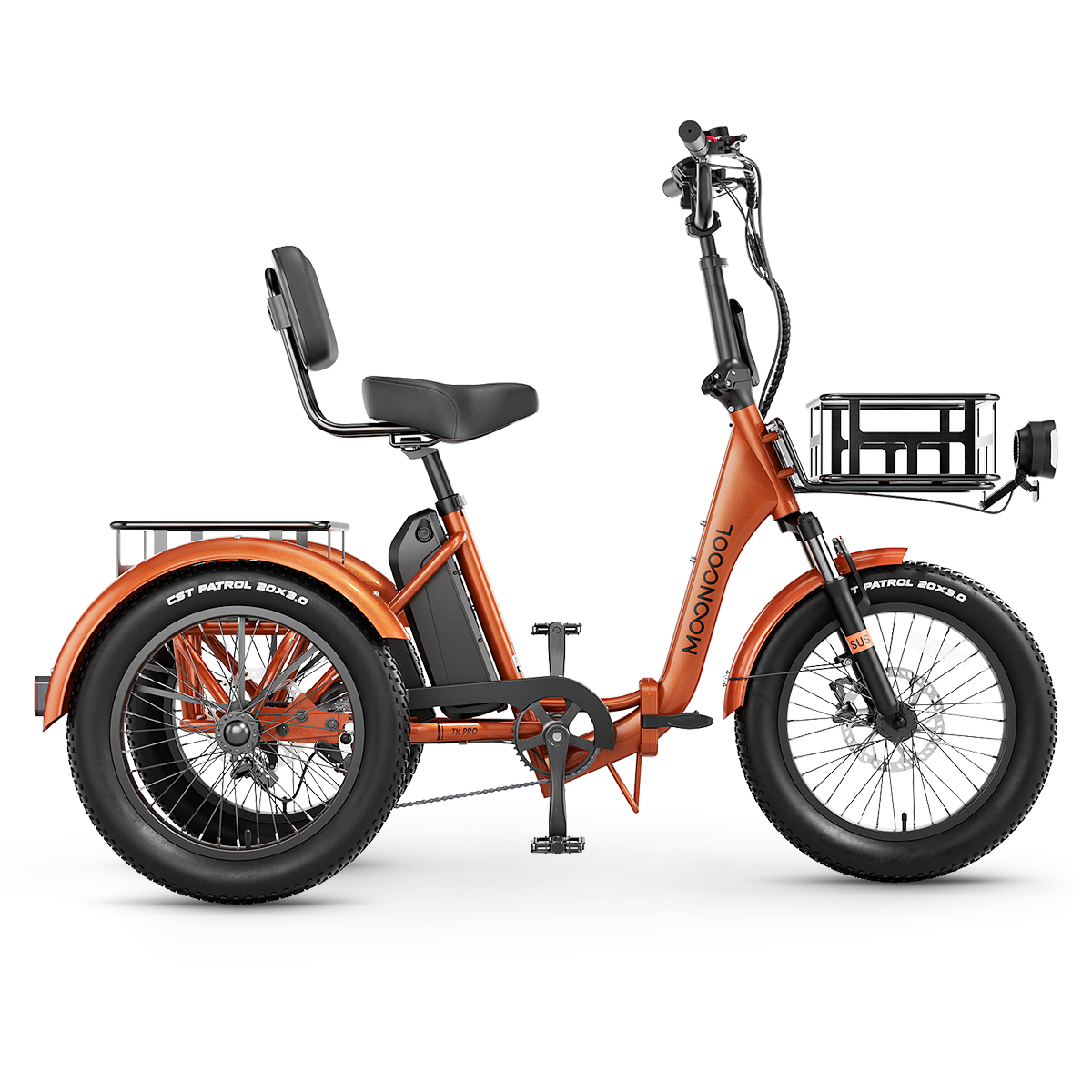

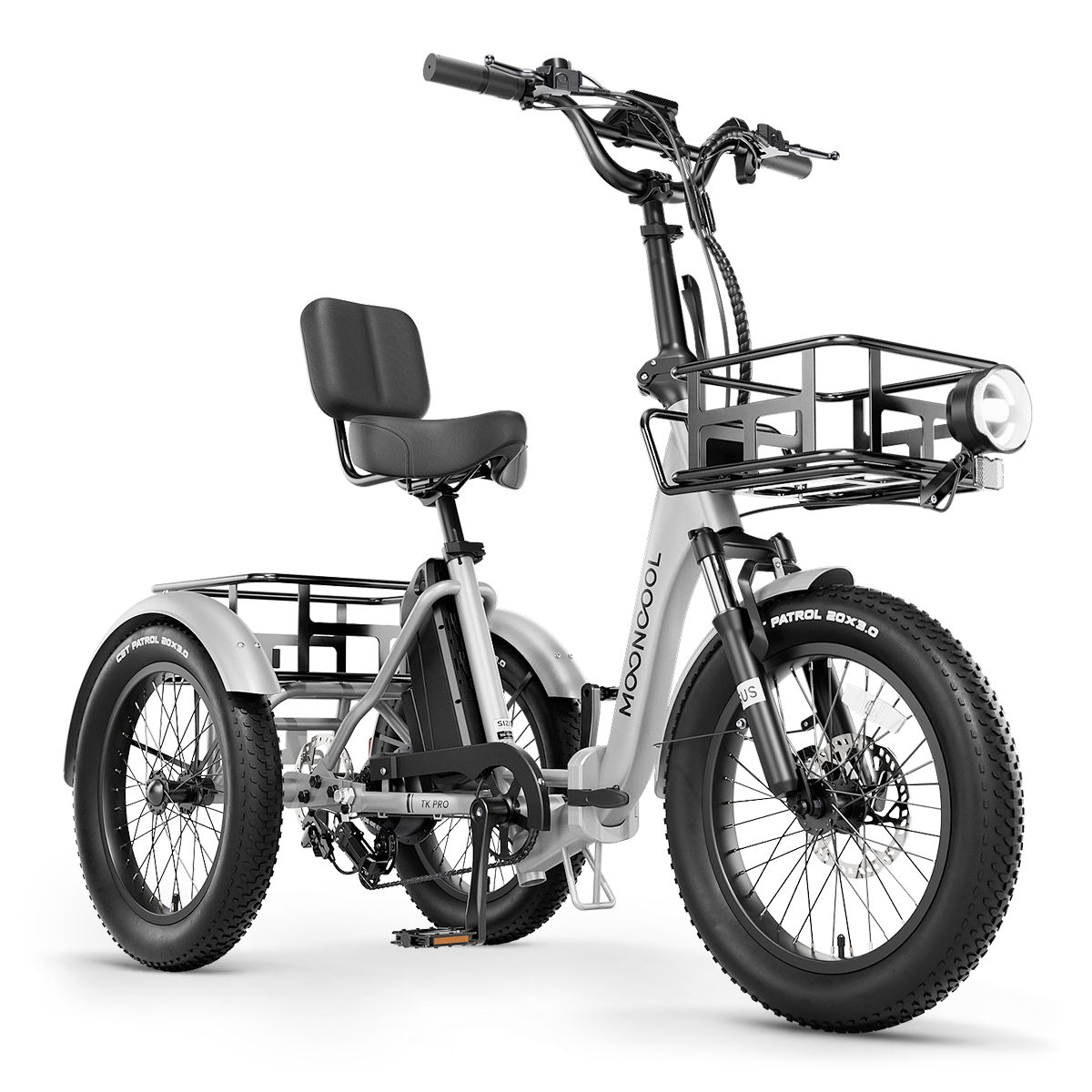

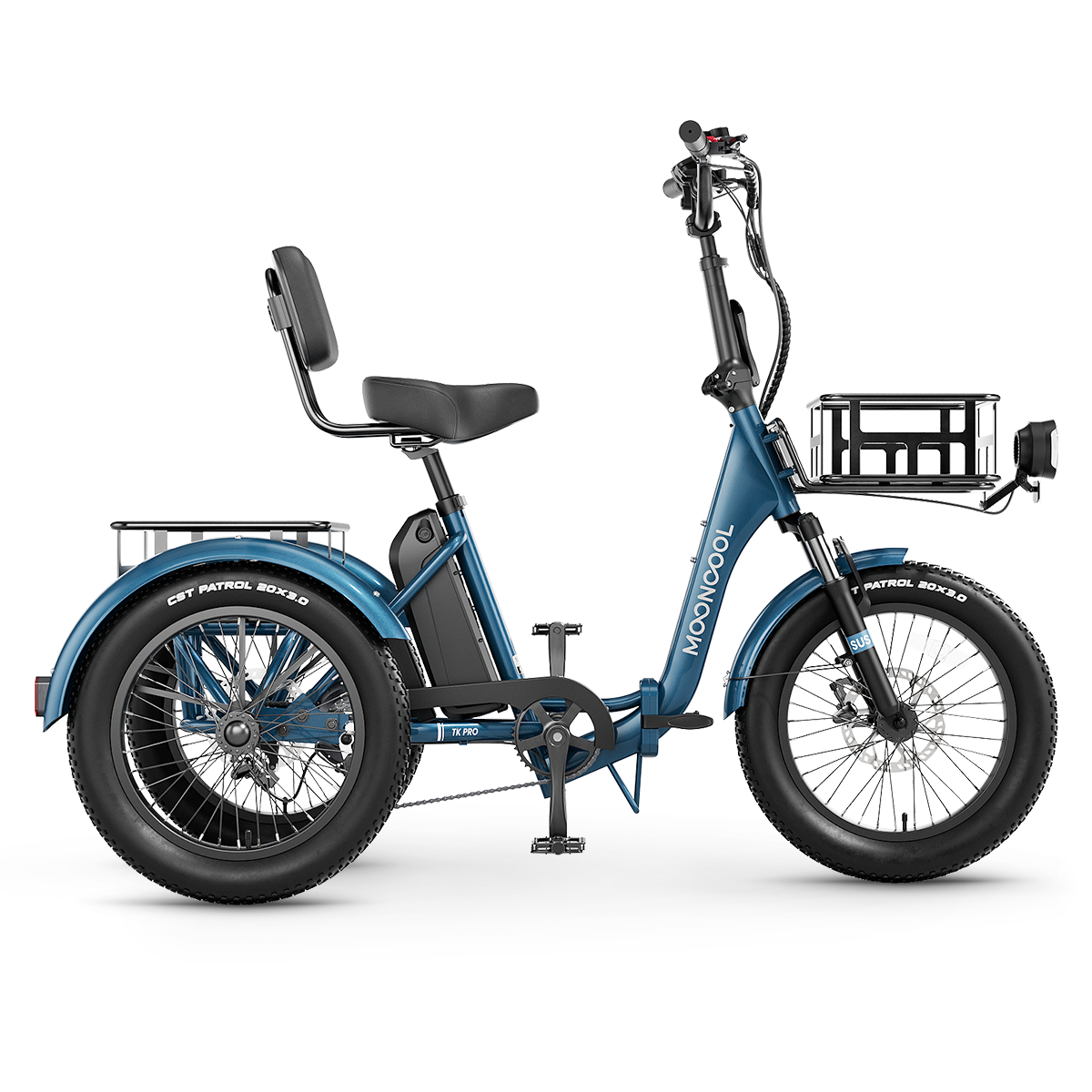

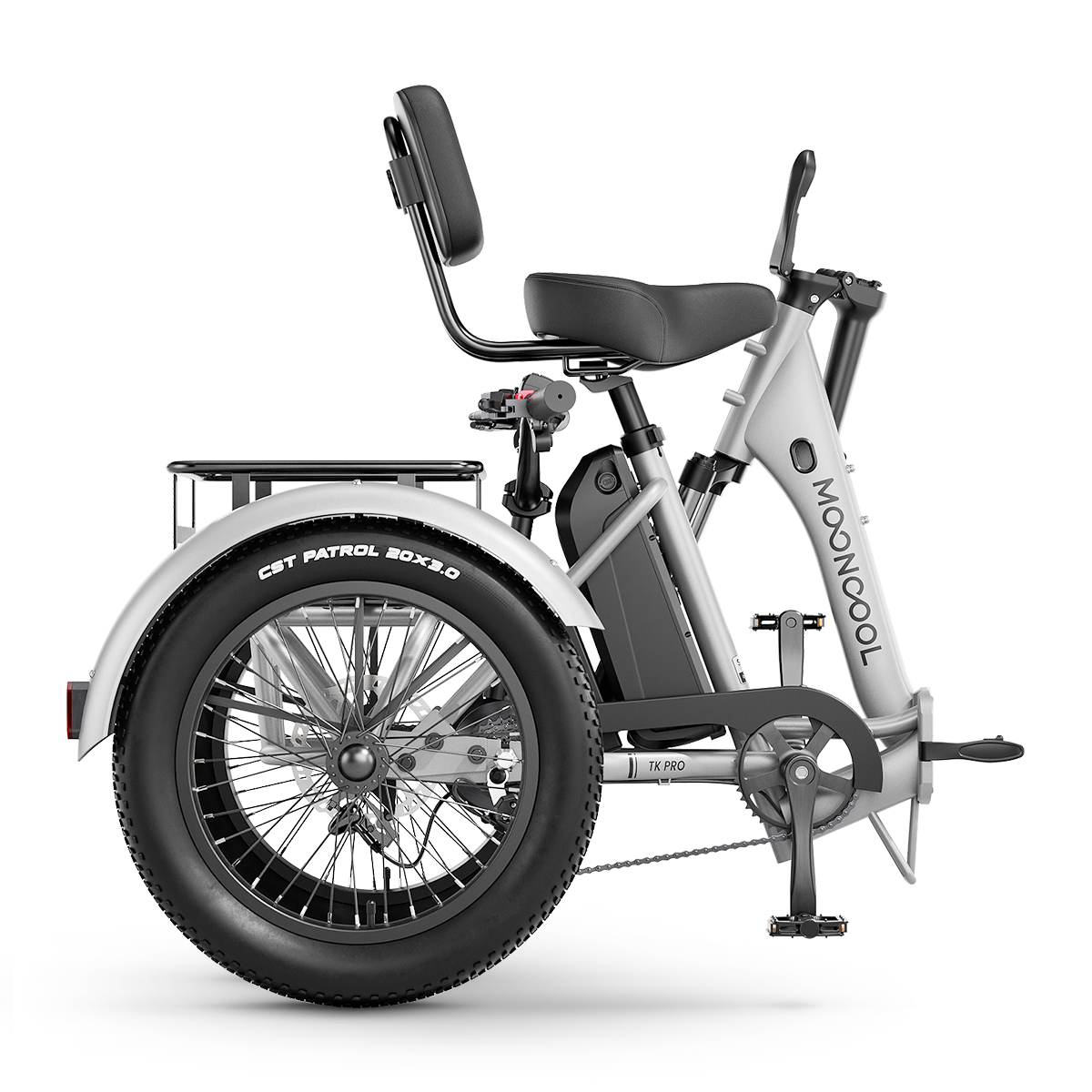

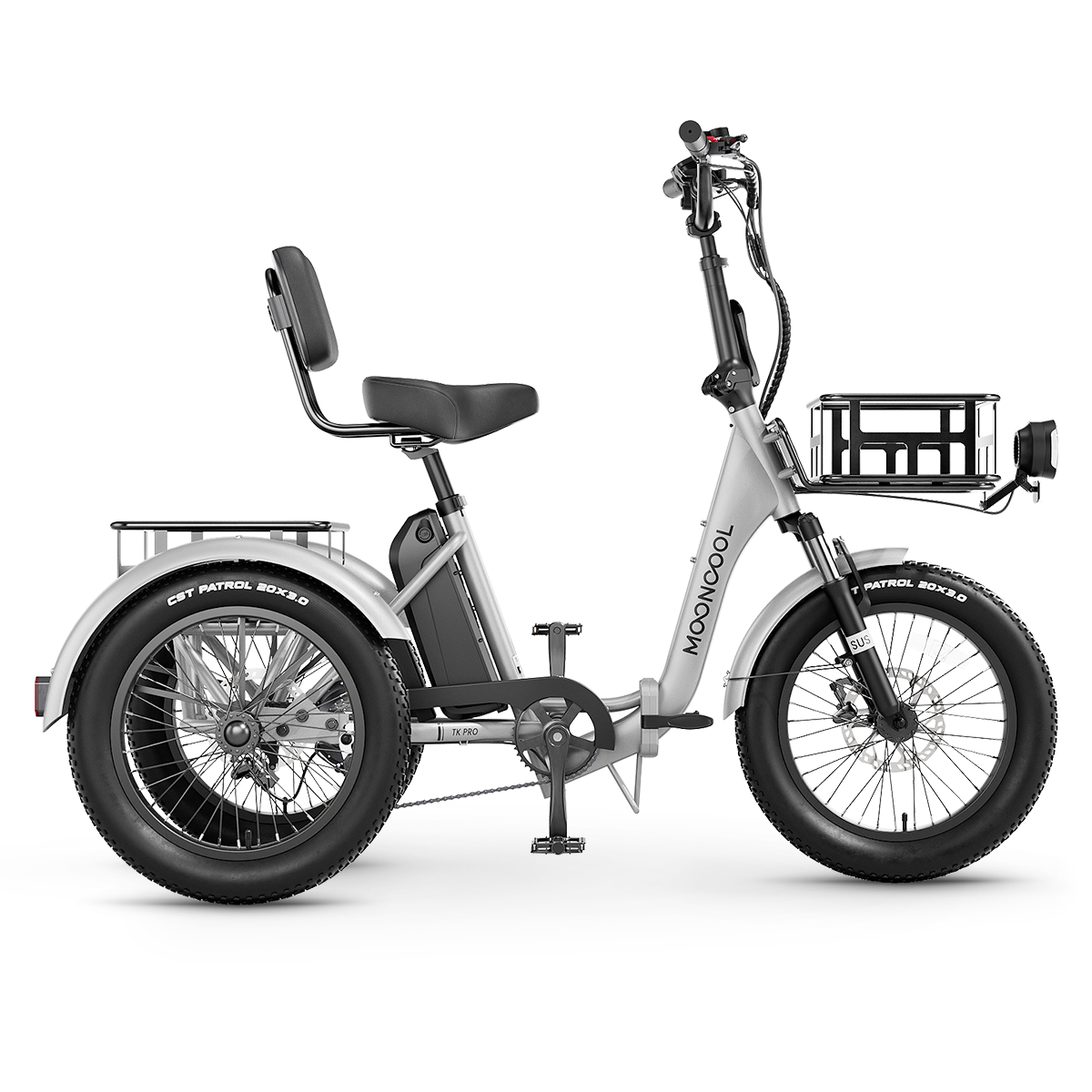

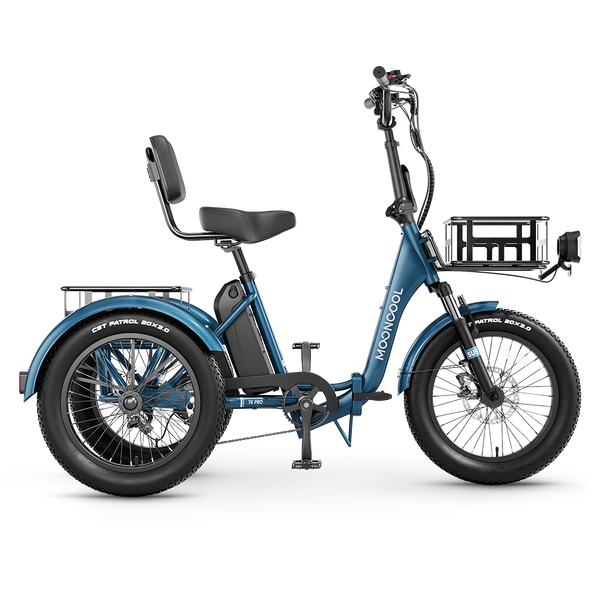

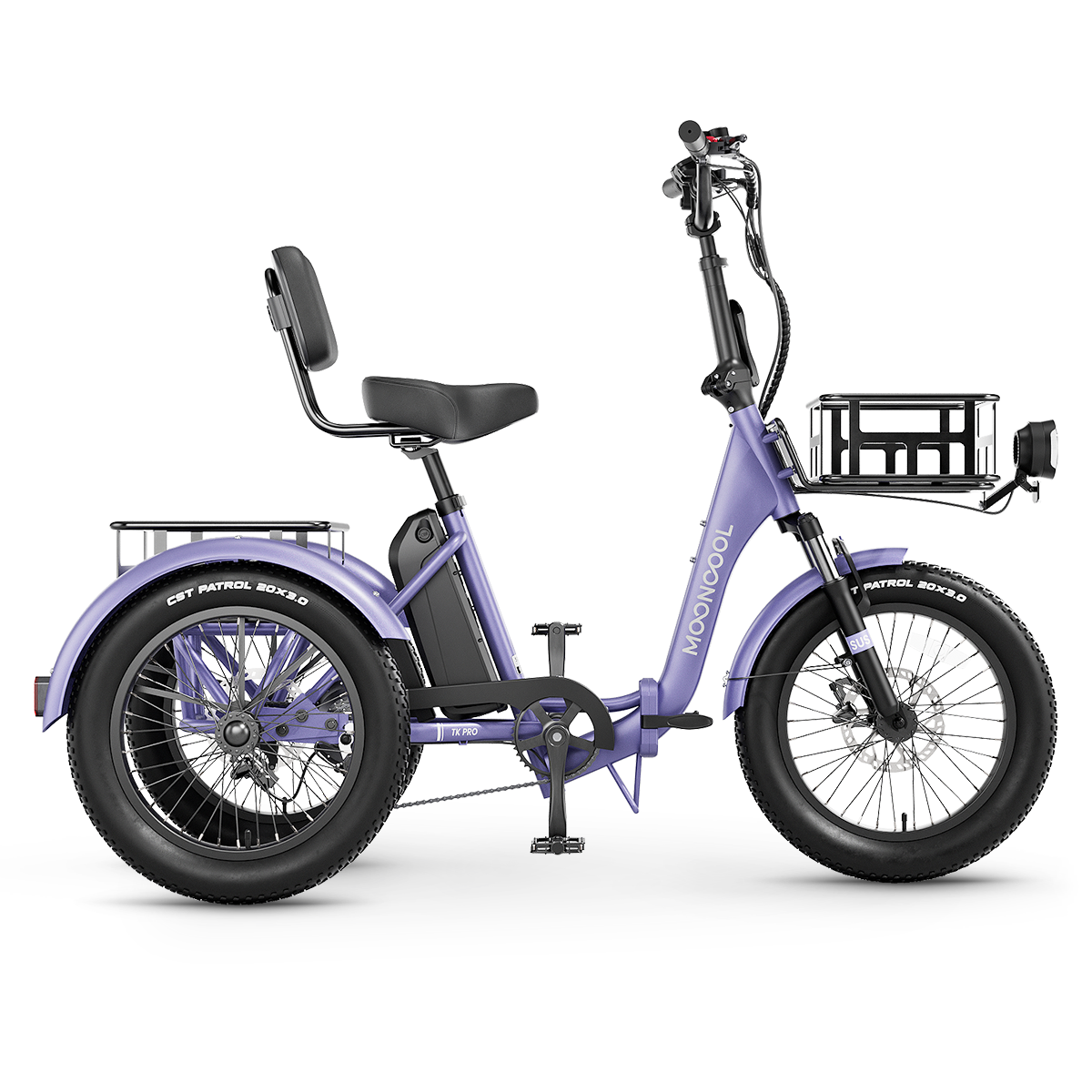

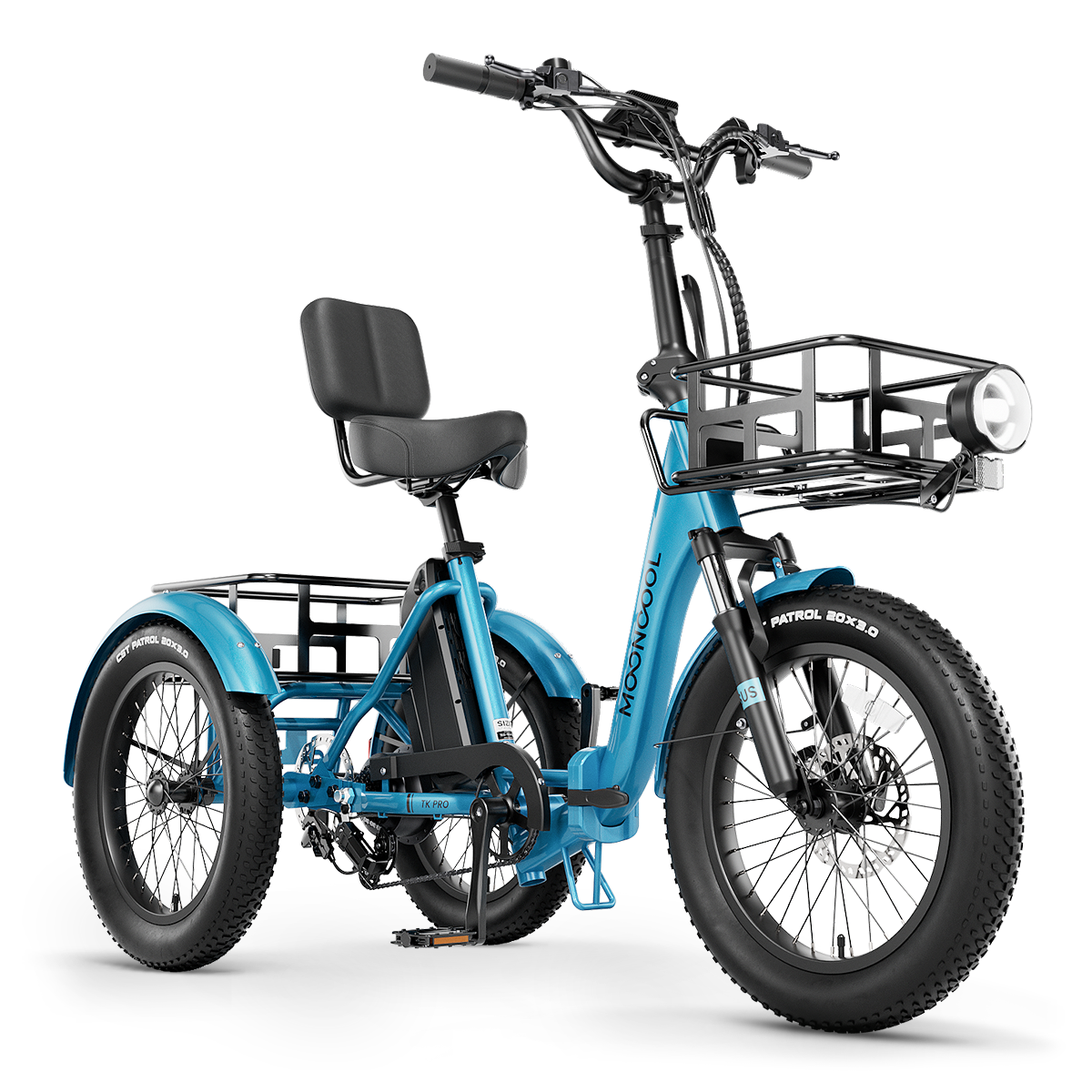

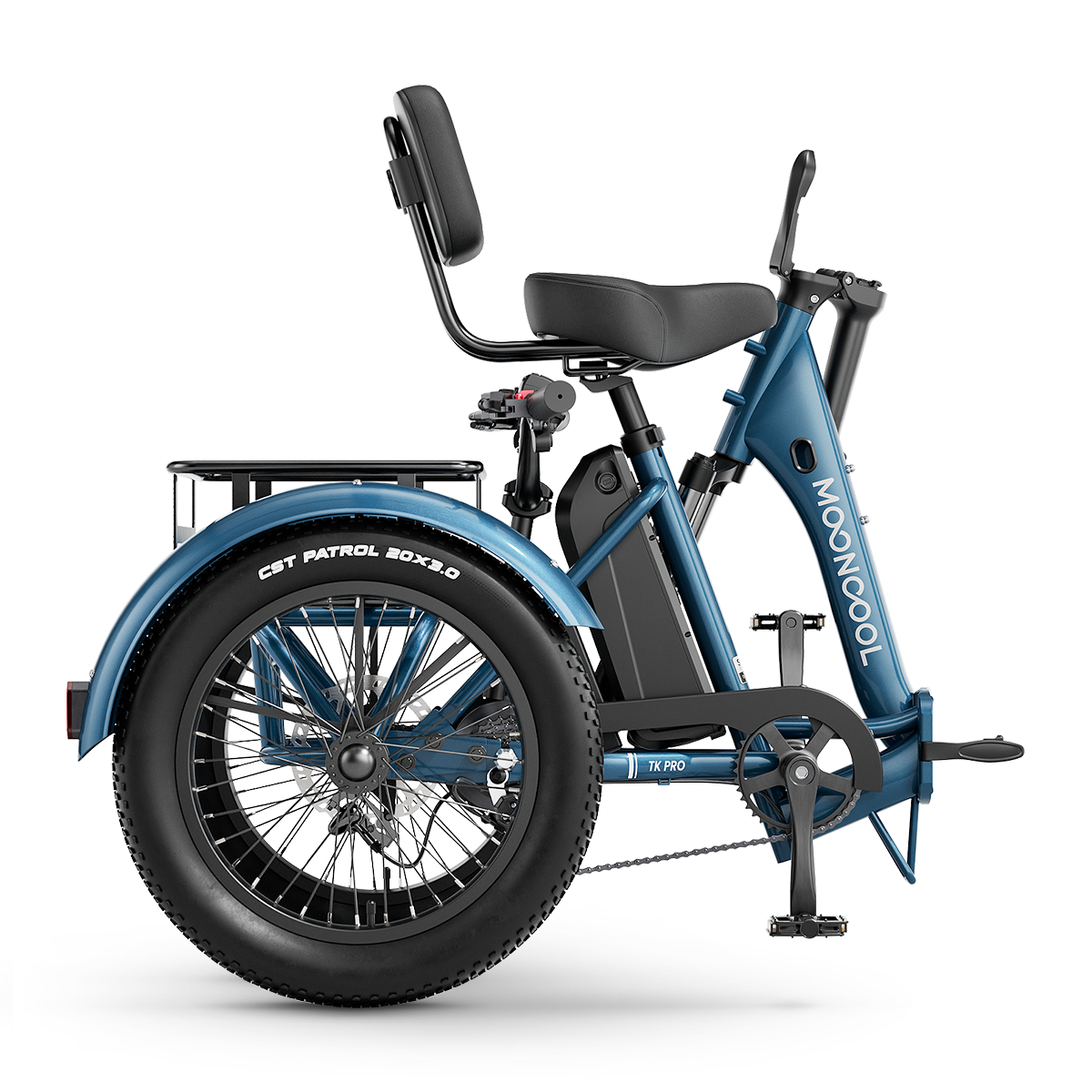

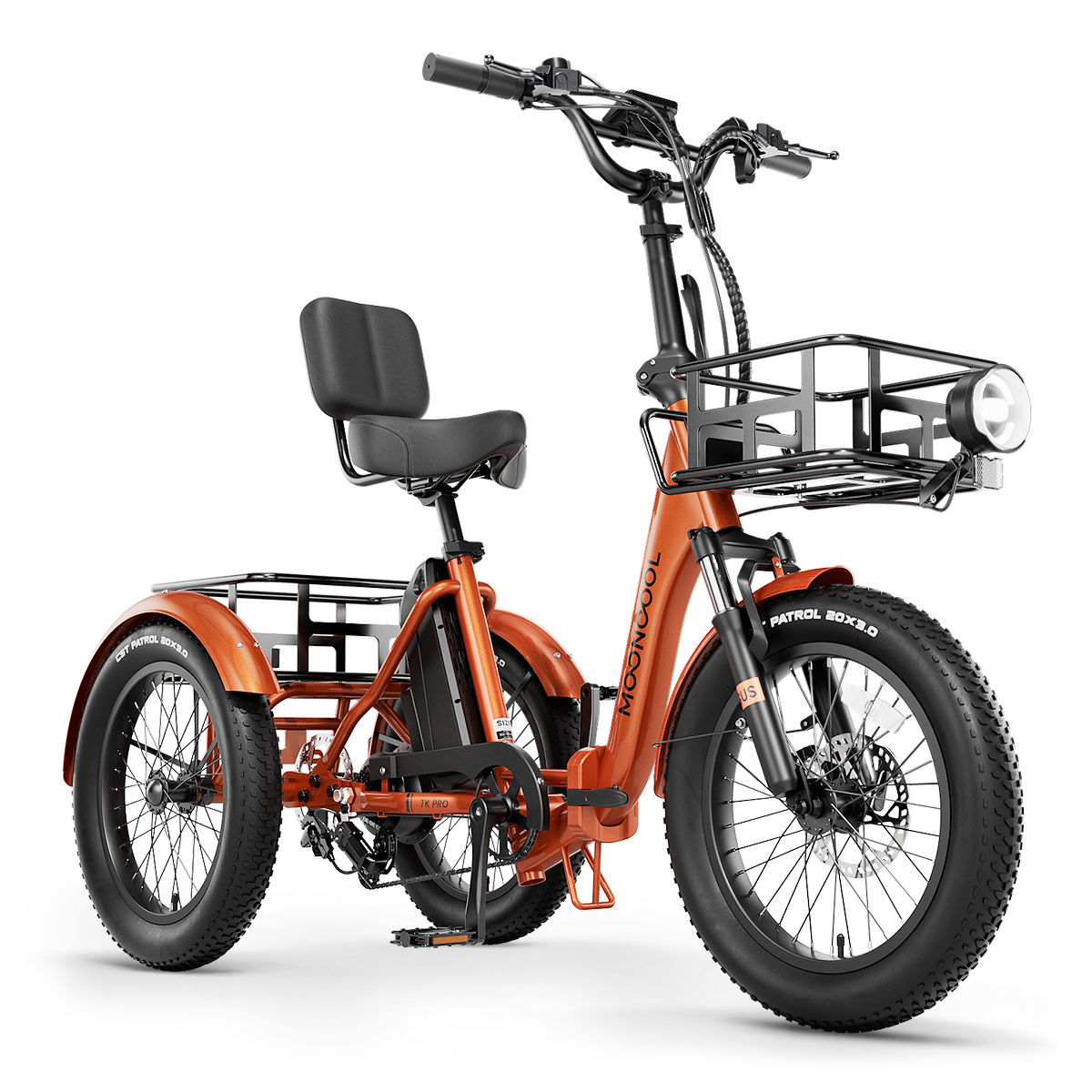

TK Pro Electric Trike
- Accessories in the Mystery Box are shipped randomly and cannot be exchanged, except for quality issues.
- Free accessories cannot be used in conjunction with other discount codes.

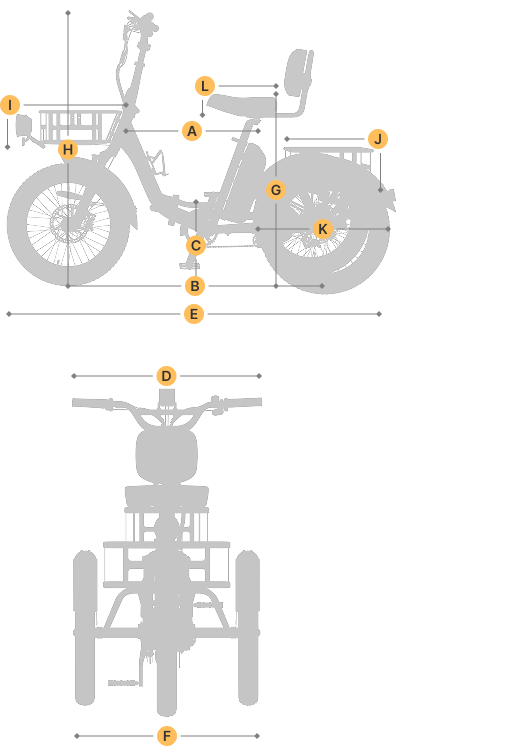

Size & Fit
★ | Folded Size |
39.9(L) x 29.9(W) x 30.7(H) in 101.5(L) x 76(W) x 78(H) cm |
★ | Recommended Height | 5'~6'3" |
A | Top Tube Horizontal | 20.9 in / 53 cm |
B | Wheelbase | 44.1 in / 112 cm |
C | Stand Over Height | 12.2 in / 31 cm |
D | Handle Bar Length | 27.2 in / 69 cm |
E | Total Length | 65 in / 165 cm |
F | Total Width | 28.4 in / 72 cm |
G | Seat Height Min / Max |
30.3~42.1in 77~107 cm |
H | Handle Bar Height Min / Max |
44.1~46.1in 112~117 cm |
I | Front Basket |
12.6 x 11.8 x 5.5 in 32 x 30 x 14 cm |
J | Rear Basket |
18.9 x 14.2 x 6.3 in 48 x 36 x 16 cm |
K | Wheel Size | 20 x 3 in |
L | Seat Size |
12.6 x 11.8 in 32 x 30 cm |
Components
Weight |
G.W. 112.4 lbs, N.W. 90.4 lbs
|
Frame | 6061 Aluminum, Hydroformed Tubes |
Fork | Shock Absorber Front Fork |
Handle Bar | W: 660 * H: 120 * φ22.2 * 2.6T, φ31.8 |
Stem | Adjustable 0-80d, L: 263 mm |
Grip | Soft PVC Rubber |
Saddle | Seat with Backrest, Comfortable Large Vacuum-Foamed Seat |
Seat Post | 6061-T6 Aluminum, φ31.8mm x 550mm Length |
Seat Post Clamp | D40*25, Quick Release |
Shifter | 6-Speed |
Derailleur | Shimano |
Chainwheel | 165mm Alloy Crank, 38T Steel Chainring |
Chain | KMC Z7 |
Freewheel | 5S^14T/16T/20T/24T/28T, Special Purpose for E-bike |
Pedal | Alloy Body, 9/16-inch |
Display
|
Intelligent Digital LCD Display Appears More Clearly in Sunlight, Color
|
Brake | STARUNION Hydraulic Disc Brake, Alloy, 180mm Rotor |
Brake Level | STARUNION Alloy 3-Finger Hydraulic Disc Brake with Electrical Cut-Off Function |
Rim | 20-inch Alloy Rim, 3.0" Width, 13G Spokes, 36 Holes, AV |
Tire | 20 x 3.0 Tire, 30 TPI |
Spokes | 304 Stainless Steel, 13G |
Parking Brake | With |
Fenders | With |
Rear Rack | With |
Front Basket | With |
Rear Basket | With |
Assembly | 95% |
Colors | 5 Colors |
Carton Size | 1010mm x 760mm x 770mm /
39.8 x 29.9 x 30.3 inches |
Load Capacity |
450LBS
|
Recommended Height | 5'-6'3" |
Specification
Motor | 48V*750W |
Battery | 48V*20Ah |
Range | 45-75 Miles |
Charger | 110-240V 54.6V 3A |
Charging Time | 7 Hours |
Max Safe Speed | 16 Mph |
Controller | Sine Wave FOC 48V 24amp Peak |
Sensor | Upgraded Torque Sensor |
Throttle | Half Twist Throttle |
Wire Harness | All Water-Resistant |
Front Light | Starunion LED, Horn Function, CPSP Reflector |
Rear Light | Starunion LED, Brake Highlight Function, Turn Signals Function |
Friendly Reminder:

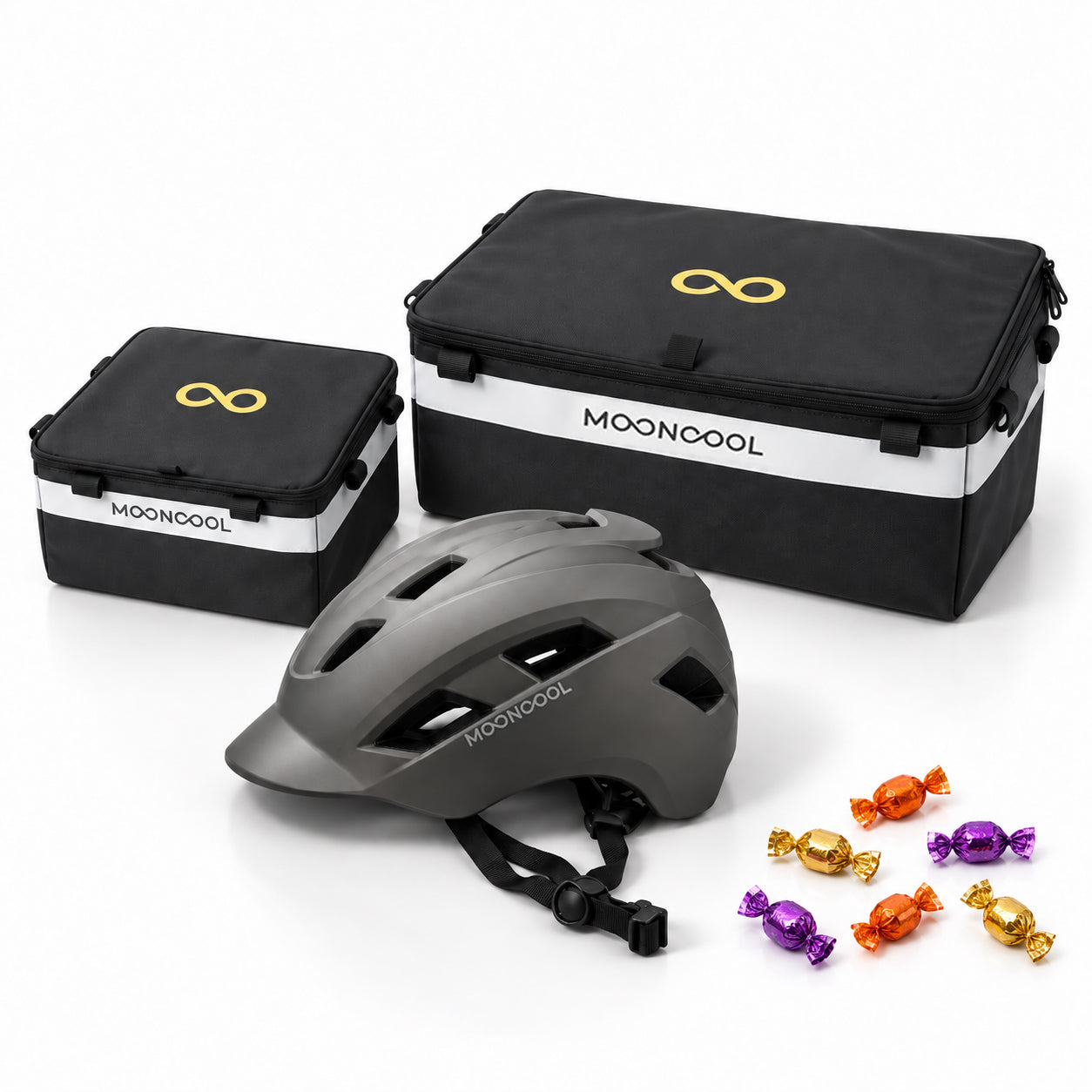

- All accessories may be included in the Mystery Box and will be shipped randomly.
- The value of the Mystery Box is guaranteed to exceed $200.
- Accessories may be packaged separately and sent in multiple shipments.
- The Mystery Box is free and is not eligible for exchanges.
- If you choose to return the E-trike, the Mystery Box must also be returned.
- For each E-trike purchased, you will receive one Mystery Box as a complimentary gift.
- Front Storage Bag: 12.20 * 10.63 * 5.91 in / 31 * 27 * 15 cm
- Rear Storage Bag: 18.11* 13.98 * 6.30 in / 46 * 35.5 * 16 cm
- Waterproof Polyester Fabric: 600D
- Compatible Trike Models: TK1 Folding, TK Pro

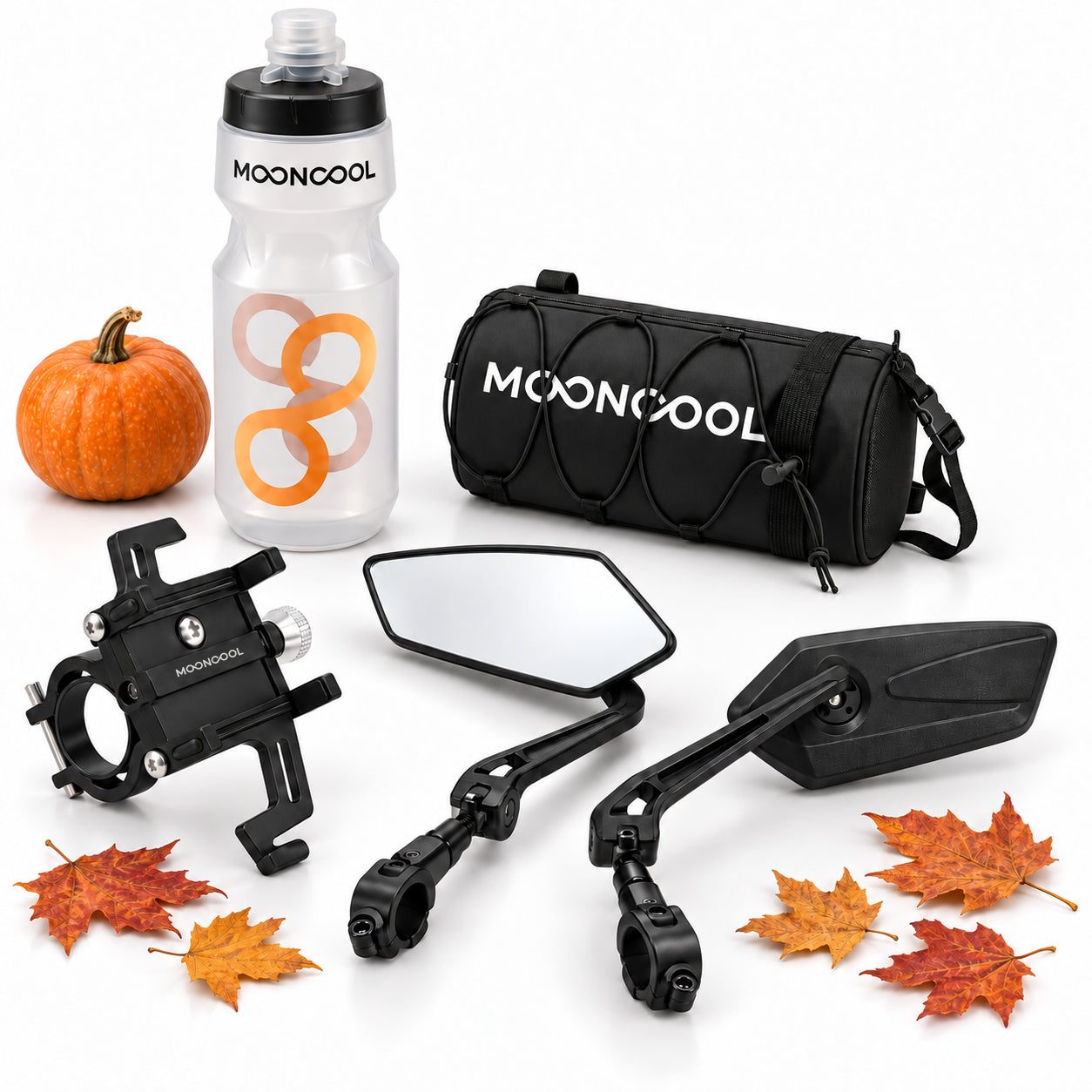

- Phone Holder x 1
- Water Bottle x 1
- Handlebar Bag x 1
- Mirrors (Pair) x 1
Providing you with professional and excellent protection,
whether on or off the road.
- Cool Gray
- White
- M
- L
- Size: 17.52 * 12.60 * 13.39 in / 44.5 * 32.0 * 34.0 cm
- Waterproof Polyester Fabric: 600D
- Compatible Trike Models: TK1 Folding, TK Pro
- Keeps cold for up to 72 hours with a 16L storage capacity.
- Size: 42.5*26.5*31cm / 16.73" x 10.43" x 12.20"
- Weight: 2600g / 5.73 lbs
- Full Black
- Vibrant Orange
- Black
- White
- Ample space accommodates most adult trikes.
- Dual-ended zipper system with waterproof flap
- Convenient matching carrying bag
-
Dimensions: 78.7''(L) x 63''(W) x 63''(H)
- Green
- Black
Pick the Ride That Suits You Best!
750W Rear Drive Motor
500W Rear Drive Motor
48V*20Ah
48V*14.5Ah
45~75 Miles
35~70 Miles
95%
95%
G.W. 112.4 lbs, N.W. 90.4 lbs
G.W. 115.7lbs, N.W. 89.9lbs
450LBS
450LBS
20" x 3.0, 30 TPI
20" x 3.0 CHAOYANG H5183
16MPH
16MPH
Torque Sensor
Cadence Sensor
Six-Speed
Single-Speed
LCD Color Screen
LCD Gray Screen
With Backrest
Without Backrest
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Safety
Our approach to accessibility goes beyond physical design
Comfort
And inclusivity, making sure every rider feels confident and empowered
Accessibility
It encompasses affordability, ensuring our E-Trikes are within reach
Rear Drive Motor
Equipped with a 750W rear drive motor, reaching up to 1500W peak power and a 450 lbs load capacity, it offers more powerful and reliable performance to tackle various terrains and travel needs.
Battery Power
Equipped with a removable 48V*20Ah lithium battery. Provides a range of 45 to 75 miles on a single charge. Explore with confidence and no worries about battery life.
Torque Sensor
The torque sensor detects the rider's pedaling force, offering responsive and efficient assistance for a natural riding experience, making it a better choice than cadence sensors.
Shimano 6 Speed
The Shimano 6-speed gear system allows riders to select the appropriate gear based on speed and terrain, enhancing functionality and making rides more enjoyable and efficient.
Low-Step Frame
The low-step design makes mounting and dismounting easier, reducing the risk of tripping and ensuring a safe, smooth ride for all mobility levels.
Speed Differential Mechanism
Adjusting the wheel speed difference enhances vehicle handling and stability, allowing for smoother turns and greatly improving riding safety.
Folding Structure
Equipped with a quick and compact folding mechanism, it facilitates easy transportation and storage without occupying excessive space.
Turn Signals & Horn Function
Equipped with turn signals and a horn, it enhances visibility and safety, enabling riders to navigate urban environments with greater confidence.
Comfort and Care in Every Ride
Assembly Video
Our assembly videos will walk you through assembly
This product has no reviews yet.
FAQs
What are the dimensions of the TK Pro when it's folded?
When folded, the TK Pro Electric Trike measures 101.5 x 76 x 78 cm (39.9 x 29.9 x 30.7 inches), making it compact for storage and convenient to transport.
How assembled is the TK Pro electric trike when it arrives, and what will I need to do to finish the assembly?
Arrives 95% assembled with simple final steps. Tools and clear instructions included for a quick, hassle-free setup.
Does the electric trike come with a battery and both front and rear baskets included?
Yes, indeed! Your trike arrives with a battery and both baskets included, ready for immediate use.
